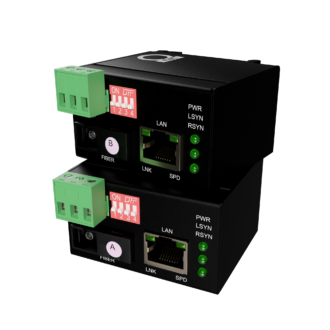

WDM SC Single Fiber Industrial Grade Mini Type 10/100/1000M Gigabit Giber Optic Media Converter

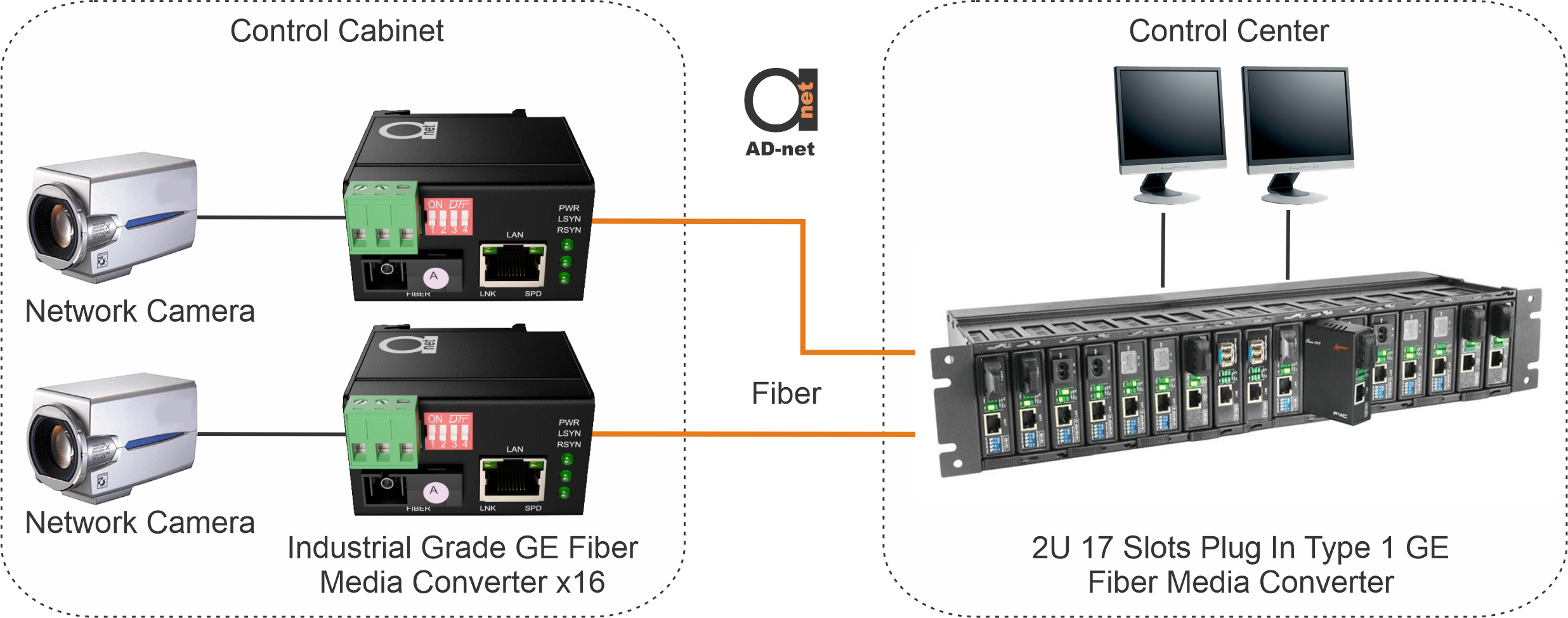

This series of products is an industrial-grade 1-port 10/100 / 1000M Ethernet to 1000Base-X optical fiber conversion, which is mainly used for long-distance (20 km) transmission of optical fiber networks. This product provides 1 Gigabit optical port; 1 Gigabit Ethernet electrical port. With complete alarm function, the whole machine works stably and reliably, low power consumption, high integration and small size.
- Industrial Ethernet series, specially designed for harsh and harsh industrial environments;
- The device provides 1 Gigabit Ethernet electrical port and 1 Gigabit optical port, sharing the Gigabit bandwidth, the transmission bandwidth is 1000M line speed, and the Gigabit optical port supports distance transmission of 20 KM;
- Electrical interface (RJ45 interface) supports 10/100/1000M adaptive, full / half duplex mode, MDI / MDI-X automatic detection;
- Support LFP function, can send the alarm of the optical port to the electrical port, and can be set to open with the DIP switch;
- Support the configuration of 1000BASE-X and 100BASE-FX optical ports, which can be set with DIP switches;
- Support displaying the LINK status of the optical port at the local end for the remote end and displaying it with LED lights;
- With broadcast storm protection, traffic balance, isolation conflict, error detection and self-reset, it is suitable for high traffic data applications such as video transmission;
- Support the transmission of VLAN extra-long data packets, which can be matched with switch products supporting IEEE802.1Q protocol, MTU≥10240;
- Support wide range AC and DC input; support internal isolation;
- The power supply supports overload protection and anti-reverse connection protection;
- Comply with industrial level 4 electromagnetic compatibility requirements;
- Super lightning protection function: anti-lightning, anti-induction high voltage, anti-surge, etc .;
- Fanless efficient heat dissipation, reducing repair time;
- IP40 enclosure protection level, can withstand the test of harsh environment;

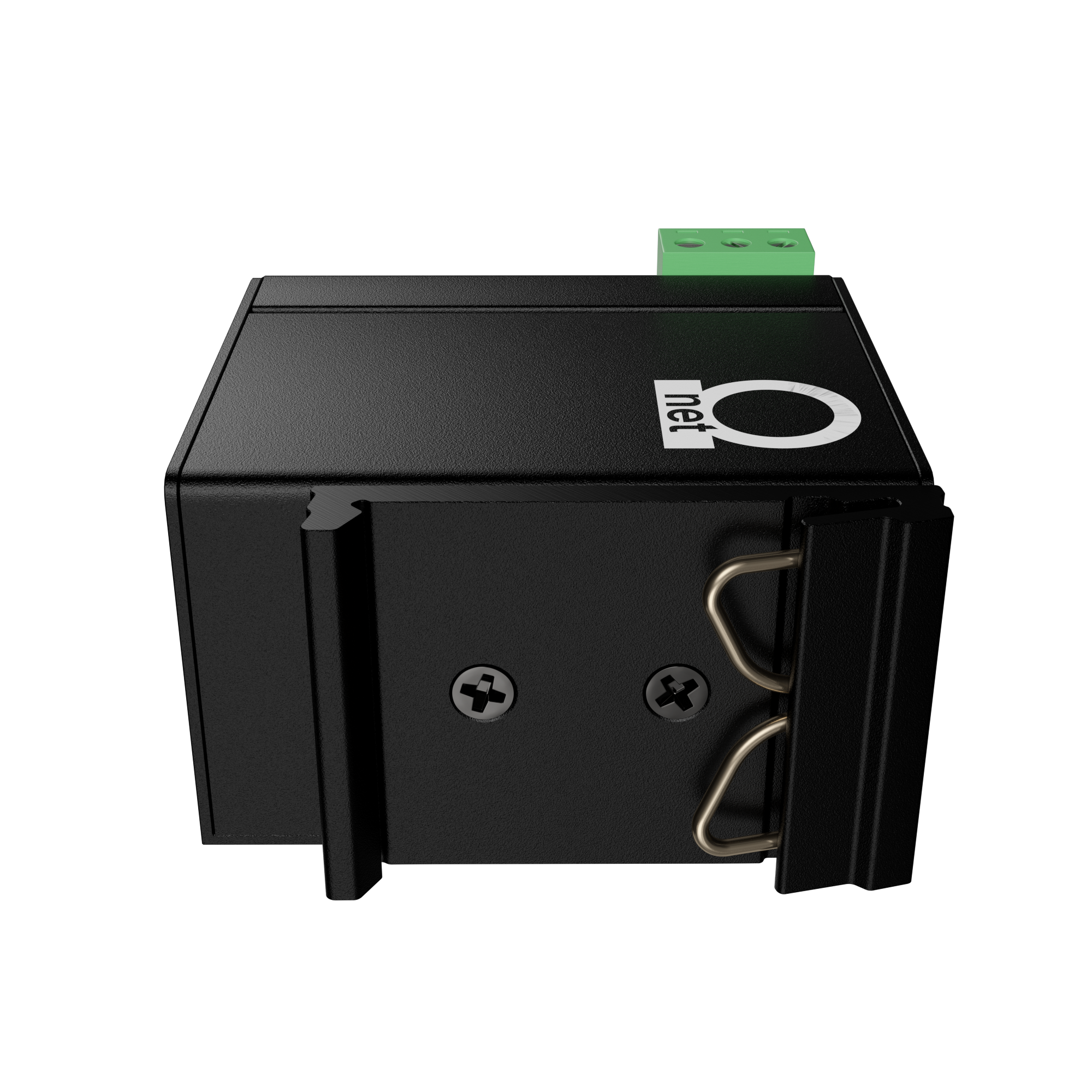

- Rail or wall mounting;
- Wide temperature type: working temperature -40 ℃ ~ + 85 ℃;
- All models have passed 100% baking machine test, warranty period: 5 years;
Fiber
Optical port: 1
Optical port rate: 1.25G
Optical fiber: Single Fiber WDM
Optical fiber interface: SC
Wavelength: 1310nm / 1550nm single mode
Transmission distance without relay: 20
Typical transmit power:
1310 / 1550nm single mode: ≥-9dBm
Acceptance sensitivity range: -28dBm ~-40dBm

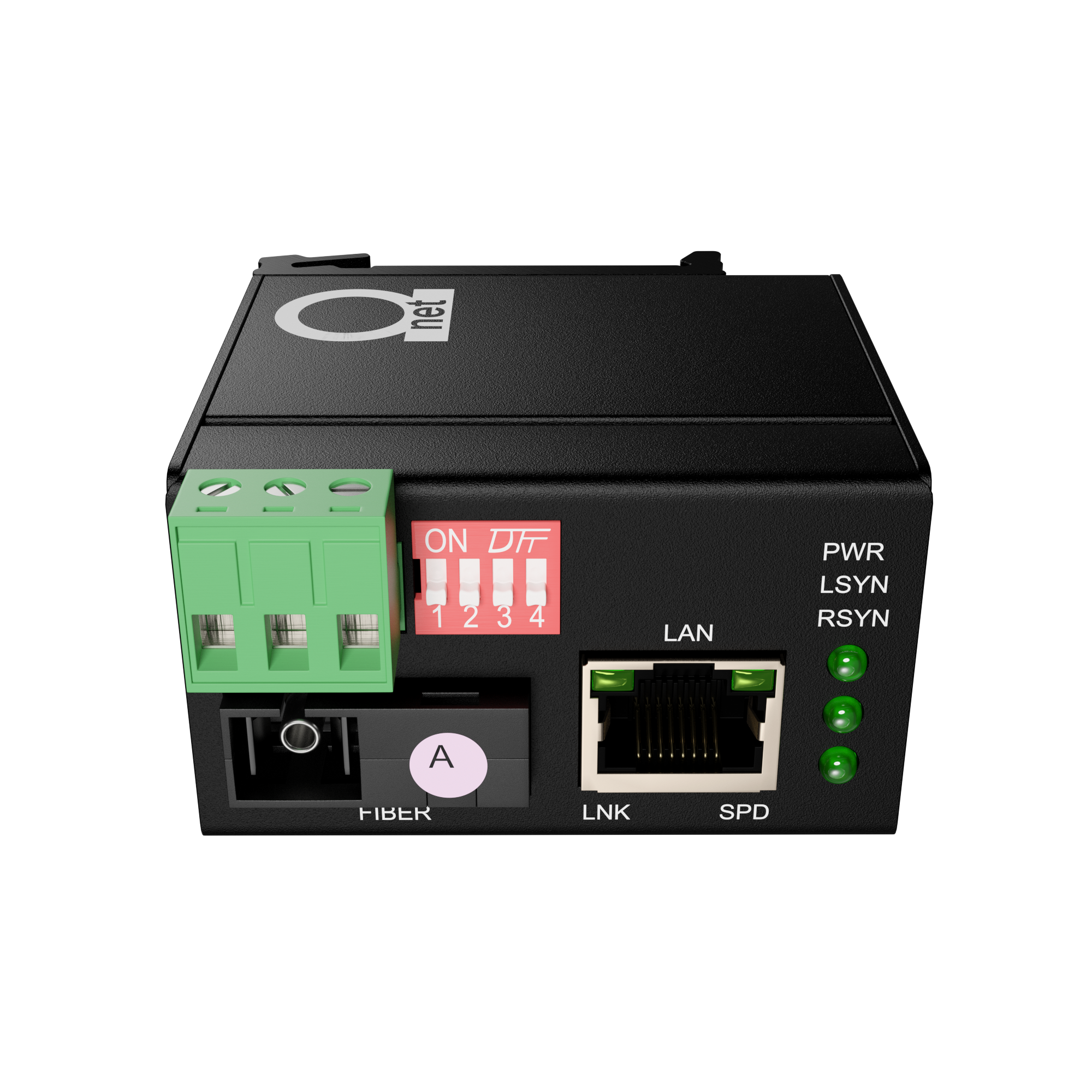

DIP switch function
DIP-1: ON:Enable/OFF:disable LFP function
DIP-2: ON:fiber port 100BASE-FX/OFF: 1000BASE-X
DIP-3: ON:Fiber Port 1000Base-X auto-nego enable /OFF:disable
DIP-4: Reserved
10/100 / 1000M Ethernet interface
Protocol: IEEE 802.3az, IEEE 802.1Q (VLAN)
Speed: 10 / 100M adaptive, full / half duplex fully adaptive
MAC address table: can learn 4096 MAC addresses
Physical interface: RJ45 support Auto-MDIX
Electrical and mechanical characteristics
System power: AC180V ~ 260V; DC–48V; DC + 24V
(Supports dual power supply redundant backup)
Power consumption: ≤3W
Appearance structure: 60mm (length) X50 (width) X35 (height) mm mini
Weight: 0.25Kg / set
Working environment
Operating temperature: -40℃-+85℃
Storage temperature: -40℃-+85℃
Working humidity: 0%-95% (No condensation）
MTBF: >100,000 hour
| Product number | FCM-G1m |
| Product Function Description | mini type 10/100/1000M industrail grade GE fiber media converter |
| Business port description | 1 Gigabit Ethernet optical port, 1 Gigabit Ethernet electrical port |
| Power supply |
Power input DC9-55V / AC7-48V, power consumption <3W Overload protection: support; reverse connection protection: support; Access terminal: 4-core 5.08mm pitch plug-in terminal |
| Product Size | Dimensions: 60mm (length) x 50mm (width) x 35.0mm (height) 35mm rail type |
| weight | 0.25Kg /PCS |
| AN-UMG130-AS-20-mini-I | Mini Type Industrial Grade Extender Temperature range fiber media converter, WDM Single Mode Single Fiber, 1310/1550nm A side |
|
| AN-UMG150-AS-20-mini-I | Mini Type Industrial Grade Extender Temperature range fiber media converter, WDM Single Mode Single Fiber, 1550/1310 nm B side |
Description
This series of products is an industrial-grade 1-port 10/100 / 1000M Ethernet to 1000Base-X optical fiber conversion, which is mainly used for long-distance (20 km) transmission of optical fiber networks. This product provides 1 Gigabit optical port; 1 Gigabit Ethernet electrical port. With complete alarm function, the whole machine works stably and reliably, low power consumption, high integration and small size.
