n x E1 G.703 series + Ethernet series (9 Products)


When there is a need to send Fast or Gigabit Ethernet over same fiber along with 1E1, 4E1, 8E1, 16E1 or more, look no further than this category

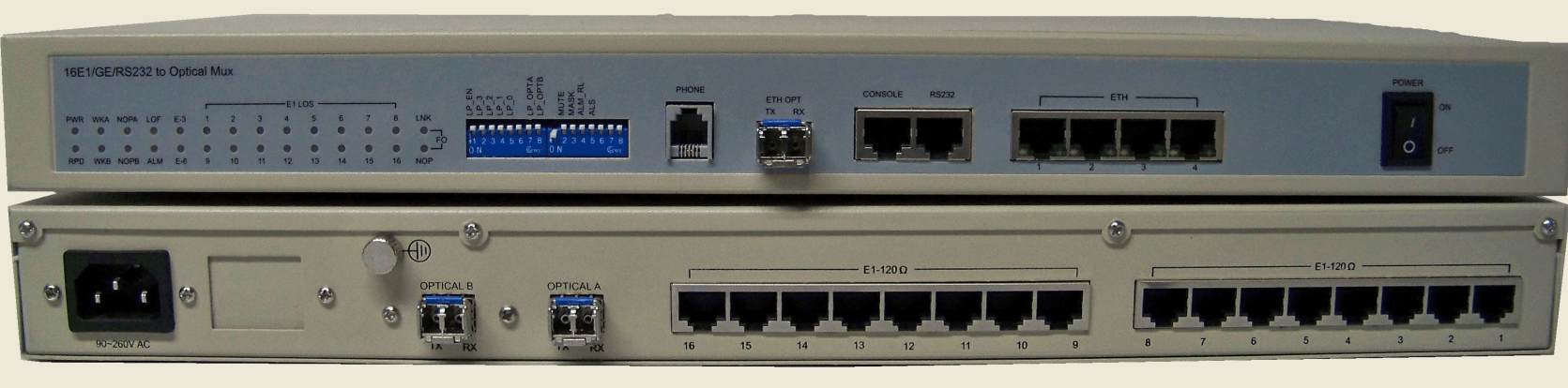

16 E1 G.703 + 5 x 10/100/1000 GE over fiber multiplexer with smart GUI and dot1Q, QoS and shaping

The AN-FM-480-GETH-G is designed as point to point optical transmission system based on Application Specific Integrated Circuit (ASIC). It integrates the traditional PDH multiplexer and 1000Mbps Ethernet optical transceiver, and can realize the 16 E1s and 1000Mbps wire-speed Ethernet transmission over fiber. It not only provides dual hot-pluggable optical interfaces to realize 1+1 optical protection, but also integrates one RS232…

8 E1 G.703 + 5 x 10/100/1000 GE over fiber multiplexer with smart GUI and dot1Q, QoS and shaping

The AN-FM-240-GETH-G is designed as point to point optical transmission system based on Application Specific Integrated Circuit (ASIC). It integrates the traditional PDH multiplexer and 1000Mbps Ethernet optical transceiver, and can realize the 8 E1s and 1000Mbps wire-speed Ethernet transmission over fiber. It not only provides dual hot-pluggable optical interfaces to realize 1+1 optical protection, but also integrates one RS232…

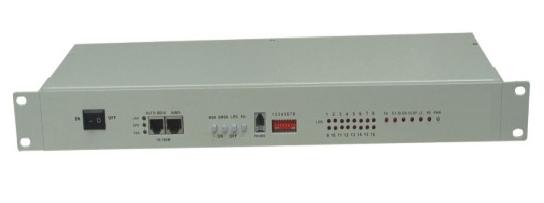

16 x E1 G.703 + 4 x Gigabit Ethernet fiber multiplexer

AN-FM-480-4GETH offers reliable transmission of 16xE1 G.703 + 4 x Gigabit Ethernet 10/100/1000 ports. 2 RS-232 channels are available as an option. 1+1 fiber optical uplink, Multimode, Single mode and WDM single fiber versions up to 80 km for your use. The BNC model provides unbalanced 75 Ohm coaxial connections while the RJ-45 model provides balanced 120 Ohm connections over twisted pair wiring. All models…

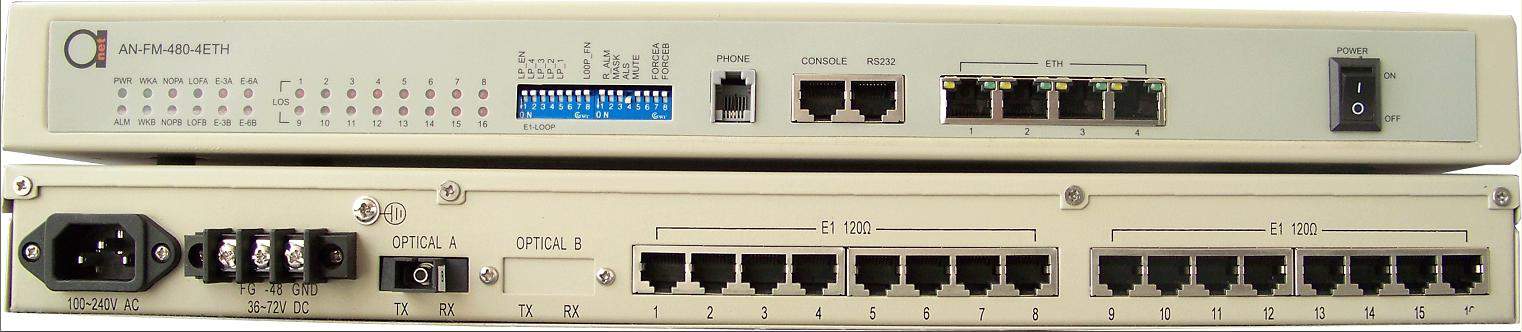

16 x E1 G.703 + 4 x 10/100 Ethernet fiber multiplexer with dot1Q VLAN’s, QoS, and BW shaping

AN-FM-480-4ETH series of Multi E1 & Fast Ethernet Optical Terminal is a product combining of a PDH optical transport system and an Ethernet transceiver.   AN-FM-480-4ETH can provide up to 8 E1 interfaces and 4 Fast Ethernet interface. The Ethernet interface can be operated in 10M/100M, half duplex or full duplex mode by either auto-negotiation or manual setting.   The AN-FM-480-4ETH…

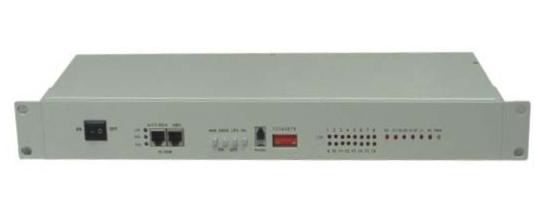

16 x E1 G.703 + Ethernet fiber multiplexer

The AN-FM-480/ETH is a fiber media transport for 8E1 + 1 10/100BaseT  transmission. The BNC model provides unbalanced 75 Ohm coaxial connections while the RJ-45 model provides balanced 120 Ohm connections over twisted pair wiring. All media converters are available with either multi-mode or single-mode optical tranceivers and with connectors for SC, ST, or FC. In single mode they are…

8 x E1 G.703 + 4 x Ethernet fiber multiplexer

AN-FM-240-4ETH series of Multi E1 & Fast Ethernet Optical Terminal is a product combining of a PDH optical transport system and an Ethernet transceiver.   AN-FM-240-4ETH can provide up to 8 E1 interfaces and 4 Fast Ethernet interface. The Ethernet interface can be operated in 10M/100M, half duplex or full duplex mode by either auto-negotiation or manual setting.   The AN-FM-240-4ETH…

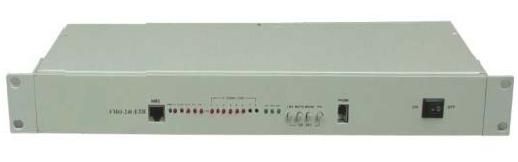

8 x E1 G.703 + Ethernet fiber multiplexer

The AN-FM-240/ETH is a fiber media transport for 8xE1 + 1 10/100BaseT  transmission. The BNC model provides unbalanced 75 Ohm coaxial connections while the RJ-45 model provides balanced 120 Ohm connections over twisted pair wiring. All media converters are available with either multi-mode or single-mode optical tranceivers and with connectors for SC, ST, or FC. In single mode they are…

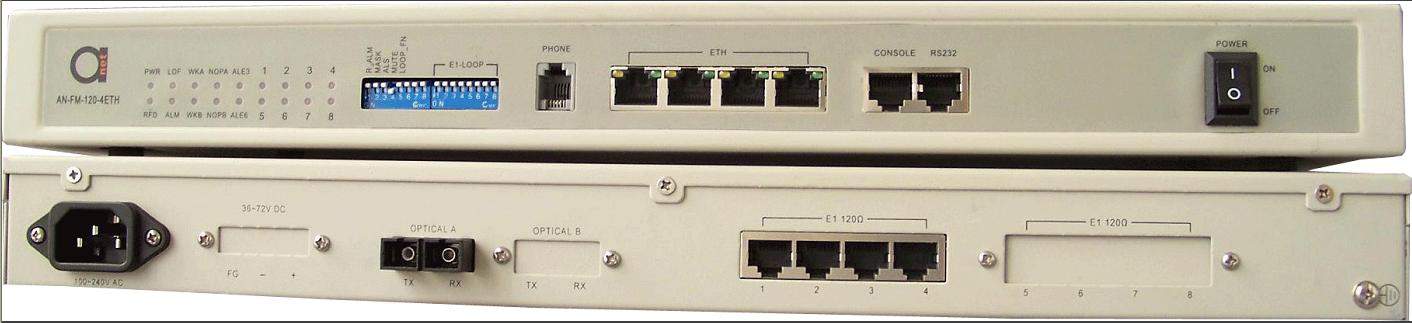

4 x E1 G.703 + 4 x Ethernet fiber multiplexer

AN-FM-120-4ETH series of Multi E1 & Fast Ethernet Optical Terminal is a product combining of a PDH optical transport system and an Ethernet transceiver.   AN-FM-120-4ETH can provide up to 8 E1 interfaces and 4 Fast Ethernet interface. The Ethernet interface can be operated in 10M/100M, half duplex or full duplex mode by either auto-negotiation or manual setting.   The AN-FM-120-4ETH…

4 x E1 G.703 + Ethernet fiber multiplexer

The AN-FM-120/ETH is a fiber media transport for 4E1 x E1 + 1 10/100BaseT  transmission. The BNC model provides unbalanced 75 Ohm coaxial connections while the RJ-45 model provides balanced 120 Ohm connections over twisted pair wiring. All media converters are available with either multi-mode or single-mode optical tranceivers and with connectors for SC, ST, or FC. In single mode…
