Waterproof PoE Extender Repeater Booster, Outdoor Gigabit PoE Amplifier with 2 Output Ports, IP67, 802.3af/at/bt, Up to 90W Total, No Power Required

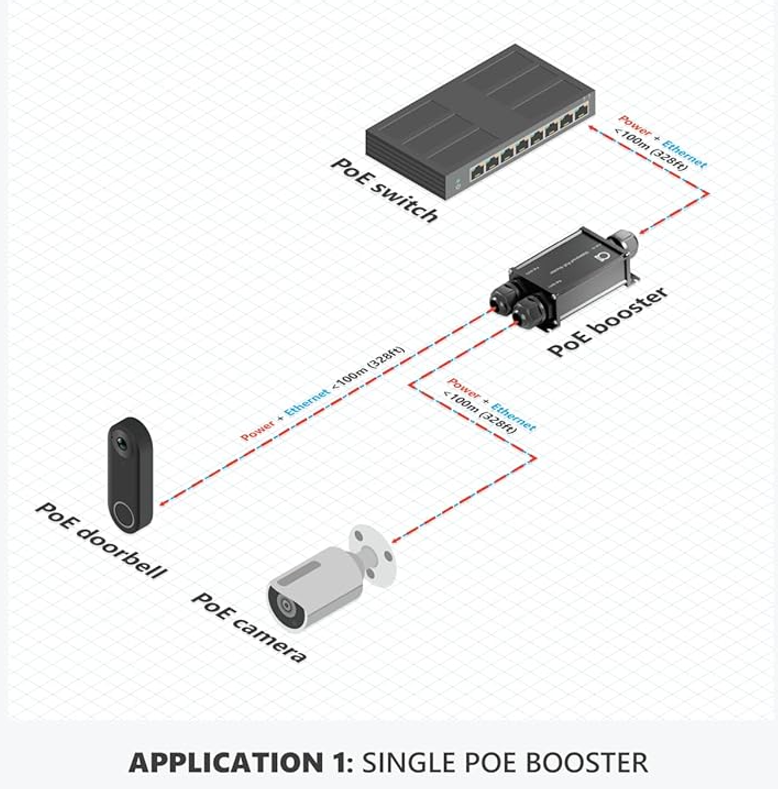

Application 1 – Single PoE Booster (1 Input / 2 Outputs)

In this configuration, a single Waterproof PoE Booster is installed inline between the PoE switch
and the remote devices. The unit receives power and Ethernet from one PoE input port and
splits it into two independent PoE outputs.

Each output can power a PoE device such as an IP camera, doorphone, or access controller,
while extending both Ethernet data and PoE power up to 100 meters per output.
This setup is ideal for small outdoor deployments where two PoE devices need to be powered
from a single PoE source without adding local power.

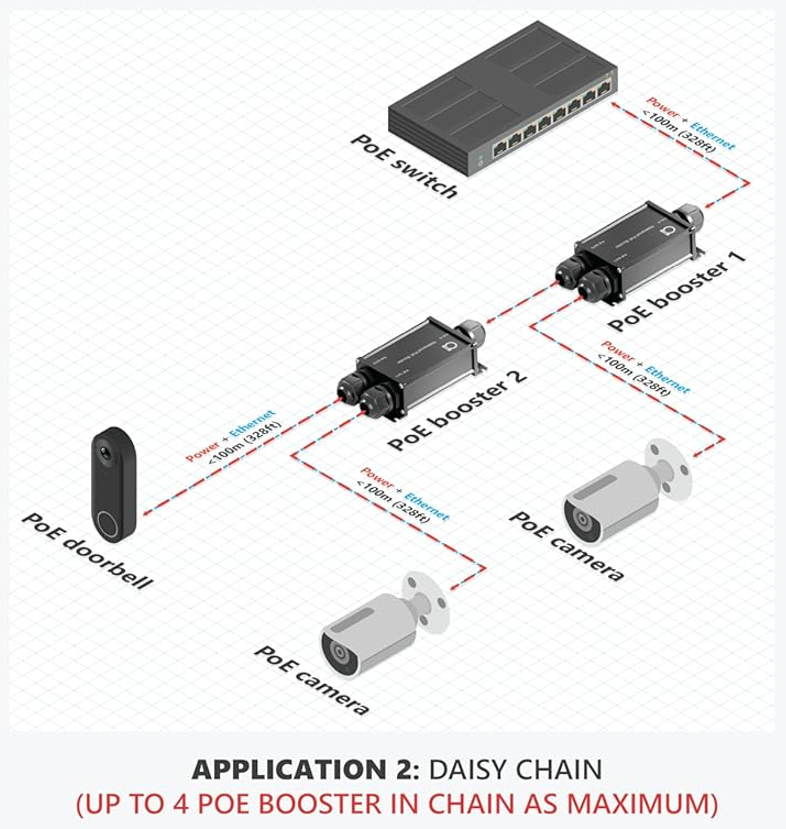

Application 2 – Daisy Chain PoE Boosters (Up to 4 Units in Series)

For extended distance installations, multiple Waterproof PoE Boosters can be connected
in a daisy-chain topology. Each booster regenerates both Ethernet data and PoE power,
allowing the network to extend far beyond the standard 100 meter Ethernet limitation.

Up to four PoE Boosters can be chained in series, supporting long-distance outdoor deployments
such as parking areas, campuses, perimeter security, or transportation infrastructure.
This topology enables flexible placement of PoE cameras and doorphones without requiring
local AC power at intermediate points.

Description

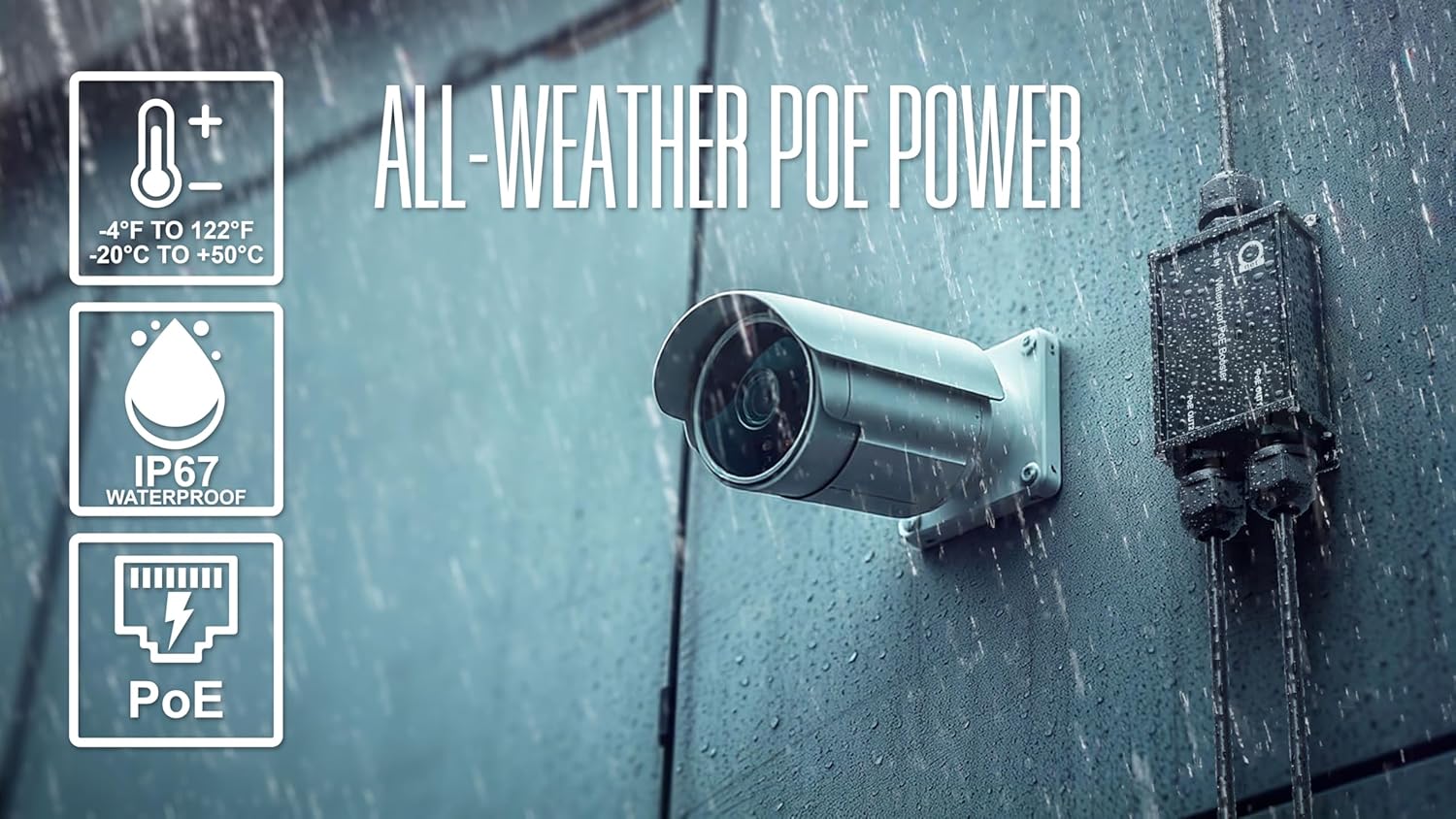

• Outdoor 1:2 IP67 Waterproof PoE Extender:
  Industrial-grade PoE repeater designed for harsh outdoor environments.
  IP67-rated aluminum enclosure protects against rain, dust, and moisture,
  making it suitable for outdoor cameras, access points, and remote PoE devices.

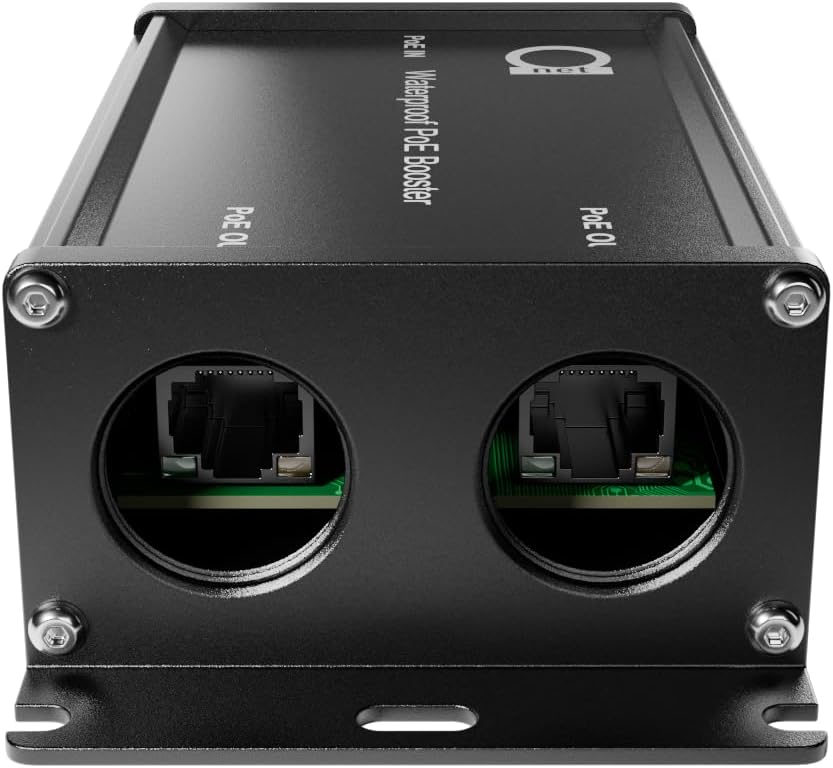

• 1× PoE Input / 2× PoE Outputs (PoE Split & Extend):
  Accepts a single IEEE 802.3af/at/bt PoE input and provides
  two independent PoE output ports, allowing one uplink to power and extend
  Ethernet to two remote PoE devices simultaneously.
• PoE Repeater – No Local Power Required:
  Powered directly from the incoming PoE source.
  No external power supply needed, ideal for installations where AC power
  is unavailable or difficult to deploy.
• Extended Ethernet & PoE Distance:
  Regenerates both data and power to extend PoE transmission
  beyond standard Ethernet limits.
  Suitable for long outdoor cable runs in surveillance, access control,
  and wireless deployments.
• Daisy-Chain Support for Longer Runs:
  Multiple units can be cascaded to further extend PoE and Ethernet distance,
  enabling flexible network expansion along fences, roads, tunnels, or outdoor corridors.
• High-Power PoE Support:
  Compatible with IEEE 802.3af / 802.3at / 802.3bt PoE standards.
  Supports high-power PoE devices such as PTZ cameras, outdoor APs,
  and multi-sensor IP cameras (power budget depends on input source).
• Gigabit Ethernet Performance:
  Supports up to Gigabit Ethernet data rates, ensuring stable throughput
  for high-resolution IP cameras and bandwidth-intensive outdoor applications.

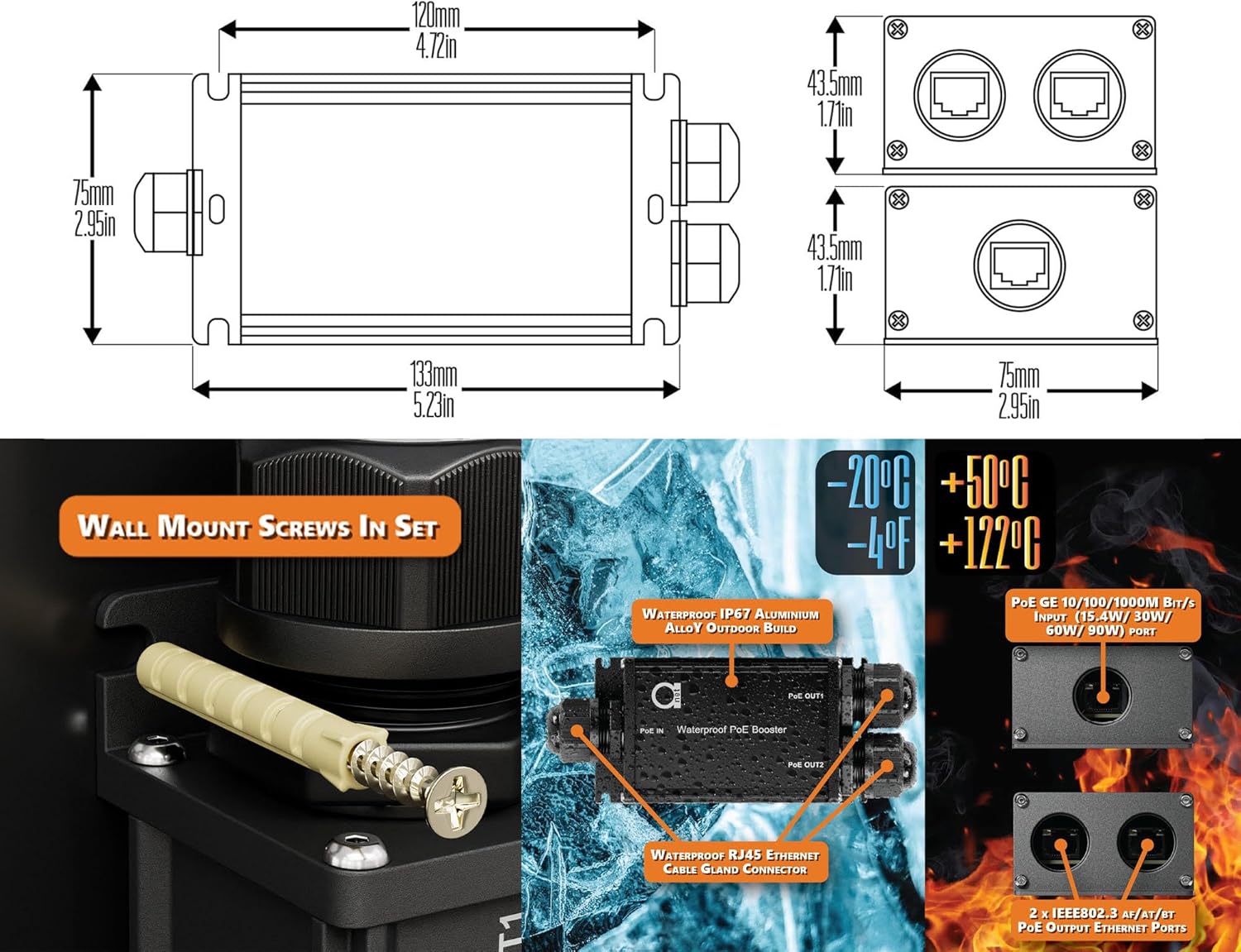

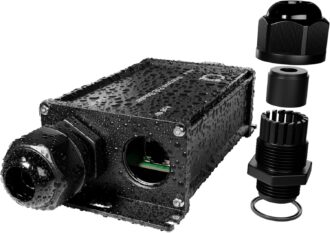

• Rugged, Installer-Friendly Design:

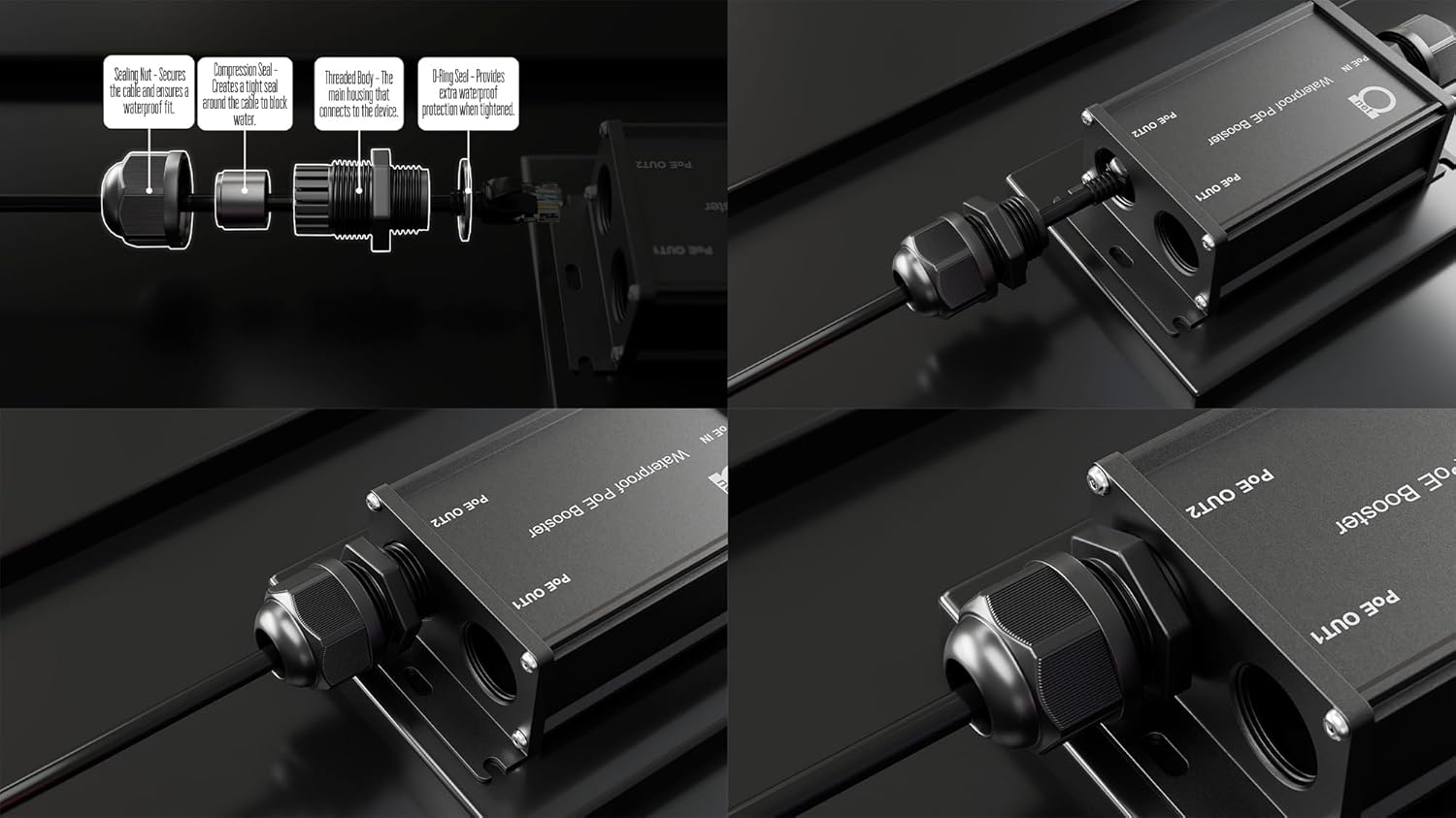

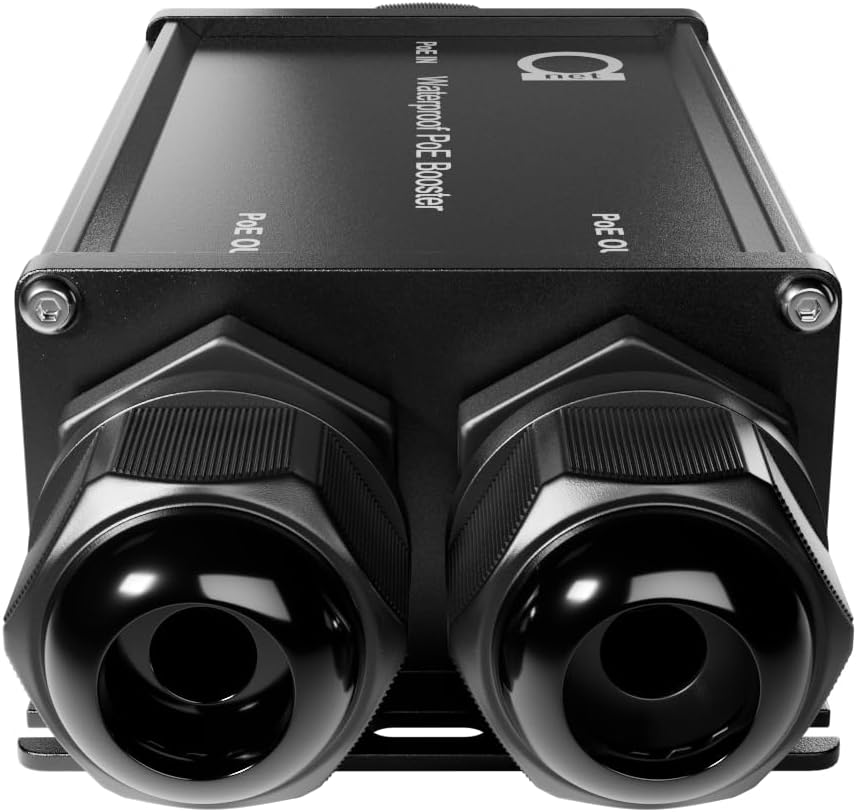

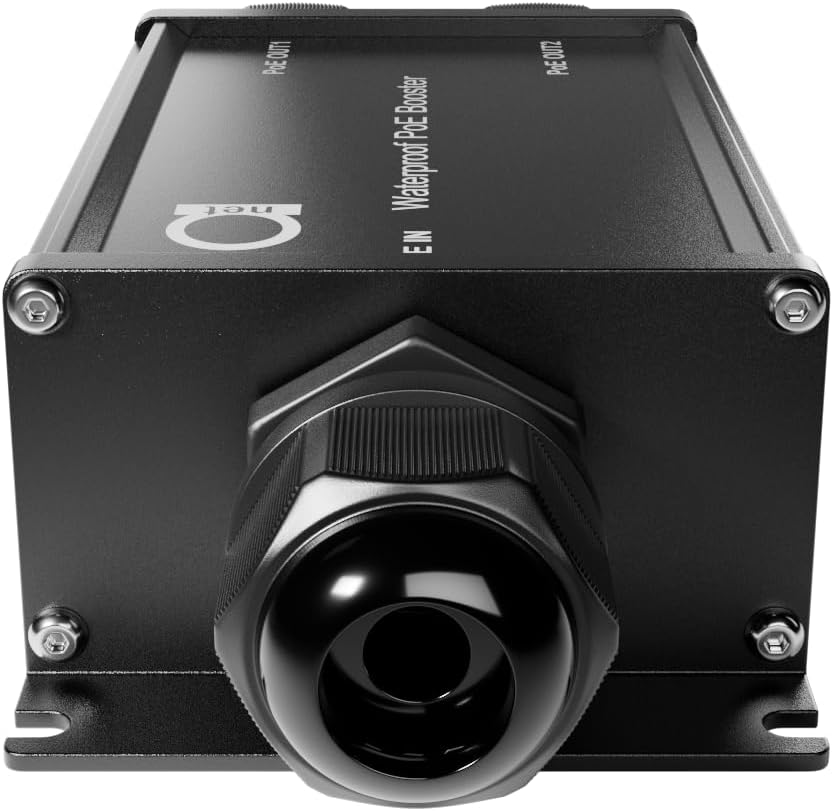

  Compact metal housing with secure waterproof cable glands.
  Designed for wall, pole, or enclosure mounting in outdoor and industrial sites.
• Typical Applications:
  Outdoor IP camera systems, parking lots, perimeter security,
  wireless bridges, access control systems, and long-distance PoE deployments.
