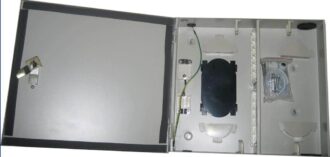

Wall Mount Fiber Splice Box
AN-WMTB-01 is a high quality solid & vandal proof wall mount splice and fiber optical termination box for FTTH/FTTB and other type of fiber network design. Locker is added by request - 1 & 2 door versions are available.
- Wall mountable
- Double or single door access
- Keyway entry
- Splice and termination
- Up to 48 ports
- Standard beige color
- Locker feautured
- Valdal proof
- The sealing performance meets the IP65-level requirements of GB4208 standard, thus, it is suitable for outdoor distribution
- Box body is made of metal materials, it looks nice in shape and its operation is convenient, anti-ageing and corrosion can be assured by the adoption of SMC compound materials
- It is the combination of three functions: optical fusion, store and distribution
- Adapter is installed with a certain angel, maintenance is easy, transmission loss is low
Max: Capacity: 48 Ports
Adapter type: ST/SC or any other on your request
Max number of splice trays: 5
Weight:
1 door version: 5.2 kg
2 door version 6 kg
Dimensions:
1 door version: 425x385x95mm
2 door version: 425X355X80mm
Working temperature: -25 to 75 degrees C
Relative humidity: ≤ 85% (30 degrees C)
| AN-WMTB-01-XX-YY | XX – number of ports |
Description
AN-WMTB-01 is a high quality solid & vandal proof wall mount splice and fiber optical termination box for FTTH/FTTB and other type of fiber network design.
