Video / Audio over E1 multiplexer

AN-DV-E1 series multiplexers are designed to send Video & Audio signal over the E1 G.703/704 lines in effective, efficient and reliable way

Video over E1 transparent transmission;
Optional 1 inverted data channel of RS485/422/232/Manchester;
Optional 1 positive directional data channel of 485/422/232/Manchester
Optional 1 inverted audio channel
Optional 1 positive directional audio channel
E1 single directional transmition signal at fractions (N*64K), according with G.703/704
High transmition efficiency, low transmition delays;
High quality of video signal, video cameras can be controled by PTZ using RS-232/485 interfaces
Console port for configuration issues;

E1 interface
Standard: E1 interface compatible with G.703 standard.
Rate: n*64 kbps (n=10-31)
Coding: HDB3
Impedance: 75Ω (unbalance), 120Ω (balance)
Connector: BNC (75Ω), RJ45 (120Ω)
Jitter Performance: According to G.742 and G.823

Video interface
Format:  PAL/NTSC
Video Signal:  1VP-P
Video Impedance:  75Ω
Bandwidth:  8MHz
Digitization: 8bit
DG: 1% (Typical value)
DP:1˚(Typical value)
SNR: 67dB (Typical value)
Color brightness time extension difference: 10ns (Typical value)
Color brightness gain difference: ±10% (Typical value)
Compression algorithm: H264 (accord with ISO/IEC qua 14496-10 international standard)
Video input: 1 complex TV signal CVBS
Connector: RCA
Sample frequency: 7.27MHz
Data deal format: ITU-R BT.656 YCrCb 4:2:2

Asynchronous data
Interface: RS232/RS485/RS422/ Manchester
Working mode: Full / half duplex
Transmit rate: 300~115.200Kbps
Error code rate: <1×10 ^–9Data connector: RJ45

Console
Interface: RS232
Working mode: Full/half duplex
Baud rate:  9600
Data bit: 8
Odd & even: none
Stop bit: 1
Data stream control: none
BACKSPACE choice:  ctrl+h, space
Data connecter:   RJ45

Application: video audio e1 multiplexer

Installation video:

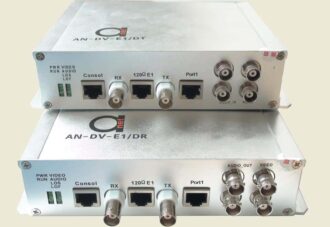

AN-DV-E1/T	Video over E1, 1 channel positive-direction video transmitter, E1 support BNC(75ohm) and RJ45(120ohm), AC110-220V or DC48V
AN-DV-E1/R	Video over E1, 1 channel positive-direction video receiver, E1 support BNC(75ohm) and RJ45(120ohm), AC110-220V or DC48V
AN-DV-E1-DT	Video over E1, 1ch positive-direction video +1 channel reverse RS485 date transmitter, E1 support BNC(75ohm) and RJ45(120ohm), 110-AC220V, or DC48V
AN-DV-E1-DR	Video over E1, 1ch positive-direction video + 1 channel reverse RS485 receiver, E1 support BNC(75ohm) and RJ45(120ohm), AC110-220V, DC48V
AN-DV-E1-DAT	Video over E1, 1ch positive-direction video + 1 Audio +1 channel reverse RS485 date transmitter, E1 support BNC(75ohm) and RJ45(120ohm), 110-AC220V, or DC48V
AN-DV-E1-DAR	Video over E1, 1ch positive-direction video + 1 Audio +1 channel reverse RS485 date receiver, E1 support BNC(75ohm) and RJ45(120ohm), 110-AC220V, or DC48V

Description

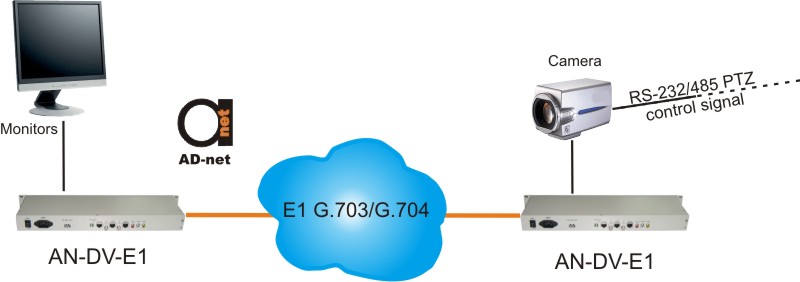

AN-DV-E1 series E1 video coder & decoder, mainly used in long-distance video monitoring, have function of E1 single directional transmitting video signal.
It is ensured that any device with E1 interface, such as PBX, Mobile base station, SS7 signaling device and voice post system, can seamlessly connect to E1 video coder & decoder. Also, E1 video coder & decoder can be applied in E1 based communication system, such as: LAN, WAN. MAN and wireless network.
