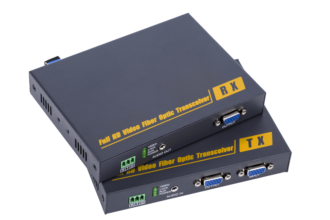

VGA over fiber optic extender

The AN-VGA-EXT-01 Fiber optic extender provides extension of VGA signals long distances over one fiber optic cable, it supports high resolution up to 1080P, transmitter local output, RS232 signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Transmits VGA video signals up to 10km over one fiber optic cable;
Support video resolution up to 1920*1080P@60Hz;
Support external stereo audio unidirectional transmission;
Support transmitter one channel signal output;
Support RS232 signal unidirectional transmission, baud rate self-adaptive;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;

Parameter		Description
Video	Standards	VGA
	Maximum pixel clock	380MHz
	Resolution	1920×1200@60Hz / 1920×1080@60Hz 1600×1200@60Hz / 1680×1050@60Hz 1280×1024@60Hz / 1280×1024@75Hz 1280×800@60Hz / 1280×768@60Hz 1280×720@60Hz / 1024×768@60Hz / 1024×768@75Hz 800×600@60Hz / 800×600@75Hz
	Impedance	75Ω
Audio	Interface	3.5mm earphone seat
	Format	44.1K,48K,96K,176K,192K
	Signal type	Stereo
RS232	Interface	Industrial terminal
	Signal direction	Unidirectional
	Baud rate	Self-adaptive, Max：115200bps
	Data bits	8
Optical fiber	Interface	LC connector
	Fiber type	Single-mode single fiber
	Wavelength	Single-mode 1310nm
	Interface bandwidth	3Gbps
	Transmission distance	standard 10km
Other	Power supply	The power adapter: DC 5V/2A
	Power dissipation	MAX 6W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	15511530mm
	The warranty	1 year free warranty

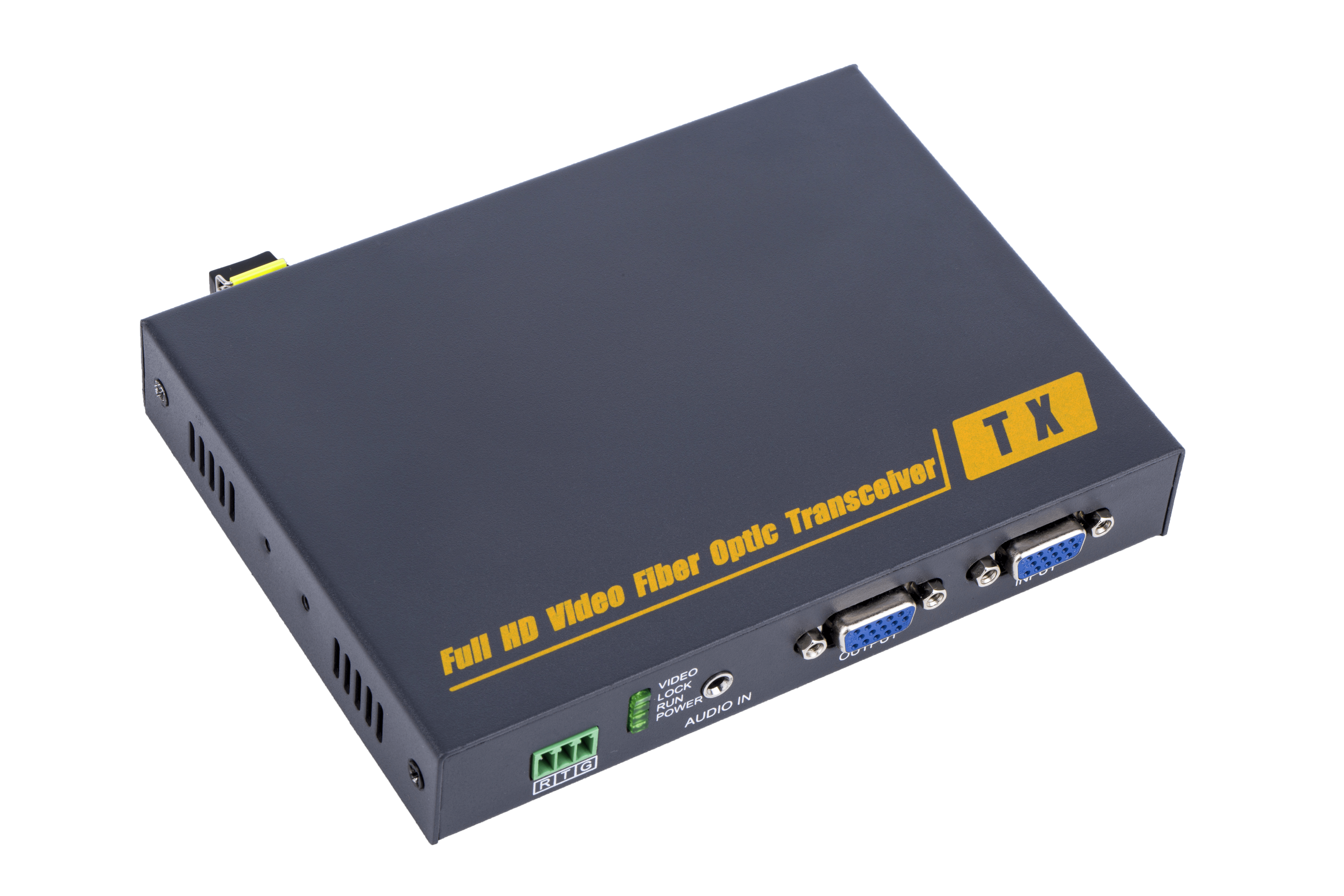

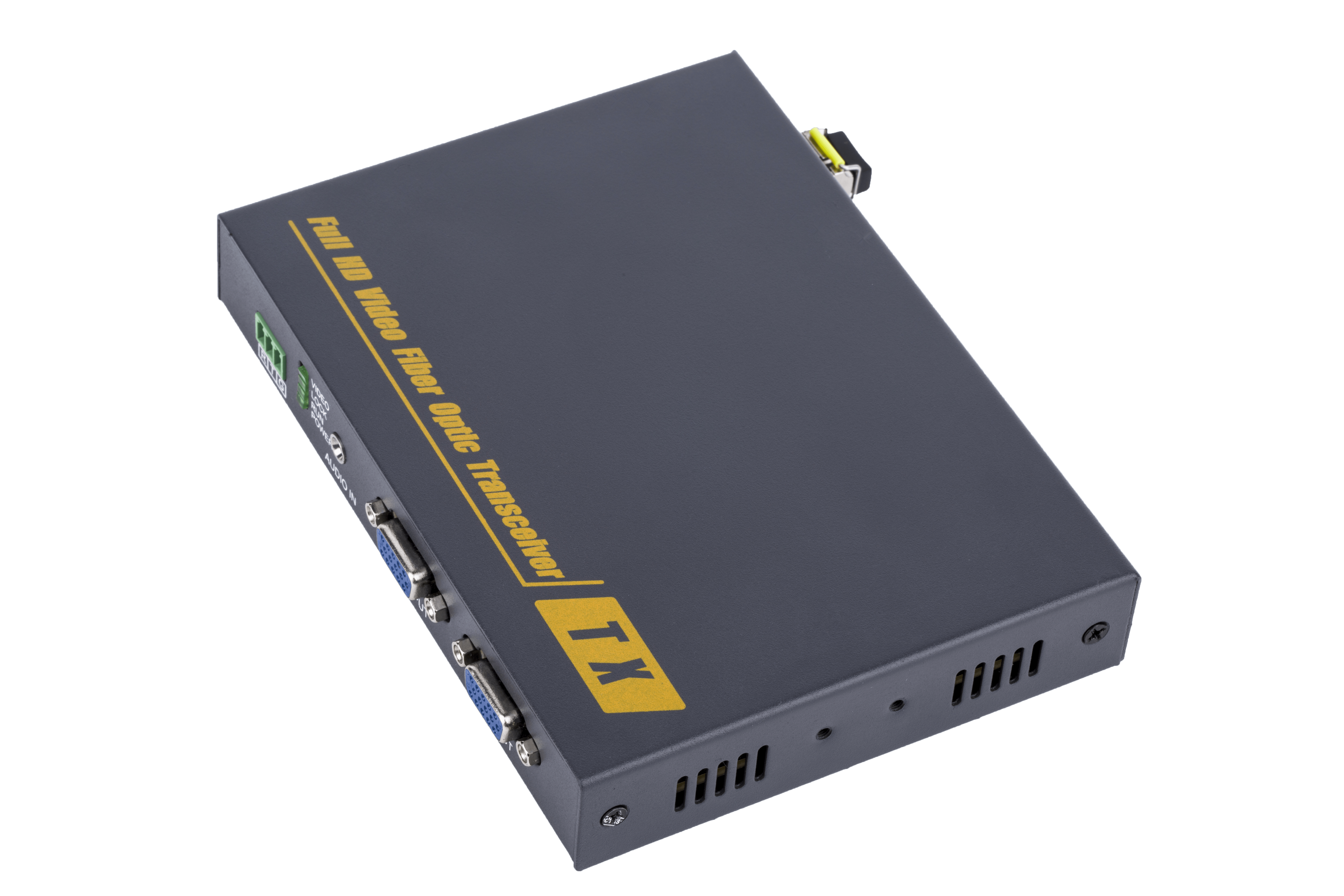

Transmitter

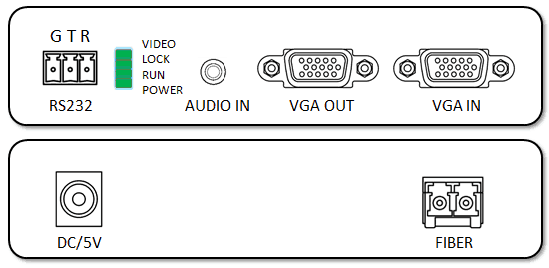

VGA over fiber optic extender transmitter

Receiver

VGA over fiber optic extender receiver

Port name	Description
VGA IN/OUT	VGA signal input/output
AUDIO IN/OUT	Stereo audio signal input/output
RS232	Serial port（G: Ground, T: transmit, R: receive）
DC/5V	Power adapter socket
FIBER	SFP module—LC connector
LED indicator	Description
VIDEO	Video signal connection indicator
LOCK	Video signal lock indicator
RUN	System status indicator
POWER	System power indicator

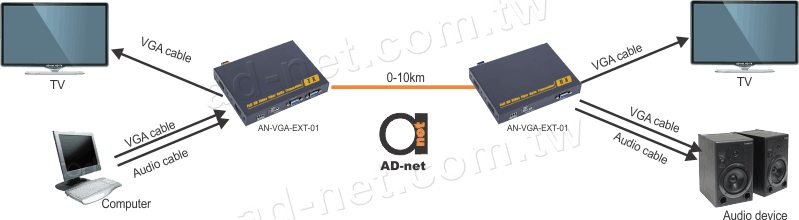

Installation

Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver,
Connect an VGA cable between the VGA input port of transmitter and the VGA output port of the video source,
Connect the VGA output port of receiver to the display device with VGA cable,
Connect the transmitter optical port to the receiver optical port using one fiber optic cable.

This installation video demonstrates that units are really plug-and-play, and all you need is just plug in cables to get VGA signal extended over the fiber.

AN-VGA-EXT-01

VGA signal input/output, Stereo audio signal input/output, Serial port（G: Ground, T: transmit, R: receive）over fiber extender, distance depends on SFP module.
