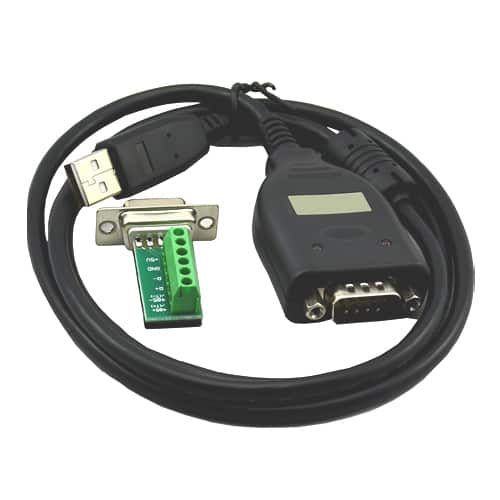

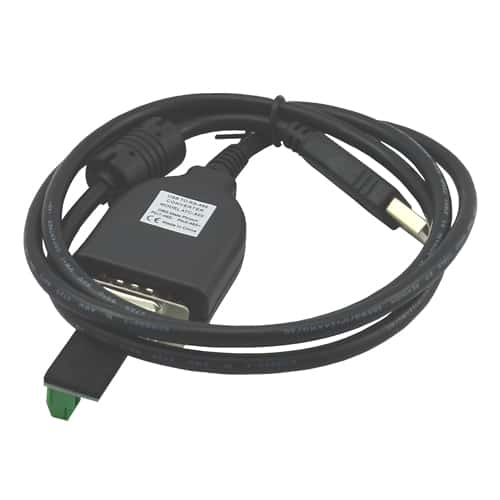

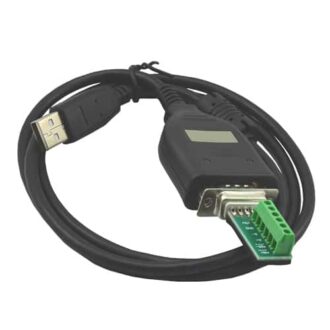

USB to RS-422 converter

USB to RS-422 serial interface converter offers hassle free, plug and play operation for converting RS-422 serial interface to USB. Widely used in industrial communications for various systems it is a quick solution for many areas.

Using industrial FTDI Chipset
Compatible with USB2.0 and USB1.x
8Kbps maximum baud-rate or serial port
Drivers provided for Windows (including Vista), Win-CE 6.0, and Linux
DB9 male connector for RS-422
LEDs for data flow indicate
15 KV ESD protection for all serial port’s handshake line.1000W surge protect for RS422 signal

USB

Compliance: Compatible with USB2.0 and USB1.x

Connector: USB type A

Speed: 12 Mbps (Full-Speed USB)

I/O Address: Assigned by BIOS

IRQ: Assigned by BIOS

FIFO: 64 bytes

Serial Interface

Connectors: DB9 male

Baud-rate: 50 bps to 460.8Kbps

Data Bits: 5, 6, 7, 8

Parity: None, Even, Odd, Space, Mark

Flow Control: XON/XOFF

Serial Signals

RS-422: TX+,TX-,RX+,RX-

Serial Line Protection

ESD Protection: 15 KV embedded for handshake line.1000W surge protect for RS-422 signal

Driver Support

Operating Systems: Windows (2000, XP x86/x64, 2003 x86/x64,Vista x86/x64), WinCE 6.0, Linux 2.6 x86/x64

Physical Characteristics

Housing: ABS + PC Weight: 100g(no package)

Dimensions: 60 x 35 x 17mm (The USB Cable length is 1000mm)

Environmental Limits

Operating Temperature: 0 to 55°C (32 to 131°F)

Operating Humidity: 5 to 95% RH

Storage Temperature: -20 to 70°C (-4 to 158°F)

AN-USB-RS422

1-port RS-422 USB-High Speed Serial Converter
