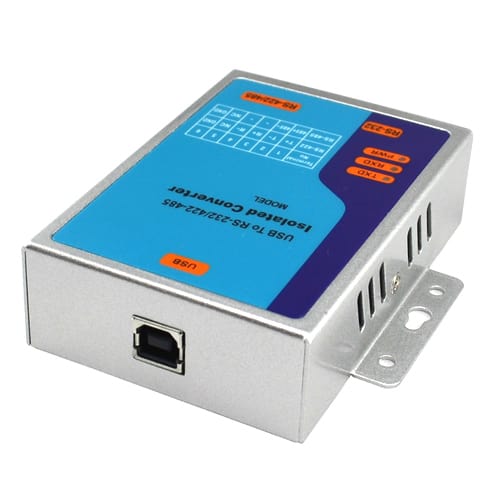

RS-232/485/422 to USB-High Speed Serial Converter with Isolation

Industrial standard isolation type universal RS-232/485/422 USB to Serial high speed serial converter

Using industrial FTDI Chipset
Compatible with USB2.0 and USB1.x
8Kbps maximum baud-rate or serial port
Support Windows (including Vista) and Linux

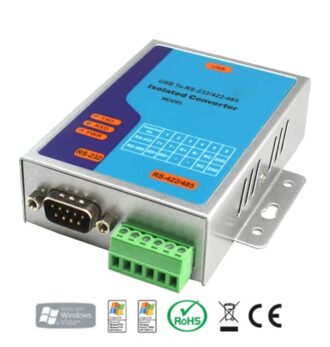

DB9 male connector for RS-232,six bit terminal block for RS-485/422
LEDs for data flow indicate
15 KV ESD protection for all serial port’s handshake line.1000W surge protect for RS-485/422 signal,600W for RS-232

USB

Compliance: Compatible with USB2.0 and USB1.x

Connector: USB type A

Speed: 12 Mbps (Full-Speed USB)

I/O Address: Assigned by BIOS

IRQ: Assigned by BIOS

FIFO: 64 bytes

Serial Interface

Connectors: DB9 male

Baud-rate: 50 bps to 460.8Kbps

Data Bits: 5, 6, 7, 8

Parity: None, Even, Odd, Space, Mark

Flow Control: CTS/RTS, XON/XOFF

Serial Signals

RS-422: TX+,TX-,RX+,RX-

RS-485: 485+,485-

RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Serial Line Protection

ESD Protection: 15 KV embedded for handshake line.1000W surge protect for RS-422 signal

Isolation voltage: 3500VRMS 500VDC sequence

Driver Support

Operating Systems: Windows (2000, XP x86/x64, 2003 x86/x64, Vista x86/x64), WinCE 6.0, Linux 2.6 x86/x64

Physical Characteristics

Housing: ABS + PC

Weight: 100g(no package)

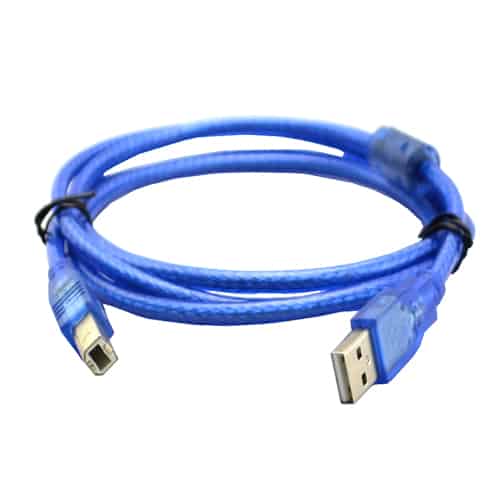

Dimensions: 60 x 35 x 17mm (The USB Cable length is 1000mm)

Environmental Limits

Operating Temperature: 0 to 55°C (32 to 131°F)

Operating Humidity: 5 to 95% RH

Storage Temperature: -20 to 70°C (-4 to 158°F)

AN-USB-RS-232-485-422/I

1-port Isolation RS-232/485/422 USB-High Speed

Description

Industrial standard isolation type universal RS-232/485/422 USB to Serial high speed serial converter
