Home Products USB 3.0/2.0/1.1 over Fiber Extender Kit, 4-Port Remote USB Hub, 250m LC SM/MM Fiber

USB 3.0/2.0/1.1 over Fiber Extender Kit, 4-Port Remote USB Hub, 250m LC SM/MM Fiber

Extend USB 3.0/2.0/1.1 devices up to 250 m over fiber with this plug-and-play extender kit. Features a 4-port remote USB hub, support for both single-mode and multimode LC fiber, and stable, interference-free transmission. Ideal for cameras, sensors, storage, and industrial applications.

  • USB 3.0 / 2.0 / 1.1 Over Fiber Extension
    Extend USB devices up to 250 m (820 ft) over optical fiber, overcoming standard USB cable distance limits.
  • Plug & Play – No Drivers Required
    Works as a transparent USB link with no software or configuration needed. Compatible with Windows, macOS, Linux, and embedded systems.
  • 4-Port USB Hub on Remote Unit
    Built-in USB hub allows connection of multiple devices including cameras, storage, sensors, keyboards, and more.
  • Multimode and Single-Mode Support
    Pre-installed multimode LC SFP modules (850 nm, duplex) and included single-mode SFP modules (1270/1330 nm) for flexible deployment.
  • Supports Single Fiber (BiDi) Operation
    Single-mode modules allow operation over one fiber strand using wavelength multiplexing (BiDi).
  • Stable Long-Distance Transmission
    Maintains reliable performance over full distance without signal degradation, repeaters, or additional hubs.
  • EMI Immunity and Electrical Isolation
    Fiber optic link eliminates electromagnetic interference and ground loop issues common in copper connections.
  • USB-Powered Local Unit
    Local transmitter is powered directly from the USB port — no external power supply required.
  • Remote Unit with External Power Input
    Remote device is powered via included 5V adapter for stable multi-device operation.
  • Wide Device Compatibility
    Supports USB storage, cameras, sensors, HID devices, dongles, and other USB 3.0/2.0 peripherals.

Applications

This USB over fiber extender enables reliable long-distance connection of USB 3.0/2.0 devices in environments where standard USB cables are limited by distance, interference, or installation constraints. Using optical fiber, the system provides stable, high-speed communication for professional and industrial applications.

Typical use cases include remote USB camera deployment, industrial automation systems, data acquisition (DAQ), environmental monitoring, and workstation extension where USB devices need to be placed far from the host computer.

The remote 4-port USB hub allows multiple peripherals to be connected simultaneously, such as barcode scanners, thermal cameras, USB sensors, and control modules, making it suitable for complex system integrations.

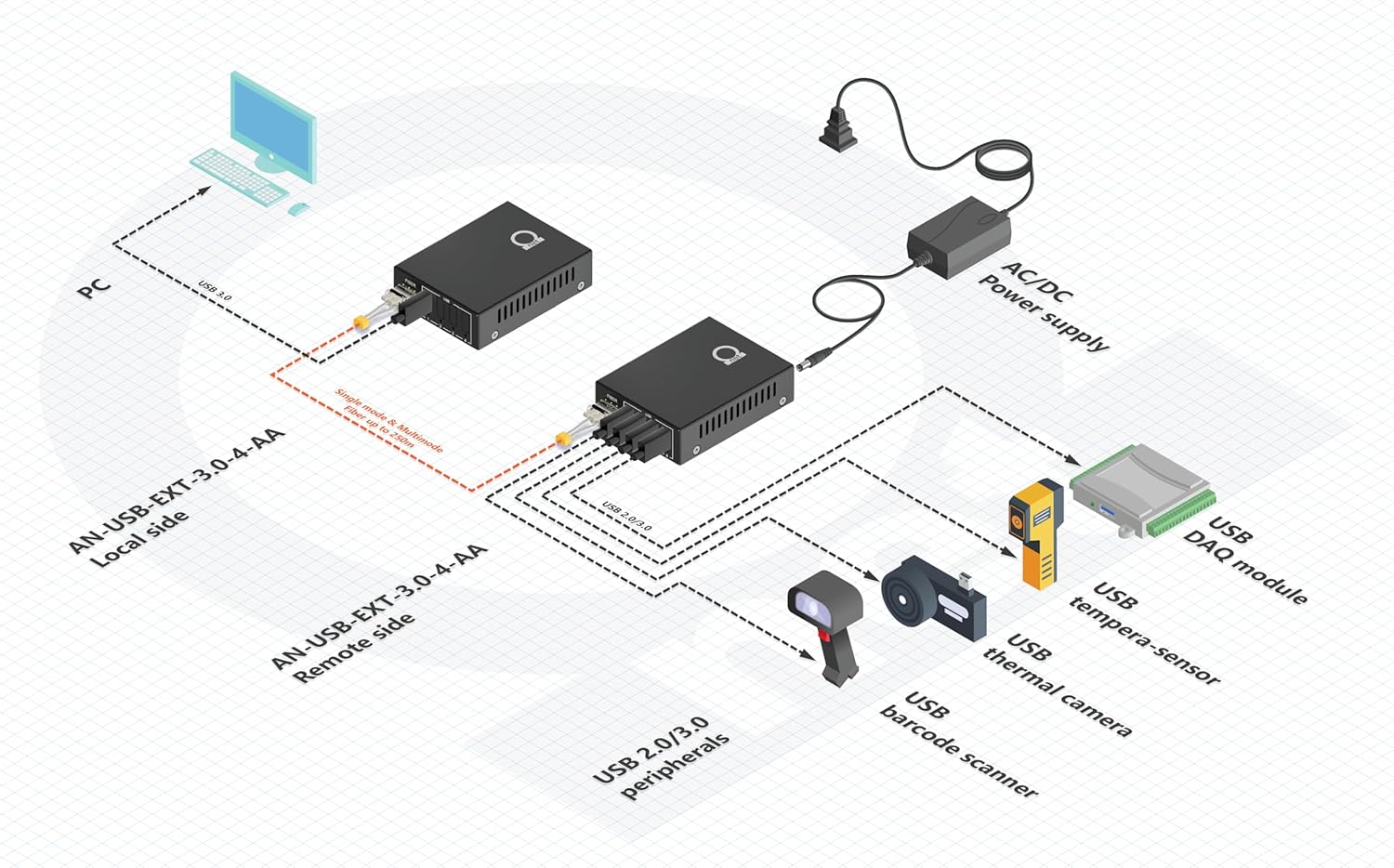

USB over fiber extender application diagram showing PC to remote USB devices over optical fiber

Product Demonstration

This video demonstrates how to extend USB 3.0 devices over optical fiber using the local and remote units. It shows the connection setup, fiber link, and operation of multiple USB peripherals connected through the remote 4-port hub.

The system works as a transparent USB link with no drivers required, allowing stable long-distance transmission for cameras, sensors, storage devices, and other USB equipment.

Transmission Distance Up to 250 meters (820ft) over fiber
Transmitting Power (SM) ≥ -9dBm @ 1270/1330nm
Transmitting Power (MM) -18dBm @ 850nm
Receiving Sensitivity -28dBm to -40dBm
USB Standard USB 3.0 (Local Side) / USB 3.0/2.0 Remote Side
Power Cable USB-A power cable included for Local Side / 5VDC 5A AC DC power adapter included for remote side
Operating Temperature -10°C to +60°C
Storage Temperature -40°C to +85°C
Relative Humidity 0% to 95%, non-condensing
MTBF Over 100,000 hours
Dimensions (L × W × H) 93 × 70 × 26 mm (3.66″ × 2.76″ × 1.02″)
Weight 0.75 kg per piece (1.65 lbs)
AN-USB-EXT-3.0-4-AA

USB 3.0/2.0/1.1 Fiber Optic Extender Kit with 4-Port USB Hub

Description

USB 3.0 / 2.0 / 1.1 Over Fiber Optic Extender with 4-Port USB Hub

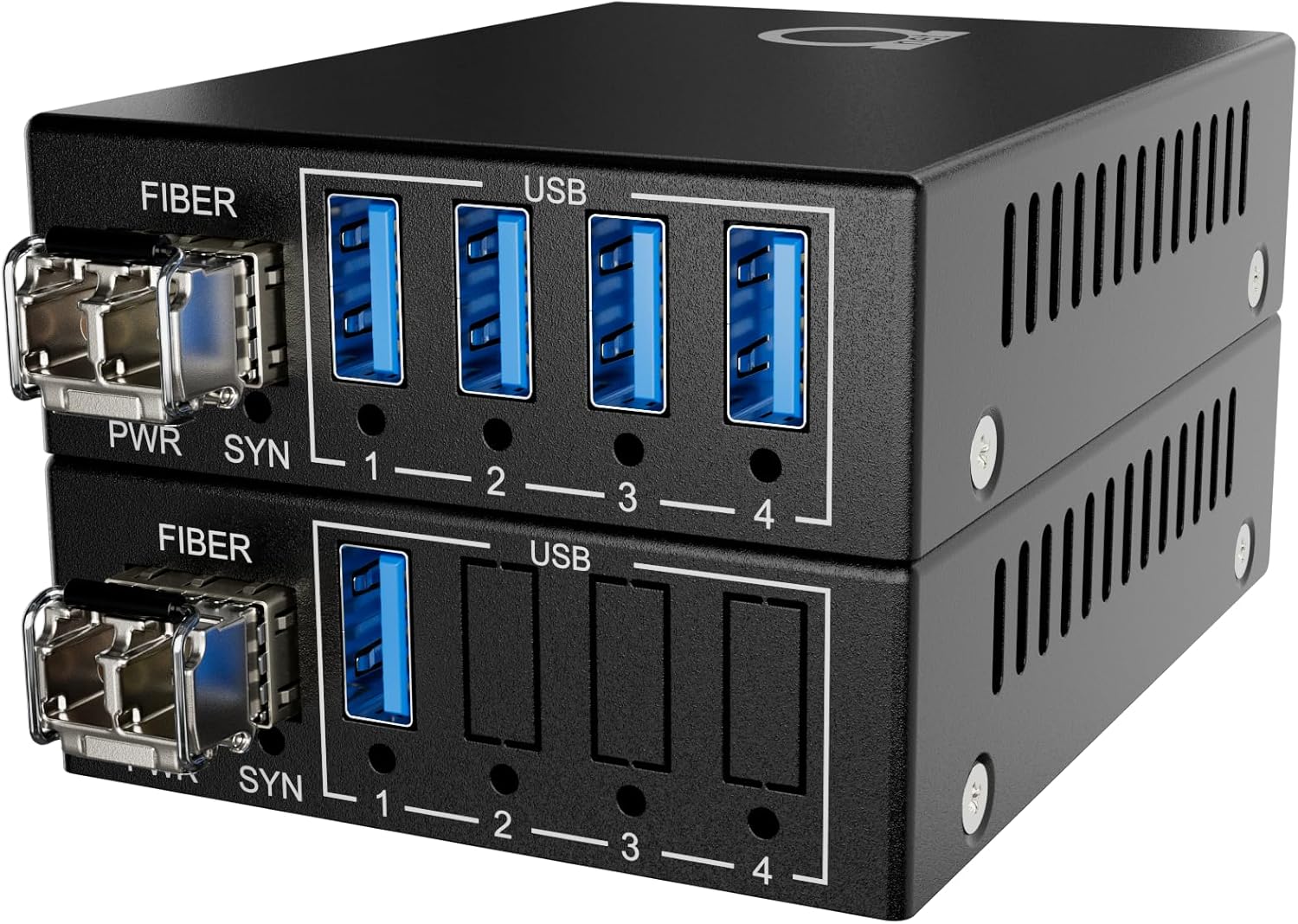

This USB over fiber extender kit allows you to extend USB 3.0, 2.0, and 1.1 devices up to 250 meters (820 ft) over optical fiber, eliminating the traditional 5-meter USB cable limitation. The system consists of a local (host) unit and a remote (device) unit, connected via LC fiber for stable, long-distance transmission.

The local unit connects directly to your computer via USB and requires no external power supply, while the remote unit provides a 4-port USB hub for connecting multiple peripherals simultaneously.

Plug & Play Operation – No Drivers Required

The extender works as a transparent USB link, meaning no drivers or software installation is required. Simply connect the local unit to a USB 3.0 host port, link both units using fiber optic cable, and power the remote unit using the included adapter.

Compatible with:

  • Windows
  • macOS
  • Linux
  • Embedded systems supporting USB devices

4-Port USB Hub on Remote Side

The remote unit features a built-in 4-port USB hub, allowing connection of multiple devices at once.

Supports:

  • USB flash drives and external storage
  • Keyboards and mice
  • USB cameras and webcams
  • Industrial sensors and data loggers
  • Dongles and control devices

All ports support mixed USB standards (USB 1.1 / 2.0 / 3.0).

Flexible Fiber Options – Multimode and Single Mode

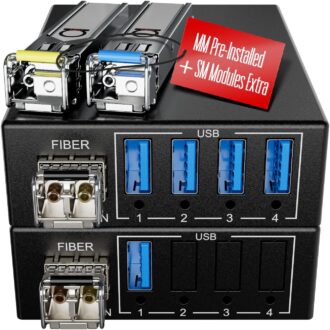

The kit includes both multimode and single-mode SFP modules, giving flexibility depending on your installation.

Pre-installed:

  • Multimode LC SFP modules (850 nm, duplex, 2-fiber)
  • Supports OM1–OM5 fiber
  • Up to 250 m distance

Included in box:

  • Single-mode LC SFP modules (1270/1330 nm), allowing operation over a single fiber (BiDi)

Modules are easily interchangeable without configuration.

Stable Long-Distance Transmission

Unlike copper-based USB extenders, fiber optic transmission is immune to electromagnetic interference (EMI) and signal degradation.

Benefits:

  • Full performance maintained across entire 250 m distance
  • No repeaters or additional hubs required
  • Clean point-to-point communication
  • Reliable operation in industrial environments

Power Design

  • Local unit: Powered directly from USB port (no external power required)

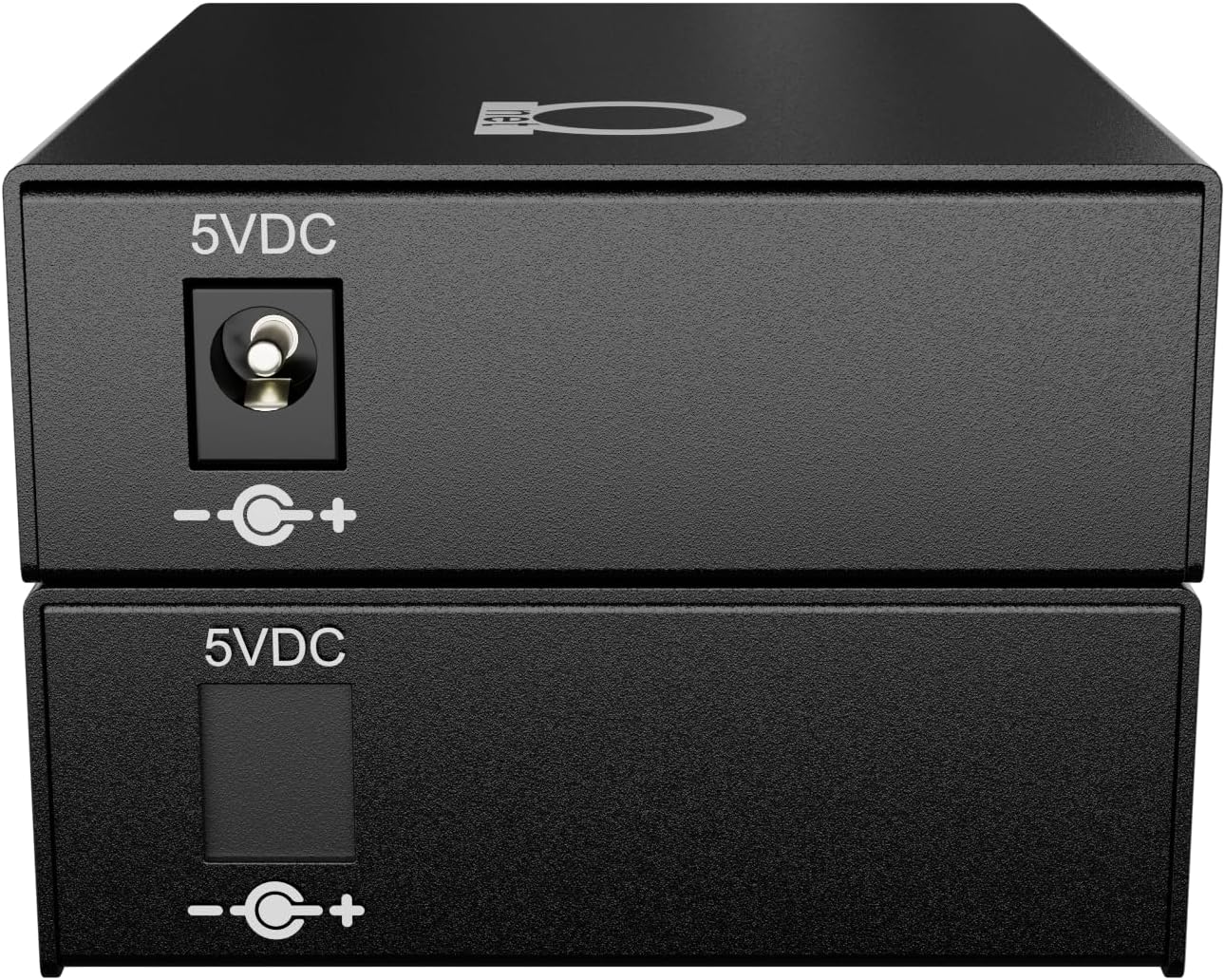

  • Remote unit: Powered by included 5 V AC/DC adapter

This design simplifies installation and reduces cable clutter on the host side.

Typical Applications

  • Industrial automation systems
  • Machine vision and USB cameras
  • Remote USB device control
  • Medical and laboratory equipment
  • KVM and workstation extension
  • Surveillance and monitoring setups

What’s in the Box

  • Local (host) unit
  • Remote (device) unit with 4-port USB hub
  • Multimode LC SFP modules (pre-installed, duplex)
  • Single-mode LC SFP module pair (1270/1330 nm)
  • USB 3.0 host connection cable
  • 5 V power supply for remote unit

FAQ

Does this extender support USB 3.0 speeds over the full 250 meters?

Yes, this model supports full USB 3.0 data rates (up to 5Gbps) over distances up to 250 meters when used with supplied in set fiber modules.

What kind of fiber cables are required?

Supports single-mode (1 fiber, bidirectional LC/UPC SFP, 1270/1330 nm) & multimode (2 fiber LC duplex, 850 nm). MM: OM1–OM5. SM: no APC connectors—use standard blue UPC only. Swap the correct fiber modules for correct fiber – both supplied in a set.

Does it come with a power adapter for remote side?

Yes, it includes a USB-A power cable with AC 100-240V input and DC 5V/5A output. You don’t need to buy a separate power adapter.

Is driver installation required?

No drivers required. The system is fully plug-and-play. Just connect the USB cable and fiber optic link — no software, no drivers. Works on any OS that supports USB peripherals. Remote end acts as transparent USB hub without drivers needed.
