  • IEEE 802.3az EEE (Energy Efficient Ethernet) to provide a low-power idle mode for    ports, which greatly reduces device power consumption
  • Fanless design, while reducing the power consumption of the device, the silent design allows you to avoid the noise
  • Port sleep when the port is not connected, avoiding power waste and further reducing device power consumption
  • 16K MAC addresses for subsequent user expansion
  • Industrial level 3 protection for surge, EFT and ESD

Model

AN-UM-8GTX-2-10G

Copper Ports

8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

Fiber Ports

2-10G BASE-X SFP+ interfaces

Switch Architecture

Store-and-Forward

Switch Fabric

56Gbps/non-blocking

Throughput

41.66Mpps @64 bytes

Address Table

16K entries

Share Data Buffer

2Mb

Jumbo Frame

9600 Bytes

Flow Control

IEEE 802.3x pause frame for full-duplex, Back pressure for half-duplex

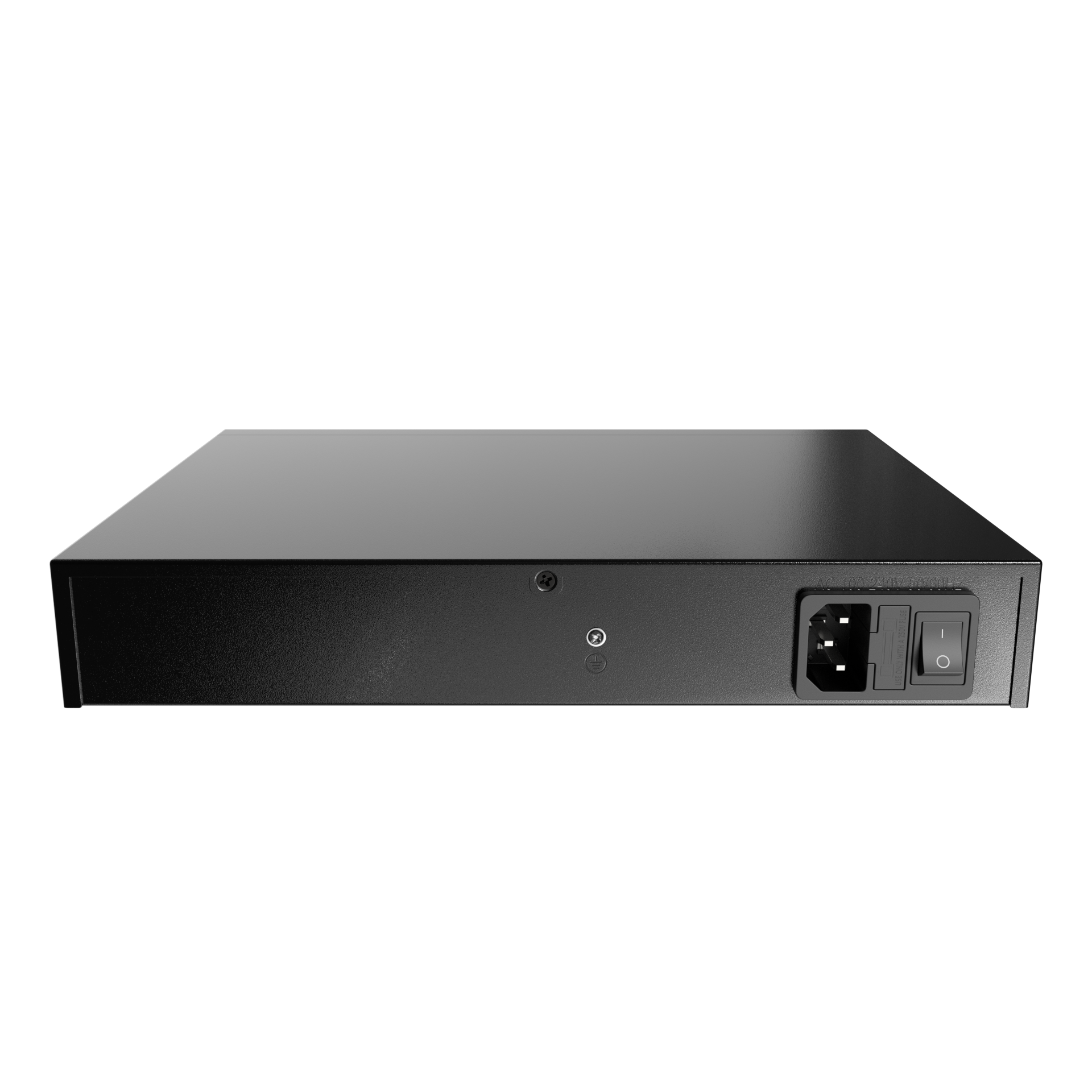

Power Supply

Internal power supply 100~240V 50-60Hz 1A

Power Consumption

Less than 15W

LED Indicators

Power: Green

Solid on- power work normal, off- power disconnected

 Speed Indicator: Yellow

10/100M: LED off, 1000M: solid on

LNK/ACT (Green),

Blink- port connected with data transmission; Solid on- port connected without data transmission

10G SFP Interfaces (Port 9to Port 10): Green

Blink- port connected with data transmission; Solid on- port connected without data transmission

EMC

Surge: IEC 61000-4-5 Level 3

EFT:IEC 61000-4-4 Level 3

ESD:IEC 61000-4-2 Level 3

Certification

CE mark, commercial; CE/LVD EN60950;
FCC Part 15 Class B; RoHS

Dimension

280x213x45mm

Weight

1.1kg

Working Temperature

-10 ℃to 50℃

Storage Temperature

-20℃ to 70 ℃

MTBF

50,000hrs

AN-UM-8GTX-2-10G

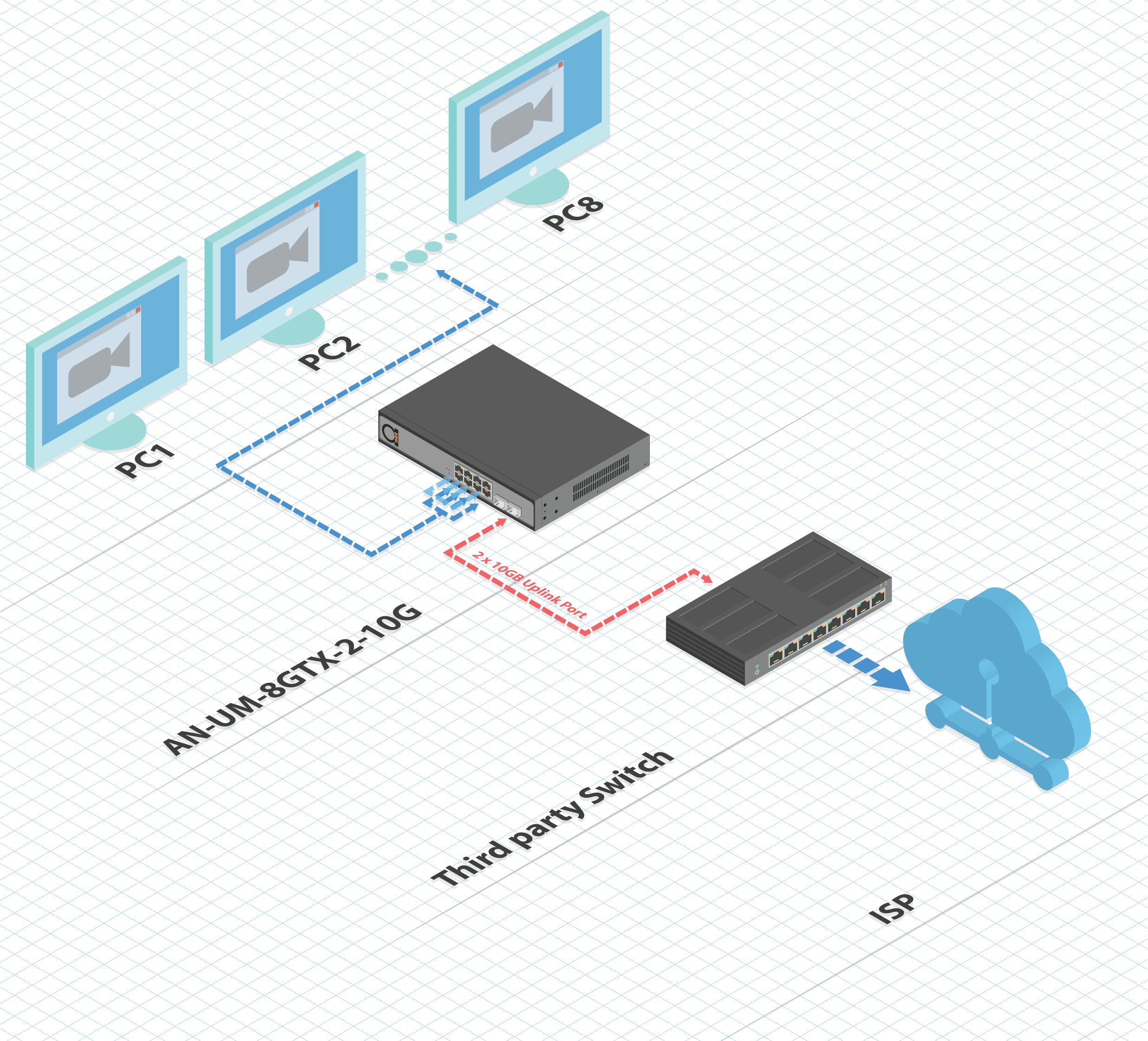

2 x 10Gbe SFP+ uplink + 8 x 10/100/1000 (Gigabit) downlink ports switch, AC or DC power

Description

AD-net AN-UM-8GTX-2-10G is an ideal Plug and Play, provides 8 10/100/1000Mbps Auto-Negotiation RJ45 ports and 2 10G SFP+ ports, easy using for residential building in the corridor-level broadband switching equipment, for the edge of the access and LAN to provide high-quality network connections. It provides you an easy, economic, high-performance solution for 1000M networking, which is your ideal choice for high-speed networking.
