Unmanaged 10G PoE Switch

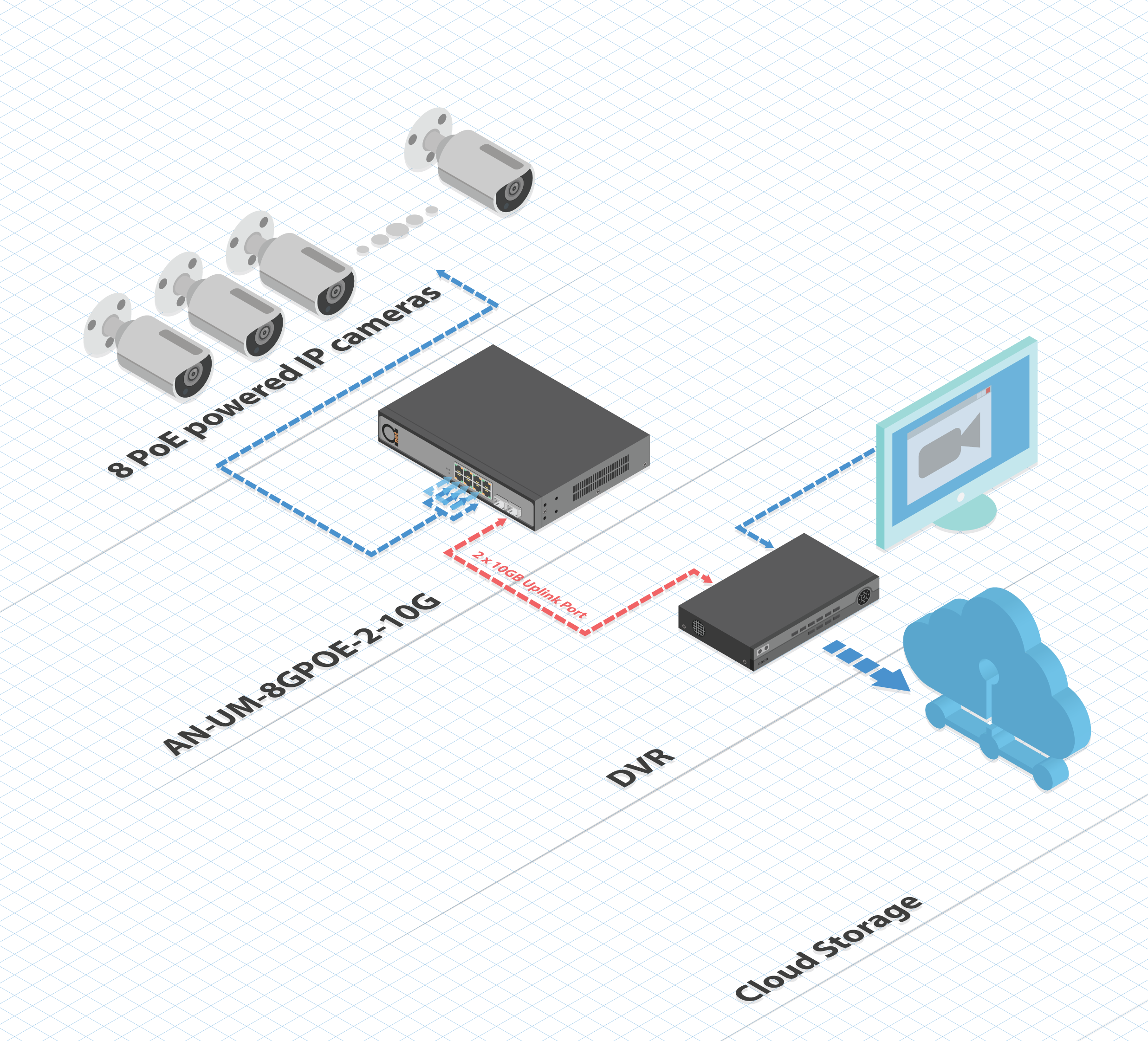

AD-net AN-UM-8GPOE-2-10G, an ideal 10G PoE Switch, provides a cost-effective advantage to local area networks of SMBs. Offering Layer 2 data packet switching and stable operation, this model also complies with IEEE 802.3at Power over Ethernet Plus (PoE+) at an affordable price. The AN-UM-8GPOE-2-10G is equipped with 8 10/100/1000BASE-T Gigabit Ethernet ports and 2 10G BASE-X SFP interfaces with inner power system. Its 8 Gigabit Ethernet ports are integrated with an 802.3at PoE+ injector function. It offers a rack-mountable, safe and reliable power solution for SMBs deploying Power over Ethernet networks.

IEEE 802.3az EEE (Energy Efficient Ethernet) to provide a low-power idle mode for ports, which greatly reduces device power consumption
Fanless design, while reducing the power consumption of the device, the silent design allows you to avoid the noise
Port sleep when the port is not connected, avoiding power waste and further reducing device power consumption
16K MAC addresses for subsequent user expansion
Standard AF/AT PoE output, up to 30W per port.
Industrial level 3 protection for surge, EFT and ESD

Model	AN-UM-8GPOE-2-10G
Copper Ports	8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
Fiber Ports	2-10G BASE-X SFP+ interfaces
PoE Ports	8-802.3af/802.3at PoE Injector Ports
Switch Architecture	Store-and-Forward
Switch Fabric	56Gbps/non-blocking
Throughput	41.66Mpps @64 bytes
Address Table	16K entries
Share Data Buffer	2Mb
Jumbo Frame	9600 Bytes
Flow Control	IEEE 802.3x pause frame for full-duplex, Back pressure for half-duplex
PoE Standard	IEEE 802.3. AF/AT, end-span
Power Supply	Internal power supply 100～240V 50-60Hz 1A 150W
Power Consumption	Less than 15W when PoE doesn’t work
LED Indicators	Power: Green Solid on- power work normal, off- power disconnected Speed Indicator: Yellow 10/100M: LED off, 1000M: solid on LNK/ACT (Green), Blink- port connected with data transmission; Solid on- port connected without data transmission 10G SFP Interfaces (Port 9to Port 10): Green Blink- port connected with data transmission; Solid on- port connected without data transmission
EMC	Surge: IEC 61000-4-5 Level 3 EFT:IEC 61000-4-4 Level 3 ESD:IEC 61000-4-2 Level 3
Certification	CE mark, commercial; CE/LVD EN60950； FCC Part 15 Class B; RoHS
Dimension	280x213x45mm
Weight	1.1kg
Working Temperature	-10 ℃to 50℃
Storage Temperature	-20℃ to 70 ℃
MTBF	50,000hrs

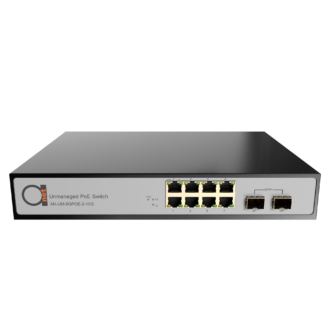

AN-UM-8GPOE-2-10G

2 SFP+ 10GB slot uplink + 8 x 10/100/1000 downlink PoE type ports, 802.3af/802.3at PoE Injector Ports, AC or DC power
