STM-4 interface

  • Number of ports: 2(1+1 or 2+0);
  • Date rate:080Mbps;
  • Connector: SFP slot, Hot pluggable.
  • Operating Mode:
  • 1+1 (One VCG channel/1+1 path protection, Recovering time: <50ms);
  • 2+0 (One VCG channel/Without Path protection);
  • Supports real-time detection for the status of optical module;
  • Supports ALS (Automatic Leaser Shutdown);
  • Supports RPD (Remote Power down Detection).

Gigabit Ethernet interface

  • Number of ports: 3;
  • Combinations:
  • 2 electrical Gigabit Ethernet (GE);
  • 1 optical Gigabit Ethernet (GX);
  • Connector:
  • RJ-45 for electrical (1000BaseTx);
  • SFP for optical (1000BaseSx or 1000BaseLx);
  • Date rate:
  • Optical 1000 Mbps;
  • Electrical 10/100/1000Mbps;
  • Number of VCG channel: 1;
  • Max Frame Size:1518/2000/9720 bytes;
  • Min Frame Size: 64 bytes;
  • Supports unicast, multicast and broadcast frame;
  • MAC address table: 4K;
  • MAC aging time: 15/300 seconds;
  • MAC address dynamic learning;
  • VLAN: Supports IEEE 802.1Q tag-based VLAN and port-based VLAN;
  • QinQ: Supports QinQ (Double Tag VLAN);
  • Supports up to 4K items VLAN table;
  • Supports link aggregation function;
  • Supports IEEE 802.1P QoS;
  • Provides performance statistic for each Ethernet port;
  • Supports 802.3x flow control and broadcast storm filtering control;
  • Compliance:
  • Relevant sections of IEEE 802.3;
  • GFP-F encapsulation, compatible with ITU-T G.7041, G.7042 recommendation.

NE Management

  • CLI: Local management is performed via CLI terminal.
  • SNMP: Compatible with V1 and V2C protocol. Access is available using SNMP management software “Smartview”.
  • LED indication: Necessary alarm indications such as NOP, LOF, RPD.
  • Download online: Supports FTP protocol and firmware download online without disturbance of existing traffic.

Power supply

  • AC+DC dual input optional.
  • AC range: 85~264V AC
  • DC range : -36V ~ -72V DC
  • Power consumption: 10W(±10%)
  • Support Redundancy Power Supply Protection.

Physical

  • Height: 43.7 mm (1U).
  • Width: 434 mm (19 in).
  • Depth: 155 mm.
  • Weight: 2.0 kg.

Operating environment

  • Temperature: -5~55-deg centigrade.
  • Storage Temperature: -40~70-deg centigrade.
  • Relative Humidity: <95% non-condensing.

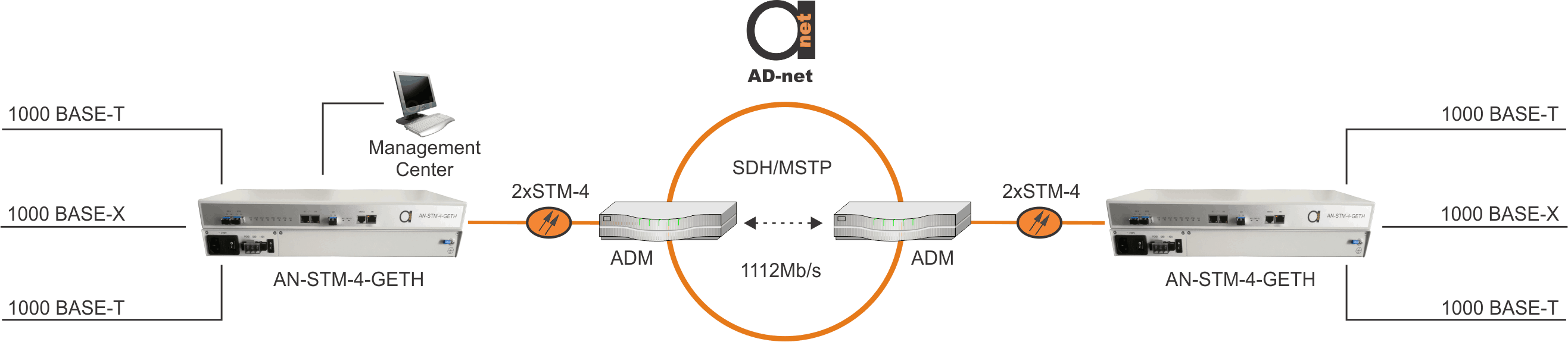

AN-STM-4-GETH supports point-to-point application, in 1+1 mode, the 3 Gigabit Ethernet interfaces share one VCG and the bandwidth is 4xVC4 (556Mb/s). In 2+0 mode, the 3 Gigabit Ethernet interfaces share one VCG channels and the bandwidth is 8xVC4 (1112Mb/s).

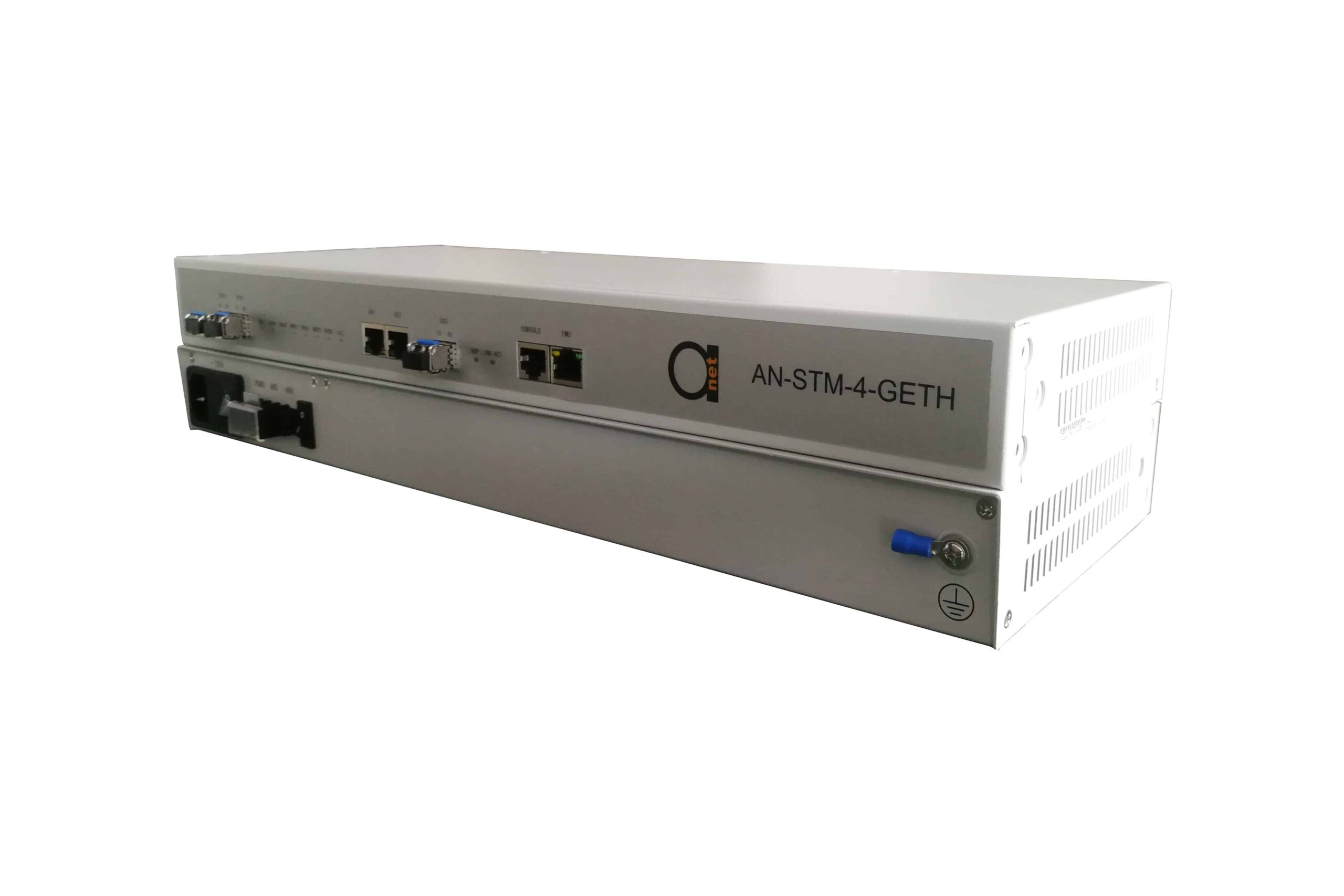

AN-STM-4-GETH

10/100/1000M Ethernet over STM-4, 19 inch chassis, support SNMP NMS/CLI, 2 STM-4 ports, 2*GE Tx ports + 1*GE Fx port, AC/DC power supply

Description

AN-STM-4-GETH is a STM-4 SDH terminal multiplexer that transports Gigabit Ethernet over SDH networks. It provides 3 Gigabit Ethernet interfaces and 2 STM-4 interfaces, supports 1+1 path protection and 2+0 mode. In 1+1 mode, the 3 Gigabit Ethernet interfaces share one VCG channel and the bandwidth is 4xVC4 (556Mb/s). In 2+0 mode, the 3 Gigabit Ethernet interfaces share one VCG channel and the bandwidth is 8xVC4 (1112Mb/s). Therefore, By GFP and EoSDH technology, AN-STM-4-GETH can realize Nx139Mb/s (N=1~8) Ethernet traffic transmission over STM-4 line.
