STM-1 to Ethernet 10/100BaseT converter

AN-STM-1-ETH is designed as a STM-1 level optical modem with two 155.520Mb/s optical interfaces to provide a cost-effective and flexible multi-service platform. With 4 Ethernet interfaces compatible with IEEE 802.3/802.3u standard, it is easy to implement Ethernet transmission over SDH.

  • Optical Interface

    • Two STM-1 interfaces, SFP optical module (LC connector), hot plug-in

      •  Complies with GB/T15941-1995 and ITU-T G.813 standards

      •  Supports RPD (Remote Power down Detection) information sending function

    • Supports ALS (Automatic Leaser Shutdown) to protect operators from hurt

  • Ethernet Interface

    • Four LAN ports(physical port), each LAN port supports auto-negotiation, it can also be set to 10M full/half-duplex, 100M full/half-duplex mode by force

    • Four WAN ports (internal port and invisible), each WAN port employs a VCG; the total bandwidth of 4VCGs is 63 VC12 and the bandwidth of each VCG is up to 48 VC12(100Mbps)

    • The LAN and WAN ports are compatible with IEEE802.3/802.3u standard

    • Supports flow control and broadcast storm filtering control

    • Supports port-based VLAN and IEEE802.1Q tag-based VLAN

    • Supports GFP-F Encapsulation specification complying with ITU-T G.7041

    • Supports VCAT specification complying with ITU-T G.707

    • Supports LCAS specification complying with ITU-T G.7042

    • Provides both LCAS and Non-LCAS modes

    • The maximum tolerated differential delay between any two VC-12 channels is 112ms

  • Protection

    • Supports 1+1 path protection with switching time less than 50ms

    • Supports Automatic protection mode and manual protection mode

  • Management

    • Provides serial management interface(CONSOLE) and Ethernet management interface (EMU), both adopt RJ45 connector

      • Supports network management based on SDH overhead or on internal E1 channel

      • Supports NE management based on CLI command via RS232 interface or TELNET

      • Supports SmartView network management platform based on SNMP_V1 and SNMP_V2 protocol to perform excellent management

STM-1 optical interface:

Bit rate (bps): 155M

Optic ports：2 optic SFP ports



Electric ethernet interface

Connector:              RJ-45

Work mode:    Support auto-negotiation and forced mode, the default is auto-negotiation

Speed:                     10M/100M

Duplex:            Full/half duplex

VLAN:                      Disable

Flow control:   Default: enable

Cable:                      CAT-5, cross-over and straight-through auto-detect

Standard:         IEEE802.3 10Base-T, IEEE802.3u 100Base-Tx



Ethernet management interface (EMU)

Bit rate:           100Mb/s

Connector:     RJ45



RS232 network management interface (CONSOLE)

Baud rate:               19200

Bits:                 8

Stop bit:           1

parity check:   None

Electricity level:      EIA-RS232 standard

Connector:              RJ45



Power supply

Input DC voltage:   -36～-72V DC

Input AC voltage:   100～260V AC

Power consumption:       Less than 15W



Environment requirements

Working temperature:    -5℃～50℃

Storage temperature:             -40℃～70℃

Relative Humidity:          ≤95%，no condensation

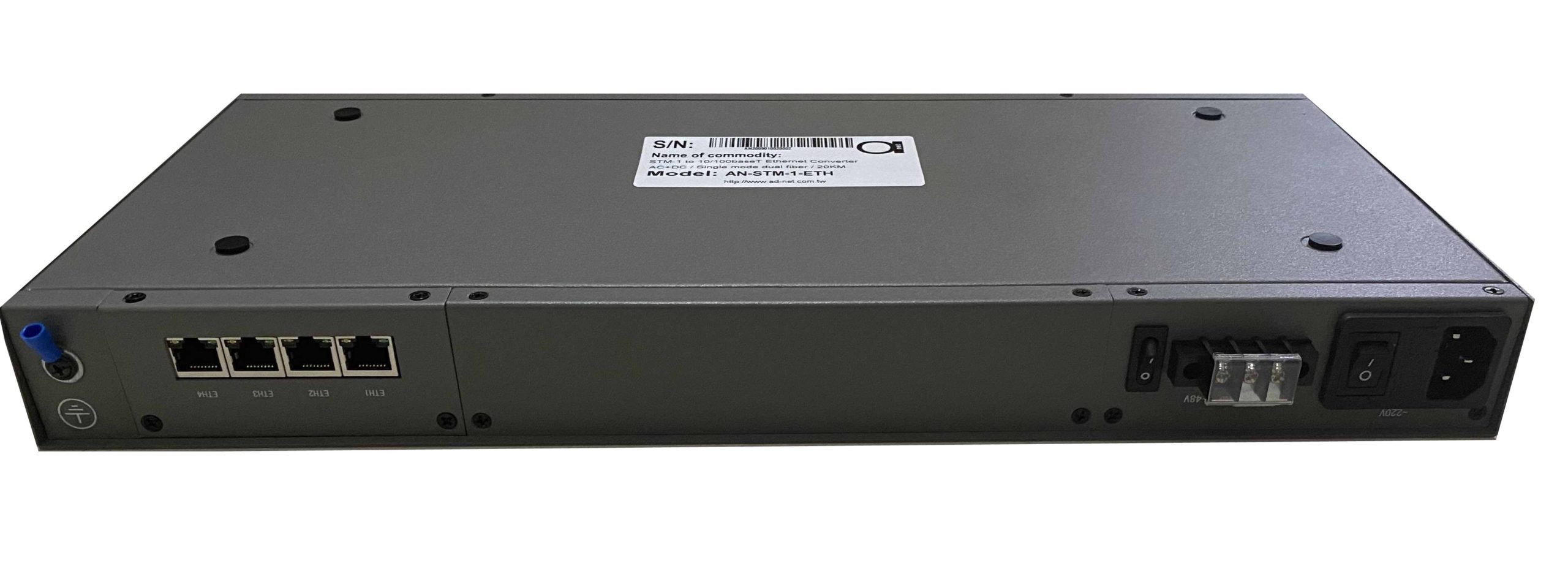

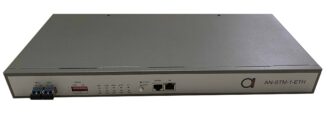

AN-STM-1-ETH

STM-1 to Ethernet converter, single or multimode, or WDM up to 120 km, 48 V or 220 AC/110 V AC

Description

AN-STM-1-ETH is designed as a STM-1 level optical modem with two 155.520Mb/s optical interfaces to provide a cost-effective and flexible multi-service platform. With 4 Ethernet interfaces compatible with IEEE 802.3/802.3u standard, it is easy to implement Ethernet transmission over SDH.

AN-STM-1-ETH supports port-based VLAN and IEEE 802.1Q tag-based VLAN. By adopting ITU-T G.7041, G.7042 and G.707-compliant EOS (Ethernet Over SDH) technology and VLAN technology, each Ethernet port can employs 1~4 separate Virtual Concatenation Groups (VCG), and each VCG can be assigned to one or more Ethernet ports. The bandwidth of VCG can be flexibly configured for efficient transmission of Ethernet data over SDH network.

AN-STM-1-ETH supports NE management based on CLI command and SmartView network management platform based on SNMP_V1 and SNMP_V2 protocol, to perform excellent management such as configurations, alarm monitoring and performance statistic.

AN-STM-1-ETH is suitable for data access network on the client side. With the technology compliant to ITU-T standards, it can communicate with products from other vendors adopting the same standards.
