STM-1 interfaces

  • Number of ports: 2
  • Date rate: 155.520Mbps
  • Connector: SFP slot, Hot pluggable, Optical or Electrical Optional
  • Supports 1+1 path protection and Automatic Protect Switch (APS) , Recovering time: <50ms
  • Supports real-time detection for the status of optical module
  • Supports ALS (Automatic Leaser Shutdown)
  • Supports RPD (Remote Power down Detection)
  • Supports optical line loop and device loop

Fast Ethernet Card

  • Number of ports: 4
  • Number of VCG (Virtual Concatenation Groups ): 4
  • Combinations: 4 Fast Ethernet (FE)
  • Connector: RJ-45 (100BaseTx)
  • Date rate: 10/100Mbps, Auto-negotiation, Full/Half-duplex
  • Max Frame Size:1552 bytes (otherwise filtering)
  • Min Frame Size: 64 bytes
  • Supports unicast, multicast and broadcast frame
  • Supports MAC address dynamic learning
  • VLAN: Supports IEEE 802.1Q tag-based VLAN and port-based VLAN
  • Throughout statistic of the Ethernet packets based on port
  • Supports 802.3x flow control and broadcast storm filtering control
  • Auto MDI/MDX function
  • Compliance: Relevant sections of IEEE 802.3
  • Generic Framing Procedure GFP-F compliant with ITU-T G.7041.
  • VCAT compliant with ITU-T G.707 and LCAS compliant with ITU-T G.7042 (Ethernet over SDH).

Gigabit Ethernet Card

  • Number of ports: 2
  • Number of VCG (Virtual Concatenation Groups ): 1
  • Combinations: 1 electrical Gigabit Ethernet (GE) and 1 optical Gigabit Ethernet (GX)
  • Connector: RJ-45 for electrical (1000BaseTx) and SFP for optical (1000BaseSx or 1000BaseLx)
  • Date rate: Electrical 10/100/1000Mbps and Optical 1000Mbps
  • Max Frame Size:1552/2036 bytes (otherwise filtering)
  • Min Frame Size: 64 bytes
  • Supports unicast, multicast and broadcast frame
  • MAC address table: 8K
  • Supports MAC address dynamic learning
  • VLAN: Supports IEEE 802.1Q tag-based VLAN and port-based VLAN
  • Supports QinQ (Double Tag VLAN)
  • Throughout statistic of the Ethernet packets based on port
  • Supports 802.3x flow control and broadcast storm filtering control
  • Auto MDI/MDX function
  • Compliance: Relevant sections of IEEE 802.3
  • Generic Framing Procedure GFP-F compliant with ITU-T G.7041.
  • VCAT compliant with ITU-T G.707 and LCAS compliant with ITU-T G.7042 (Ethernet over SDH).

E1 interface

  • Number of ports: 8 or 16.
  • Date rate: 2.048Mbps±50ppm.
  • Line code: HDB3.
  • Line Impedance:
  • 120Ω, balanced.
  • 75Ω, unbalanced.
  • Connector:
  • RJ-45, balanced.
  • Two BNC, unbalanced (via adapter cable).
  • Compliance: ITU-T G.703, G.704, G.823.

Timing

  • STM-1 line timing (T11,T12)
  • Tributary timing from E1-1 to E1-16 (T2)
  • External timing source input (T31/T32), 2048Kbit/s by default and 2048KHz selectable
  • External timing output (T41/T42), 2048Kbit/s by default and 2048KHz selectable
  • ITU-T G.813 internal oscillator
  • The timing source can be auto-switched according to SSM or operator settings

System Management

  • CLI: Local management is performed via CLI terminal
  • SNMP: Compatible with V1 and V2C protocol. Access is available using SNMP management software “Smartview”
  • LED indication: Necessary alarm indications such as NOP, LOF, RPD
  • Download online: Supports FTP protocol and firmware download online without disturbance of existing traffic
  • Supports embedded BERT and various loop back for troubleshooting

Power supply

  • AC+DC dual input optional.
  • AC range: 85~264V AC
  • DC range : -36V ~ -72V DC
  • Power consumption: <20W(±10%)
  • Support Redundancy Power Supply Protection.

Physical

  • Height: 44mm (1U).
  • Width: 434 mm (19 in).
  • Depth: 255 mm.
  • Weight: 4.5 kg.

Operating environment

  • Temperature: -5~55-deg centigrade.
  • Storage Temperature: -40~70-deg centigrade.
  • Relative Humidity: <95% non-condensing.

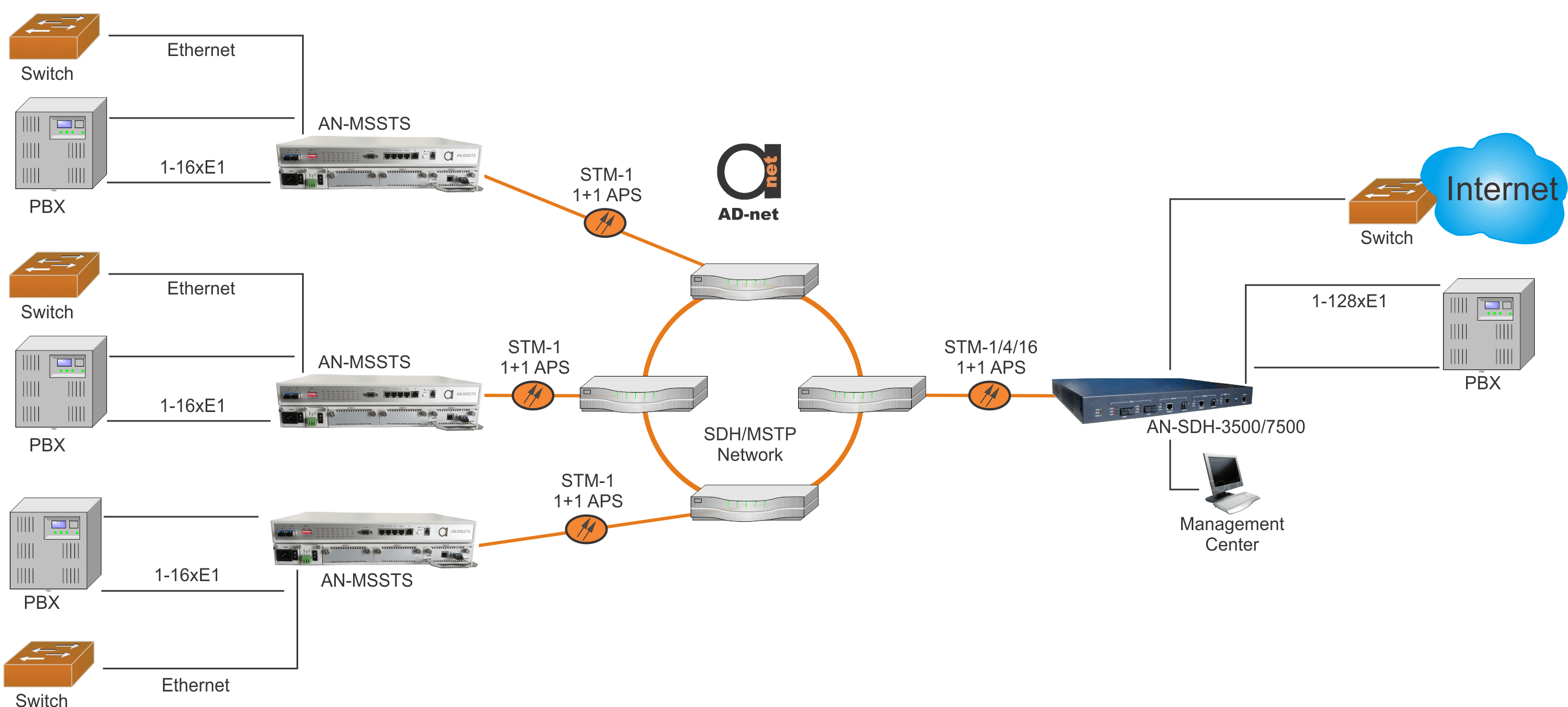

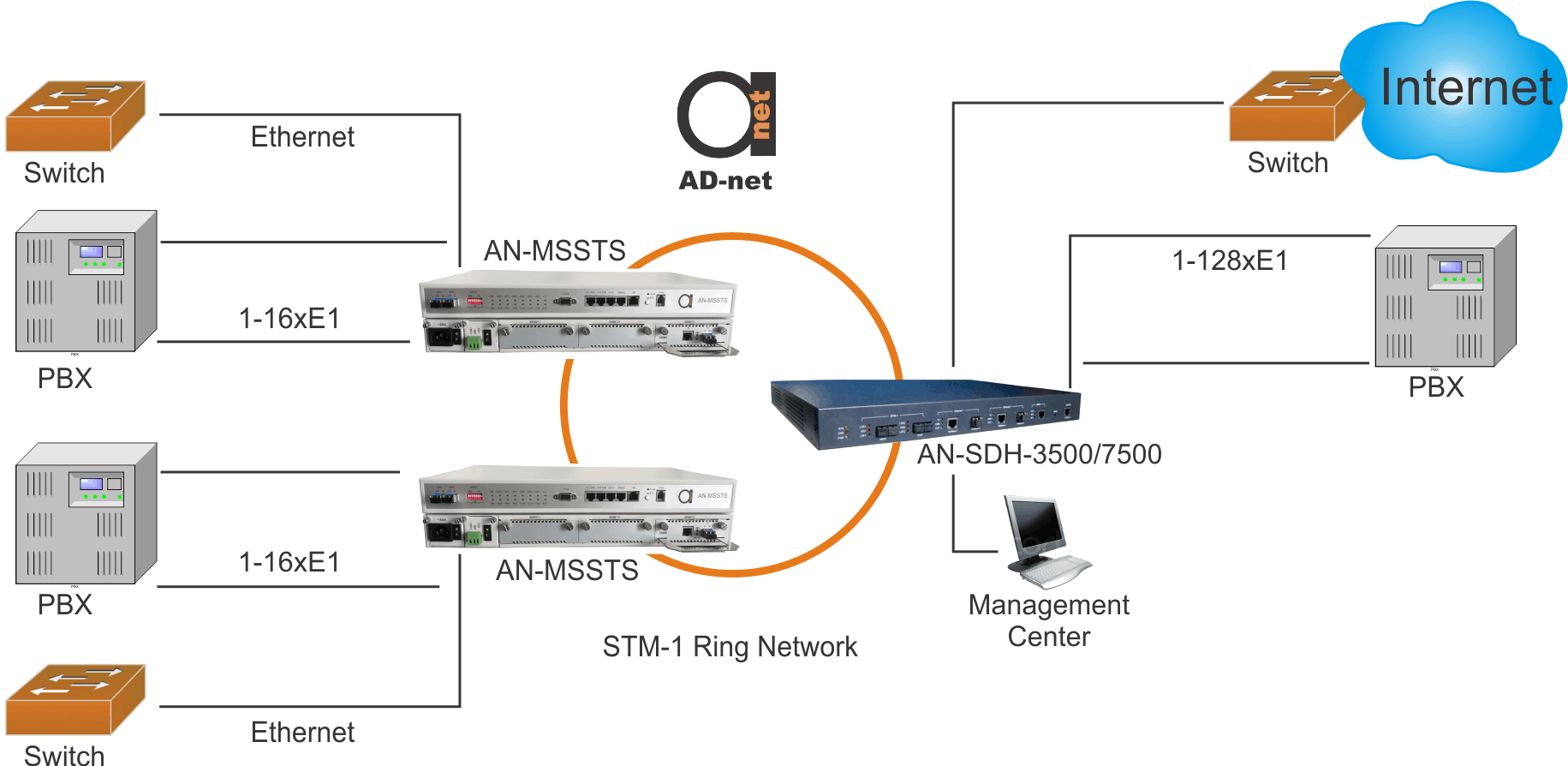

AN-MSSTS can be used to build point-to-point, ring and chain network, as the following figure shows:

AN-MSSTS

Multi-Service SDH Transmission System (VC12) with 2XSTM-1 optical port and 3 service slots, NMP/CLI Management, AC220V/DC-48V Power Supply.-

10/100M Ethernet card

4 copper 10/100M Ethernet Ports, 4 VCG channle by EOS

10/100/1000M Ethernet card

1 copper +1 optical 10/100/1000M Ethernet Ports, 1 VCG channle by EOS

8E1 Card

8E1 Ports, Compliance: ITU-T G.703, G.704, G.823

Description

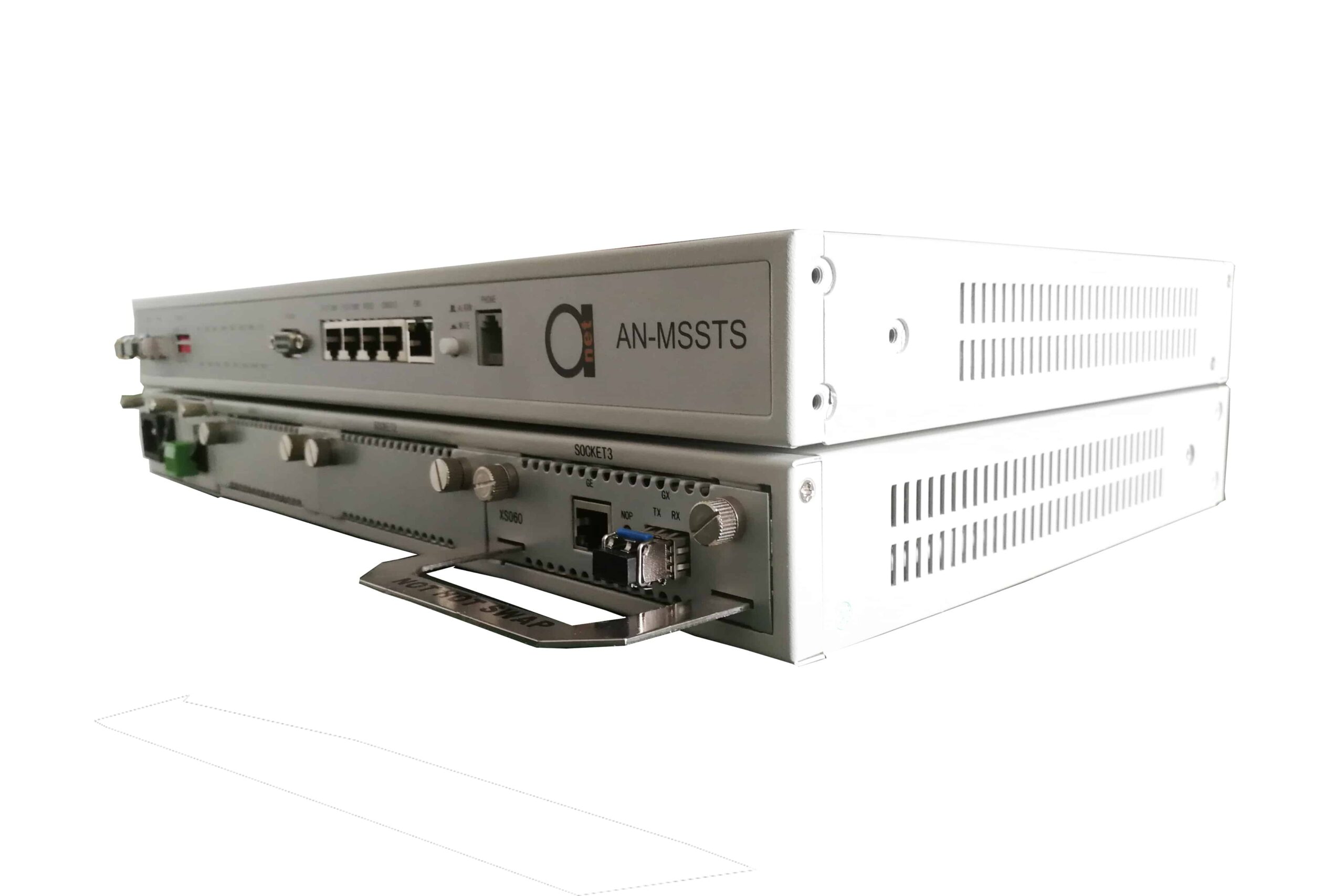

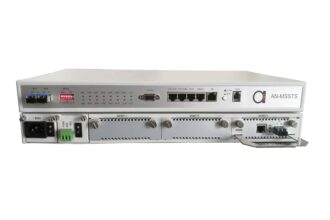

AN-MSSTS is the STM-1 level multi-service Synchronous Digital Hierarchy (SDH) transmission system compatible with ITU-T standard. It is designed as a modular system with two 155.520Mb/s optical interfaces to provide an ultra-compact, cost-effective and flexible multi-service platform. With optional cards such as E1, Ethernet, V.35 and Engineering Order Wire card (EOW). It can be used as a Terminal Multiplexer (TM) or an Add-Drop-Multiplexer (ADM) to build point-to-point, ring and chain transmission network.
