Slim DIN Rail Gigabit Ethernet Switch with SFP Slot – 4x RJ45 + 1x 1000Base-X, Dual Power Input (DC/USB)
Industrial-grade compact Gigabit switch with 4x autosensing RJ45 ports and 1x open SFP slot for flexible fiber uplinks. Supports DC terminal and USB power input, making it suitable for control cabinets, automation systems, and space-constrained installations.
| Housing type | IP40 protection level, iron shell, anti-strong vibration rail mounting base |
| Power Supply | DC 5V input (with 3 different input options, including USB adapter cable) |
| Maximum Fiber Distance | Depends on SFP Transceiver module |
| Operating temperature | -40°C to 75°C (-40°F – 167°F) |
| Dimensions | 3.7″L x 2.8″W x 1.02″H (94mm x 71mm x 26mm) |
| Standards Supported | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3z 1000Base-FX, IEEE 802.3ab 1000Base-TX |

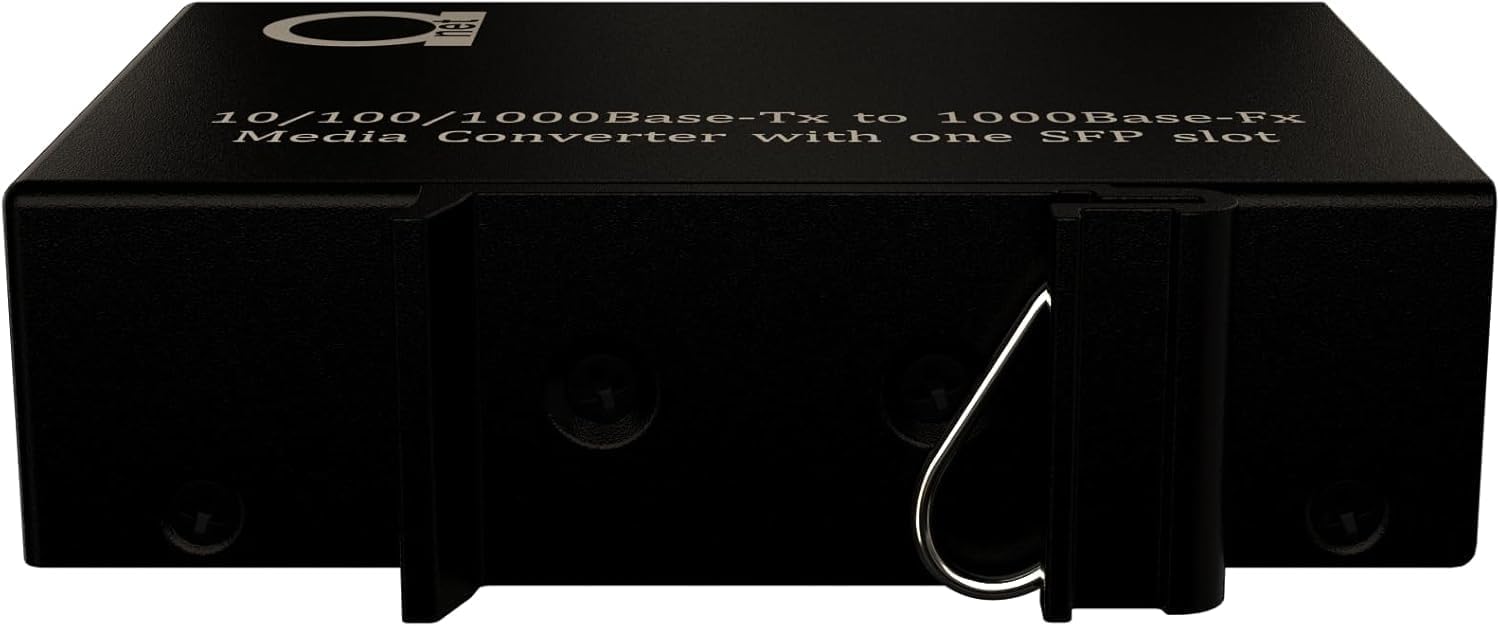

| Mounting Type | Desktop or DIN rail Mount |
| Status LED indicators | Power, Link/Activity, Fiber & UTP port status |

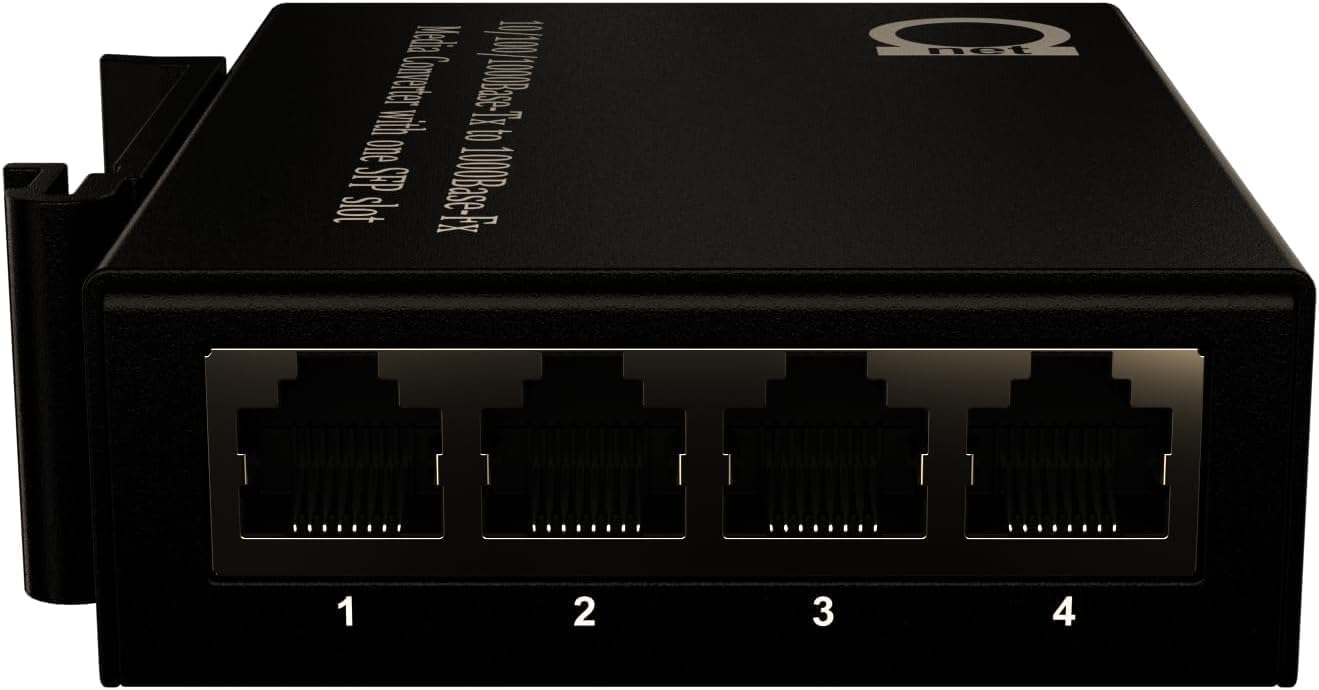

| Ethernet port | 4 x RJ-45 Compliant with IEEE 10/100/1000Base-T |

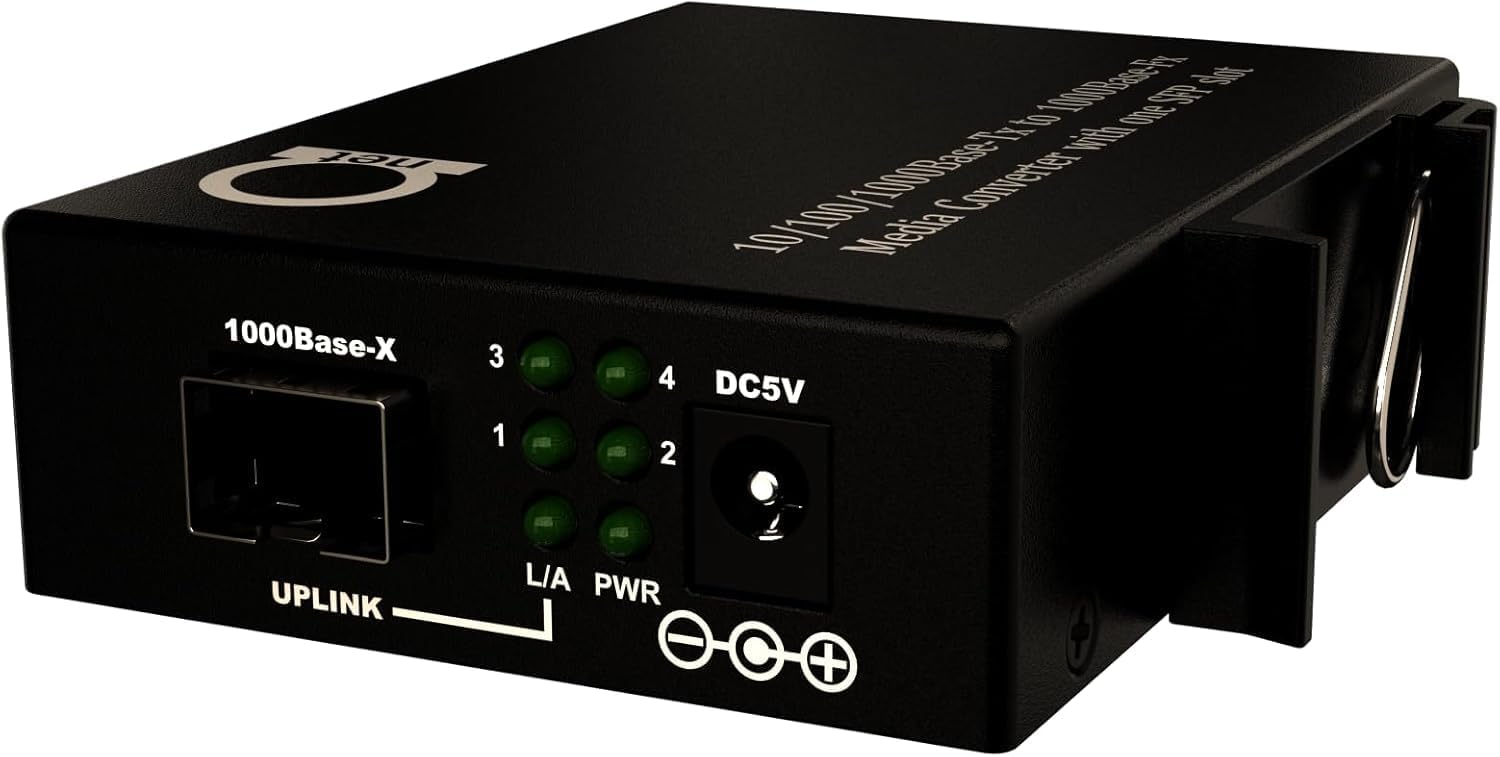

| SFP Universal slot | Supports 1.25G SFP transceivers, hot swappable |
| Other | IEC 61000-4-5(Surge) level 3(Lightning protection: 2KV) |
| Special Features | Built-in high-performance kernel, broadcast storm control, flow control, CRC error checking – for more stable ethernet network connections |
| Transmission Larency | Provides ultra-low latency data transmission to ensure high data transmission efficiency, transparent to network protocols and supports the transmission of multiple network protocols |
| MTU size | 9K Jumbo Frame Support |
Typical Applications
This slim DIN rail Gigabit switch with open SFP slot can be used in two common deployment scenarios. In both cases, the SFP slot allows flexible fiber uplink selection based on the required distance, fiber type, and connector format.
1. Fiber-to-Copper Distribution for Multiple Ethernet Devices
In the first example, the switch receives a Gigabit fiber uplink from a central switch through the open SFP slot. It then distributes the Ethernet connection to multiple copper devices through its four 10/100/1000Base-T RJ45 ports. This is a practical solution when one fiber link needs to be expanded into several copper connections at the remote side.
Typical uses include connecting multiple IP-based devices such as industrial controllers, PCs, HMI panels, cameras, gateways, or other standard Ethernet equipment inside control cabinets, factory networks, or field installations.
2. Expanding a Third-Party Fiber Device with Additional RJ45 Ports
In the second example, the switch is connected by fiber to a third-party fiber switch, media converter, or other 1000Base-X fiber equipment. The unit works as a compact remote access switch, adding multiple Gigabit copper ports where only a single fiber connection is available.
This application is useful when an existing fiber device provides only one connection point, but several local Ethernet devices still need to be connected nearby. It helps simplify installation and reduces the need for extra switching equipment.
Key Benefits
- Converts one fiber uplink into four Gigabit RJ45 ports
- Open SFP slot supports flexible transceiver selection
- Compatible with standard Ethernet devices
- Compact DIN rail design for control cabinets and space-limited installations
- Suitable for industrial, automation, and general network extension use
| AN-UM-4GTX-1GSFX-DIN | 4 port RJ-45 Gigabit Autosensing industrial slim din rail mount switch with open SFP slot. |
Description
- Open SFP Slot – Supports any MSA-compliant 1000Base SFP module (single-mode, multimode, BiDi, CWDM/DWDM). Module is not included, allowing you to choose the exact transceiver for your network needs.

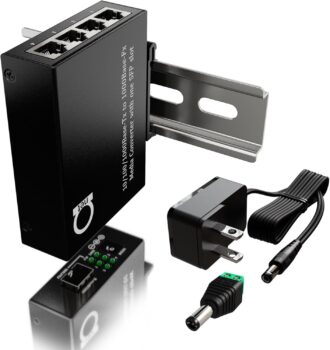

- Certified Power Included – Comes with a UL-listed AC to 5VDC adapter for safer, more reliable operation.

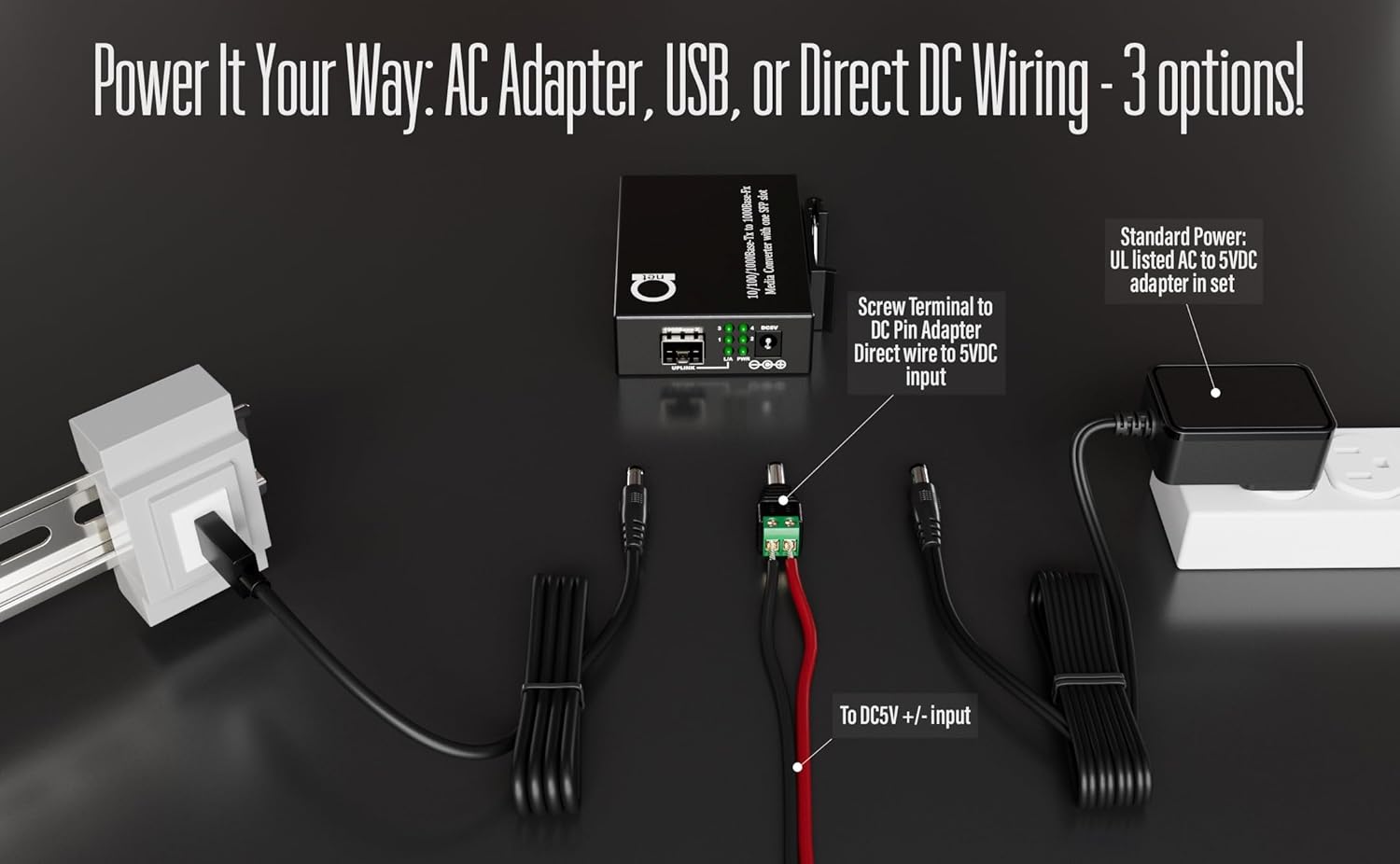

- 3 Ways to Power the Unit – Use the included AC adapter, power from a USB block, or direct DC wiring via the screw terminal. Flexible options for any installation environment.
- Industrial-Grade Build – Withstands harsh environments with IP40-rated housing, -40°C to 75°C wide temp support, and shock-resistant body.

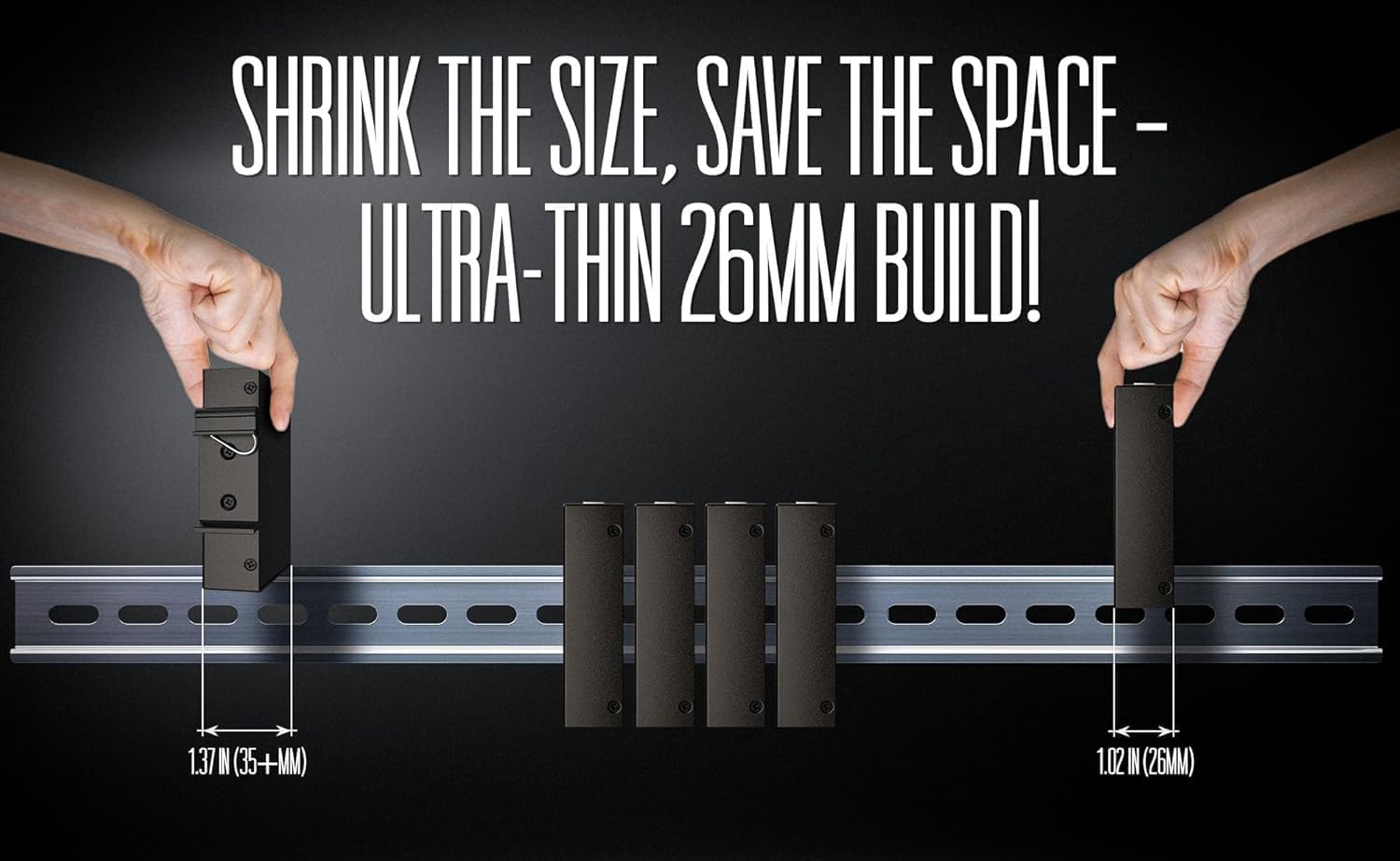

- Ultra-Compact DIN Mounting – Slim 26mm design fits tight enclosures, DIN rails, or desktop setups with ease.
- Flexible Networking – Features 4x Gigabit RJ45 ports + 1x Gigabit SFP slot, with support for full/half-duplex, auto-negotiation, and jumbo frames (9K).
FAQ
Which Fiber Module Should I Choose for this mini switch / media converter?
Compatible with any Gigabit (1.25G) SFP module—supports all wavelengths, fiber modes (single-mode, multimode), and connector types.
I plan to use it as a standalone unit – what should I watch for?
This converter cannot replace ISP ONTs (e.g., FiOS, GPON). It works only with standard Ethernet-to-fiber links. Ensure the wavelength matches on both ends (e.g., 1310nm TX – 1310nm RX) and use a compatible LC UPC patch cord
What is the most common fault if the converter does not come up?
The most common issue is TX/RX mismatch—swap the RX and TX fibers at one side. If using it standalone, ensure the wavelengths match on both ends (e.g., 1310nm TX – 1310nm RX). Also check if fiber module speeds match – i.e. 100FX or 1000FX
Can I use this as a replacement for Verizon FiOS, Google Fiber, or other ISP fiber services CPE?
No, this cannot replace ISP ONTs like Verizon FiOS, Google Fiber, AT&T Fiber, or CenturyLink. These providers use GPON/XGS-PON, which requires their own ONT. This converter works only for standard Ethernet-to-fiber extensions, not ISP connections.
My rack provides 24V or 48V DC — how do I power this 5V device?
