Semiconductor Optical Amplifier

AD-net Semiconductor Optical Amplifier products provide the amplification around 1310nm. It can be used in the10G/40G/100G system, suit for system design conveniently. Products are divided into 2 * 2,4 * 4 and 8 * 8 three kinds, respectively, to achieve 2-way, 4-way and 8-way 1310nm 100G optical signal amplification. It provides output power up to be 10dBm.

O-band, 1260~1340;
Power up to 10dBm;
3 work modes, ACC, APC and AGC,for constant pump current, output power or gain are selectable;
DB9 port for RS232 communication and RJ45 port for SNMP function
220VAC or -48VDC dual power supply, optional.
RoHS compliant

100G systems	OBA （Example）
Parameters	Min	Typ	Max	Units	Remark
Operating wavelength	1290	1310	1330	nm
Port			8	port	8in put 8 out put
input power	-25		-10	dBm
Out put power	-8		-2	dBm	APC
Polarization dependent gain			2	dB
Bias current		300	400	mA	Single
Gain flatness			2	dB
Noise figure		7.5	8	dB	in put=-20dBm
Uniformity			1	dB
Stability			0.5	dB
Working temperature	0		55	℃
Storage temperature	-40		85	℃
Power			40	W
Control mode	APC
Operating Voltage	-48V DC or 220VAC			V
Size	1U、19 inch
Management	SNMP
Rate	10Gbps/40Gbps/100Gbps

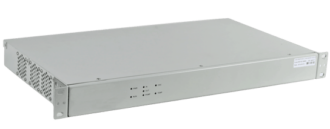

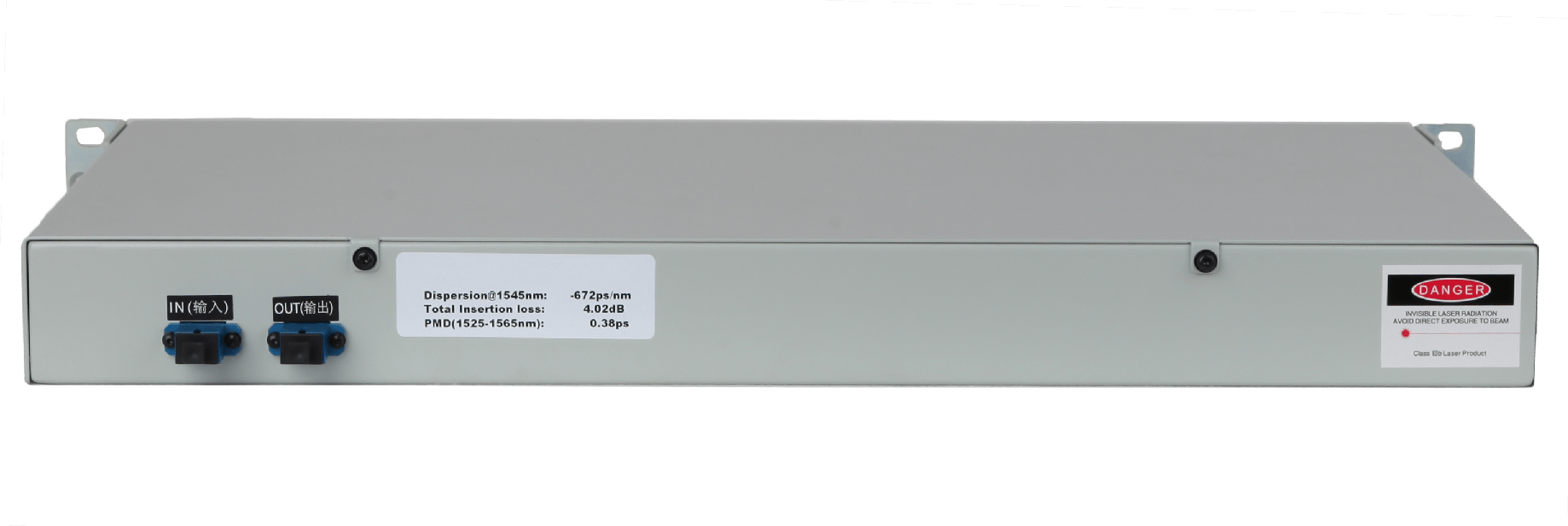

AN-SOA

Semiconductor Optical Amplifier for O-band, 1260~1340 nm, power up to 10dBm

Description

Applications

10G/40G/100G;
Network Monitoring
PON

FTTx access+
