  • Compliant with PCI Express Base 2.0 Specification
  • Compliant with xHCI Specification Revision 1.0
  • Max extension distance 250m (SM or MM fiber cable)
  • Duplex/Single LC fiber connecter
  • Pure hardware design, no driver needed, support plug and play
  • Compliant with Windows 8,Windows 8.1,and Windows 10 operation systems
  • Support USB3.0 SuperSpeed up to 5Gbps, 4 USB 3.0 Type A Receptacle
  • Not backwards compatible with USB 2.0 and USB 1.1

Optical

Connector

Duplex/Single LC

Wave length

1310nm/1270/1330nm

Physical

Size (L× W ×H)

104mm x104mm x28mm

Case

Aluminum

Color

Black

N.W.

0.5Kg

Power

Sender Voltage

5~12V DC

sender power consumption

<5W

receiver power consumption

<2W

Environment

Working temperature

0℃-50℃

Storage temperature

-40-85℃

Humidity

0-95% (non-condensing)

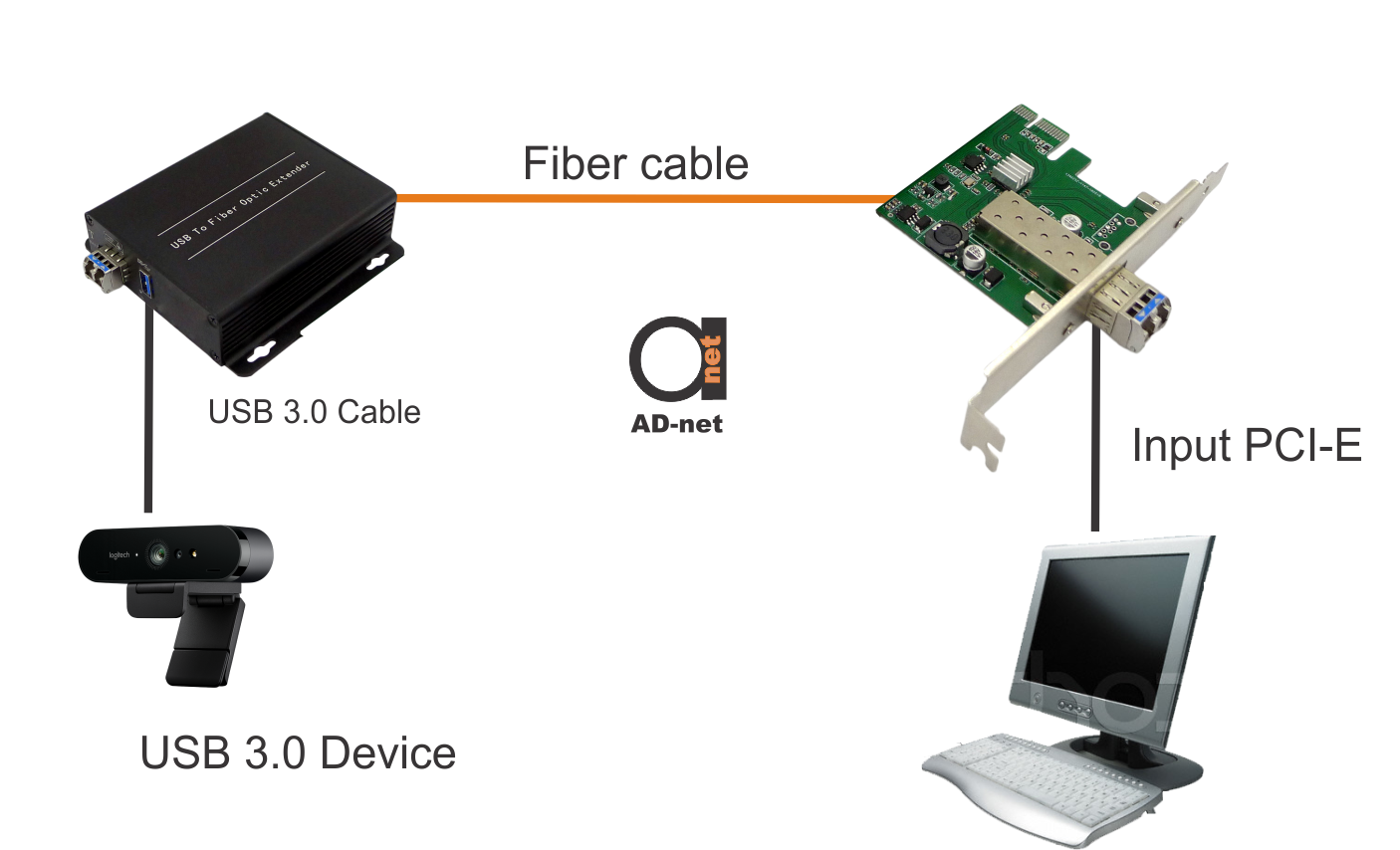

  1. PCI-E to USB3.0 fiber expansion card plug in the PC PCI-E slot
  2. Transmitter(client-side)powered with the DC 5 / 12V adapter
  3. Connect the PCI-E to USB3.0 fiber expansion card and transmitter with fiber optics
  4. The USB3.0 device connect to the transmitter(client-side)

Note:

After fiber is connected, the fiber indicator is on, otherwise off. After the USB device is inserted, the USB indicator will be on, otherwise off.

AN-USB-EXT-PCI-E-3.0

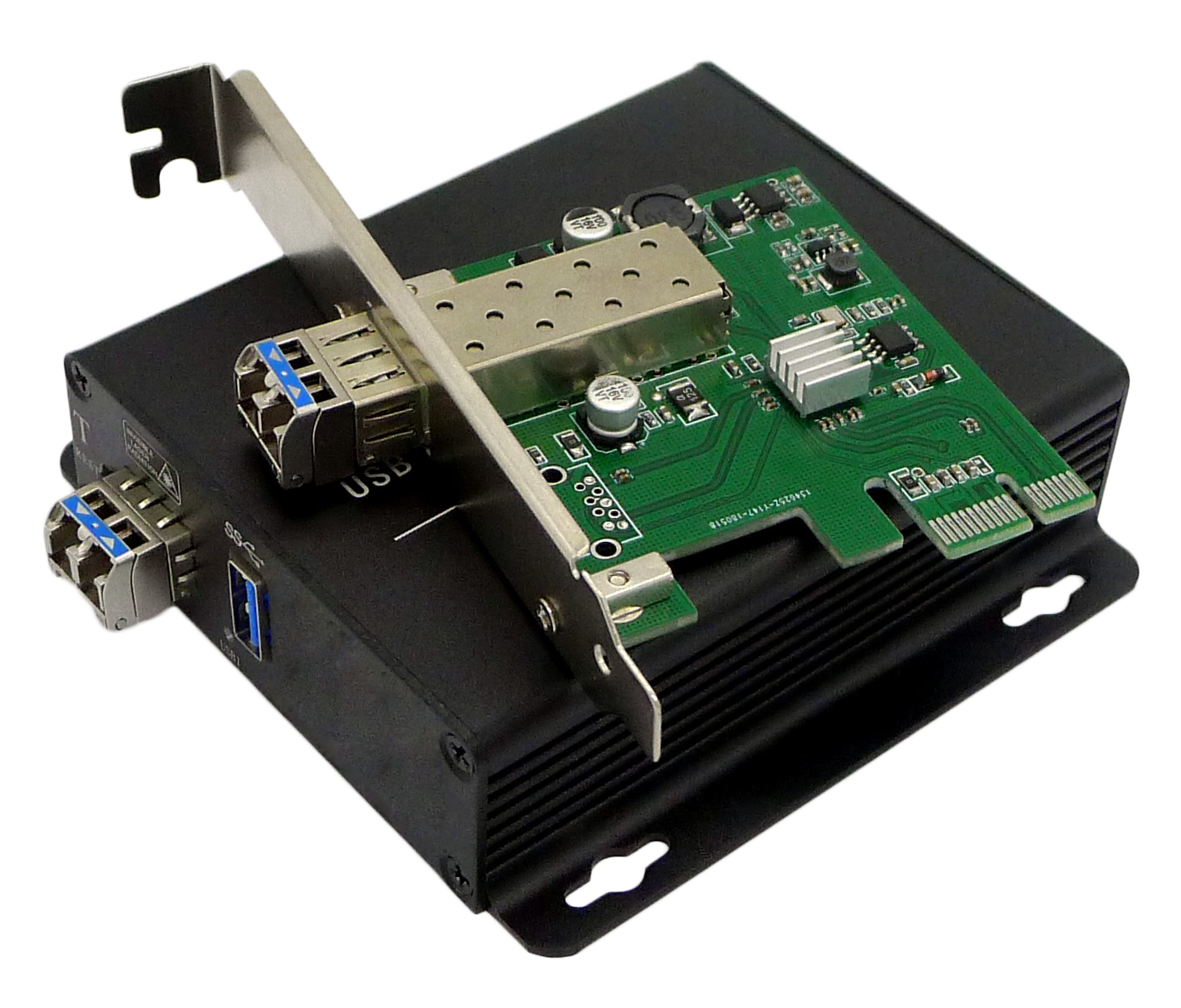

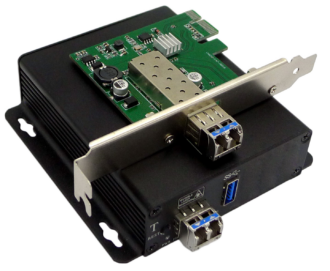

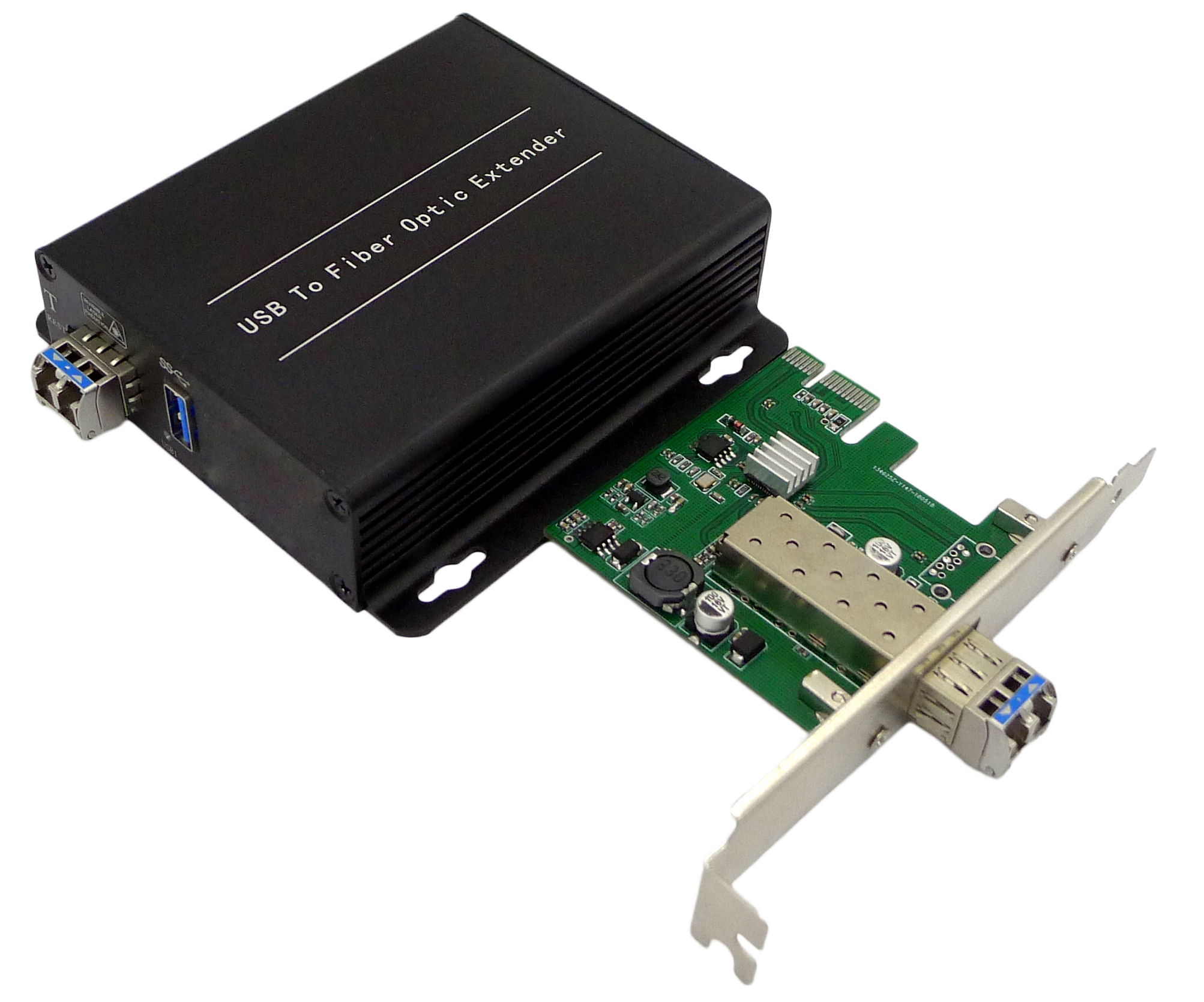

PCI-E card to 1 port Remote USB 3.0 Over Fiber Extender | Converter set (card + remote 1 port unit) Kit.

Description

PCI-E To USB 3.0 Over Fiber, the device includes a PCI-E to USB3.0 fiber expansion card(host-side)and a transmitter(client-side), which can extend the SuperSpeed USB3.0 to a remote location over 1or 2 core fiber cable, max distance 250m (SM or MM fiber cable), also can split 1 USB3.0 interface to 4 USB3.0 interface.
The device can extend high bandwidth USB 3.0 webcams and storage devices ,be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities, Kinect devices etc.
