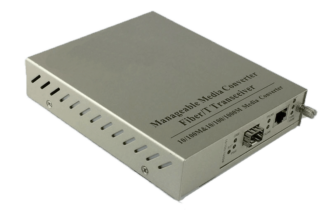

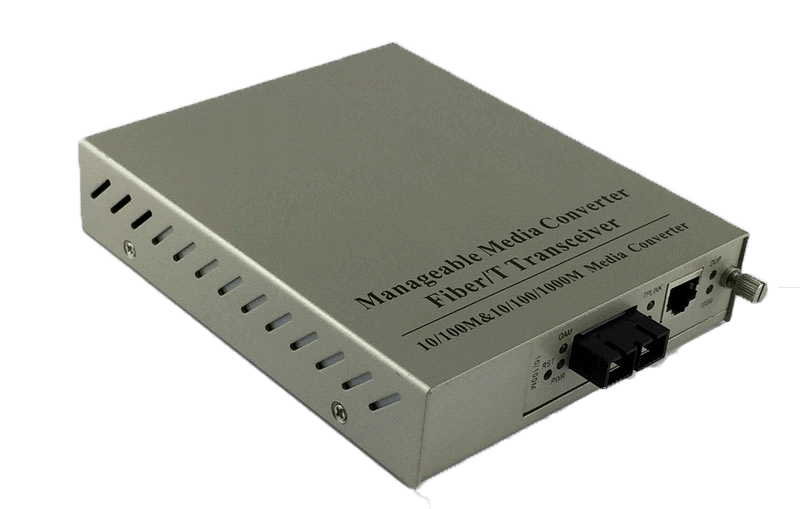

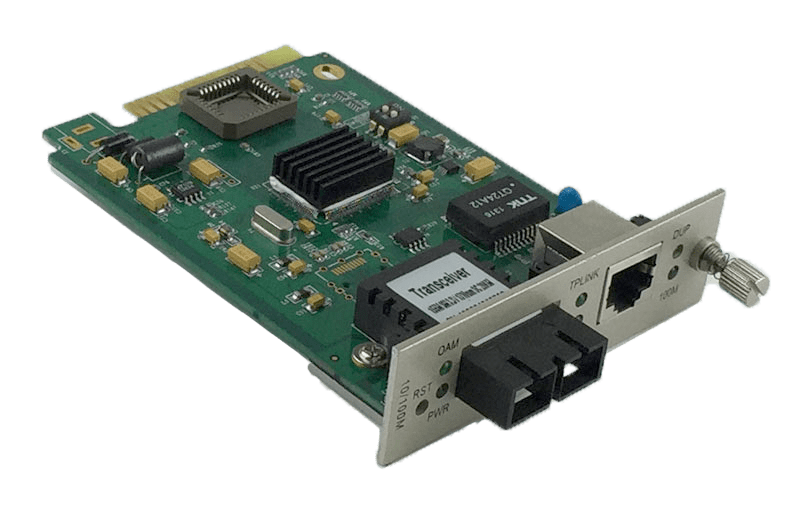

Standalone Managed Fiber Optic Media Converter ( IEEE802.3ah OAM compliant)

10/100M、10/100/1000M IEEE802.3ah OAM manageable ethernet fiber media converter can supervise the real time situation of remote manageable fiber media converter and set the functions. With this system, the response speed of the operator is quickened, the daily maintenance and network expenditure of the operators are reduced, and the serving quality of them is enhanced.

Built-in IP-based Web Interface
Supporting remote and local management
Supporling IEEEE 802.3X Frame Flow Control for Full-Duplex mode
Store and Forward mechanism
Manual IP address setting/DHCP client for IP address assignment
SNMP Trap function
Event trap and SNMP trap support
Speed duplex mode configuration / Flow Control setting / bandwidth
Control on TP / Fiber port
Supports Port Status / Ethernet Statistics on both TP and Fiber intertace
Supports Maximum frame size to 9K bytes
Loop detection / Broadcast / Multicast / Unicast storm control
Management VLAN / 16 IEEE 802.1Q VLAN groups / Q-in-Q VLAN
802.1p Tag Priority / IP address priority / IP DSCP option in
Quality of Service Mode and Strict Priority / Weighted Round Robin (WRR)
QoS policies
TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test
16 TCP / UDP Filter groups
Password setting, IP setting and devices description setting through Planet
Smart discovery utility
Firmware upgrade via remote Web interface
LED indicators for easy network diagnosing
Reset Button at the front panel for the factory default reset
Choice of fiber-connector from SC, LC, WDM, multi-mode /
Single-mode fiber /1000Base-SX / LX mini GBIC module

Performance	One TO One Manageable
Ethernet Interface
Meet standards	IEEE802.3,IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x
Data rate:	10Mbps, 100Mbps, 1000M half/full duplex auto-sensing
Connector	RJ-45
Fiber port Interface
Connector	ST, SC, FC.LC
Operating wavelength:	850nm, 1310nm at Multi-mode; 1310nm,1550nm at single mode.
Optical fibers:	Multi-mode: 50/125，62.5/125，100/140um; Single-mode: 8.3/125,8.7/125,9/125,10/125um
Basic working environment
Transmission Distance	Dual fiber: up to 100km Single fiber: up to 80km
power requirement	Power supply: 85VAC~265VAC or -40VDC~-57VDC Power consumption: ≤5W
Work Environment	Operating Temp: 0~ 50 ℃ Storage Temp: -10~ 70 ℃ Humidity: 5%~90% （ non-condensing ）
Dimension	Standalone ： 156mm ( W ) ×128mm ( D ) ×32mm ( H )

AN-M-100	10/100M Manageable Media Converter
AN-M-SMC100	10/100M Manageable SFP Media Converter
AN-M-MG-AS	10/100/1000M Manageable Media Converter
AN-M-SMC-AS	10/100/1000M Manageable SFP Media Converter
