M12 + RJ-45 PoE Ethernet Booster LAN Extender | PoE-Powered Master or 48V DC Option | Coax / 2-Wire Uplink up to 500m PoE or 800m Data | DIN-Rail Mount | Star/Daisy-Chain/Point-to-Point
Industrial PoE Ethernet Booster LAN Extender with M12 and RJ-45 interfaces for long-distance Ethernet and PoE transmission over coax or 2-wire cabling. Supports PoE-powered or 48 VDC master-side operation and multiple network topologies. Designed for IP cameras, access control, and industrial networking applications.
Video 1 – Product Overview & Connection Steps
This video provides a complete overview of the M12 + RJ-45 PoE Ethernet Booster LAN Extender, including hardware features, interfaces, and step-by-step connection instructions for typical point-to-point installations.
Video 2 – Real Throughput & PoE Power Measurement Test
Demonstration of real-world Ethernet throughput and inline PoE power measurements using a professional network tester. This test verifies stable data performance and actual PoE delivery under load over long-distance coax or 2-wire cabling.
Video 3 – Point-to-Multipoint Deployment Example
This video shows a point-to-multipoint topology where one master unit distributes Ethernet and PoE to multiple remote extenders. Suitable for trains, tunnels, surveillance corridors, or linear infrastructure deployments.
Video 4 – Daisy-Chain Configuration Demonstration
Demonstration of a daisy-chain configuration where multiple extenders are connected in series. This setup allows scalable expansion while maintaining Ethernet data flow and PoE delivery across extended distances.

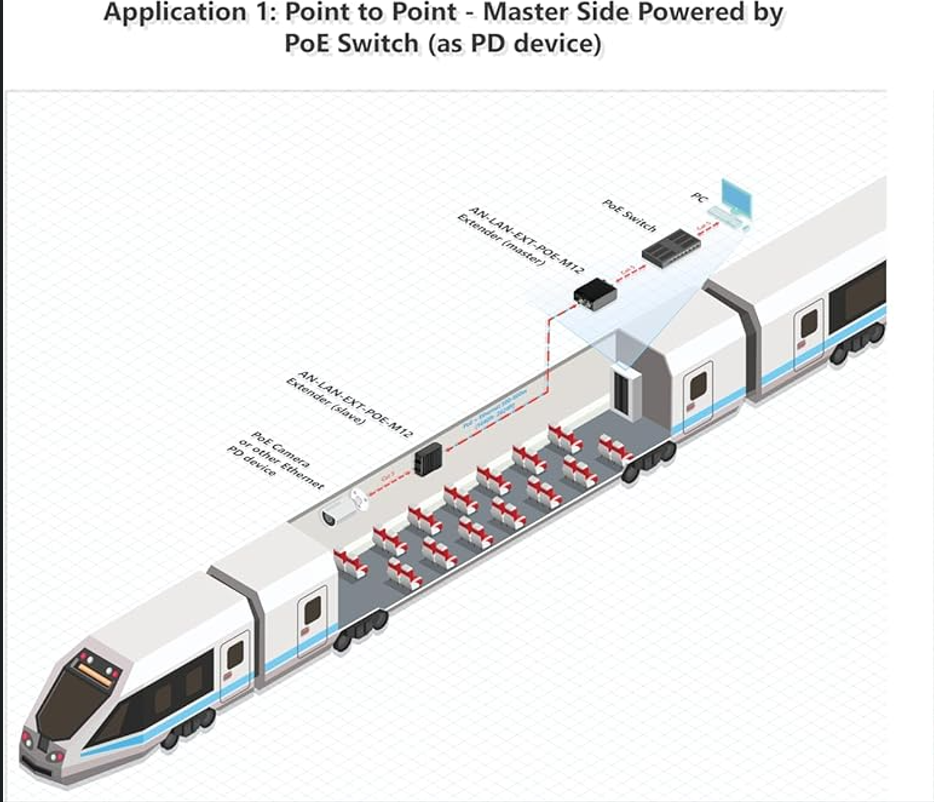

Application 1 – Point-to-Point Ethernet & PoE Extension (PoE-Powered Master)
In this point-to-point configuration, the master M12 LAN extender operates as a PoE Powered Device (PD) and is powered directly from an upstream PoE switch or injector (IEEE 802.3af/at).
Ethernet data and PoE power are transmitted over existing coaxial cable or 2-wire copper lines to the remote extender.
The remote unit regenerates Ethernet and delivers PoE output to end devices such as IP cameras, passenger information systems, access points, or industrial controllers.
This topology is ideal for rail vehicles, tunnels, industrial corridors, and legacy cabling environments where installing new Ethernet cabling is impractical.

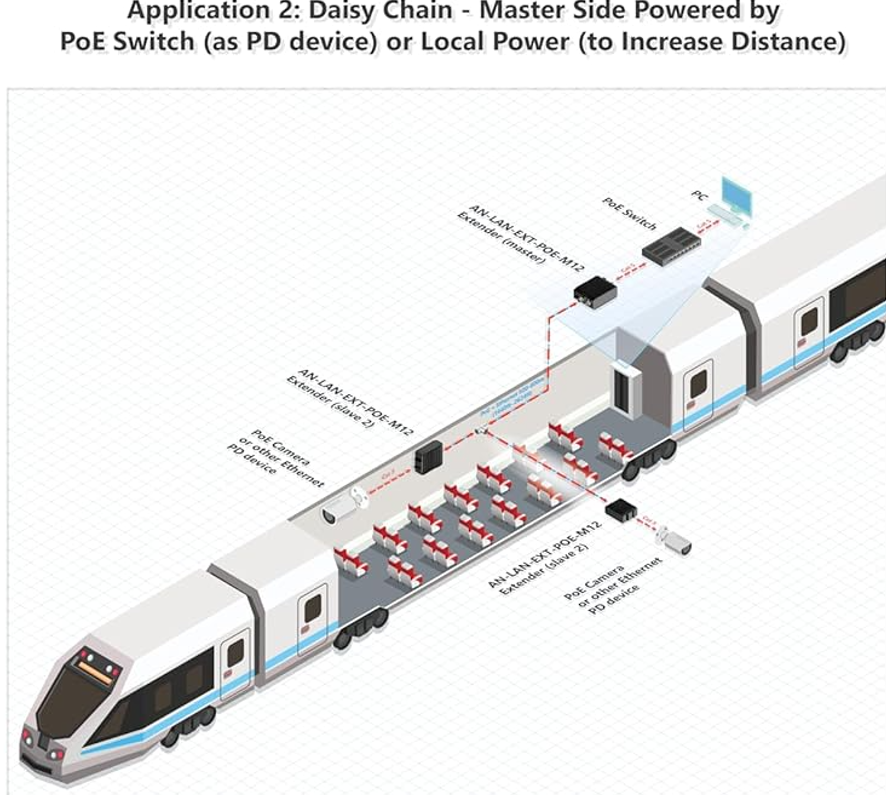

Application 2 – Daisy-Chain Deployment for Extended Distance & Multiple Devices
In a daisy-chain configuration, multiple M12 LAN extenders are connected sequentially along a single cable path.
The master unit can be powered either by PoE from a switch or by a local 48V DC power supply to increase maximum transmission distance and available PoE budget.
Each intermediate extender regenerates the Ethernet signal and passes PoE forward, allowing multiple powered devices to be connected along long linear installations.
This approach is commonly used in trains, metros, platforms, tunnels, and other transportation or infrastructure systems requiring scalable network expansion.
| Maximum Distance | 800m Ethernet without PoE (500m with PoE) |

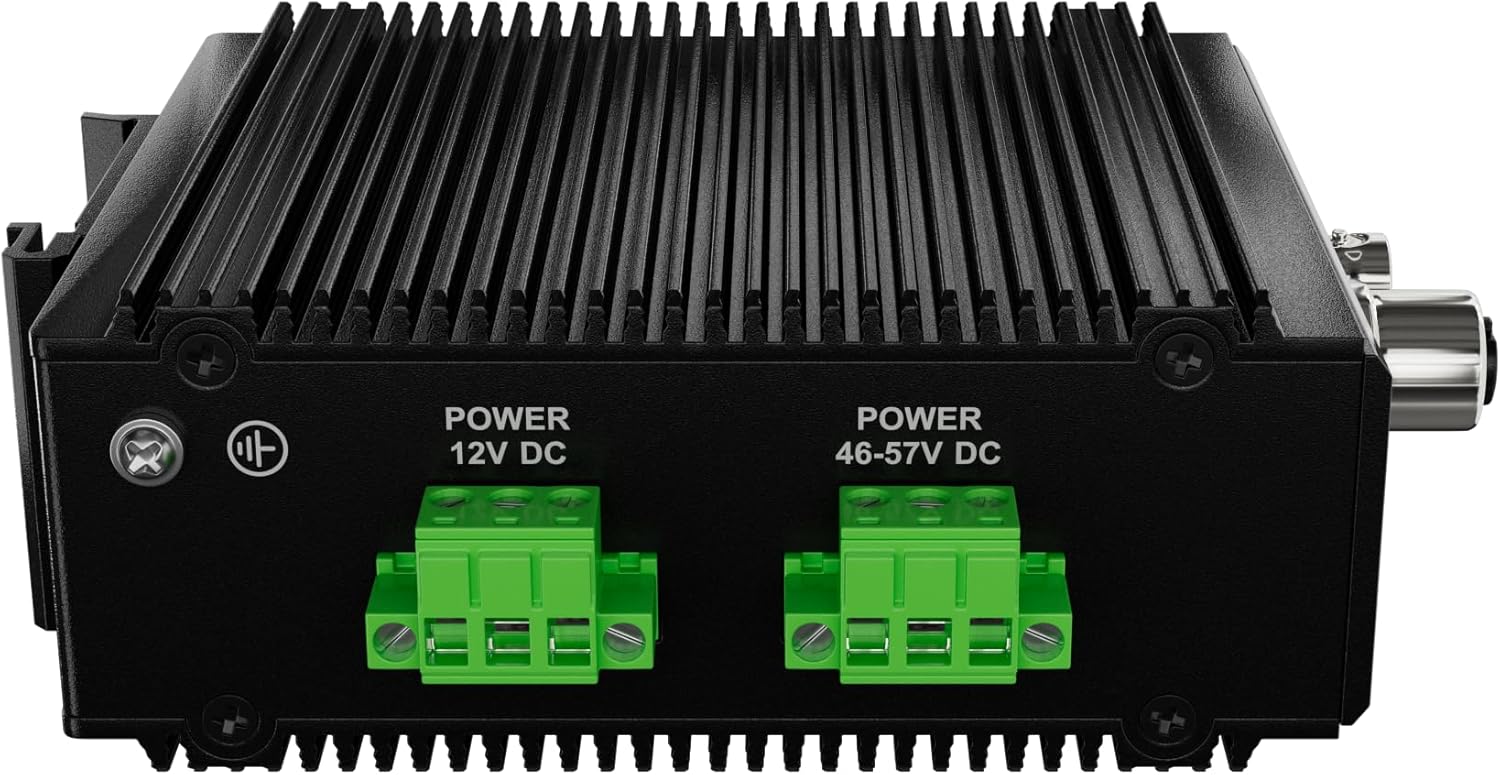

| Power Input | Master side can be powered via PD PoE port or 12VDC or 46~57VDC |
| Power Consumption | ≤3.5W per unit |
| Ethernet Bandwidth | Full duplex 100Mbps (92 – 95 Mbit/s real throughput after protocol overheads) |
| Net Weight | 513g per unit (Master or Slave side) |

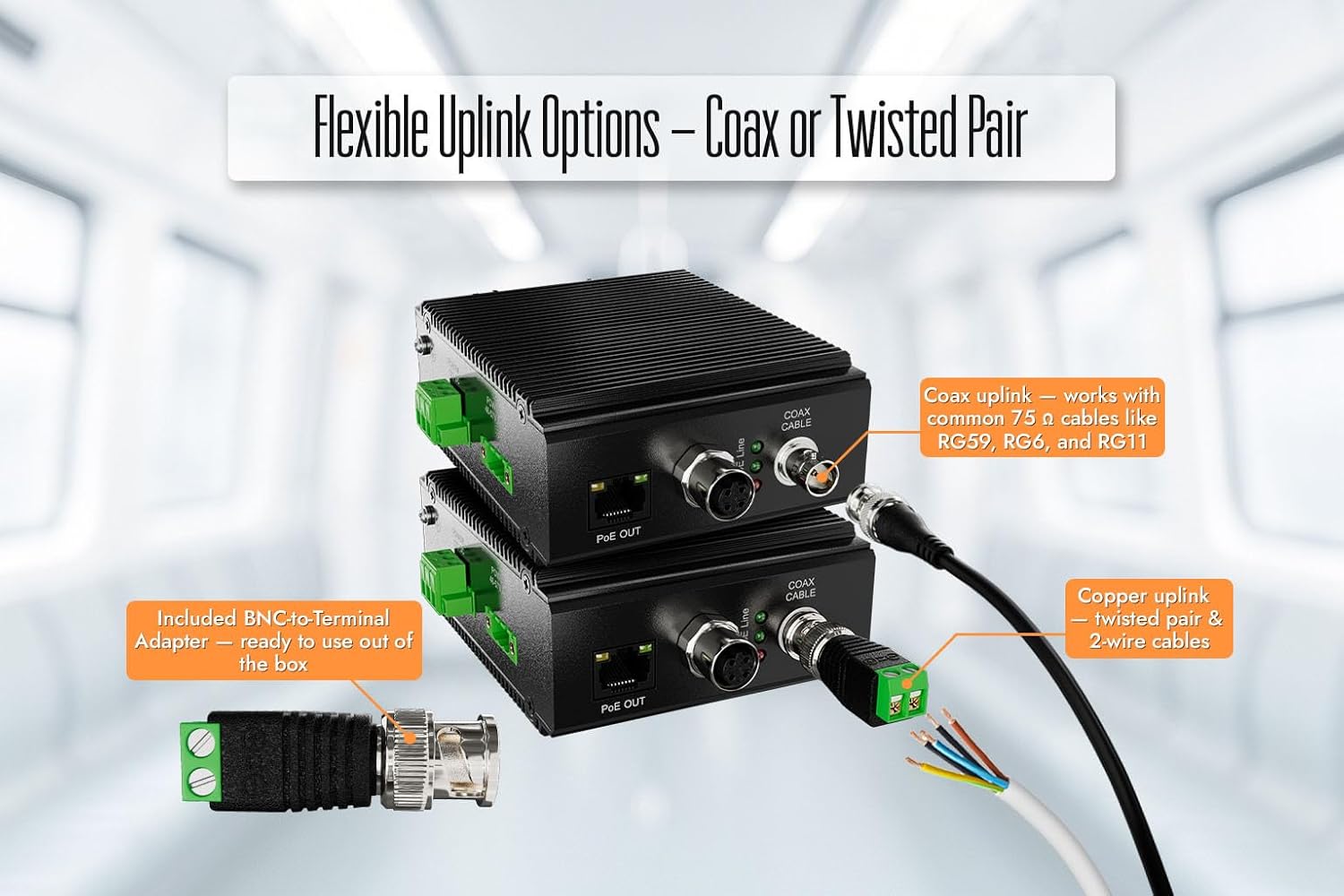

| Uplink Port | Coax or Twisted Pair (free adapter in set) |
| DimensionS (L × W × H) | 122×88×50mm |
| DIN rail mount | Supported, Aluminum Alloy Fanless case |
| Working Temperature | -40℃ to +85℃ |
| Access Protocol | CSMA/CA |
| Encryption | 128-bit AES Encryption |
| Standard Compliance | IEEE1901, IEEE802.3af/at |
| Working Humidity | 20％ to 85% RH (non-condensing) |
| 1 set Includes: | 1 Master, 1 Slave, 48VDC PS (for Daisy Chain, Star Confugurations, order multiple sets) |
| AN-LAN-EXT-POE-M12 | Industrial M12 port / RJ45 port POE Extender. BNC for line interface, RJ-45 / M12 interface for LAN port. Local unit & Remote (Master & Slave). With 2-wire / BNC converter and 100~240VAC to 48VDC power adapter in set. |

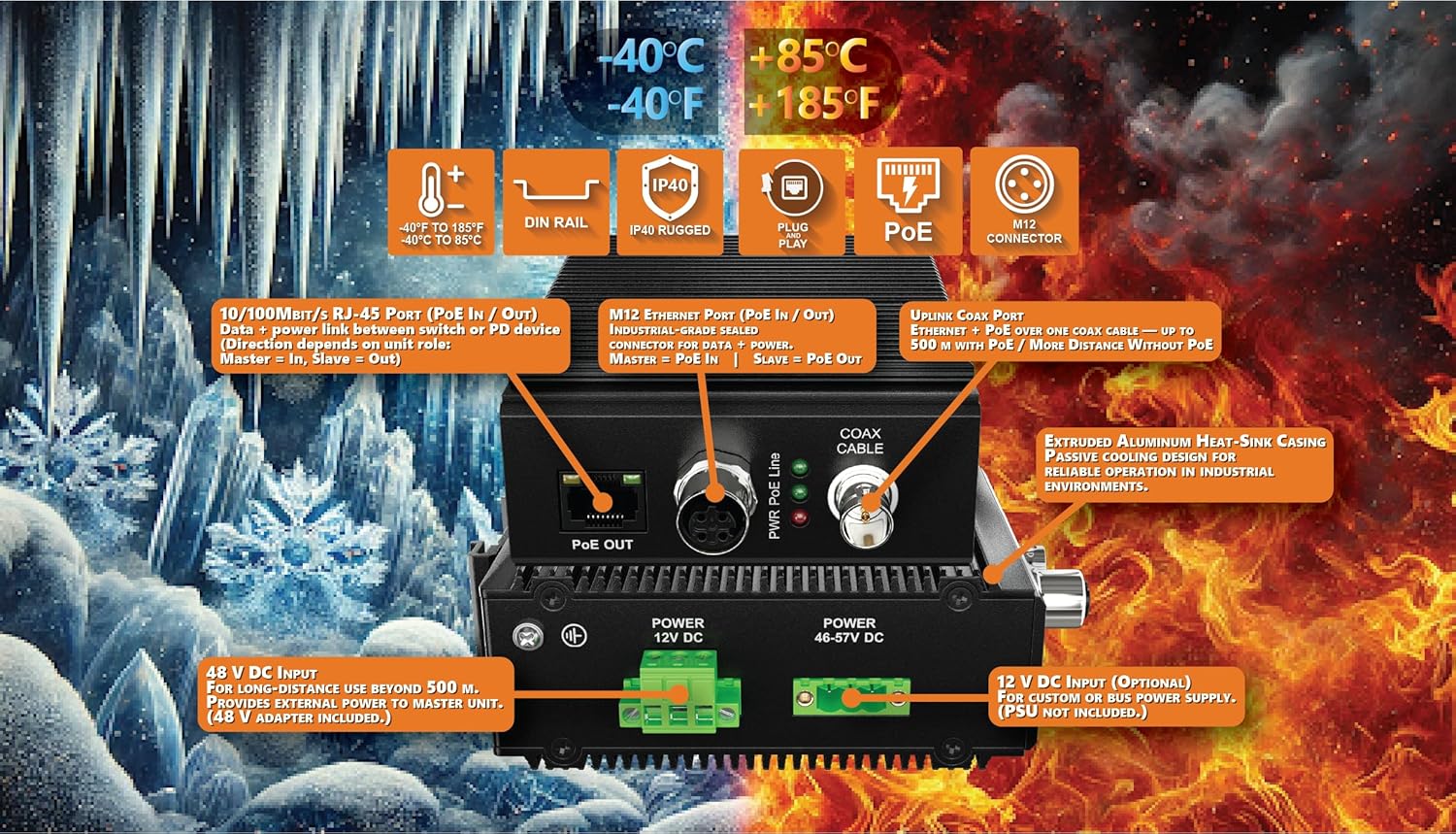

Description
This M12 & RJ-45 PoE Ethernet Booster LAN Extender kit extends Ethernet data and PoE power over existing coaxial cable (RG-59/6/11)
or 2-wire copper (twisted pair), ideal for long-distance IP camera, access control, and industrial network deployments.
It supports multiple topologies (point-to-point, star, and daisy-chain) and offers flexible power options on the master side.
- Long-distance Ethernet + PoE over existing cable: Transmit Ethernet and PoE over coax or 2-wire lines — up to 500 m with PoE or up to 800 m for data-only (installation-dependent).
- Flexible network topologies: Supports point-to-point, star, and daisy-chain configurations for systems with multiple remote endpoints.
- Dual-interface per unit (M12 + RJ-45): Each extender provides both industrial M12 and standard RJ-45 Ethernet interfaces for easier integration with cameras, routers, PCs, and controllers.
- Master-side power options: Operate the master as PoE-powered (PD) for installations without local AC power, or use the included 48 VDC adapter to maximize PoE delivery to remote devices (especially in star/daisy-chain layouts).

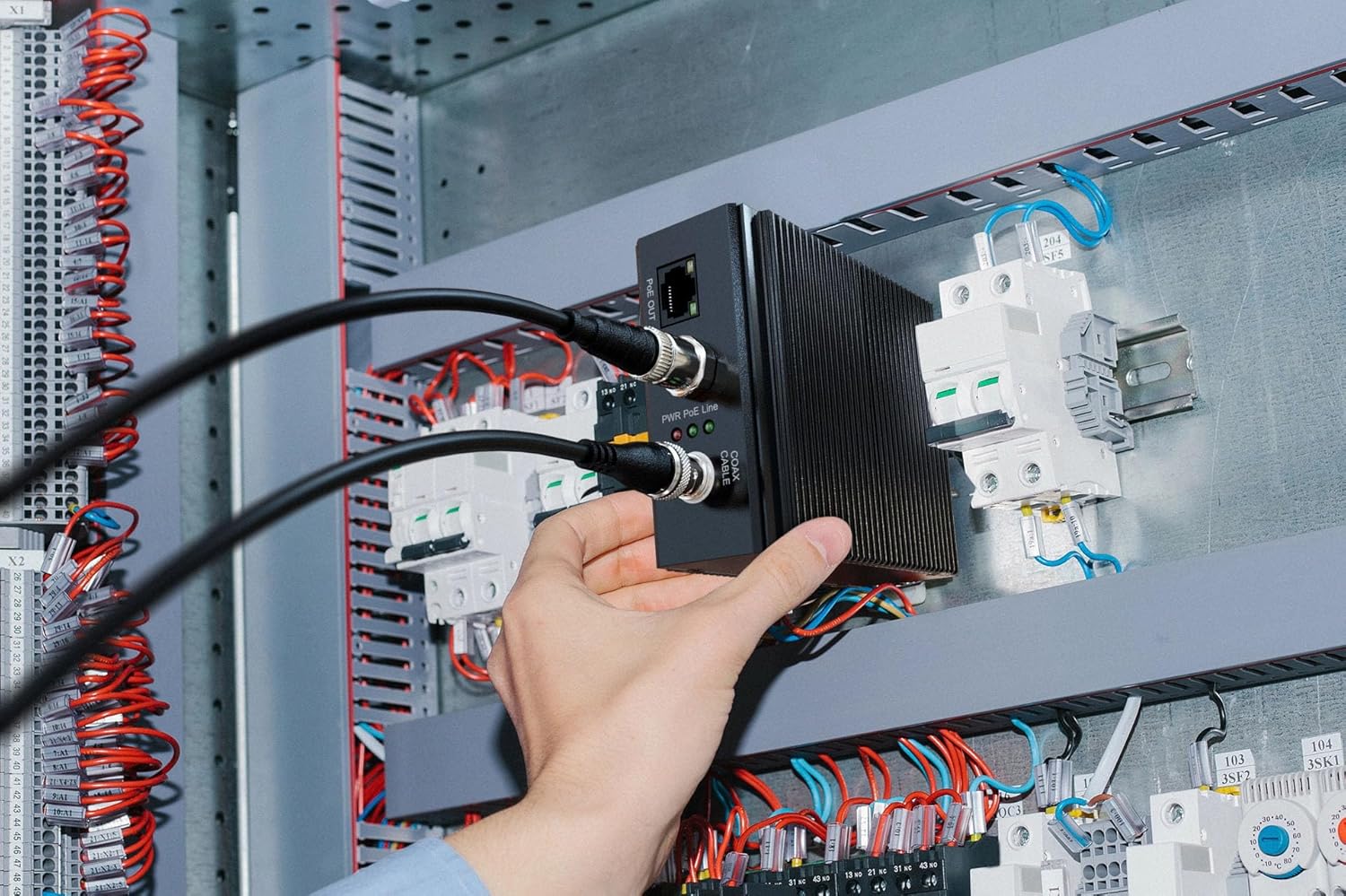

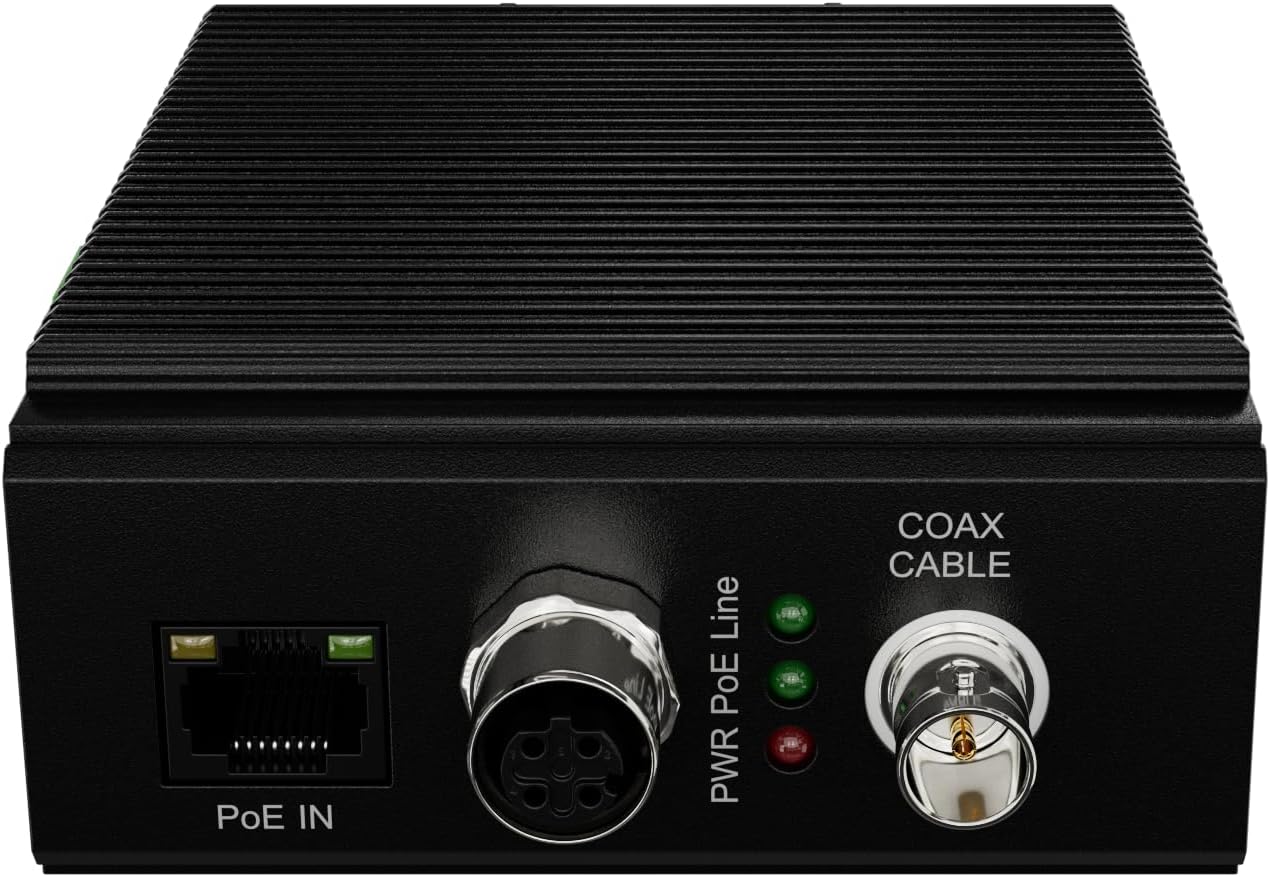

- Rugged industrial design: Aluminum housing, DIN-rail mount, and front-panel status LEDs for Link/Line/PoE to support quick commissioning and troubleshooting.
- Coax & 2-wire compatibility: Accepts RG-59/6/11 coax or twisted pair using the included BNC-to-screw-terminal adapter (balun).
