  • Max Transmission distance reach 500m (RVS 2×1mm2)
  • Max physical bandwidth reach 200Mbps (actual bandwidth 100Mbps).
  • Support power supply over cable technology
  • Transparent transmission, low power consumption and no adjustment

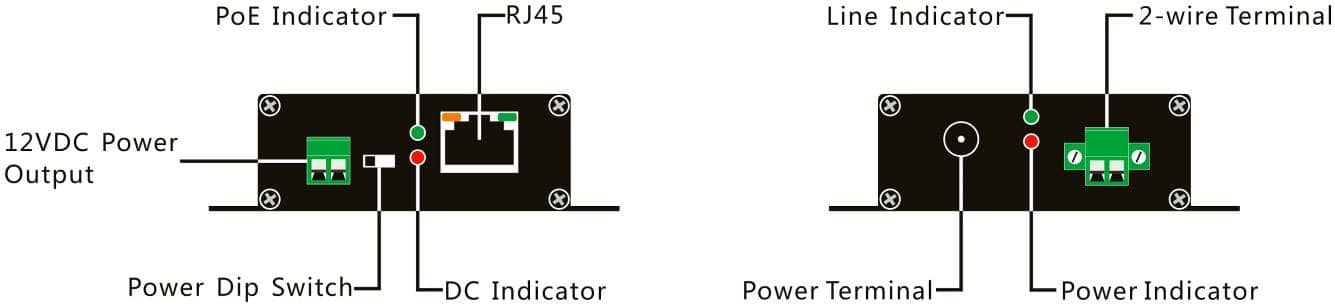

  • Dip switch for power output: 12VDC/2A or PoE
  • Built-in ESD protection circuit, in case of static damage



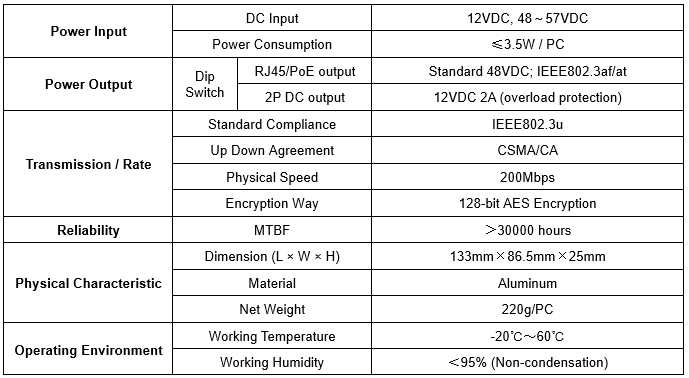

Power line: RVV / RVS / RVVP / RVB 2×0.5mm2 above



UTP Cable: Cat5 or above



Coaxial cable: RG59 or above



RJ45 port by EIA / TIA568B



Power Adapter by 48 or 56 VDC

5mm female power port (Optional)

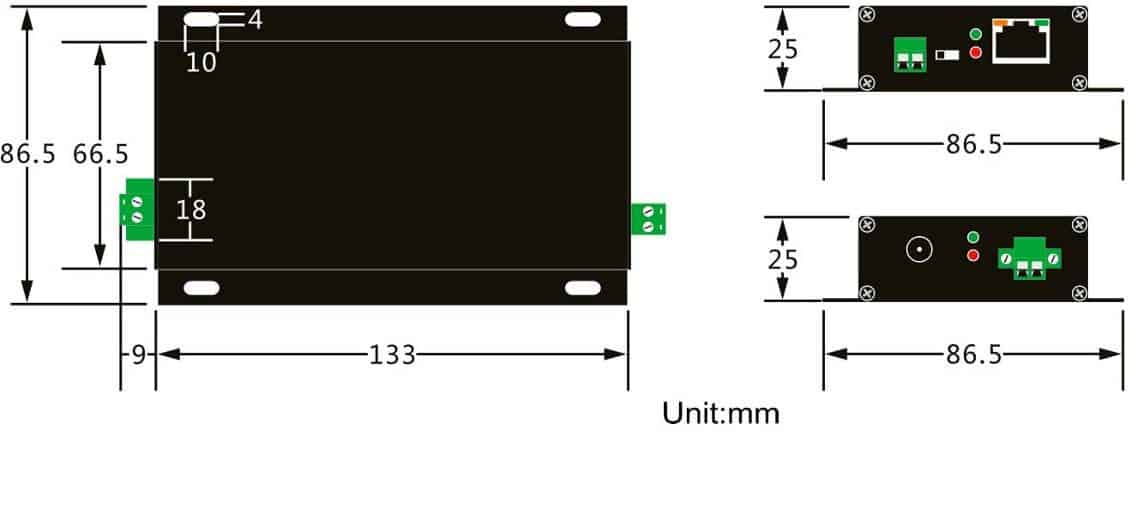

Power Loss:



Network & Power can be transmitted over 2-wire. The total PoE power output is 30W(at) and it can be attenuated when transmitting through cable. Distance is longer, attenuation is more.

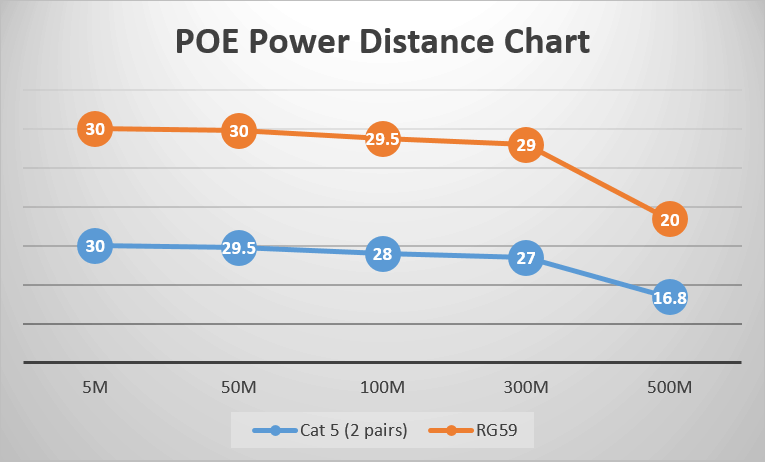

Power loss and attenuation differs from the cable types. The following PoE power distance chart is just for your reference.

In the above figure, the left vertical coordinate is PoE power output, the below horizontal coordinate is PoE transmission distance, please simultaneously contrast the horizontal and vertical coordinate to get accurate corresponding power output.

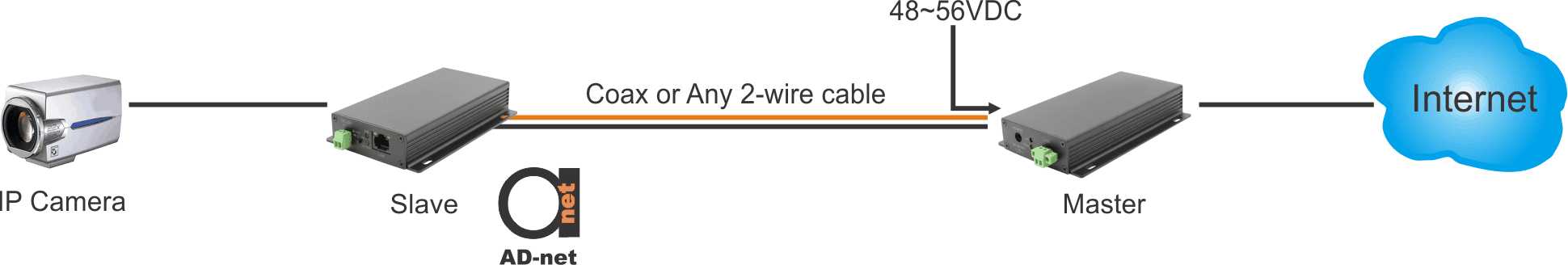

Provide PoE Power Supply for front-end PoE device (The device only supports PoE Output, don’t support PoE Input).



Provide low voltage 12VDC for front-end device.

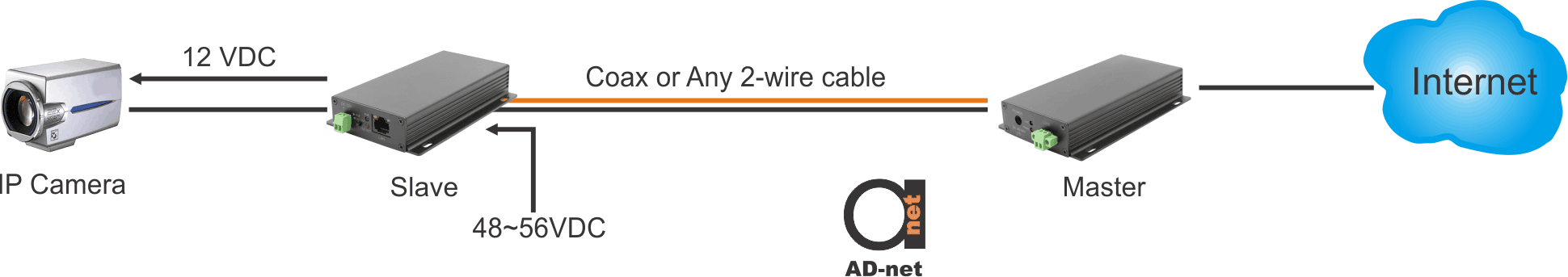

When transmission distance is long, to avoid output voltage dropping too much, also provide 48~56VDC power supply for slave unit, at the same time master unit also get power from it.

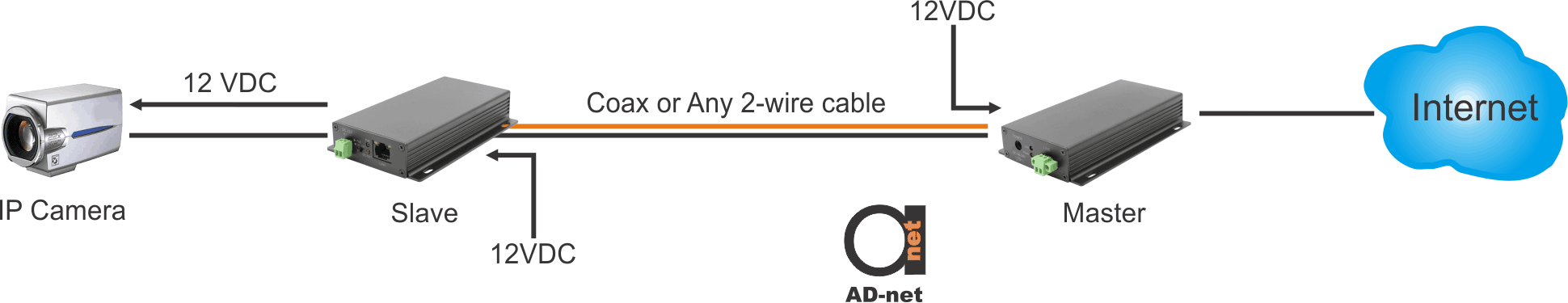

When connect 12VDC power supply for master unit, because long distance causes output voltage to drop too much, it can’t satisfy slave unit power requirement, also provide 12VDC power supply for slave unit as supplement.

Tips: The power consumption supports PoE / Non-PoE equipment power supply standard, due to the difference of line loss and transmission distance, it may not be able to meet simultaneously two kinds of power supply requirement, only through dip switch setting to choose one kind of power output mode.



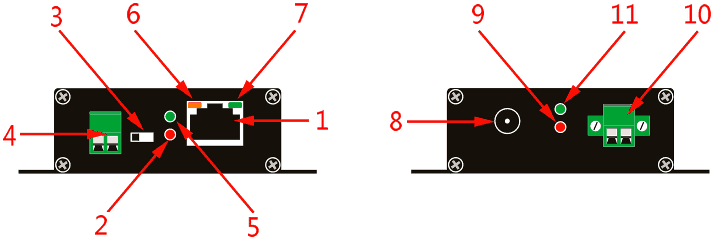

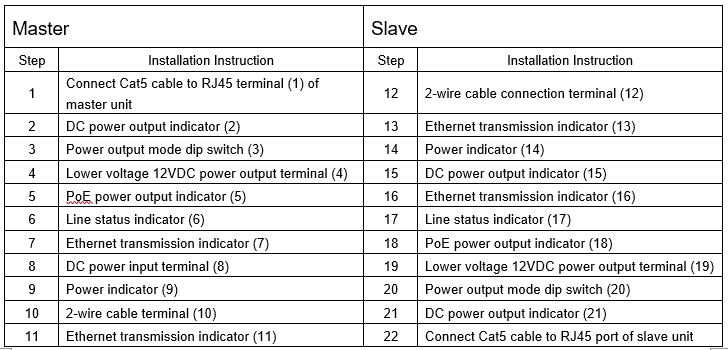

Use Tips:



When you use AN-LAN-EXT-ENH-200-POE, please follow the below tips as a reference, in order to reduce the fault in the process of using and the inspection work.

  1. The device supports auto-negotiation allocation master and slave. It also can be set master-slave side and grouped by the software. Each group (one point to multi-point communications group) only allows one Master, others are Slaves. Otherwise, the network data won’t be able to transmit.
  2. Signal transmission cable must be the copper cable. Other material cables will cause the decrease of signal transmission quality and distance.
  3. Long-distance cable connections must be by standard connection method, such as welding or using connectors.
  4. Make sure the electrode of transmission cable is consistent, otherwise, it is easy to cause the power failure.
  5. Please choose matching power adaptor (12VDC or 4856VDC).
  6. There is no waterproof design for this product, please make sure that it is used in dry environment.
  7. If device fails, do not disassemble or repair it by yourself. Please contact us timely.

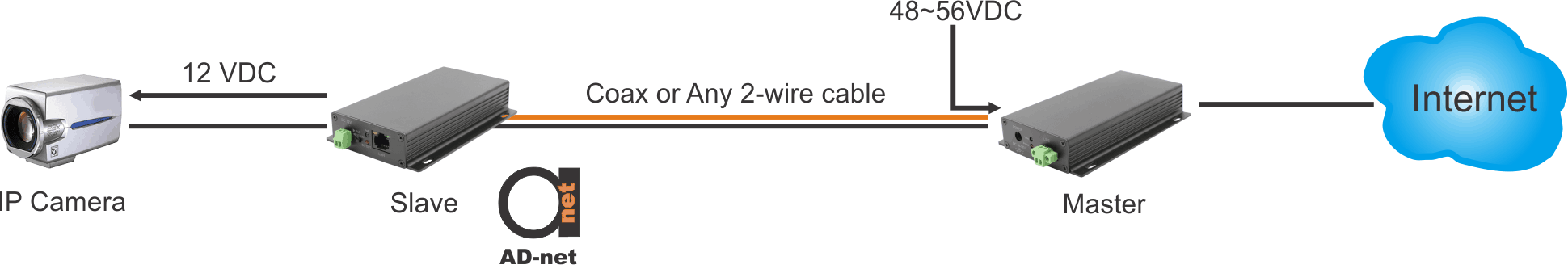

Above demonstrates how PoE feature work – once you enable it, remote unit get power from local one via same twisted pair along with Ethernet signal. So, the place where you have your IP camera does not requires power any more.

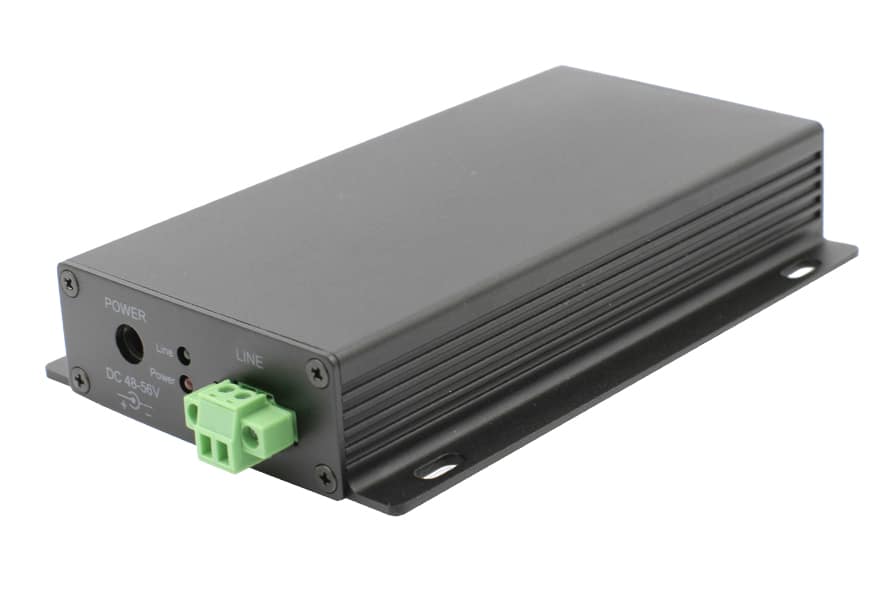

AN-LAN-EXT-ENH-200-POE

Single Port PoE type Ethernet Extender over 2-wire/coax, distance up to 500 m, max physical bandwidth 200 mbit/s

Description

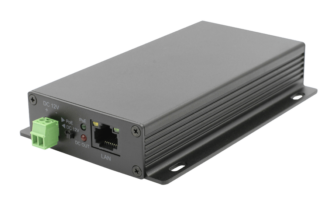

AN-LAN-EXT-ENH-200-POE Single Port PoE Ethernet Extender is a high-speed Ethernet transmission device. It can transmit Ethernet and Power signals together for PoE devices. It transmits data network signal up to 500 meters over any pair of 2-wire such as Cat5, coaxial cable and power line, etc. The maximum physical bandwidth can reach 200Mbps. It supports PoC and PoE functions.

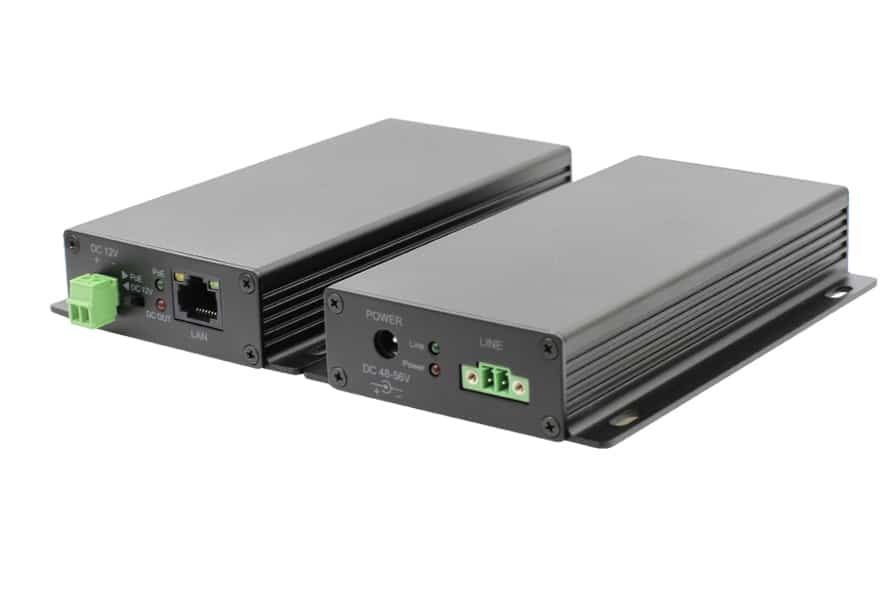

It consists of the master unit and slave unit. By PoE power equipment, it can directly supply power for the remote unit, supporting point to point and point to multi-point. It can greatly simplify the project cabling, applied to expand network system and transmit long distances of PoE device signals.
