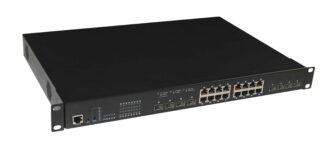

Industrial Ethernet Switch (16TP+8F)

The 24 ports Industrial Ethernet Switch(16TP+8F) is unmanaged industrial Ethernet switch which can meet every kind of industrial environments. All components chosen for the switch are industrial level to ensure high performance.

Support 24pcs RJ45 fast Ethernet ports
Support IEEE802.3/802.3u/802.3x
Support 10/100M, half/full duplex, MDI/MDI-X
Support broadcast storm shield
DC110/220V or AC100/240V 3 bits terminal block power input
No fan, low consumption design

Interface

RJ45 Ports: 10/100BaseT(X) auto connection, Full /Half duplex or force work mode, and support

MDI/MDI-X connection

LED indicator: PWR, SYS, Link

Technology	Standard: IEEE802.3, IEEE802.3u, IEEE802.3x Flow control: IEEE802.3x MAC address: 8K
Power	Input power: 110~220VDC (100~300VDC) Or 100~240VA C (85~264VAC) Input current: 0.25A (@110VAC/VDC) Connector: 3 bits terminal block
Mechanical	Shell: IP30 protection, metal case Installation: 19”1U rack W×H×D: 441.6mm×44.6mm×206.9mm
Environmental	Operating Temperature: -40 to 75°C Storage Temperature: -45C to 85°C Relative Humidity: 10 to 95% (non-condensing)
Certification	FCC Class A, CE, RoHS
Approvals	EMI: FCC Part 15, CISPR (EN55022) class A& EMS: EN61000-4-2 (ESD), Level 3 EN61000-4-3 (RS), Level 3 EN61000-4-4 (EFT), Level 3 EN61000-4-5 (Surge), Level 3 EN61000-4-6 (CS), Level 3 EN61000-4-8, Level 5 Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Warranty	5 Years
