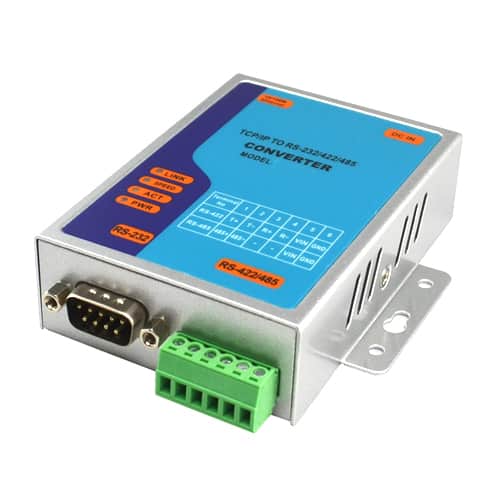

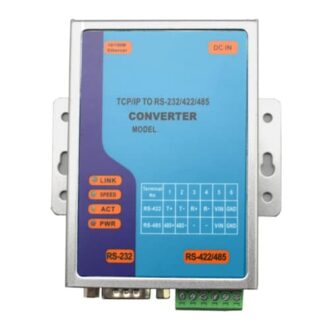

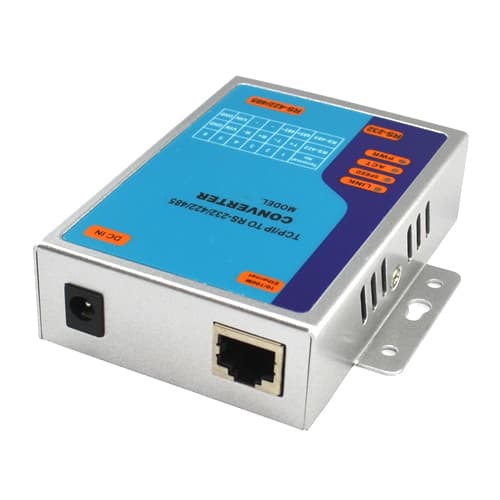

High Perfomance TCP/IP to RS-232/422/485 converter

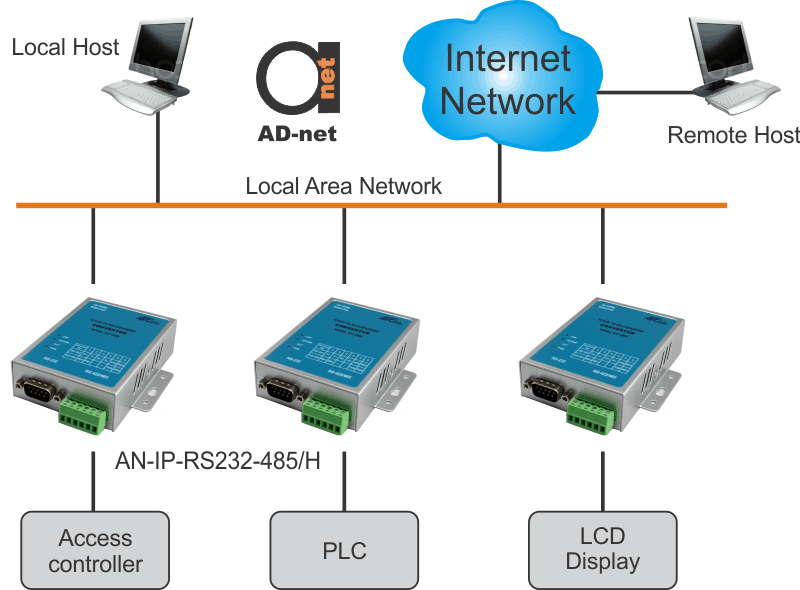

The Embedded Serial Server AN-IP-RS232-485/H is a gateway between Ethernet (TCP/IP) and serial device. It can be built into any facilities or equipments, and converts any serial port to Ethernet network.By using this unit, limited distance, point-to-point, direct serial connections can now be extended to the facility or equipment.In the industrial and manufacturing automation, AN-IP-RS232-485/H can be embedded into most field devices, include PLC, HMI, Bar-code Scanners and so on.
- RS-232/422/485 3 in 1 interface
- Support 10/100Mbps Ethernet port
- Supports 4-wire and 2-wire RS-485 work mode
- Automatic data direction control on RS-485
- Supports 24VDC industrial power supply
- Terminal block easily for RS-422/485 installation
- Configure via webpage and windows utility
- Supports virtual serial port,TCP Server/Client and UDP work mode
- Built-in watchdog
- CE, RoHS and FCC Certifications
|
Serial Interface |
|||
|
Interface Type |
RS-232/485/422 3 in 1(optional) |
||
|
Data Rate |
300bps ~ 460.8Kbps |
||
|
Data Length |
5,6,7,8 bits |
||
|
Parity |
Odd, Even, None, Space, Mark |
||
|
Stop Bits |
1,1.5,2 bits |
||
|
Flow Control |
None, Software: Xon/Xoff, Hardware: RTS/CTS |
||
|
Connector |
RS-232 |
DB-9 male |
|
|
RS-485/422 |
6-pin Terminal block |
||
|
Serial Line Protection |
600W for RS-232,1000W for RS-485/422 |
||
|
Network Interface |
|||
|
Interface Type |
Ethernet 10/100Mbps (Auto-Sensing) |
||
|
Connector |
8-pin RJ-45 |
||
|
Isolation Protection |
Built-in 1.5KV |
||
|
Software |
|||
|
Network Protocols |
ARP, UDP/IP, TCP/IP, PING/ICMP, DHCP, BOOTP, Auto IP,TFTP, SNTP ,TELNET ,HTTP, DNS,SMTP, PPP, LCP, PAP, CHAP, IPCP, PPPoE. SSL/TLS,HTTPS |
||
|
Configure Options |
Web Page,Windows Utility,Telnet |
||
|
OS support |
Windows95/98/ME/NT/2000/XP/2003/WIN7/WIN8/XP x64/2003 x64/WIN7 x64/WIN8 x64、 Linux real、TTY、UNIX |
||
|
LED Indicators |
LINK |
Link Activity Indicator |
|
|
SPD |
10/100Base-TX Indicator |
||
|
ACT |
Date Transmitting between Serial and Ethernet Indicator |
||
|
PWR |
Power indicator |
||
|
Power Supply |
9~32VDC@1A |
||
|
Physical Characteristics |
|||
|
Installation |
DIN-Rail Mounting |
||
|
Housing |
Iron (1mm) |
||
|
Weight |
0.5Kg |
||
|
Dimensions |
Without ears |
100mm( length) *67mm (width)*26mm(height) (3.94 × 2.64 × 1.02 in) |
|
|
With ears |
100 mm( length)× 86 mm (width) × 26 mm(height) (3.94 × 3.39 × 1.02 in) |
||
|
Environmental Limits |
|||
|
Operating Temperature |
-25 ~ 70°C (-13 ~ 158°F) |
||
|
Storage Temperature |
-40 ~ 85°C (-40 ~ 176°F) |
||
|
Ambient Relative Humidity |
5% to 95%(non-condensing) |
||
|
Standards and Certifications |
|||
|
RoHS, CE, FCC |
|||
Pin Assignment
RS-232 DB-9(Male)
|
PIN |
RS-232 |
|
1/4/6/9 |
– |
|
2 |
RXD(in) |
|
3 |
TXD(out) |
|
5 |
GND |
|
7 |
CTS(out) |
|
8 |
RTS(in) |
|
1 |
2 |
3 |
4 |
5 |
6 |
|
485+(T+) |
485-(T-) |
R+ |
R- |
VCC(9~32VDC) |
GND |
| AN-IP-RS232-485-E | AN-IP-RS232-485-A | AN-IP-RS232-485-H | ||
| Serial Interface | ||||
| Data Rates | 300 bps to 230,400 bps | 1200 bps to 230,400 bps | 300 bps to 115，200 bps | |
| Characters | 5,6,7 or 8 data bits | 5 ,6,7 or 8 data bits | 7 or 8 data bits | |
| Parity | None, even, odd, Mark, Space | None, even, odd, Mark, Space | None, even, odd, Mark, Space | |
| Stop Bits | 1 , 1.5 or 2 | 1 or 2 | 1 ,or 2 | |
| Control | CTS, RTS | DTR, RTS, CTS, DCD, DSR, RI | None, Software: XOF/XOFF | |
| Signals | ||||
| Flow Control | None, XON / XOFF, RTS / CTS | None, XON / XOFF, RTS / CTS | None, XON / XOFF | |
| Connector | DB9-DTE for RS-232 (Male). 6 -bit terminal connector for RS-485 | DB9-DTE for RS-232 (Male). 6 -bit terminal connector for | DB9-DTE for RS-232 (Male). 6 -bit terminal connector for | |
| RS-485 | RS-485 | |||
| Network Interface | ||||
| Interface | Ethernet 10Base-T or 100Base-TX | Ethernet 10Base-T or 100Base-TX (Auto-Sensing) | Ethernet 10Base-T or 100Base-TX (Auto-Sensing) | |
| (Auto-Sensing) | ||||
| Connector | RJ45 | RJ45 | RJ45 | |
| Protocol | TCP/IP, UDP/IP, ARP, DHCP, ICMP | TCP, IP, UDP, Telnet, ARP, DHCP, ICMP,SMTP,HTTP,DDNS | ARP, UDP/IP, TCP/IP, PING/ICMP, DHCP, BOOTP, Auto | |
| IP,TFTP, SNTP ,TELNET ,HTTP，DNS,SMTP, PPP, LCP, PAP, | ||||
| CHAP, IPCP, PPPoE. SSL/TLS,HTTPS | ||||
| Indicators (LED) | ||||
| 10/100Base-TX Link & activity indicator | 10/100Base-TX Link & activity indicator | 10/100Base-TX Link | ||
| Date Sending / Receiving between Serial and the Ethernet | Date Sending / Receiving between Serial and the Ethernet | Date Sending / Receiving between Serial and the Ethernet | ||
| Power indicator | Power indicator | Power indicator | ||
| Normal connected to the network | ||||
| Management | ||||
| Internal web server, serial, and Microsoft Windows® | Support TCP/UDP Server/Client mode User name & password protected for web management | Internal web server, serial, telnet, and | ||
| -based utility for configuration | Support backup & restore system configuration data | Windows®-based utility for configuration | ||
| Support alarm system via SMS (Short Message Service) to mobile phone or e-mail to PC | Microsoft | |||
| Security | ||||
| Password protection | ||||
| Internal Web Server | ||||
| Storage Capacity | 384KB for web pages | 512KB for web pages | 384KB for web pages | |
| Architecture | ||||
| CPU | Based on the 8051CPU,Frequency | 16 bit CPU, 100MHz | Embedded high-performance 32-bit network processor,32-bit RISC (NP7/9 series) | |
| 25MHz | ||||
| Memory | 64KB OTP ROM, 32K bytes SRAM | 256KB ROM&SDRAM | 32MB RAM, 16MB/32MB Code + 32KB Boot | |
| Firmware | Upgradeable by manufacturer | Upgradeable by Customer | Upgradeable by manufacturer | |
| Power | ||||
| Input Voltage | 8-24 VDC@500mA | 8-24 VDC@500mA | 8-24 VDC@500mA | |
| Included Software | ||||
| MS Window®-based Device Installer software device installer and MS Windows-based Comm Port Redirector | MS Window®-based Device Installer software device installer and MS Windows-based Comm Port Redirector | MS Window®-based Device Installer software device installer and MS Windows-based Comm Port Redirector | ||
| AN-IP-RS232-485/H | One port RS-232/485/422 Serial Server RS-232/422/485 |
Description
The Embedded Serial Server AN-IP-RS232-485/H is a gateway between Ethernet (TCP/IP) and serial device. It can be built into any facilities or equipments, and converts any serial port to Ethernet network.By using this unit, limited distance, point-to-point, direct serial connections can now be extended to the facility or equipment.In the industrial and manufacturing automation, AN-IP-RS232-485/H can be embedded into most field devices, include PLC, HMI, Bar-code Scanners and so on.Flexible configuration options allow the unit to be setup remotely over Ethernet by Telnet, web browser, or other windows utilities. It is not only a transparent, cost effective, network-enabled serial device, but also it is easy to install.
