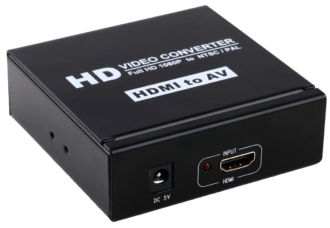

HDMI to AV+L/R Audio Converter

HDMI to AV signal converter which will convert HDMI signal to analog composite video signal and audio signal. It offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Install in seconds, no need of setting.
Auto detect the input resolution, no need of setting.
Supports convert complete HDMI into analog composite video and R/L audio.
Supports DVI input mode.
Supports highest video resolution up to 1080p.
Supports 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth.
Supports 8bit per channel (24bit all channel) deep color.
Supports analog composite video output up to NTSC/480i or PAL/576i.
Supports uncompressed R/L Audio output.
Supports HDMI hot-plug.

Signal Inputs/Output
Input Video Signal	0.5-1.0 volts p-p
Input DDC Signal	5 volts p-p (TTL)
Input HDMI / DVI	TV: 480i/576i/480p/576p/720p/1080i/1080p PC: 800x600p/1024x768p/1152x864p/1280x720p/ 1280x768p/1280x800p/1280x960p/1280x1024p/ 1360x768p/1366x768p/1440x900p/1440x1050p/ 1600x900p/1600x1050p/1600x1200p/1680x1050p 1920x1080p
Output Video / Resolution	CVBS: NTSC/480i or PAL/ 576i
Operating Frequency
Vertical Frequency Range	50/60Hz
Video Amplifier Bandwidth	1.65Gpbs/165MHz
Mechanical
Size	90 x 90 x 30 mm
Weight(Net)	615g
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 ℃ to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 95 % RH (no condensation)
Power Requirement
External Power Supply	5V DC@1A
Power consumption (Max)	5W
Regulatory Approvals
Converter Unit	FCC,CE,
Power Supply	CE,FCC
Accessories Adapter
AC Power Adapter	US standard, UK standard and so on
User Manual	1

Before installation, please make sure all devices you wish to connect have been turned off.

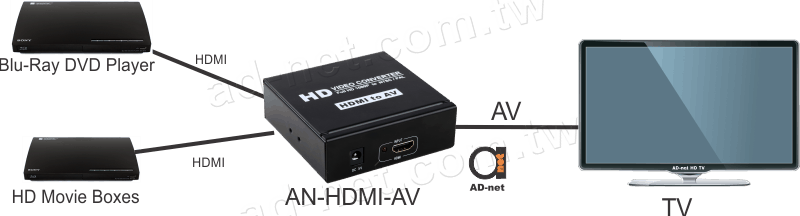

Connect the HDMI to this Converter.
Connect the CVBS video and R/L audio output from this product to the TV which has AV input.
Insert the DC side of 5v power supply into this product and then connect the AC side of the power supply into the wall outlet.

HDMI to AV+L/R Audio Converter

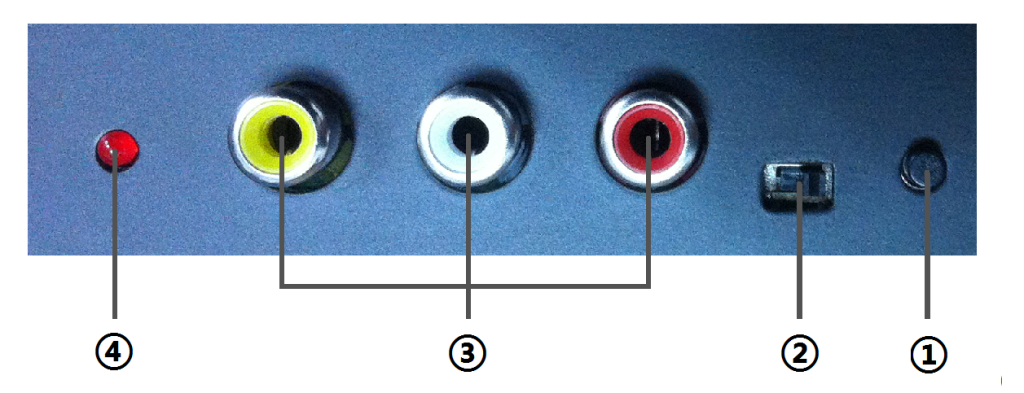

①	Button 1 = Choose the zoom out level
②	Button 2 = Choose the output video resolution, NTSC or PAL

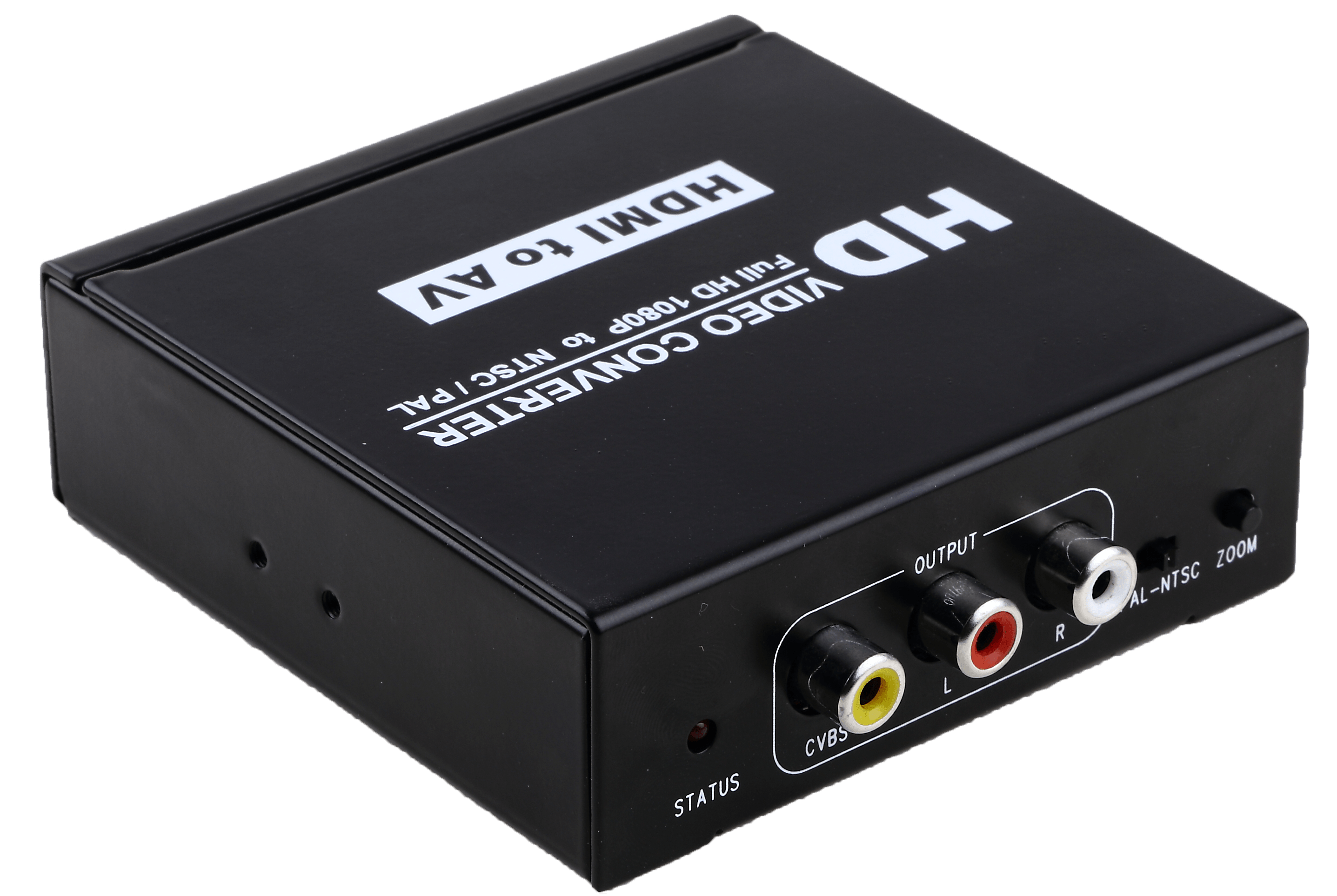

③	Yellow – AV output. White – Left Channel. Red – Right Channel.
④	Video switch indicator light.

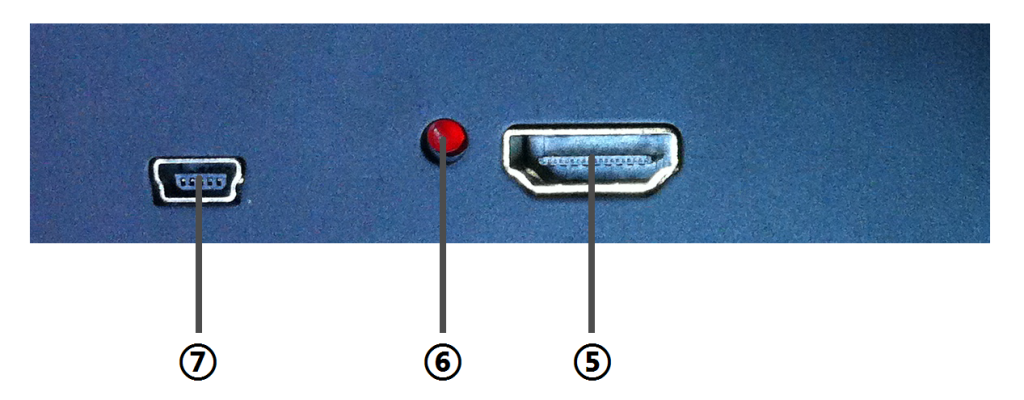

⑤	HDMI output interface.
⑥	HDMI input indicator light.
⑦	USB DC 5V/1A power input interface.
