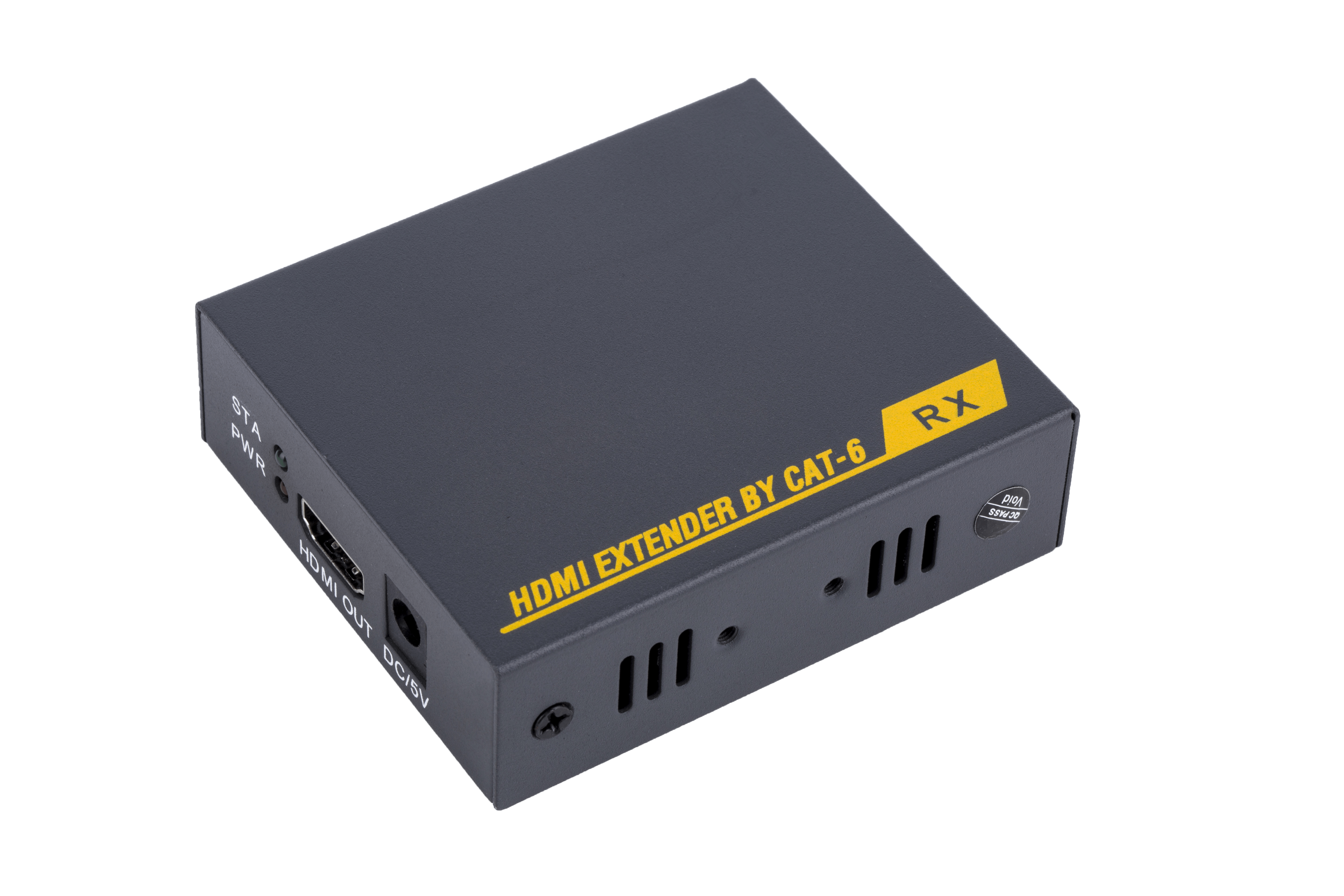

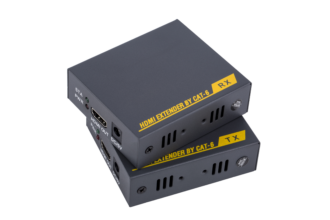

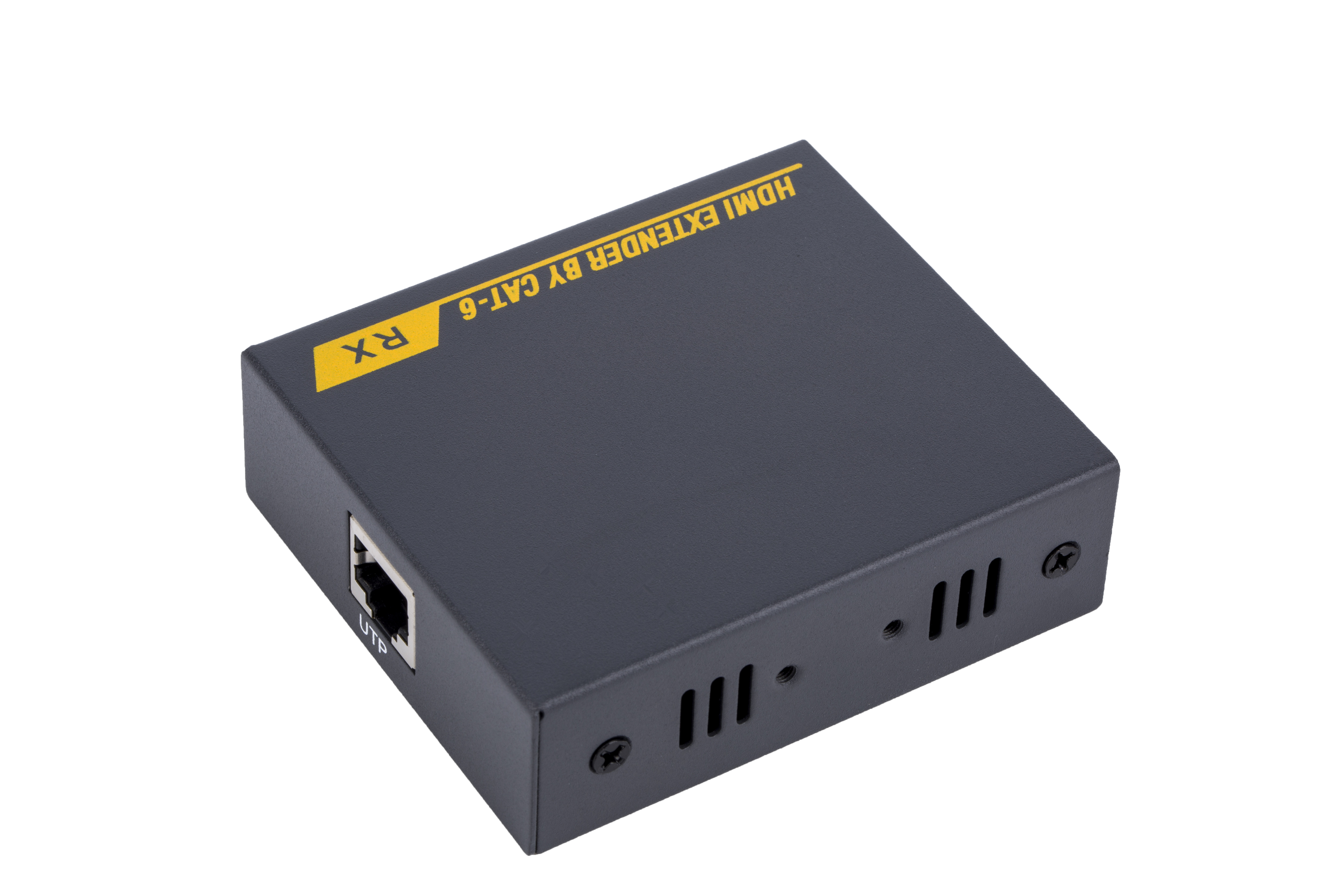

HDMI over single CAT6 Extender

Used for a pair extension of this HDMI CAT 6 cable to extend HD signal up to 60 meters, and can achieve 1080P, which not only broke the HDMI cable transmission length limitations, but also more convenient and flexible, the majority of customers are more cost savings. The production equipment company providing solutions for the following applications: such as noise, limited transmission distance and safety of the place, data center control, information distribution, conference room presentations and teaching environment and corporate training sites.

Support HDMI 1.3 protocol
HDCP 1.2 protocol compliant
Study EDID function，Support 3D
Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Signal transmission: Single cat-6e or cat-6(recommended) cable up to 60 meters
Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Audio format support: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD.
Support up to 5metres AWG26 cable length between extender and source & sink device
No loss of quality

Length of CAT6 cable between Rx and TX	Up to 60 meters
HDMI Input	24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format input	DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Output	24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format output	DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
Max transmission bandwidth	5.1Gbps
Input Video signal	0.5~1.5Volts p-p
Output DDC signal	5Volts p-p (TTL)
Input/Output HDMI1.3 cable distance	.≤20m AWG26 HDMI 1.3 standard cable
Max working current	400mA
Power adapter format	Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1 A
Operating Temperature range	(-15 to +55℃)
Operating Humidity range	5 to 90%RH (No Condensation)
Dimension (L x W x H)	72X69X25 (mm)
Weight	0.37Kg
Gross weight	0.64kg
Box Dimension(LXWXH)	250X220X60(mm)

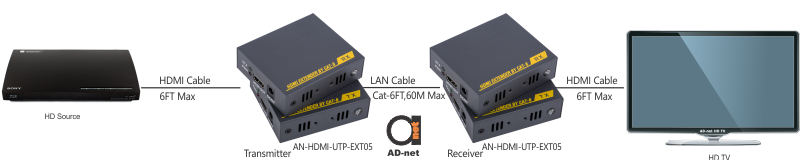

Connect one HDMI 1.3 cable between source device and TX Extender.
Connect one HDMI 1.3 cable between sink device and RX Extender
Connect single cat6 cables up to 60 meters instead of HDMI cable between TX and RX Extender
Connect 5V power supply to the HDMI CAT60RX&TX Extender
Learning EDID, the display device connected to the TX, long press for 3 seconds EDID KEY, status indicator light flashing, copy is complete, (note: if there is no access to display devices, will restore the system default EDID)

AN-HDMI-UTP-EXT05

HDMI over single CAT6 Extender

Description
