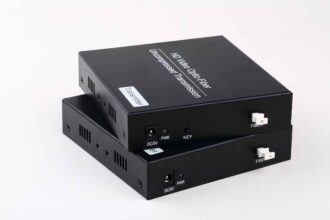

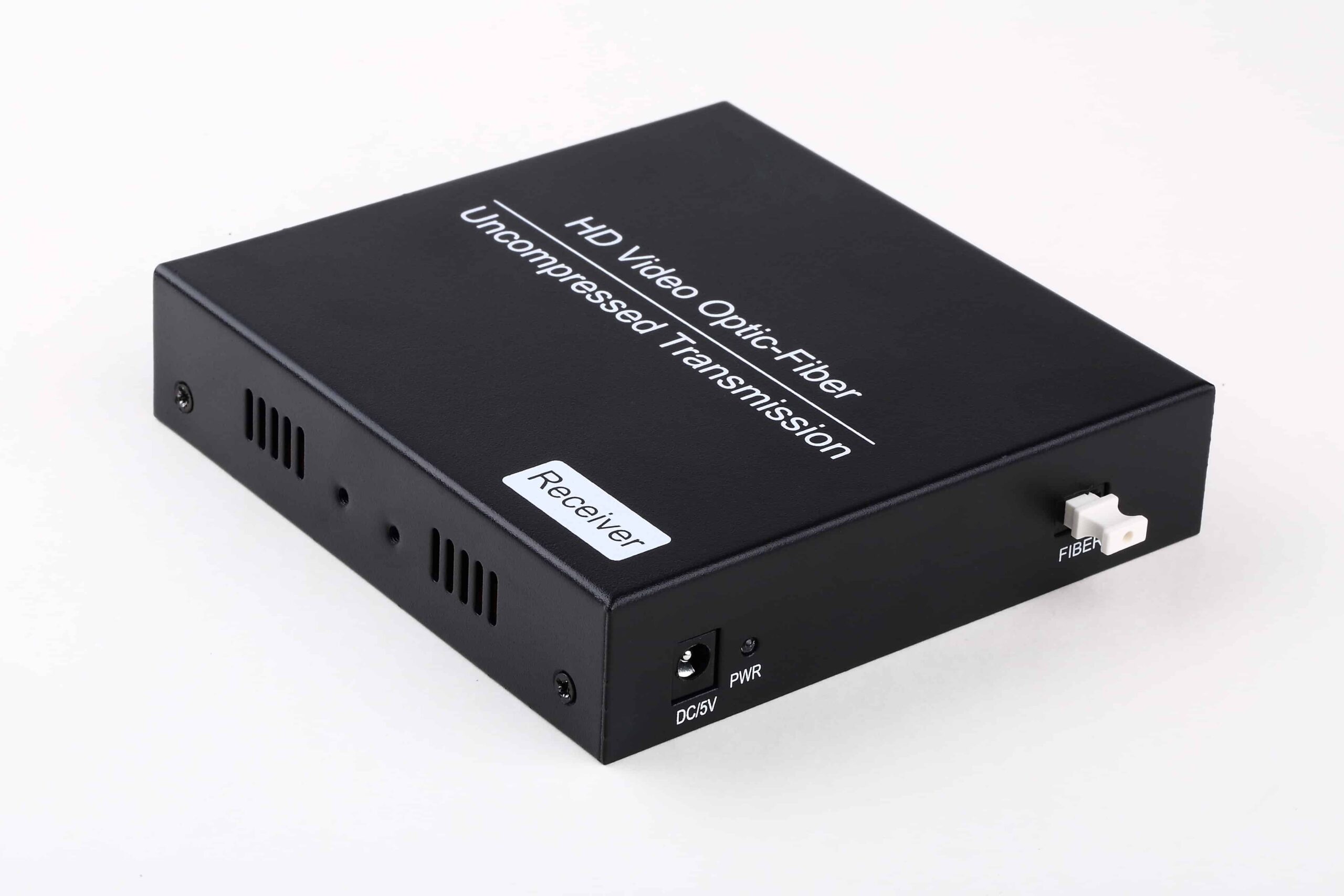

HDMI, RS-232 and audio fiber optical extender

The AN-HDMI-EXT03 Fiber optical extender provides extension of HDMI signals long distances over one fiber optical cable, it supports high resolution up to 1080P, EDID copy, RS232 signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Transmits HDMI video signals up to 10km over one fiber optic cable;
Support video resolution up to 1920*1080P@60Hz;
Support copy EDID, can match many kind display device;
Support external stereo audio unidirectional transmission;
Support RS232 signal unidirectional transmission, baud rate self-adaptive;
Compliance with HMDI 1.3 and HDCP 1.2 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;

Parameter		Description
Video	Standards	HDMI 1.3; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	4.5Gbps
	Resolution range	Up to 1920X1080@60Hz
	Connector	Female HDMI type A
	Impedance	100Ω
Audio	Interface	3.5mm earphone seat
Audio	Signal type	Stereo
RS232	Interface	DB9 socket
	Signal direction	Unidirectional
	Baud rate	Self-adaptive, Max：115200bps
	Data bits	8
Optical fiber	Interface	LC connector
	Fiber type	Single-mode single fiber
	Wavelength	Single-mode 1310nm
	Interface bandwidth	4.5Gbps
	Transmission distance	standard 10km
Other	Power supply	The power adapter: DC 5V/2A
	Power dissipation	MAX 6W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	13613030mm
	The warranty	1 year free warranty,

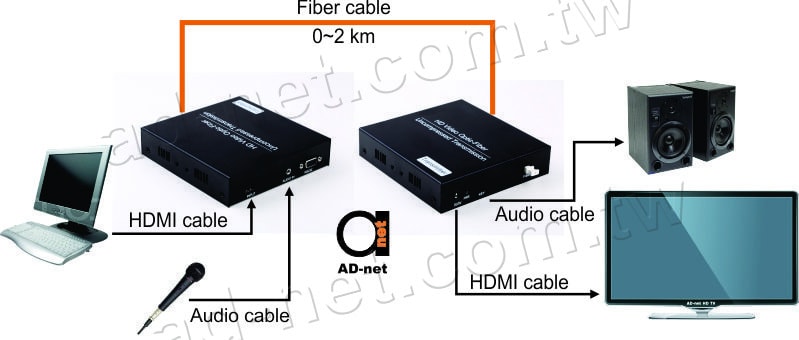

HDMI, RS-232 and audio fiber optical extender scheme

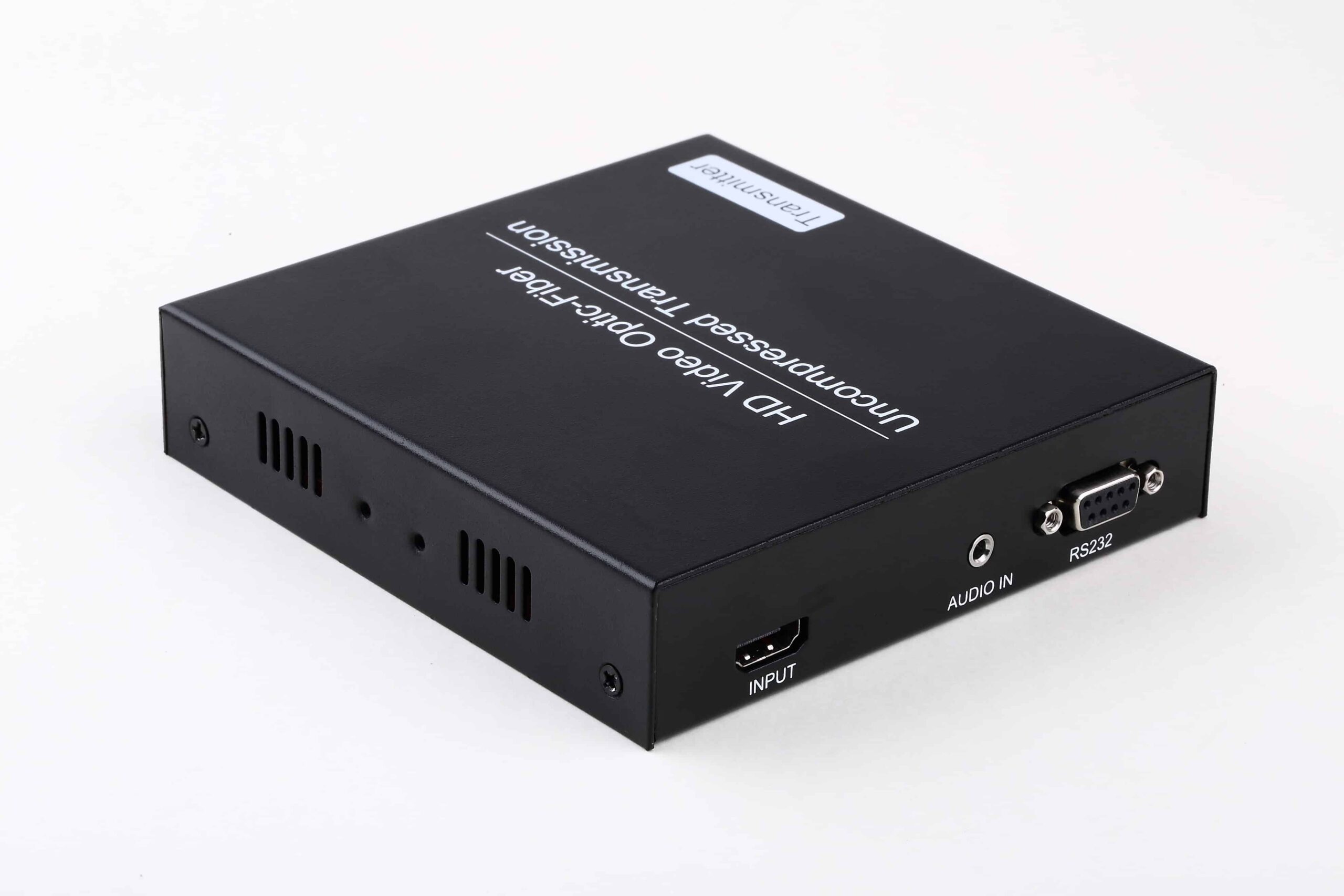

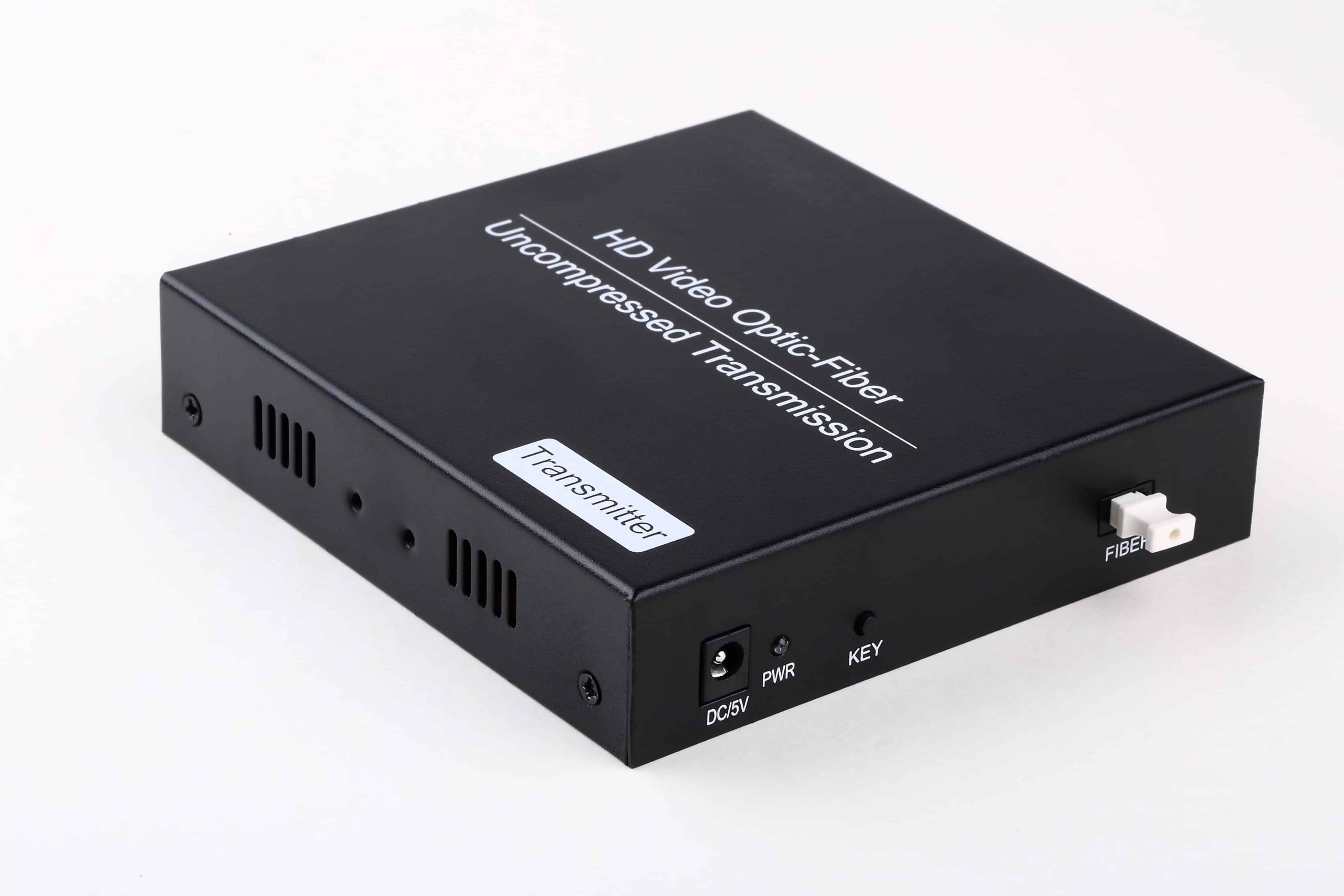

HDMI, RS-232 and audio fiber optical extender Transmitter

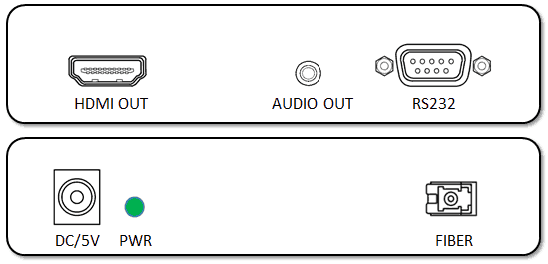

Port name	Description
HDMI IN/OUT	HDMI signal input/output
Audio IN/OUT	Stereo audio signal input/output
EDID	EDID button, press 3 second to copy EDID of display device
RS232	DB9 socket
DC/5V	Power adapter socket
Fiber	LC connector
LED indicator	Description
PWR	System power indicator

Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver,
Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source,
Connect the HDMI output port of receiver to the display device with HDMI cable,
Connect the transmitter optical port to the receiver optical port using one fiber optic cable.

In above video we demonstrate quick steps how to get converters up and working in few minutes.

AN-HDMI-EXT03

HDMI, RS-232 and audio fiber optical extender, HDMI signal input/output, Stereo audio signal input/output, distance depends on SFP module, DB9 socket for RS-232 port
