  • Transmits HDMI video and audio signals up to 60m over a single CAT6 cable;
  • Support video resolution up to 1920*[email protected], 3D signal;
  • Support keyboard and mouse signal transmission;
  • Support copy EDID function, can match many kind display device;
  • Compliance with HDMI 1.3 and HDCP 1.2 standard;
  • High compatibility, can auto-match source and display device;
  • Built-in automatic adjustment system, make the image smooth, clear and stable;
  • Built-in ESD protection system;
  • Simple to install, plug and play;

Parameter

Description

Video

Standards

HDMI 1.3; HDCP 1.2

Maximum pixel clock

165MHz

Maximum data rate

6.75Gbps

Resolution

[email protected]

Connector

HDMI-A

Impedance

100Ω

USB

Interface

To PC: standard MINI-USB or PS2

To K/M: standard USB, PS2 optional

USB Signal

HID Signal

UTP

Interface

RJ45

Transmission distance

CAT6-60m

Other

Power supply

The power adapter: DC 5V/1A

Power dissipation

MAX 3W

Temperature

Operating: -5℃ ~ +70℃

Humidity

Operating: 5% ~ 90%

Dimension

94.5*71*26mm

The warranty

1 year free warranty



HDMI KVM Extender

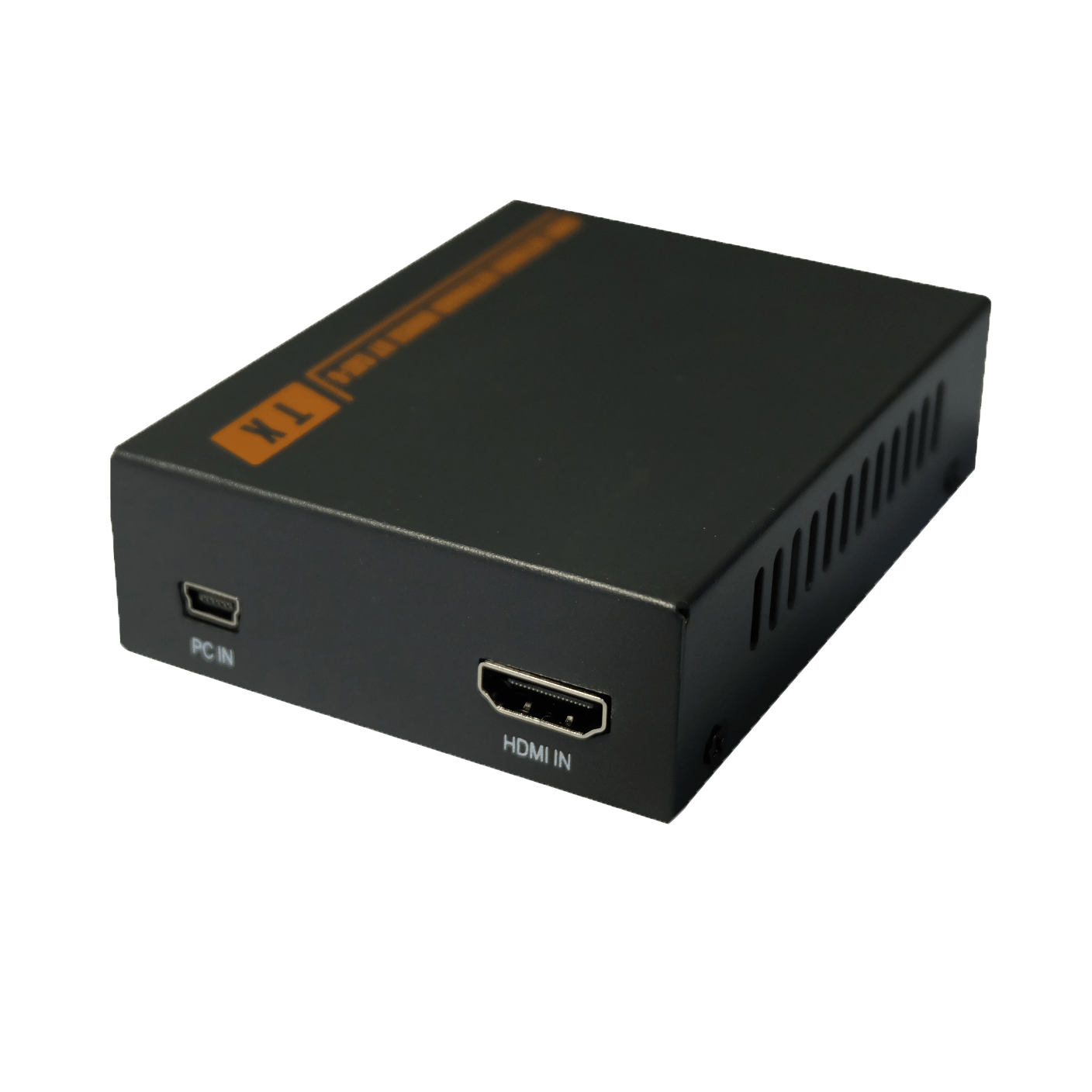

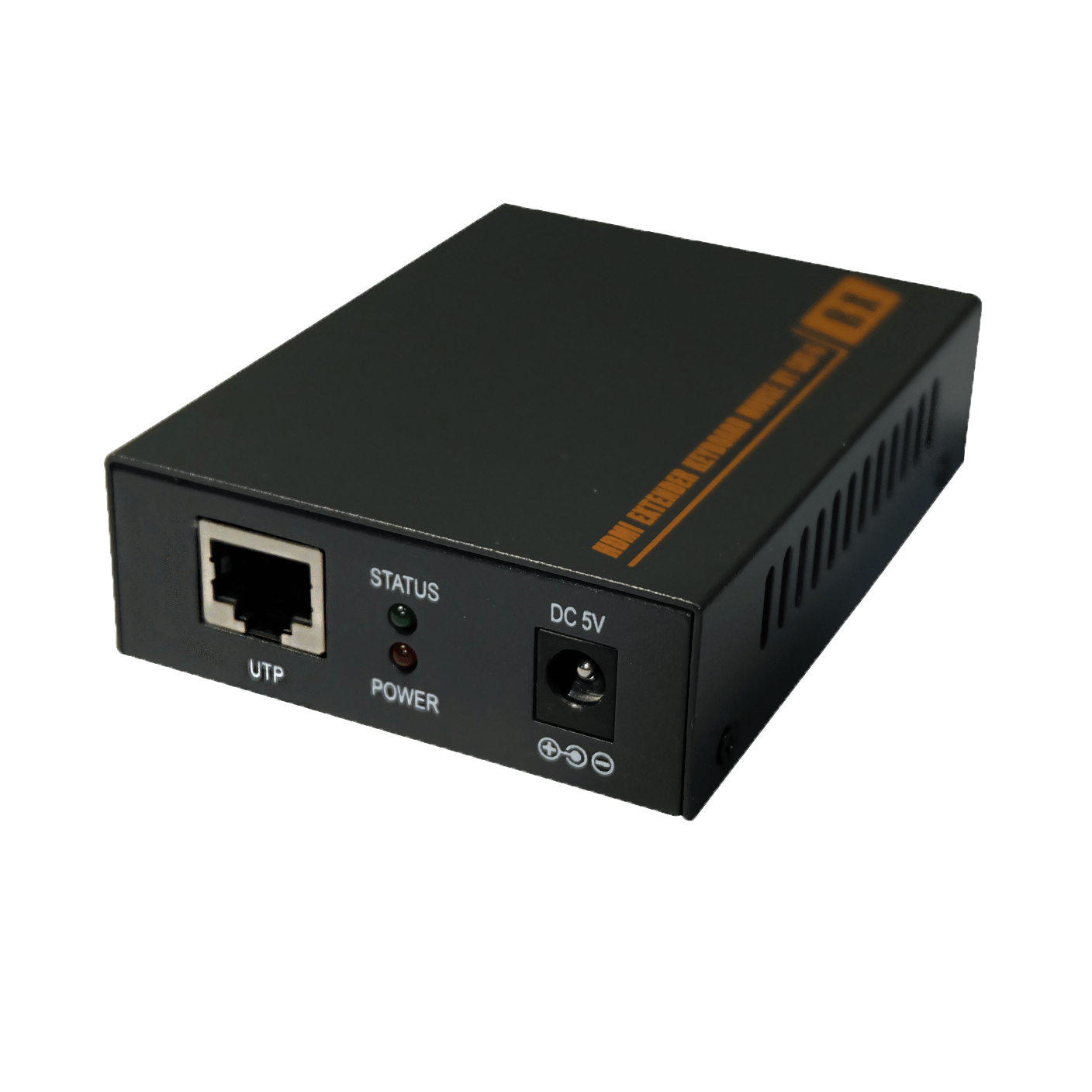

Transmitter:

HDMI KVM Extender

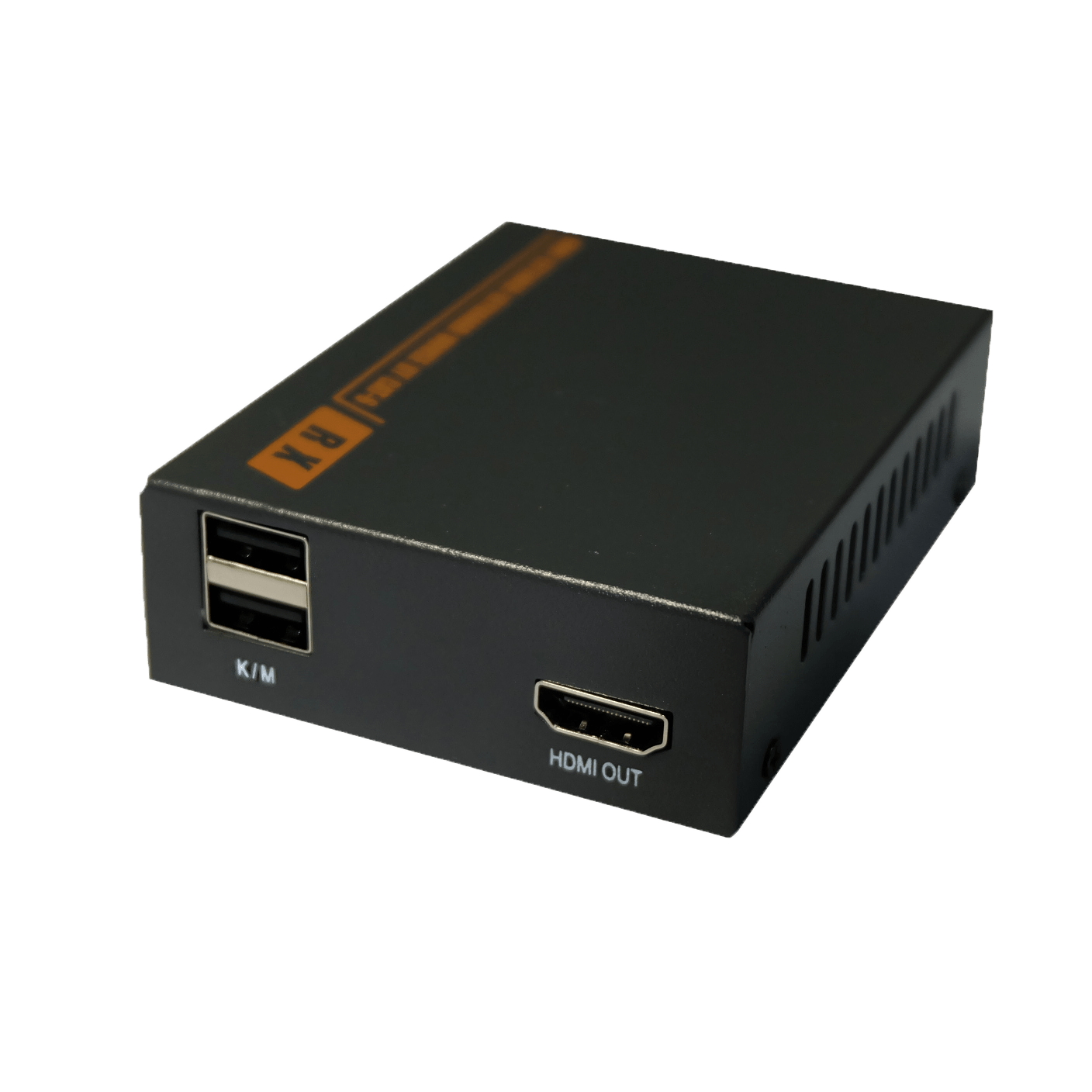

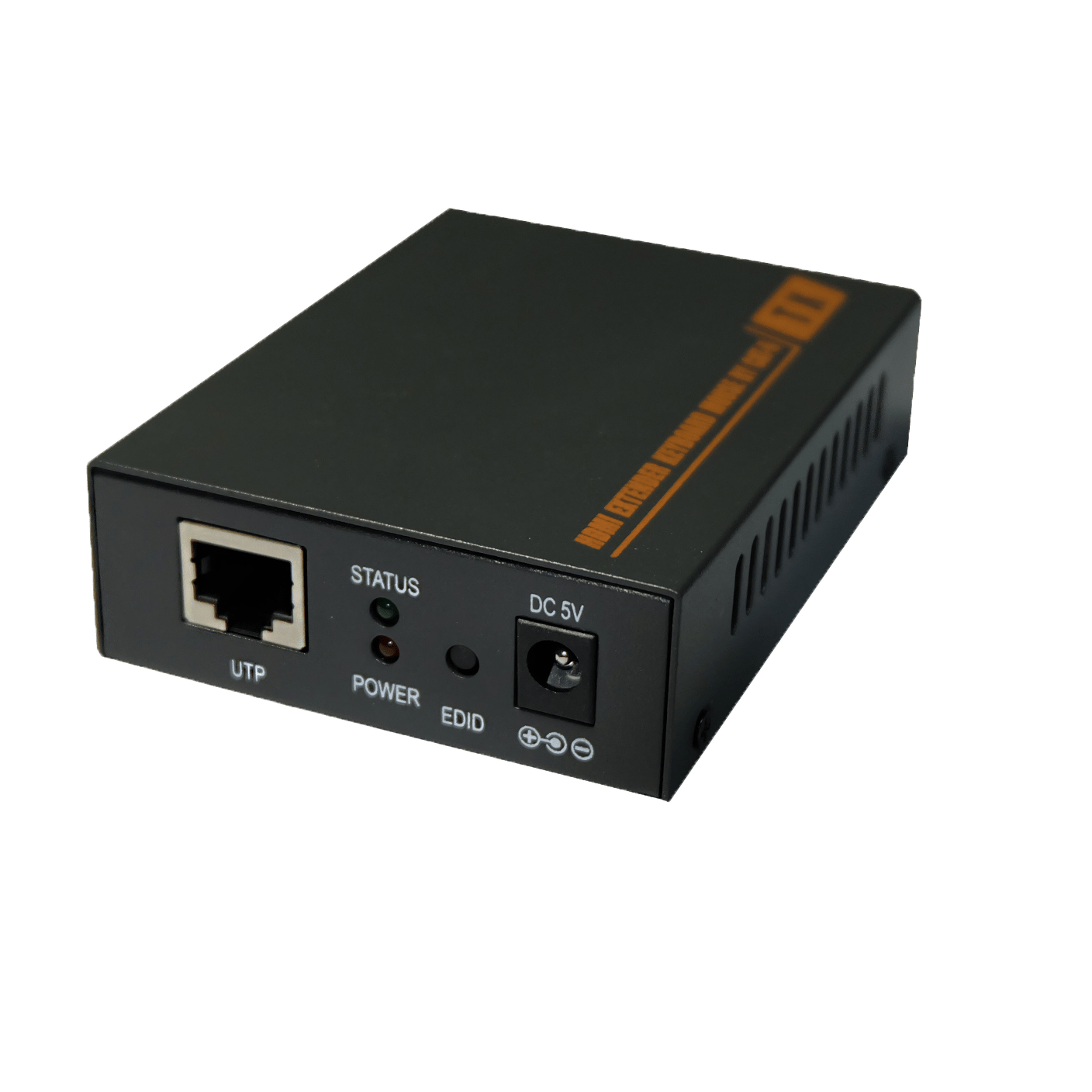

Receiver:

HDMI KVM Extender

Port name

Description

HDMI IN/OUT

HDMI signal input/output

UTP

RJ45 port connect cat5e/6.

PC IN

Mini USB cable connect to PC

K/M

connect to keyboard and mouse

DC IN

Power adapter socket

LED indicator

Description

PWR

System power indicator

STATUS

Video signal indicator.

Copy EDID indicator

  1. Connect the HDMI input source (such as HD-DVD、PS3、STB etc. ) to transmitter.
  2. Connect a CAT6 cable from UTP port of transmitter to UTP port

of receiver

  1. Connect the HDMI sink(such as HD-LCD、HD-DLP)to receiver,
  2. Connect the transmitter UTP port to the receiver UTP port using a single CAT6 cable.
  3. Connect transmitter PC IN port to PC using mini USB cable.
  4. Connect USB keyboard and mouse to Receiver K/M port.
  5. Power on Transmitter and Receiver.

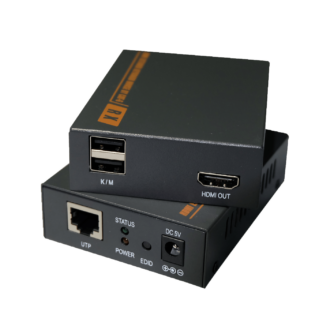

AN-KVM-HDMI-UTP-EXT02

HDMI KVM Extender

Description

The HDMI KVM Extender provides extension of HDMI signals long distances over a single CAT6 cable , it supports high resolution up to 1080p and keyboard/mouse signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
