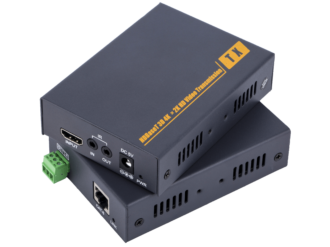

HDMI Extender over cat5e/6 with IR & RS-232 ports

HDMI extender while using CAT6 cable as transmission media. the transmission distance for 1080P reaches 100 meters. for 4K*2K reaches 70meters,support 3D transmission, the IR system could control the sources from the sinks or control the sinks from sources. Products offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

One pair as a full functional module, no need for setting
Use single UTP LAN cable (CAT6) to substitute HDMI cable to achieve long distance transmission
UTP cable termination follows the standard of IEEE-568B
Transmission distance reaches up to 100 meters under the video format of 1080P. 70 meters for 4k*2k
HDMI V1.4 supported
HDCP compliant
Full HD support: 1080p@60Hz@48 b/pixels, 3D and 4Kx2K
With ESD protection inside
Mounting ears supplied
Transfer Bidirectional Infrared control signal together with the HDMI signal
RS232 Port for firmware update or RS232 control signal transmission

Operating Temperature Range	-5 ~ +35°C
Operating Humidity Range	5 to 90 % RH (no condensation)
Input Video Signal	0.5-1.0 volts p-p
Input DDC Signal	5 volts p-p (TTL)
Video Format Supported	DTV/HDTV; 1080P/1080i/720P/576P/480P /576i/480i
Output Video	HDMI 1.4+HDCP
Output Audio	Support DTS-HD, Dolby-HD
Maximum Transmission Distance	1080p CAT6 120 Meters 1080p 3D CAT6 100 Meters 4K*2K CAT6 70 Meters
Power Supply	5V/2A DC
Power Consumption	2.5Watts (Transmitter) 5 Watts (Receiver)
Dimensions	105mmH×76mmW×27mmD
Mass (Main unit)	570g

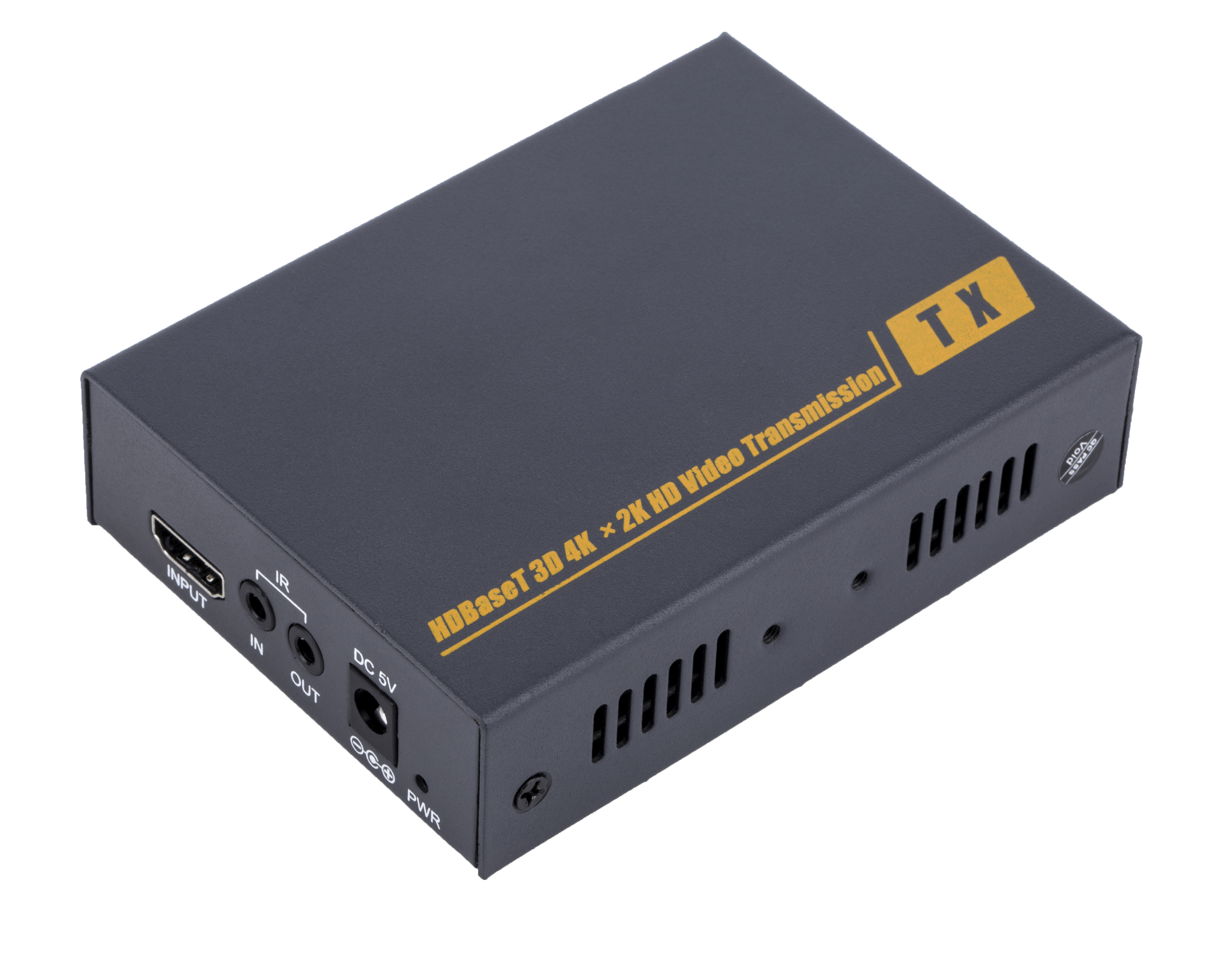

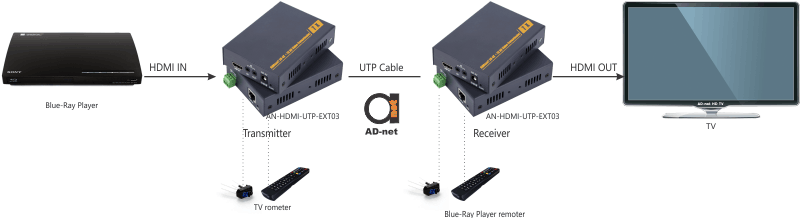

Connect the HDMI input source (such as HD-DVD、PS3、STB etc. ) to transmitter.

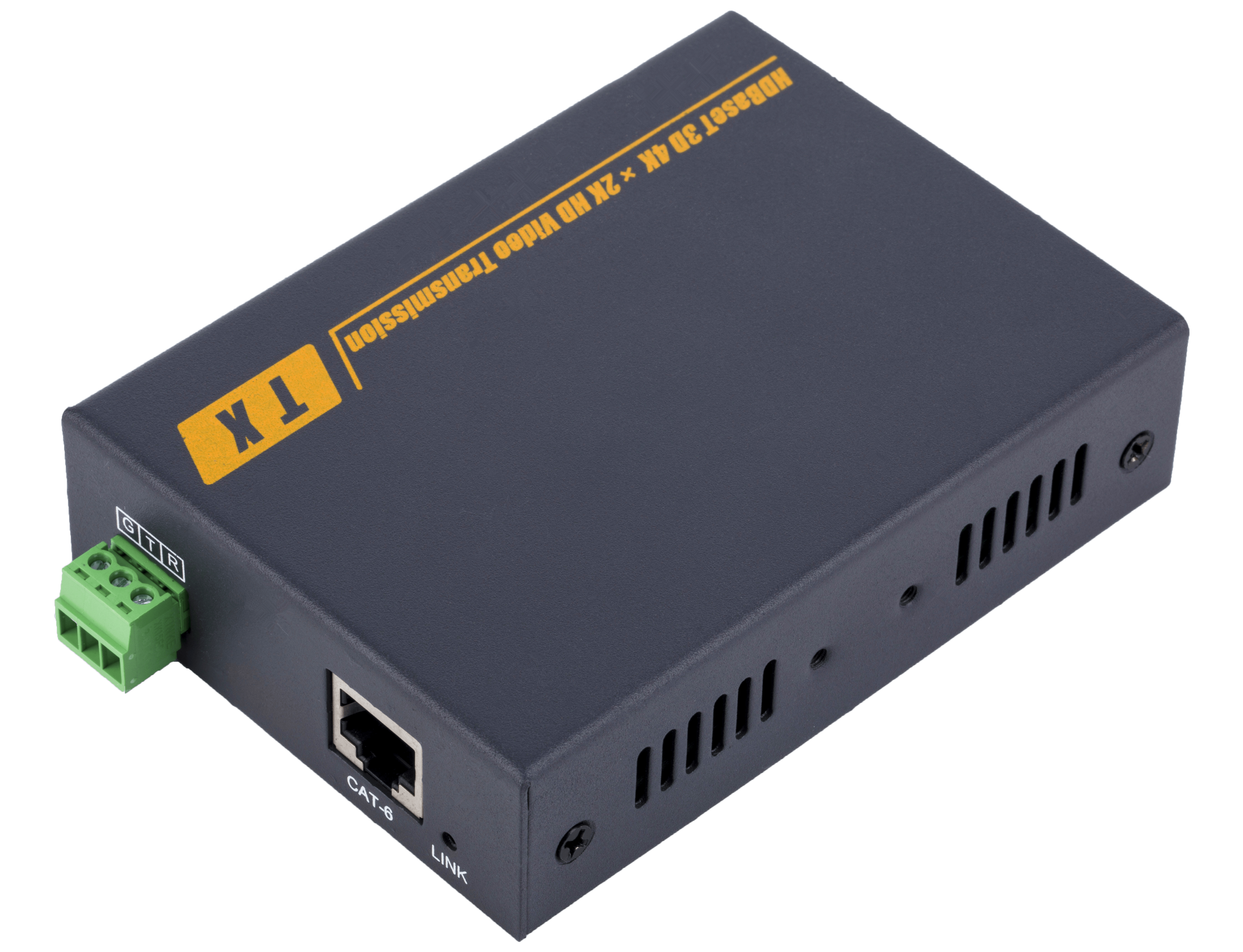

Connect a CAT6 cable from RJ45 port of transmitter to RJ45 port of receiver
Connect the HDMI sink(such as HD-LCD、HD-DLP）to receiver
Connect the IR TX UNIT into transmitter IR TX; Connect the IR RX UNIT into receiver IR RX.
Connect the IR RX UNIT into transmitter IR RX; Connect the IR TX UNIT into receiver IR TX.

Attention: Please insert and extract cables gently.

In video above we show how cables are plugged in and units get to work immediately.

AN-HDMI-UTP-EXT03

HDMI Extender over cat5e/6 with IR & RS-232 ports

Description

Products offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
