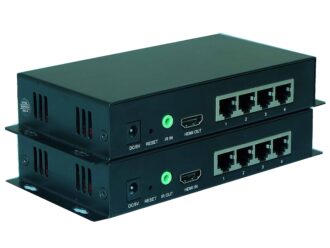

HDMI over Ethernet LAN 4 port Point to Multipoint Transmission System Set

Special Point to Multipoint 4 x Ethernet port version set - HDMI extender transmission system extends HD video and audio over Ethernet LAN networks, over TCP/IP standard, support one to many application over Ethernet. At the same time, it’s more convenient with infrared extensions to make remote control.

Support HDMI 1.3/HDCP1.1 & 1.2
Support point-to-point, point-to-multipoint transmission and cascaded
Ethernet standards with international standards
Support interlaced and progressive display mode
Support IR extend, you can control the set-top box or Blu-ray receiving site with an infrared remote control transmitter
Pure hardware design, plug and play, no need to install additional software

Video Parameters
Video Resolution Support	640X480 @ 60fps 800X600 @ 60fps
	1024X600 @ 60fps 1024X768 @ 60fps
	1152X864 @ 60fps 1280X600 @ 60fps
	1280X720@ 60fps 1280X768@ 60fps
	1280X800@ 60fps 1280X960@ 60fps
	1280X1024@ 60fps 1440X1050@ 60fps
	1440×900 @ 60fps 1600×900 @ 60fps
	1660×1200 @ 60fps 1680×1050 @ 60fps
	1920×1080 @ 60fps 1920 x1200 @ 60fps
Sound	Sampling Rate：32kHz, 44.1kHz and 48kHz
IR Support	38KHz; NEC code
HDMI version	HDMI 1.3
HDCP Version	HDCP 1.2
Other parameters
Power Input	DC input: 5V/2A
Maximum power consumption	AN-HDMI-ETH-EXT02/T: 10W
Maximum power consumption	AN-HDMI-ETH-EXT02/R: 10W
Dimensions (length – width – height)	167mm80mm28mm
Physical NW	770g
Operating temperature / humidity	0℃ – 70℃ / 10% – 80%RH(Not frozen)
Storage temperature / humidity	-10℃ – 80℃/ 5% -90% RH(Not frozen)

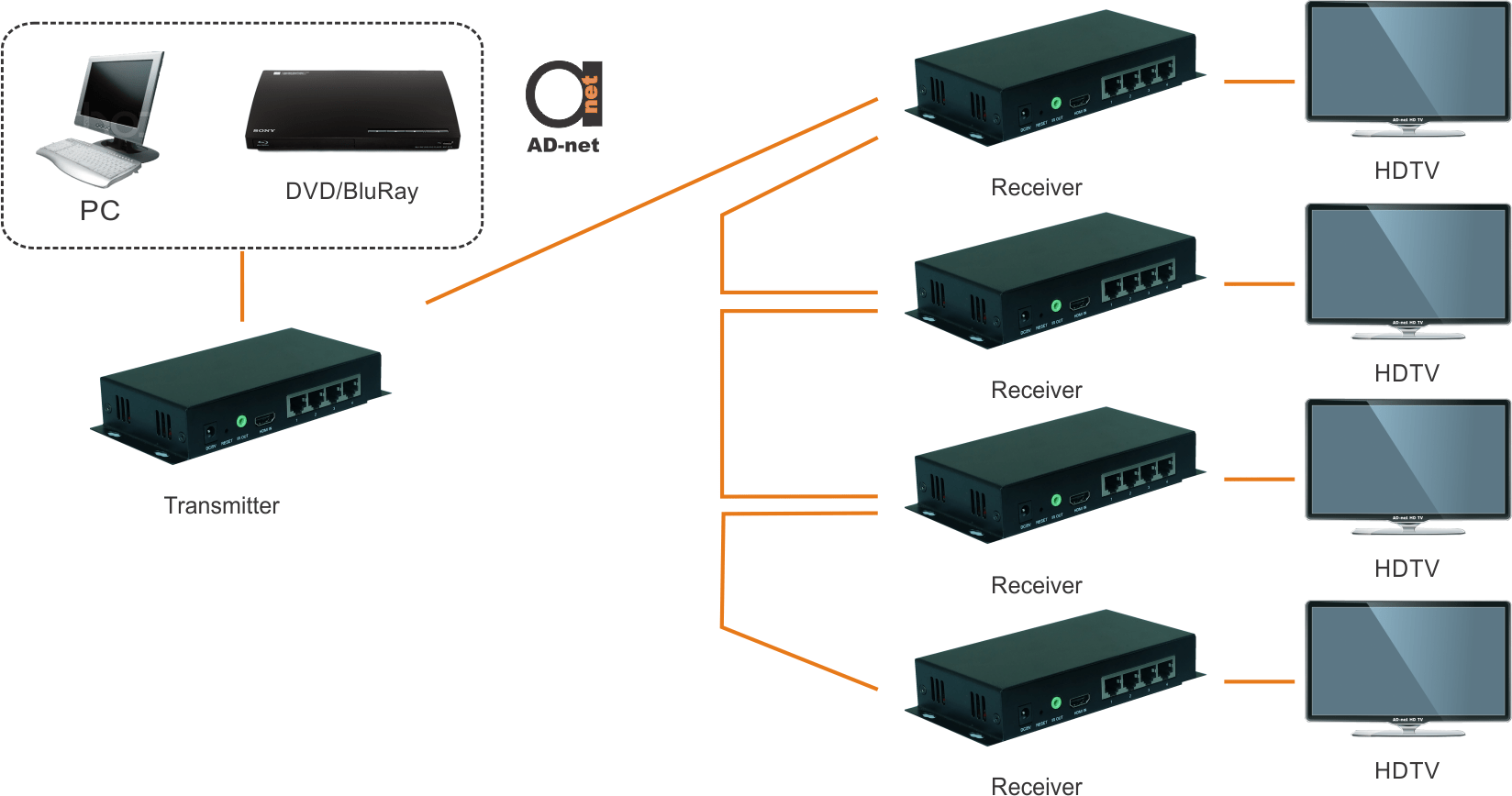

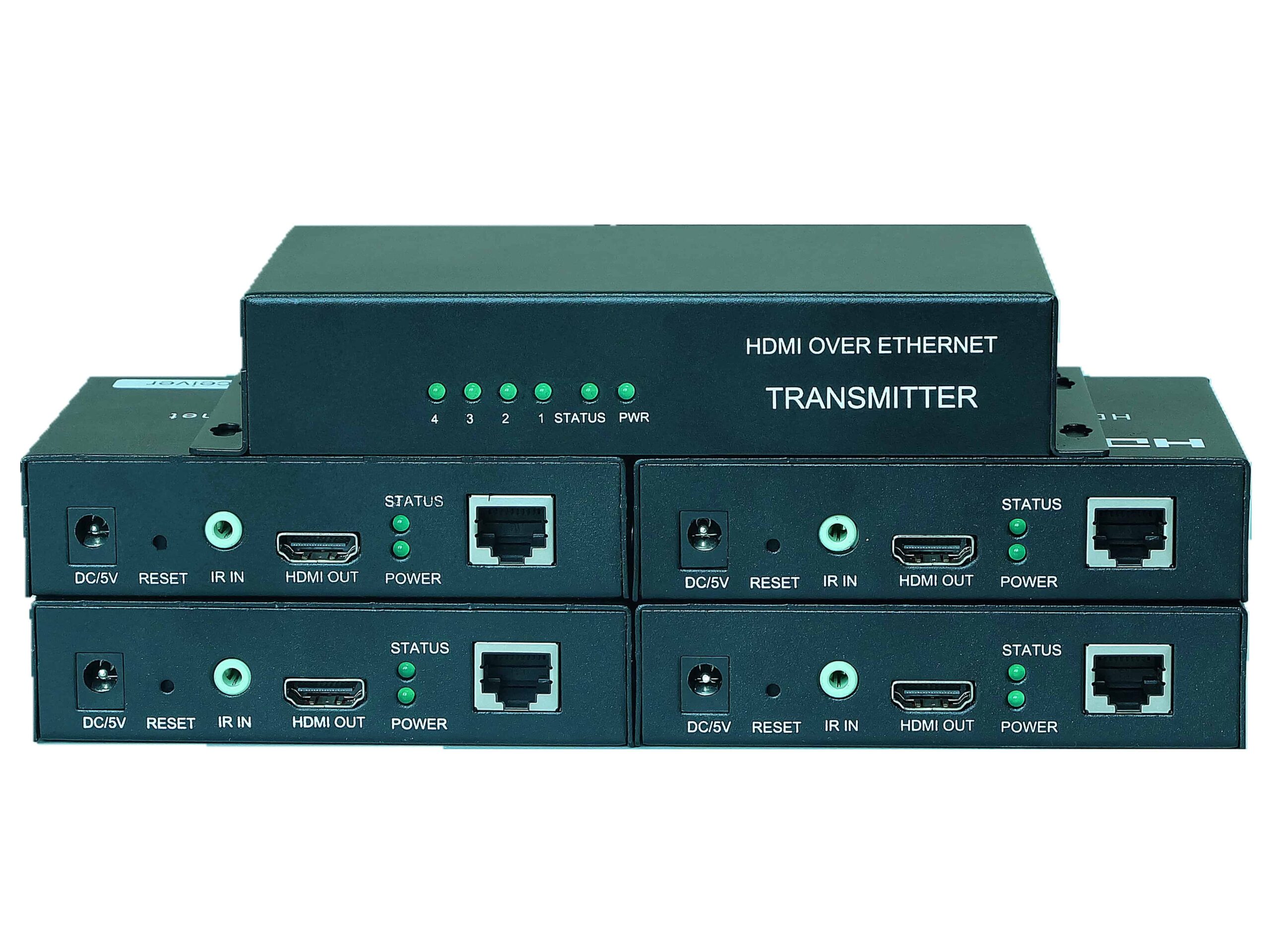

To show you what it looks like when you use this PMP broadcast feature and have same signal on several remote HDMI monitors, we’ve set up 1 central HDMI over Ethernet transmitter with 4 LAN ports and 3 remote HDMI over Ethernet receivers. Check it out how it works live.

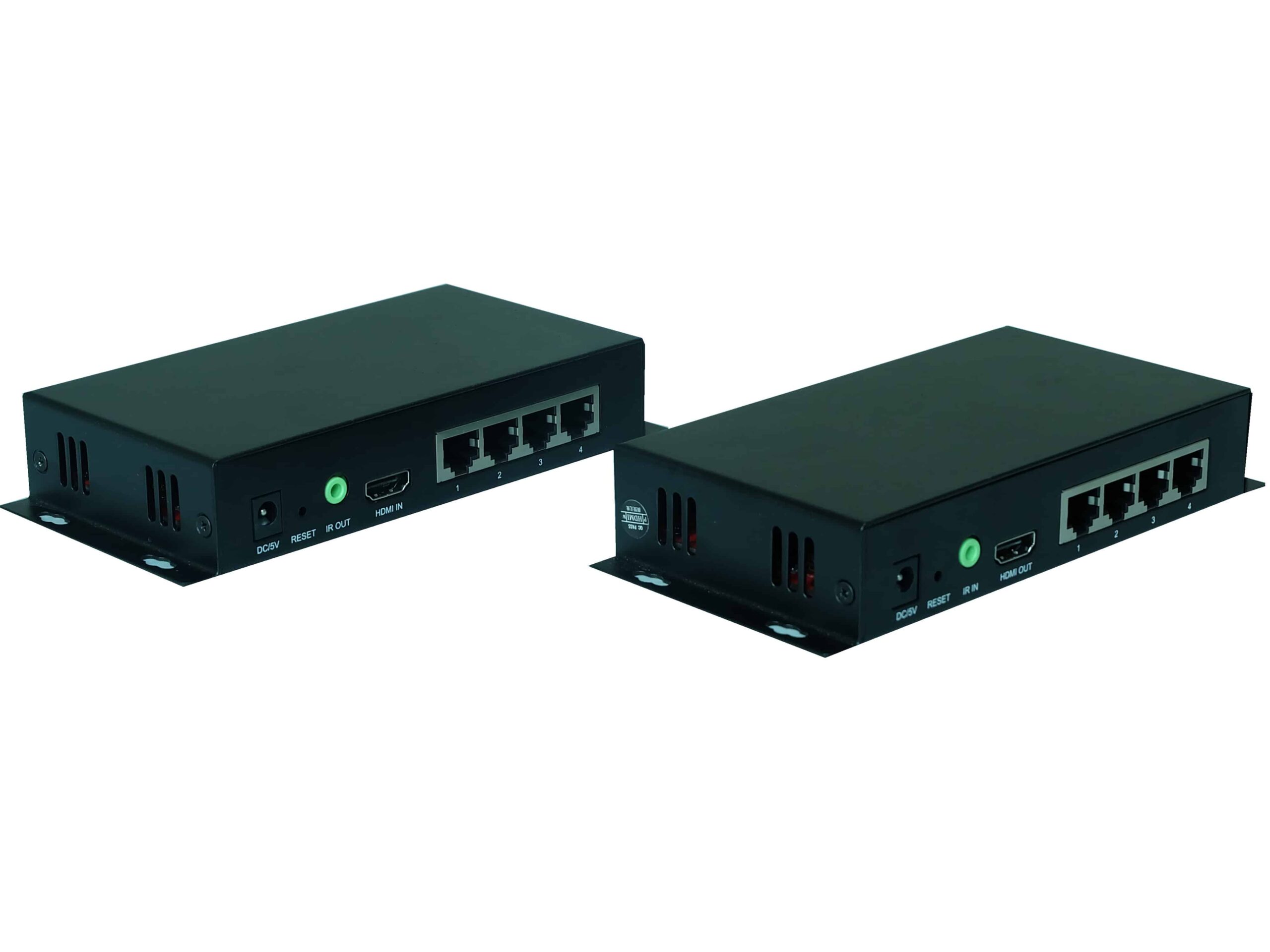

AN-HDMI-ETH-EXT02/T	HDMI over Ethernet LAN 4 port Point to Multipoint Transmission System Transmitter side device (TX side)
AN-HDMI-ETH-EXT02/R-4	HDMI over Ethernet LAN 4 port Point to Multipoint Transmission System Receiver side device (RX 4 port side)
AN-HDMI-ETH-EXT02/R-1	HDMI over Ethernet LAN 1 port Point to Multipoint Transmission System Receiver side device (RX 1 port side)

Description

Special Point to Multipoint 4 x Ethernet port version set – HDMI extender transmission system extends HD video and audio over Ethernet LAN networks, over TCP/IP standard, support one to many application over Ethernet. At the same time, it’s more convenient with infrared extensions to make remote control.
