HDMI + Ethernet, Audio & RS-232 over same fiber optic extender
The AN-HDMI-EXT07 Fiber optic extender provides extension of HDMI signals AND Ethernet up to 20-80km over one single-mode fiber optic cable or up to 200m over single CAT cable, it supports high resolution up to 1080P@60Hz, support external audio transmission, support RS232, support EDID copy, support IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
- Transmit HDMI video audio signal up to 20-80KM distance over single-mode fiber cable meanwhile 200M distance over single Cat5e/6 Cable
- Ethernet port along with HDMI over same fiber
- Support TCP/IP technology, 1 to many function application with Ethernet switch/ router/ Fiber switch
- Support video resolution up to 1080P@60Hz
- Support external stereo audio signal transmission
- Support Bi-directional RS232 signal transmission
- Compliance with HDMI1.3 and HDCP1.2 standard
- Support IR signal transmission
- Looping HDMI output on the transmitter
- Support 1 channel HDMI output and 1 channel VGA output on the receiver
- High compatibility, can auto-match source and display device;
- Built-in automatic adjustment system, make the image smooth, clear and stable;
- Built-in ESD protection system;
- Simple to install, plug and play
| Parameter | Description | |
| Video | Standards | HDMI 1.3; HDCP 1.2 |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 6.75Gbps | |
| Resolution |
1920*1080@60Hz 1920*1080@50Hz 1920*1080@30Hz 1920*1080@25Hz 1920*1080@24Hz 1080I@60Hz 1080I@50Hz 1280*720@60Hz 1280*720@50Hz 1024*768@60Hz |
|
| Connector | Female HDMI-A | |
| Impedance | 100Ω | |
| HDMI Cable Range | <5M ( Resolution: 1920*1200@60Hz) | |
| IR | Interface | 3.5mm earphone seat |
| Signal direction | directional | |
| IR frequency | 38K | |
| Audio | Interface | 3.5mm earphone seat |
| Signal type | Stereo | |
| RS232 | Interface | Industrial terminal |
| Signal direction | Bidirectional | |
| Baud rate | Self-adaptive, Max：115200bps | |
| Data bits | 8 | |
| Optical fiber | Interface | SC/FC connector |
| Fiber type | Single-mode | |
| Wavelength | Single-mode TX 1310nm/RX1550nm | |
| Interface bandwidth | 150Mbps | |
| Transmission distance | Single-mode fiber: standard 20km；maximum 80km ( Video resolution up to 1080P@60Hz) | |
| Other | Power supply | The power adapter: DC12-36V |
| Power dissipation | MAX 6W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension | 154*115*25mm | |
| The warranty | 1 year free warranty | |

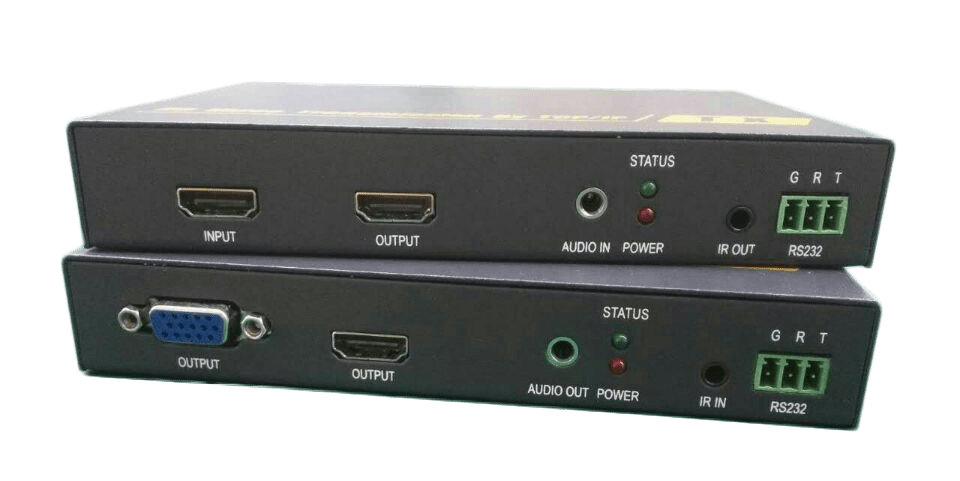

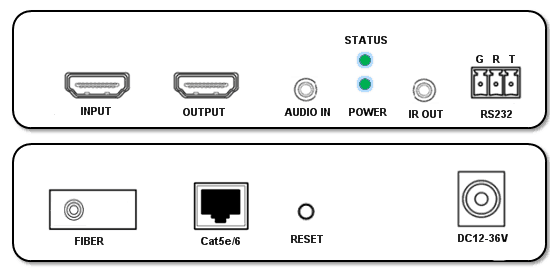

Transmitter:

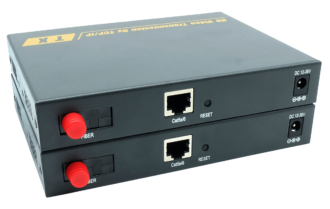

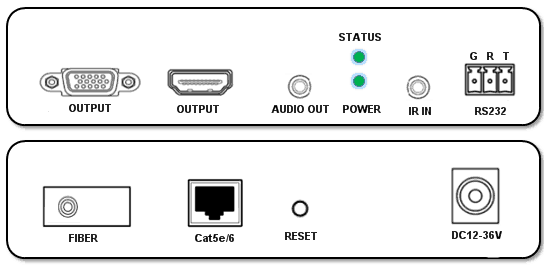

Receiver:
| Port name | Description |
| INPUT /OUTPUT | HDMI signal input/output |
| Audio IN/OUT | Stereo audio signal input/output |
| RS232 | RS232 serial port(R: receive, T: transmit, G: Ground) |
| FIBER | SC/FC connector |
| RESET |
Press 3 second to select 2D SSID Press 5 second to select 3D SSID |
| IR IN/OUT | IR input/ output |
| Cat5e/6 | Ethernet Input/ Output |
| DC12-36V | Power adapter socket |
| LED indicator | Description |
| STATUS | Video signal connection indicator |
| POWER | System power indicator |

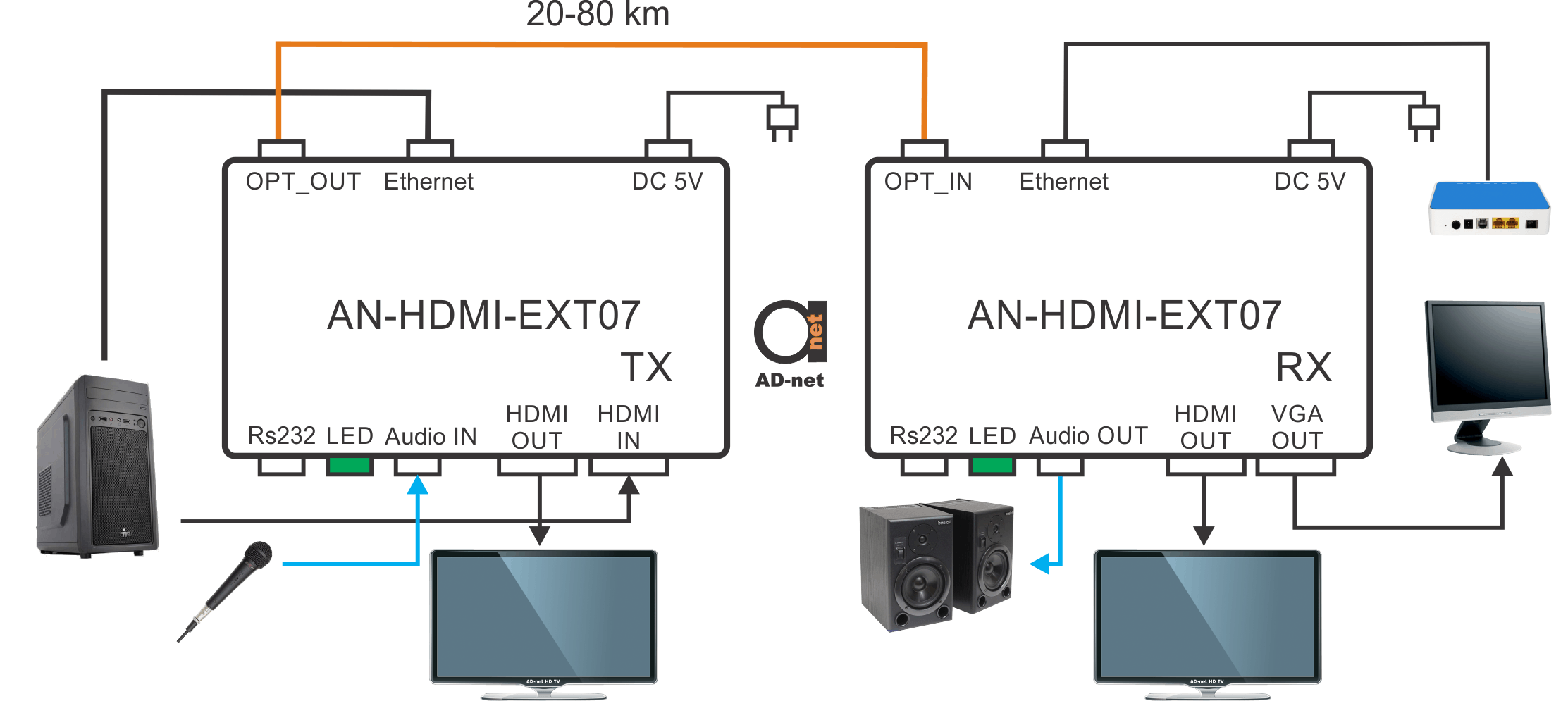

Installation:
- Connect the provided DC power supplies to the power socket of the transmitter and the receiver,
- Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source,
- Connect an stereo audio cable between the AUDIO input port of transmitter and the AUDIO output port of the video source.
- Connect the HDMI output port of receiver to the display device with HDMI cable.
- Connect the AUDIO output port of receiver to the audio devices with AUDIO cable.
- Connect the transmitter optical port to the receiver optical port using one fiber optic cable or Ethernet CAT cable.
Quick installation demo to show versatile usage of this model.
| AN-HDMI-EXT07 | HDMI + Ethernet, Audio & RS-232 over same fiber optic extender |
Description
The AN-HDMI-EXT07 Fiber optic extender provides extension of HDMI signals AND Ethernet up to 20-80km over one single-mode fiber optic cable or up to 200m over single CAT cable, it supports high resolution up to 1080P@60Hz, support external audio transmission, support RS232, support EDID copy, support IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
