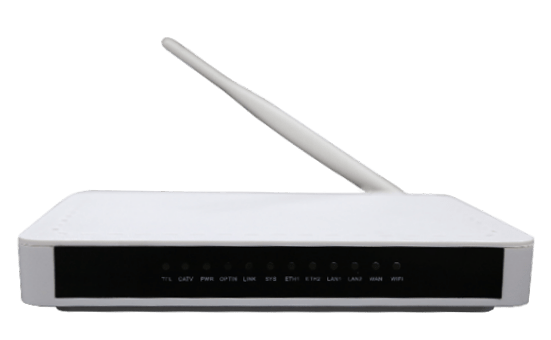

GPON ONT HGU with 4 x Fast Ethernet 1 POTS phone port, CATV port and Wi-fi support

ONT AN-ONT-HGU04 (4FE+1POTS+RF+Wi-Fi) is a FTTH bandwidth access equipment .Based on mature and stable GPON technology, it has powerful functions with high stability, QoS guarantee, comprehensive management and flexible networking construction, etc. ONT AN-ONT-HGU04’s fully compatible with ITU-T G.984 technology standard.

  • Full compatible with ITU-T G.984
  • Support one POTS
  • Support four FE auto-adapting Ethernet ports
  • Support one CATV output
  • Support one 802.11 n/b/g WiFi port
  • Support OMCI and TR069 for remote management
  • Support Web for local management
  • Support Auto-negotiation and MDI/MDIX
  • Support the Ethernet interface rate, working mode and flows control
  • Support loopback at UNI
  • Support packet filtering and anti-illegal message attack protection
  • Support performance statistics of Ethernet lines
  • Support VLAN tagged label processing, traffic classification and packet filtering, STP/RSTP etc.
  • Support DHCP Option60 reporting the location information of the Ethernet interface
  • Support PPPoE+ for accurate subscribers identification
  • Support H.248、MGCP and SIP protocol
  • Support IGMP Snooping
  • Support AES-128
  • CATV support turn on/off RF output remotely

Item

Parameter

Interface

Uplink Interface

1*GPON port, FSAN G.984.2 standard, Class B+

Downstream Data Rate：2.488Gbps

Upstream Data Rate：1.244Gbps

SC/PC single mode fiber

28dB Link loss and  30KM distance with 1:128

CATV Interface

1 RF output

Female F-Type Connector

POTS Port

1*RJ11 with 3REN

Max 1km distance

Balanced Ring, 55V RMS

User Interface

4*10/100M auto-negotiation
Full/half duplex mode
RJ45 connector
Auto MDI/MDI-X
100m distance

Power Interface

12V DC Power supply

Performance Parameters

PON Optical Parameter

Wavelength: Tx 1310nm, Rx1490nm
Tx Optical Power: -1～4dBm
Rx Sensitivity: -27dBm
Saturation Optical Power: -3dBm
Connector Type: SC
Optical Fiber: 9/125ɥm single-mode fiber

Data Transmission
Parameter

PON Throughput: Downstream 950Mbps; Upstream 930Mbps
Ethernet: 100Mbps
Packet Loss Ratio: <1*10E-12
latency: <1.5ms

CATV  parameters

Wavelength：1100~1600 nm

Optical return loss：>45dB

Input optical power：-8dBm～+2dBm

RF frequency：47MHz~875MHz

RF output lever：75～80dBuV

CNR：>46dB，CSO: >58dBc，CTB:  >58dBc

RF output return loss： >14dB

RF impedance： 75Ohm

Business Capability

Layer 2 wire speed switching

Support VLAN TAG/UNTAG，VLAN conversion

Support Port-based speed limitation

Support Priority classification

Support storm control of broadcast

Support link detection

Network Management

Management Mode

Standard compliant OMCI interface as defined by ITU-T G.984.4

Support TR069 and WEB management

Management Function

Status monitor, Configuration management, Alarm management,  Log management

Physical Features

Shell

Plastic casing

Power

External 12VDC/1.5A power supply adapter

Power consumption: < 9W

Dimension and Weight

Item Dimension：200mm(L) x 140mm(W) x 33mm (H)

Item weight：0.6kg

Environmental
Specifications

Operating temperature: 0 to 50ºC
Storage temperature: -40 to 85ºC
Operating humidity: 10% to 90%(Non-condensing)
Storage humidity: 5% to 95%(Non-condensing)

 WIFI Features

  • Wi-Fi Specification IEEE 802.11n compliant, 2.4 GHz
  • Full IEEE 802.11b/g legacy compatibility with enhanced performance
  • Two-stream spatial multiplexing up to300 Mbps PHY data rates
  • Support multi-SSID（Maximum 4 SSID）
  • Support automatic channel selection
  • Support hide SSID
  • Support wireless security of 64/128 bit WEP、1x、WPA and WPA2。



WIFI Specification

Performance  parameters

Standard

IEEE802.11b/g/n

Frequency

2.400 ~ 2.500 GHz

Wireless data rate

IEEE 802.11b: 1,2,5.5,11Mbps

IEEE 802.11g: 6,9,12,18,24,36,48,54Mbps

IEEE 802.11n: up to 200 Mbps

Modulation schemes

802.11g: 64QAM, 16QAM, QPSK, BPSK,   DSSS   802.11b: CCK, DQPSK, DBPSK   

HT20: 64 QAM, 16QAM, QPSK, BPSK

Channel

13*Channel, configurable to meet the standard of USA, Canada, Japan and China

RF receive sensitivity

802.11b: -96dBm @ 1 Mbps; -93dBm @ 2 Mbps;

-91dBm @ 5.5 Mbps; -88dBm @ 11 Mbps

802.11g: -90dBm @ 6 Mbps; -89dBm @ 9 Mbps;

-89dBm @ 12 Mbps; -867dBm @ 18 Mbps;

-83dBm @ 24 Mbps; -79dBm @ 36 Mbps;

-75dBm @ 48 Mbps; -75dBm @ 54 Mbps

802.11n: -96dBm @ 1 Mbps;-88dBm @ 11 Mbps;

-90dBm@6Mbps; -75dBm@54Mbps;

-86dBm@m0/20MHz;-69dBm@m15/20MHz;

RF Tx Power

•TX power out B mode @ 11 Mbps: 18dBm +/- 2

• TX power out G mode @ 54 Mbps: 16dBm +/- 2

• TX power 11n mode @ HT20: 16 dBm +/-2

Encryption Mode

64-bit, 128-bit WEP, AES, TKIP, WPA, WPA2,   802.1x

Transmission distance

100m indoors coverage area

300m outdoors coverage area

(varying depending on the actual environment)

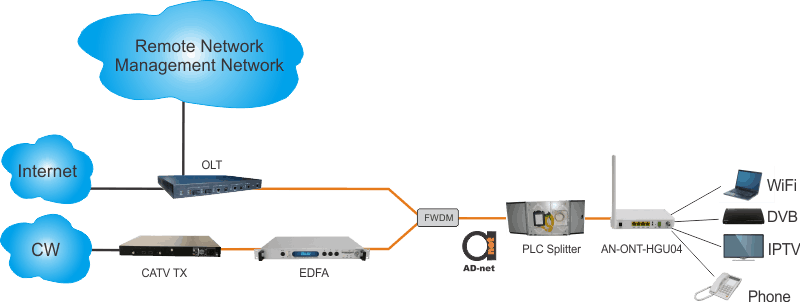

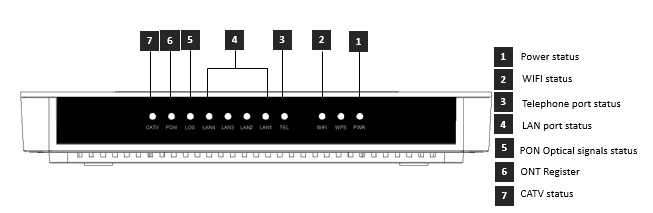

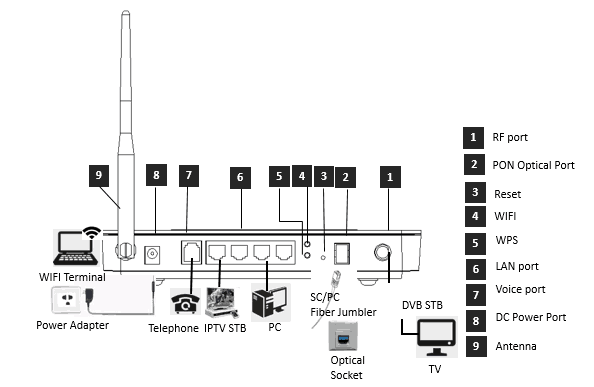

AN-ONT-HGU04_scheme11 22

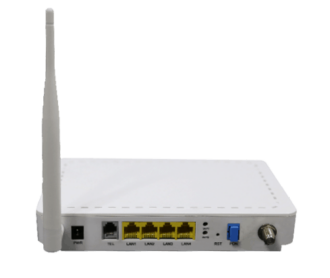

AN-ONT-HGU04

4*10/100M Ethernet interface, 1 GPON interface, 1 POTS interface, 1 CATV, support Wi-Fi function, Plastic casing, external power supply adapter

Description

ONT AN-ONT-HGU04 (4FE+1POTS+RF+Wi-Fi) is a FTTH bandwidth access equipment .Based on mature and stable GPON technology, it has powerful functions with high stability, QoS guarantee, comprehensive management and flexible networking construction, etc. ONT AN-ONT-HGU04’s fully compatible with ITU-T G.984 technology standard.

It adopts single fiber WDM technology with downlink wavelength 1490nm, uplink wavelength 1310nm .It only needs one-core fiber to transmit data service.

ONT AN-ONT-HGU04 has 1 PON port, 1 POTS port, four 10/100BASE-T ports and one CATV output, support Wi-Fi function.
