GPON HGU with 4 x 10/100 Fast Ethernet, 1 POTS phone port, with WiFi support
AN-ONT-HGU03 GPON HGU ONT is one of the GPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data, voice and video service based on the GPON network.
- Full compatible with ITU-T G.984
- Support one POTS
- Support four FE auto-adapting Ethernet ports
- Support one 802.11 n/b/g WiFi port
- Support OMCI and TR069 for remote management
- Support Web for local management
- Support Auto-negotiation and MDI/MDIX
- Support the Ethernet interface rate, working mode and flows control
- Support loopback at UNI
- Support packet filtering and anti-illegal message attack protection
- Support performance statistics of Ethernet lines
- Support VLAN tagged label processing, traffic classification and packet filtering, STP/RSTP etc.
- Support DHCP Option60 reporting the location information of the Ethernet interface
- Support PPPoE+ for accurate subscribers identification
- Support H.248, MGCP and SIP protocol
- Support IGMP Snooping
- Support AES-128
|
Item |
Parameters |
Specification |
|

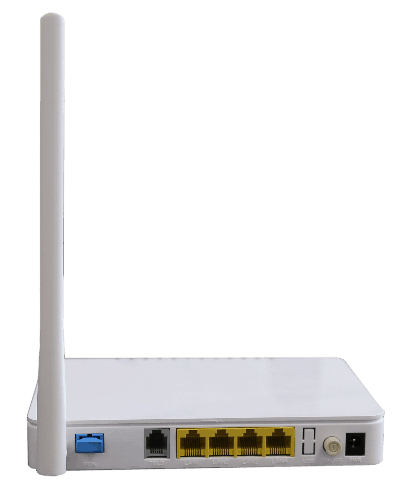

Interface |
PON Port |
1*GPON port, FSAN G.984.2 standard, Class B+ Downstream Data Rate：2.488Gbps Upstream Data Rate：1.244Gbps SC/PC single mode fiber 28dB Link loss and 30KM distance with 1:128 |
|
Ethernet Port(LAN) |
4*10/100M Auto-negotiation RJ45 ports Full Duplex / Half-Duplex RJ45, Auto-MDI/MDI-X Transmission Distance 100 Meter |
|
|
POTS Port |
1*RJ11 with 3REN Max 1km distance Balanced Ring, 55V RMS |
|
|
Power Supply Port |
12V DC input |
|
|
Management |
Network Management |
Standard compliant OMCI interface as defined by ITU-T G.984.4 Support TR069 and WEB management |
|
Management Function |
Status monitor, Configuration management, Alarm management, Log management |
|
|
Environmental |
Shell |
Plastic casing |
|
Power |
External 12V 1A AC/DC power supply adapter Power consumption: <7W |
|
|
Dimensions |
170mm(L)*130mm(W)*30mm(H) 0.3kg |
|
|
Environment |
Operating Temperature：0~45C Storage Temperature：-40~85C Operating Humidity：10%~90%(Non-condensing) Storage Humidity：10%~90%(Non-condensing) |
|

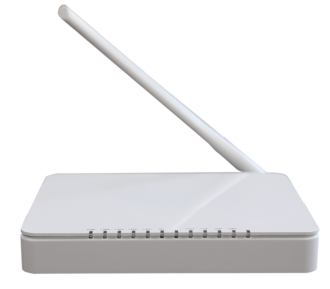

Indicator |
Description |
||
|
1 |
WIFI |
WIFI |
Blinking：Data is being transmitted On：Wi-Fi function Opens |
|
2 |
LOS |
GPON optical signals |
On: Optical power lower than receiver sensitivity ; Off: Optical in normal |
|
3 |
PON |
ONT Register |
On: Success to register to OLT; Blinking: In process of registering to OLT; Off: In process of registering to OLT; |
|
4 |
TEL |
Telephone port status |
On：The connection between the TEL port and the voice server has been set up Blinking：The voice service of the TEL port is established; Off：The connection between the TEL port and the voice server is not set up. |
|
5 |
LANn |
LAN port status |
On: Ethernet connection is normal; Blinking: Data is being transmitted through the Ethernet port; Off: Ethernet connection is not set up; |
|
6 |
PWR |
Power status |
On: The ONT is power on; Off: The ONT is Power off; |

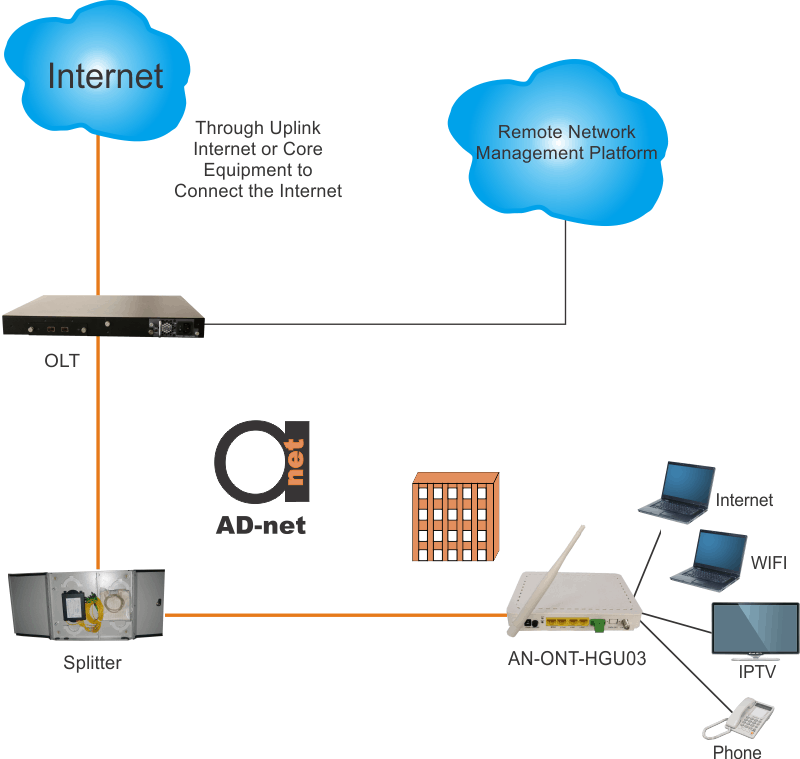

- Solution: FTTH, FTTB, FTTO, PON+EOC
- Business: Broadband Internet, Voice, IPTV, VOD, IP Camera, WIFI
- IEEE 802.11n compliant, 2.4 GHz
- Full IEEE 802.11b/g legacy compatibility with enhanced performance
- Two-stream spatial multiplexing up to300 Mbps PHY data rates
- Support multi-SSID (Maximum 4 SSID)
- Support automatic channel selection
- Support hide SSID
- Support wireless security of 64/128 bit WEP, 802.1x, WPA and WPA2.
|
WIFI Specification |
||
|
Performance parameters |
Standard |
IEEE802.11b/g/n |
|
Frequency |
2.400 ~ 2.500 GHz |
|
|
Wireless data rate |
IEEE 802.11b: 1,2,5.5,11Mbps IEEE 802.11g: 6,9,12,18,24,36,48,54Mbps IEEE 802.11n: up to 200 Mbps |
|
|
Modulation schemes |
802.11g: 64QAM, 16QAM, QPSK, BPSK, DSSS 802.11b: CCK, DQPSK, DBPSK HT20: 64 QAM, 16QAM, QPSK, BPSK |
|
|
Channel |
13*Channel, configurable to meet the standard of USA, Canada, Japan and China |
|
|
RF receive sensitivity |
802.11b: -96dBm @ 1 Mbps; -93dBm @ 2 Mbps; -91dBm @ 5.5 Mbps; -88dBm @ 11 Mbps 802.11g: -90dBm @ 6 Mbps; -89dBm @ 9 Mbps; -89dBm @ 12 Mbps; -867dBm @ 18 Mbps; -83dBm @ 24 Mbps; -79dBm @ 36 Mbps; -75dBm @ 48 Mbps; -75dBm @ 54 Mbps 802.11n: -96dBm @ 1 Mbps;-88dBm @ 11 Mbps; -90dBm@6Mbps; -75dBm@54Mbps; -86dBm@m0/20MHz;-69dBm@m15/20MHz; |
|
|
RF Tx Power |
•TX power out B mode @ 11 Mbps: 18dBm +/- 2 • TX power out G mode @ 54 Mbps: 16dBm +/- 2 • TX power 11n mode @ HT20: 16 dBm +/-2 |
|
|
Encryption Mode |
64-bit, 128-bit WEP, AES, TKIP, WPA, WPA2, 802.1x |
|
|
Transmission distance |
100m indoors coverage area 300m outdoors coverage area (varying depending on the actual environment) |
|
| AN-ONT-HGU03 | 4*FE Ethernet interface, 1*POTS interface, 1 GPON interface, support Wi-Fi function, plastic casing, external power supply adapter |
Description
AN-ONT-HGU03 GPON HGU ONT is one of the GPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data, voice and video service based on the GPON network.
GPON is the latest generations of access network technology. ITU-T G.984 is the standard protocol of GPON. The GPON standard differs from other PON standards in that it achieves higher bandwidth and higher efficiency using larger, variable-length packets. GPON offers efficient packaging of user traffic, with frame segmentation allowing higher quality of service (QOS) for delay-sensitive voice and video communications traffic. GPON networks provides the reliability and performance expected for business services and provides an attractive way to deliver residential services. GPON enables Fiber To The Home (FTTH) deployments economically resulting to accelerated growth worldwide.
AN-ONT-HGU03 provide one POTS ports, four FE auto-adapting Ethernet ports and one 802.11 n/b/g Wi-Fi port. The AN-ONT-HGU03 features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the AN-ONT-HGU03 provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome/Alcatel-Lucen.
