  • Support port-based rate limitation and bandwidth control;
  • In compliant with IEEE802.3ah Standard
  • Up to 20KM transmission Distance
  • Support data encryption, group broadcasting, port Vlan separation ,etc.
  • Support Dynamic Bandwidth Allocation (DBA)
  • Support ONU auto-discovery/Link detection/remote upgrade of software;
  • Support VLAN division and user separation to avoid broadcast storm;
  • Support power-off alarm function ,easy for link problem detection
  • Support broadcasting storm resistance function
  • Support port isolation between different ports
  • Support ACL and SNMP to configure data packet filter flexibly
  • Specialized design for system breakdown prevention to maintain stable system
  • Support software online upgrading
  • EMS network management based on SNMP ,convenient for maintenance

Item

Parameter

PON Interface

1 EPON optical interface
Meet 1000BASE-PX20+ standard
Symmetric 1.25Gbps upstream/downstream
SC single-mode fiber
split ratio: 1:64
Transmission distance 20KM

User Ethernet
Interface

4*10/100Mauto-negotiation
Full/half duplex mode
RJ45 connector
Auto MDI/MDI-X
100m distance

Power Interface

12V DC Power supply

An external 12V 0.5A AC/DC power supply adapter

PON

Optical

Parameter

Wavelength: Tx 1310nm, Rx1490nm
Tx Optical Power: -1~4dBm
Rx Sensitivity: -27dBm
Saturation Optical Power: -3dBm
Connector Type: SC
Optical Fiber: 9/125ɥm single-mode fiber

Data Transmission
Parameter

PON Throughput: Downstream 950Mbps; Upstream 930Mbps
Ethernet: 100Mbps
Packet Loss Ratio: <1*10E-12
latency: <1.5ms

Business
Capability

Layer 2 wire speed switching

Support VLAN TAG/UNTAG,VLAN conversion

Support Port-based speed limitation

Support Priority classification

Support storm control of broadcast

Support loop detection

Network
Management

Support IEEE802.3 QAM, ONU can be remotely managed by OLT

Support Remote management through SNMP and Telnet

Local management

Management
Function

Status monitor, Configuration management, Alarm management,
Log management

LED Indicator

PWR: Power up or down

OPTIN: Optical Link Status

LINK:ONU Registered

ETH: Link Status of Ethernet Interface

LAN: Link Status of Ethernet Interface

WIFI: WIFI status

Shell

Plastic casing

Power

External 12V 0.5A AC/DC power supply adapter

Power consumption: < 4W

Physical
Specifications

Item Dimension:160mm(L) x 120mm(W) x 32.5mm (H)

Item weight:0.2kg

Environmental
Specifications

Operating temperature: 0 to 50ºC
Storage temperature: -40 to 85ºC
Operating humidity: 10% to 90%(Non-condensing)
Storage humidity: 10% to 90%(Non-condensing)

WiFi Specifications

Performance  parameters

Operating Mode

Router or bridge

Throughput

IEEE 802.11b: 11Mbps

IEEE 802.11g: 54 Mbps

IEEE 802.11n: 135Mbps

Frequency

2.412 ~ 2.472 GHz

Channel

13*Channel, configurable to meet the standard of USA, Canada, Japan and China

Modulation

DSSS , CCK and OFDM

Coding

BPSK, QPSK, 16QAM and 64QAM

RF receive sensitivity

802.11b: -82dBm @ 1 Mbps; -80dBm @ 2 Mbps;

-78dBm @ 5.5 Mbps; -76dBm @ 11 Mbps

802.11g: -82dBm @ 6 Mbps; -81dBm @ 9 Mbps;

-79dBm @ 12 Mbps; -77dBm @ 18 Mbps;

-74dBm @ 24 Mbps; -70dBm @ 36 Mbps;

-66dBm @ 48 Mbps; -65dBm @ 54 Mbps

RF output lever

802.11b:  16.5 ±1dBm

802.11g:  13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps

802.11n:  13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps

Encryption Mode

802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK)

  • Typical Solution:FTTH,FTTO,PON+EOC
  • Typical Business:INTERNET, IPTV, VOD, IP Camera, WIFI

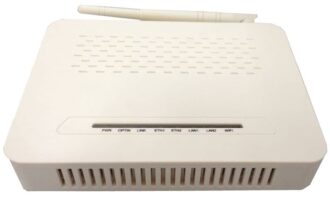

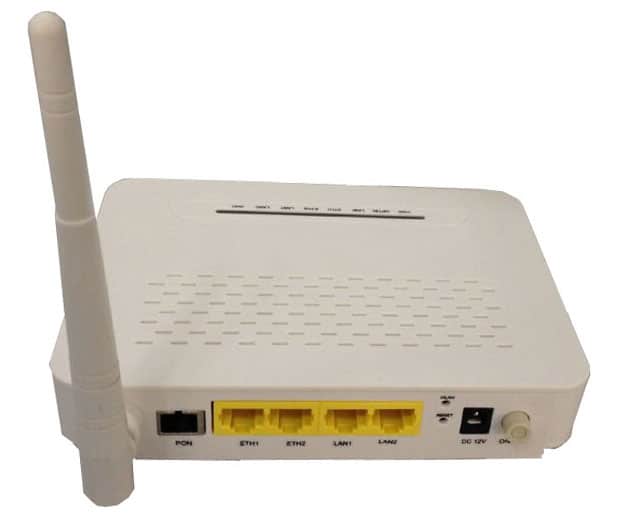

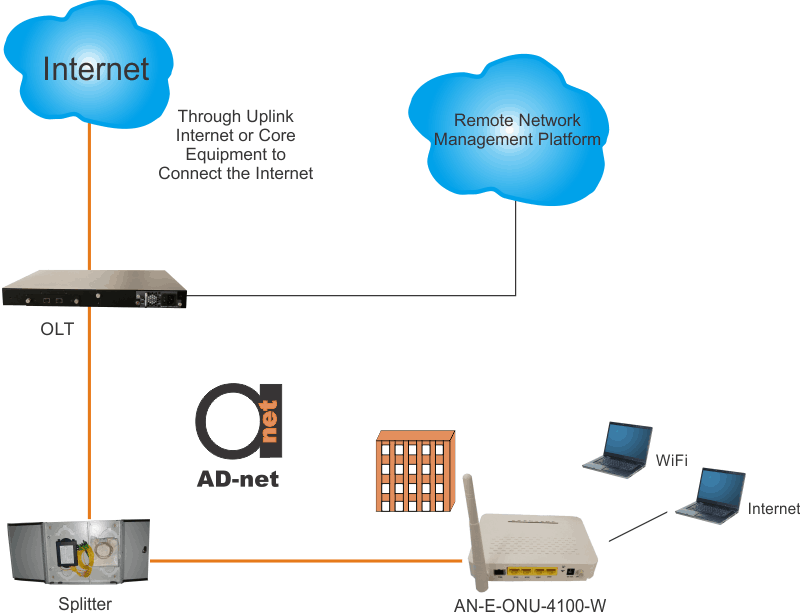

AN-E-ONU-4100-W_scheme

AN-E-ONU-4100-W

4*10/100M Ethernet interface, built-in WiFi, 1 EPON interface, plastic casing, external power supply adapter

Description

EPON ONU AN-E-ONU-4100-W is mainly designed for FTTH, FTTO application. EPON ONU AN-E-ONU-4100-W support 1000Base-PX20 standard with 1:64 maximum optical splitting ratio and 20km distance, and provide 1uplink GE PON port.



ONU AN-E-ONU-4100-W work together with C-Data’s OLT could realize flexible network structure and maintenance and provide total FTTx solutions.



ONU AN-E-ONU-4100-W has 1 PON port, 4 10/100BASE-T ports and support WiFi.
