FTTH PON optimized BOX + Splitter set – All in One!
AN-WMTB-FTTH is specially designed, and optimized for GEPON or other PON networks design fiber optical distribution, termination and splice box. You get all in one solution for PON from AD-net.
- Wall mountable
- Double or single door access
- Keyway entry
- Splice and termination
- Up to 48 ports
- Standard beige color
- Locker feautured
- Valdal proof
- Fiber optical splitters and couplers are available in set with split ration from 1:2 to 1:64
- Special price if ordered in set with AD-net GEPON active equipment systems ONU’s and OLT’s
- The sealing performance meets the IP65-level requirements of GB4208 standard, thus, it is suitable for outdoor distribution
- Box body is made of metal materials, it looks nice in shape and its operation is convenient, anti-ageing and corrosion can be assured by the adoption of SMC compound materials
- It is the combination of three functions: optical fusion, store and distribution
- Adapter is installed with a certain angel, maintenance is easy, transmission loss is low
Max: Capacity: 48 Ports
Adapter type: ST/SC or any other on your request
Max number of splice trays: 5
Weight:
1 door version: 5.2 kg
2 door version 6 kg
Dimensions:
1 door version: 425x385x95mm
2 door version: 425X355X80mm
| AN-WMT-FTTH-XX-YY-ZZ | XX – number of ports |
Description
AN-WMTB-FTTH is specially designed, and optimized for GEPON or other PON networks design fiber optical distribution, termination and splice box. You get all in one solution for PON from AD-net.

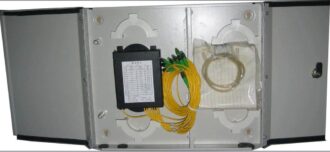

Click on the picture above to enlarge it.
As you can see, box has 2 sides – 1 side is optical splice tray + passive optical termination, and another side is distribution box to flats, houses – user side!
Left side is used for splicing the cable coming from OLT, right side – cables coming from flats, houses etc.
You can choose the set with any spliiter, like 1:2, 1:4, 1:8 etc.
