EPON Repeater – Range Extender

AN-E-PON-R is an EPON link amplifier developed by AD-net to benefit operators by extending their network link without any much additional hardware.AN-E-PON-R is compliant with IEEE802.3ah standard. It is compatible with any type of OLT/ONU available from other vendors in the market. The distance of the EPON system can be extended from the original 20Km to 50Km or even further.

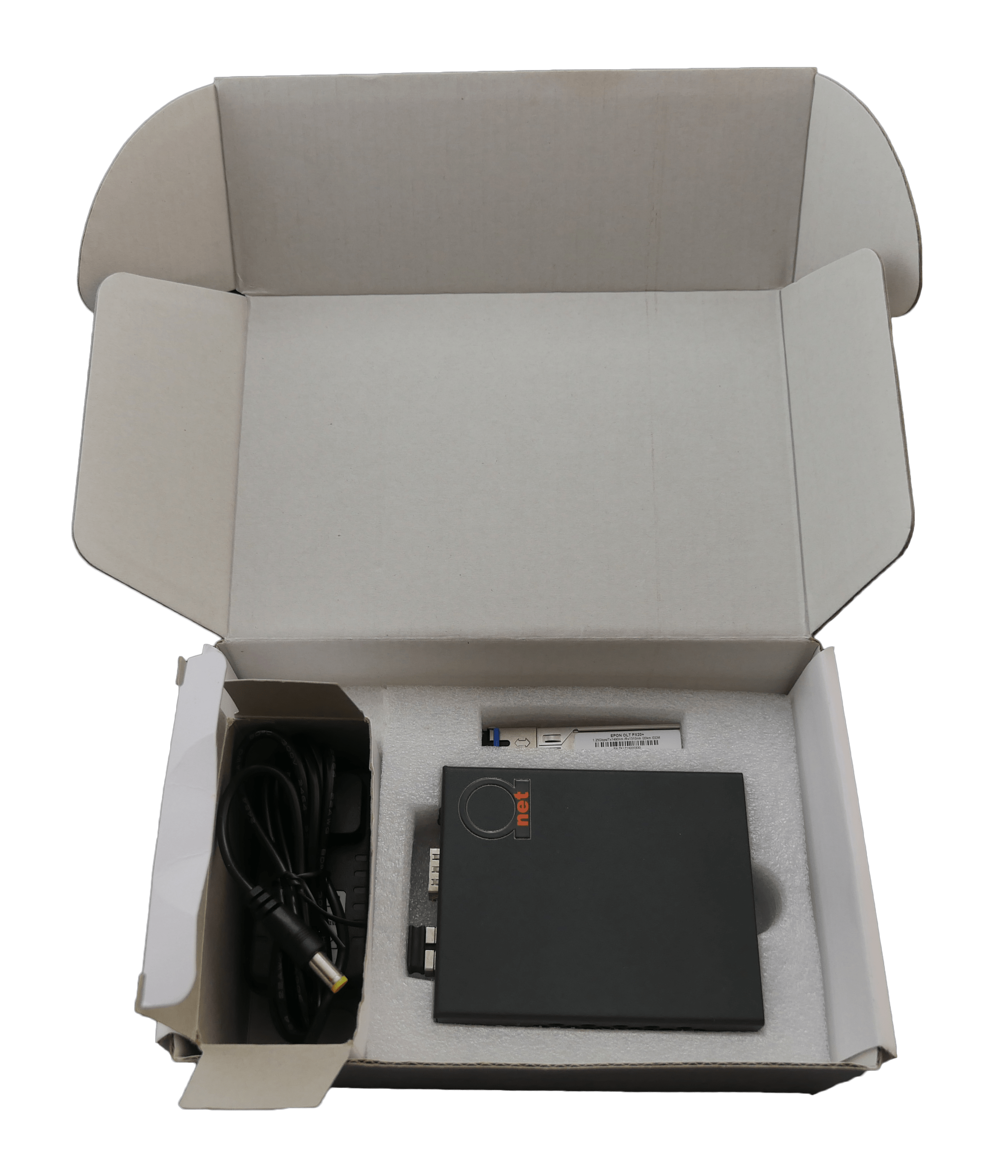

  • PON tranceivers comes in set with every unit – 1 OLT internal tranceiver + 1 Plug In Type PON module comes in set
  • Compliant with IEEE802.3ah and GB (YD/T 1475-2006);
  • Transparent protocol and multi-vendor compatibility helps it to be fully compatible with other mainstream OLT/ONU equipment in the market;

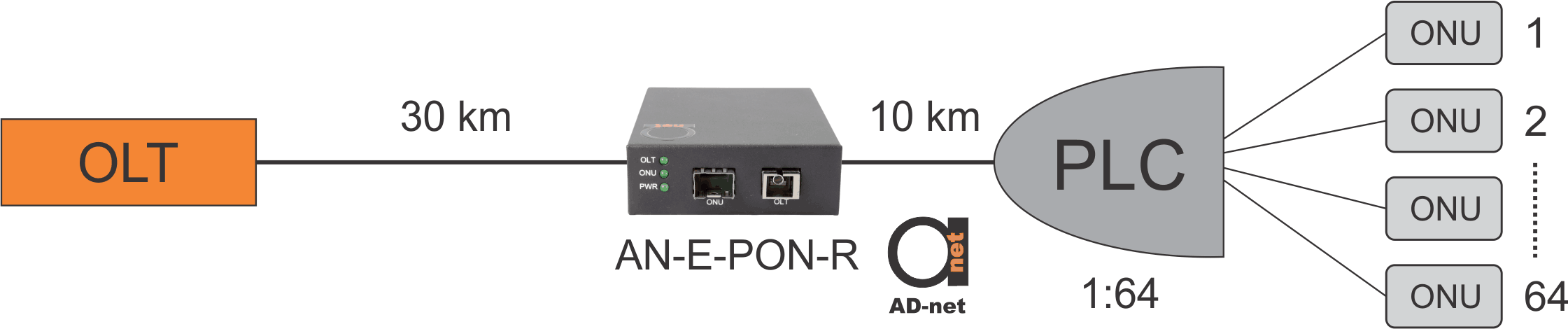

  • Flexible to use. It can be not only installed in front of the splitter to amplify the multi-channel EPON signals; but also be installed at the back of the splitter to extend the single-channel EPON signal to a maximum of 50 km;
  • AN-E-PON-R can effectively increase utilization of the OLT port, and improve the maximum split ratio from 1:32 to 1:64
  • It is compact in size with low power consumption;
  • Designed to work in any environment with good reliability and strong environmental adaptability,

Item

Description

Interface

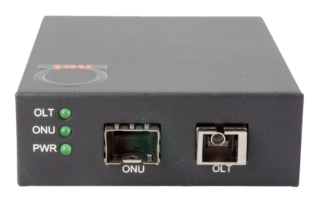

1*dedicated OLT interface;

1*dedicated ONU interface

PON Interface

Uplink and downlink symmetrical transmission rate of 1.25Gbps;

High sensitivity optical receiver;

Security: ONU authentication mechanism;

Network coverage radius: 3 options—50km, 30km and 20km

Standards

IEEE 802.3-2005 EPON OLT

Compliant with Technical Requirements for China Telecom EPON Equipment Item 2.2

Physical Dimensions

184mm (W) * 192mm (D) * 25mm (H)

Environmental Requirements

Operating Environment: -40 °C ~ 85 °C; 10% ~ 85% non-condensation Storage Environment: -40 °C ~ 85 °C; 5% ~ 95% non-condensation

Power Supply

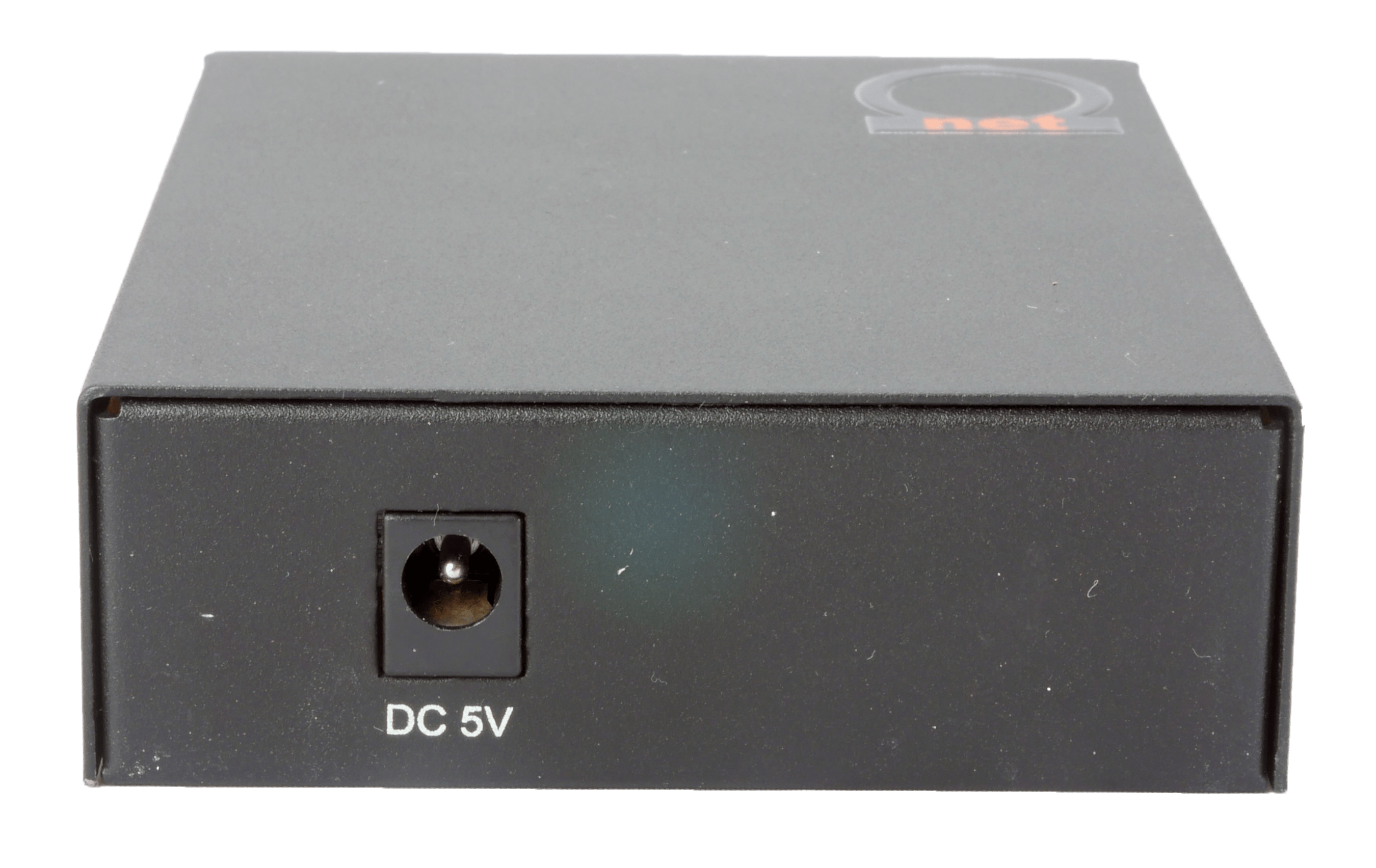

Input Voltage: 5V

Input Current: 0.6A

Power: a maximum of 3W





Here we’ve got 8 port EPON (GEPON) OLT, some ONU, splitter and our new EPON repeater / extender. As we can see it does not requires any settings and are really plug and and play!

AN-E-PON-R

EPON OEO repeater - range extender, 1 PON optical transceivers comes in set, 1 PON transceiver on board.

Description

AN-E-PON-R is an EPON link amplifier developed by AD-net to benefit operators by extending their network link without any much additional hardware.AN-E-PON-R is compliant with IEEE802.3ah standard. It is compatible with any type of OLT/ONU available from other vendors in the market. The distance of the EPON system can be extended from the original 20Km to 50Km or even further.

AN-E-PON-R can be used in coordination with the mainstream OLT/ONU in the market, so as to provide efficient and flexible long-distance EPON solutions.
