  • Carefully designed electric circuit and entire hardware scheme can guarantee the reliability of this equipment, which basically does not adopt the special-purpose chip, and its production is not influenced by purchasing;
  • system has passed through strict test and practical confirmation, conforming to ITU-T V.24, G.703, and G.704 standard;
  • E1 interface options are 75Ω unbalanced or 120Ω balanced;
  • V.24 supports hot plug in support;
  • V.24 interface supports various kinds of clock source and timing for option;
  • provides four clock types: E1 master V.24external, E1master V.24 internal, E1 submissive V.24 external, E1 submissive V.24 internal;
  • V.24 interface can be tail-connected with other DCE equipment;
  • Provides 3 kinds of loop-return function, namely E1 self-looping at local end, V.24 self-looping at local end, and V.24 being ordered to self-loop at remote end (non- framing model not having this function);
  • AC220V and DC-48V power supply pattern may select, DC-48 and +24V power are not divided to positive and negative pole for simple installation and maintenance;
  • Supports function of pseudo-random code testing, which brings great convenience for installation, debugging and maintenance of equipment;
  • Working clock can support internal-clock, external-clock, and route clock;

E1 interface:
Interface standard: Conforms to G.703 standard
Interface rate: 2.048Mbit/S±50ppm
Vibration characteristic: According to G.742 and G.823 standard
Transmission capacity: 1*E1
Clock type: internal-clock, route clock
Connecter: BNC (75 Ω), RJ45 (120 Ω)
Interface impedance: 75Ω (non- balanced), 120Ω (balanced)

V.24 interface
Rate:           2048kpbs
Interface:         compatible with V.24 standard.
Connector:        DB25 socket with M34 female
Connect mode:     DCE
Clock:            G.703 recovery clock, internal clock, V.35 external clock.

Working condition
Input voltage: AC220V; DC48V;
Power consumption: ≤5W
Operating temperature:  0°C ~ 50°C
Storing temperature: 40°C ~ +70°C
Relative humidity: 95 %

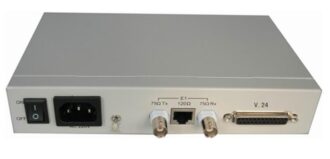

AN-E1-V24/AC

E1- V24 converter, 75Ω, 120 Ω, 220V

AN-E1-V24 /DC48

E1-V24 converter, 75 Ω, 120 Ω, DC-48V

Description

AN-E1-V24 E1/ V.24 converter provides physical level conversion between ITU-T G.703 standard E1 interface and standard V.24 interface, it can receive synchronous 2.048 Mbps data from E1channal and transmit the data to router, DDN, multiplexer or other equipment, thus providing secure and seamless communicating connection between equipments with different interfaces in the network. It is widely applied in the interface between WAN and LAN and in video monitoring. The pattern of data interface is DCE, which can be connected with DTE or DCE equipment.
