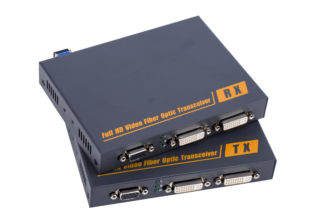

DVI & RS-232 over fiber optic extender

The AN-DVI-EXT-01 Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, EDID copy, and RS232 signal transmission and transmitter local output function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Transmits DVI video signals up to 2km-10km over one fiber optic cable;
Support video resolution up to 1920*1080P@60Hz;
Support RS232 signal unidirectional transmission, baud rate self-adaptive;
Support copy EDID, can match many kind display device;
Transmitter support one channel DVI local output;
Receiver support two channel DVI output;
Compliance with DVI 1.0 and HDCP 1.2 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;

Parameter		Description
Video	Standards	DVI 1.0; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution range	Up to 1920X1200@60Hz
	Connector	DVI-D
	Impedance	100Ω
RS232	Interface	DB9 socket
	Signal direction	Unidirectional
	Baud rate	Self-adaptive, Max：115200bps
	Data bits	8
Optical fiber	Interface	SFP model – LC connector
	Fiber type	single-mode
	Wavelength	Single-mode 1310nm
	Interface bandwidth	10Gbps
	Transmission distance	Single-mode fiber: standard 2km；maximum 10km
Other	Power supply	The power adapter: DC 5V/2A
	Power dissipation	MAX 5W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	1658030mm
	The warranty	1 year free warranty

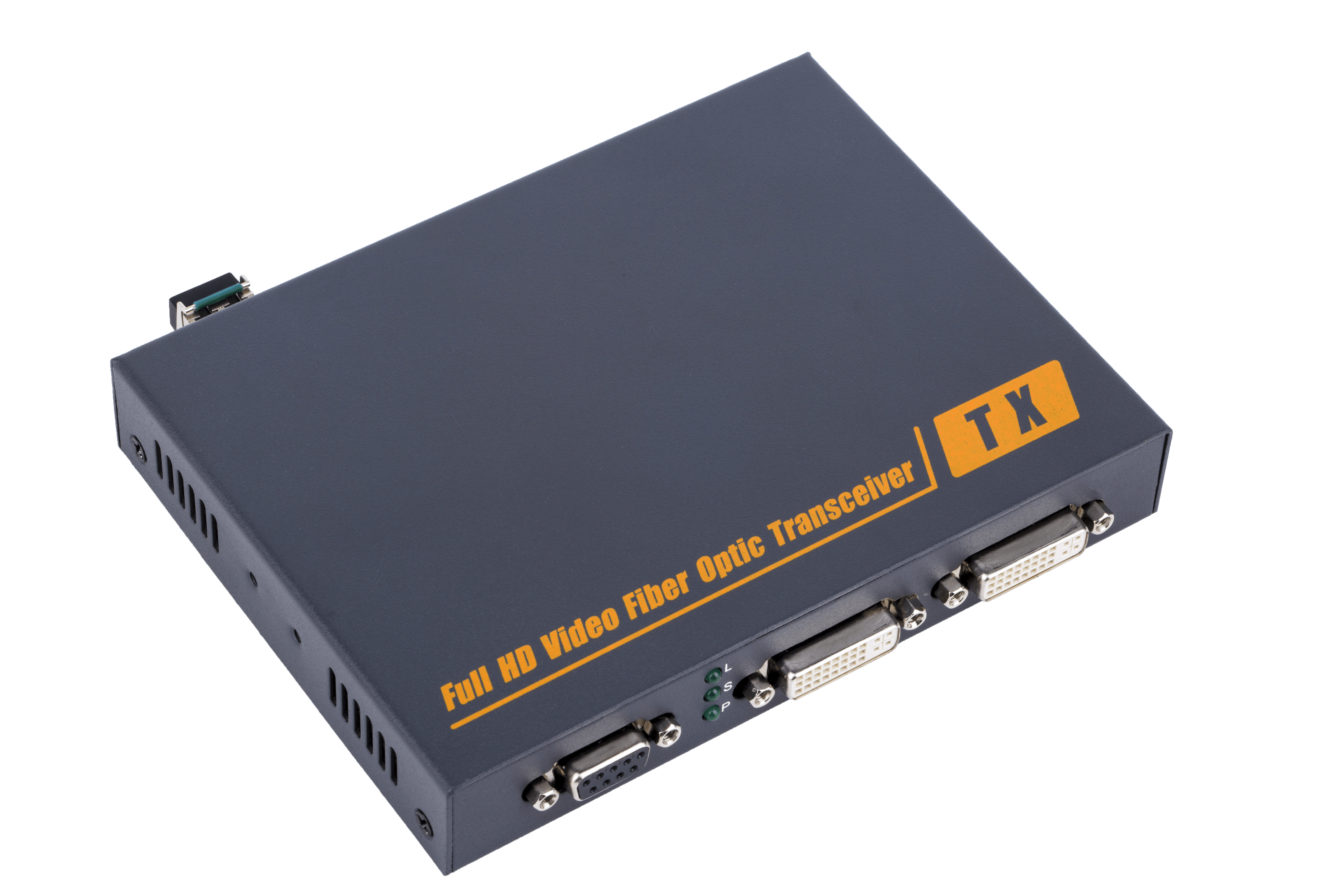

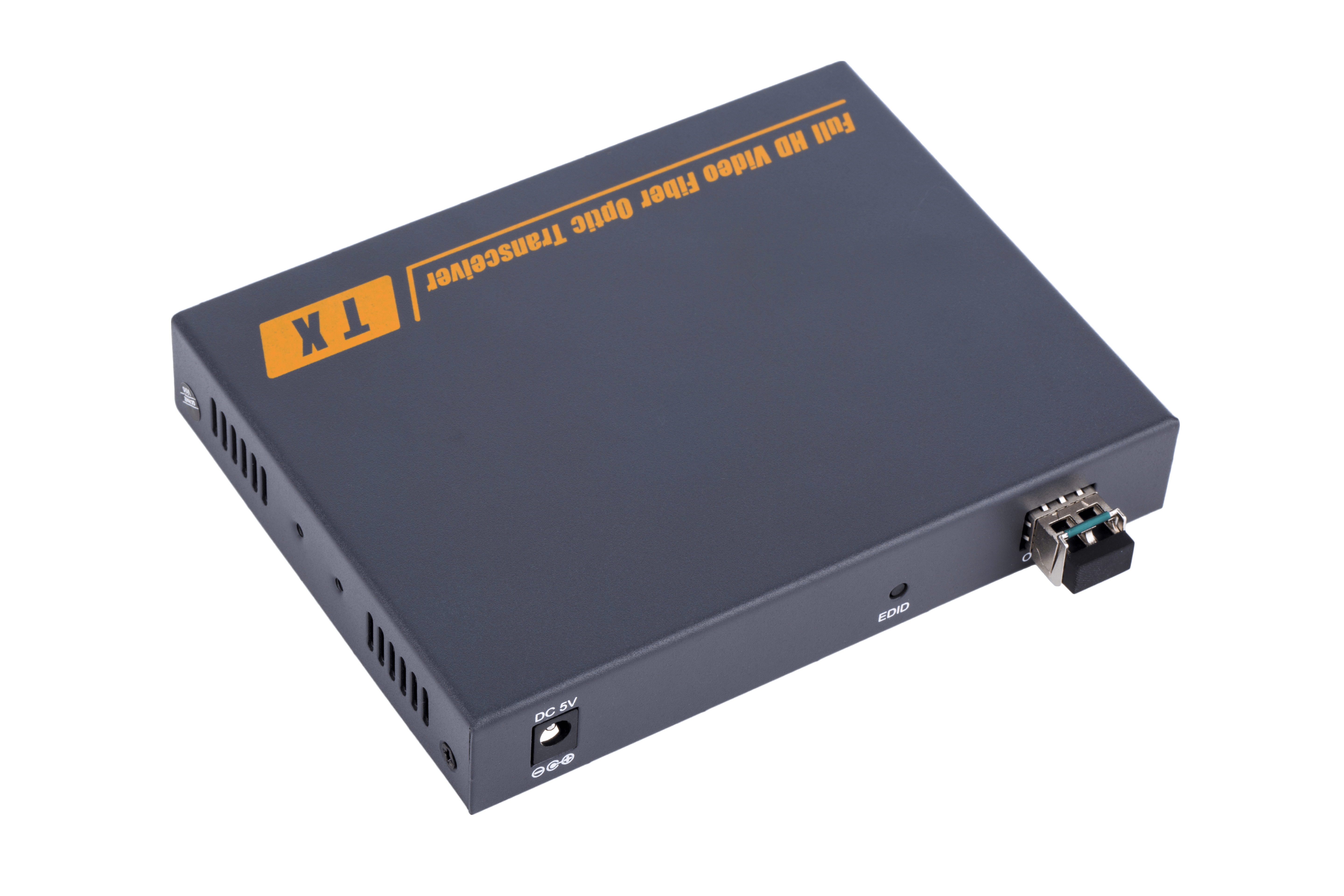

Transmitter

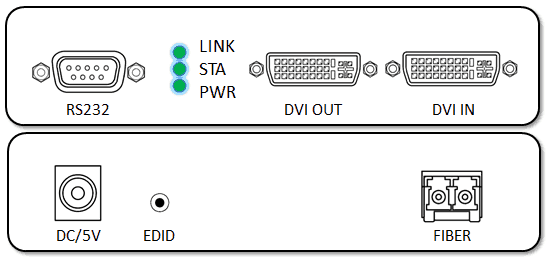

DVI & RS-232 over fiber optic extender transmitter

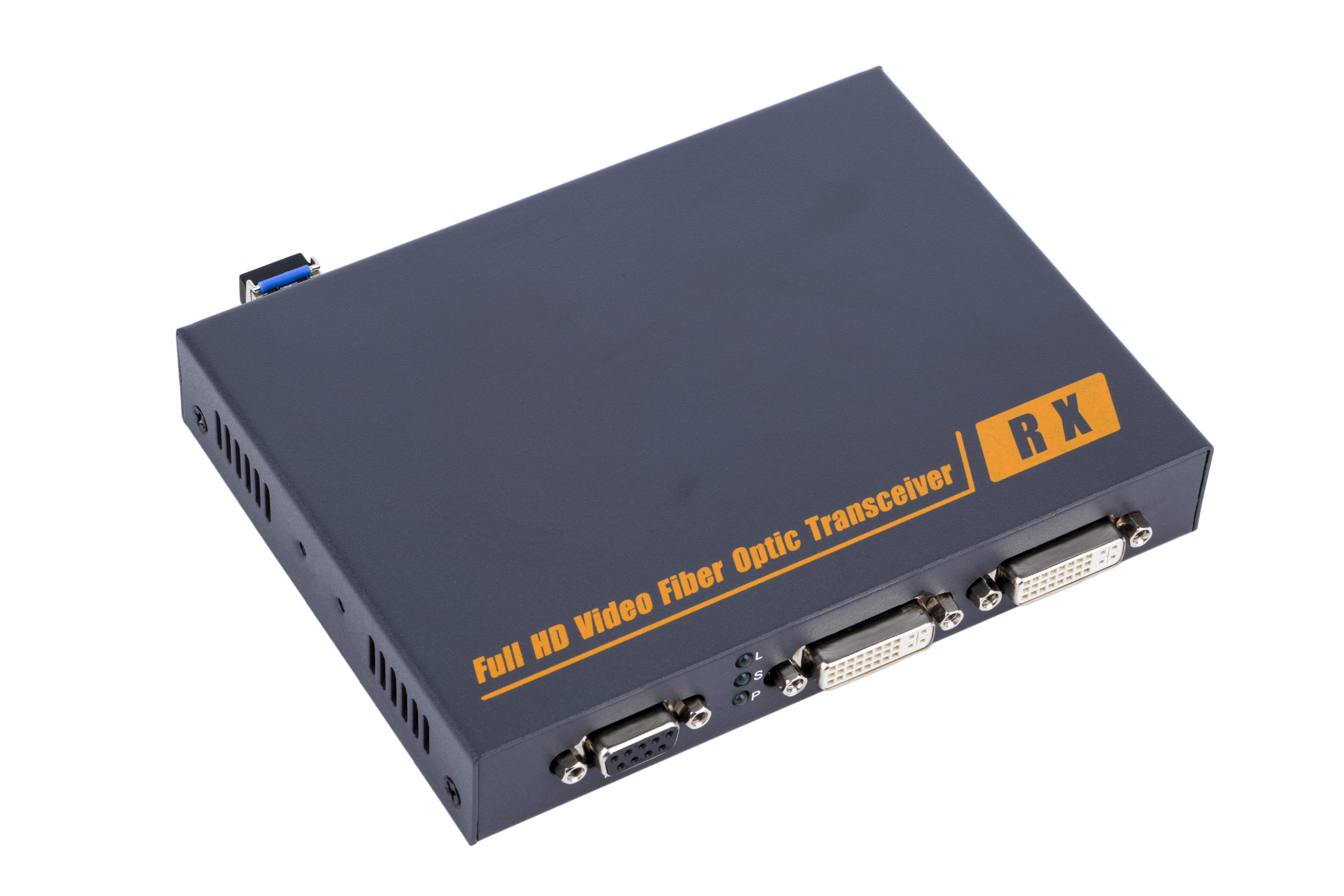

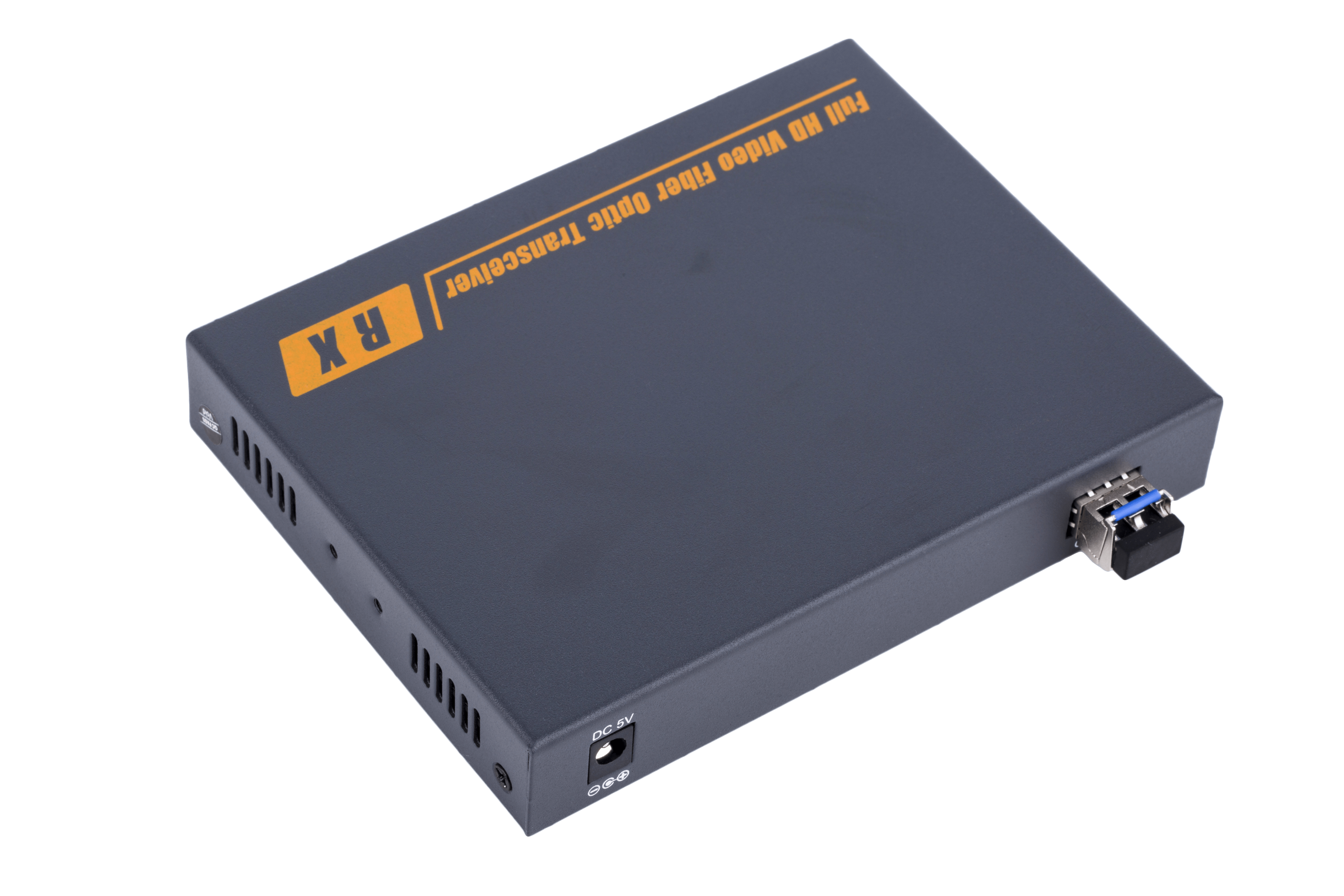

Receiver

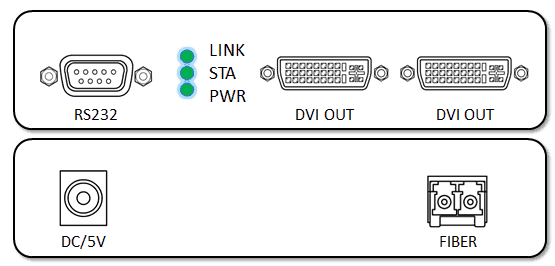

DVI & RS-232 over fiber optic extender receiver

Port name	Description
DVI IN/OUT	DVI signal input/output
EDID	EDID button, press 3 second to copy EDID of display device
RS232	DB9 socket
DC/5V	Power adapter socket
Fiber	SFP model — LC connector
LED indicator	Description
LINK	Optical fiber signal connection indicator
STA	Video signal connection indicator
PWR	System power indicator

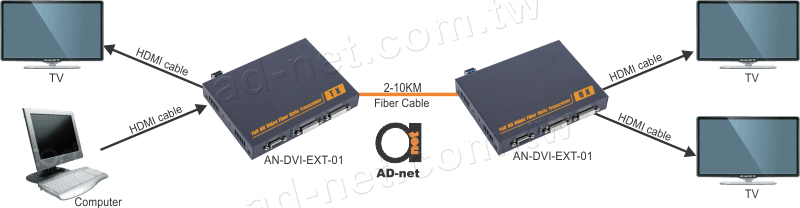

Installation

Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver,
Connect an DVI cable between the DVI input port of transmitter and the DVI output port of the video source,
Connect the DVI output port of receiver to the display device with DVI cable,
Connect the transmitter optical port to the receiver optical port using one fiber optic cable.

For this model, as you can see in this video, unit has RS-232 DB9 standard terminal, and it’s same easy and fast to install as all other units in this family.

AN-DVI-EXT-01

DVI signal input/output, EDID button, DB9 socket for RS-232, distance depends on SFP module
