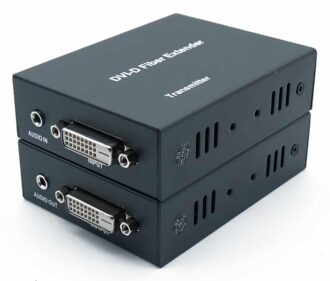

DVI to Fiber Extender / Converter with Audio Port
The DVI fiber optic extenders through a single fiber long-distance transmission of high-definition video signals, while supporting independent external audio transmission , adapt to a variety of complex applications. The device has excellent image processing and transmission capabilities to make signal transmission more smooth and stable, it is a reliable, high performance and efficient DVI signal extension.
- Lossless and uncompressed transmit DVI video and audio signals over fiber lengths up to 20 km;
- HD uncompressed video signal resolution up to 1920 * 1080P @ 60Hz;
- Support all the way forward analog stereo audio signal transmission;
- Compatible with DVI 1.0 standard
- HDCP 1.2 compliant – High bandwidth digital content protection technology;
- Can automatically identify and configure a variety of display modes;
- Built-in automatic balancing system, the picture is smooth, clear and stable;
- Built-in ESD electrostatic protection circuit, all-round protection system security;
- Easy to install, plug and play, no need to set;High compatibility, can auto-match source and display device;
- Built-in automatic adjustment system, make the image smooth, clear and stable;
- Built-in ESD protection system;
- Simple to install, plug and play;
|
Parameter |
Description |
|
|
Video
|
Standards |
DVI 1.0; HDCP 1.2 |
|
Maximum pixel clock |
165MHz; all digital |
|
|
Maximum data rate |
Bandwidth 6.75Gbps |
|
|
Support Resolution |
1920X1080 1280X720 1024X768 1280X1024 1440X900 1680X1050 800X600 |
|
|
Connector |
DVI-D |
|
|
The maximum recommended DVI input / output distance |
less than 5 meters at 1920X1080 @ 60Hz |
|
|
Impedance |
100Ω |
|
|
Audio |
Interface |
3.5mm stereo audio jack |
|
Signal direction |
directional |
|
|
Signal type |
Stereo |
|
|
Optical fiber |
Interface |
LC interface |
|
Fiber Type |
Single mode |
|
|
Wavelength single mode |
1310nm |
|
|
Interface bandwidth |
1.25Gbps |
|
|
Recommended maximum transmission distance |
at 1920X1080 @ 60Hz, OM3 multimode fiber: less than 300M Single-mode fiber: 2km |
|
|
Other |
Power supply |
adapter: DC 5-12V |
|
maximum power consumption |
MAX 6W |
|
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
63*93*25mm |
|
|
The warranty |
1 year free warranty |
|

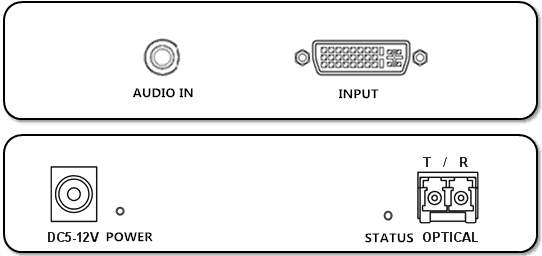

Transmitter:

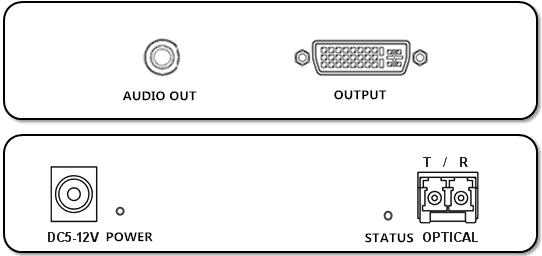

Receiver:

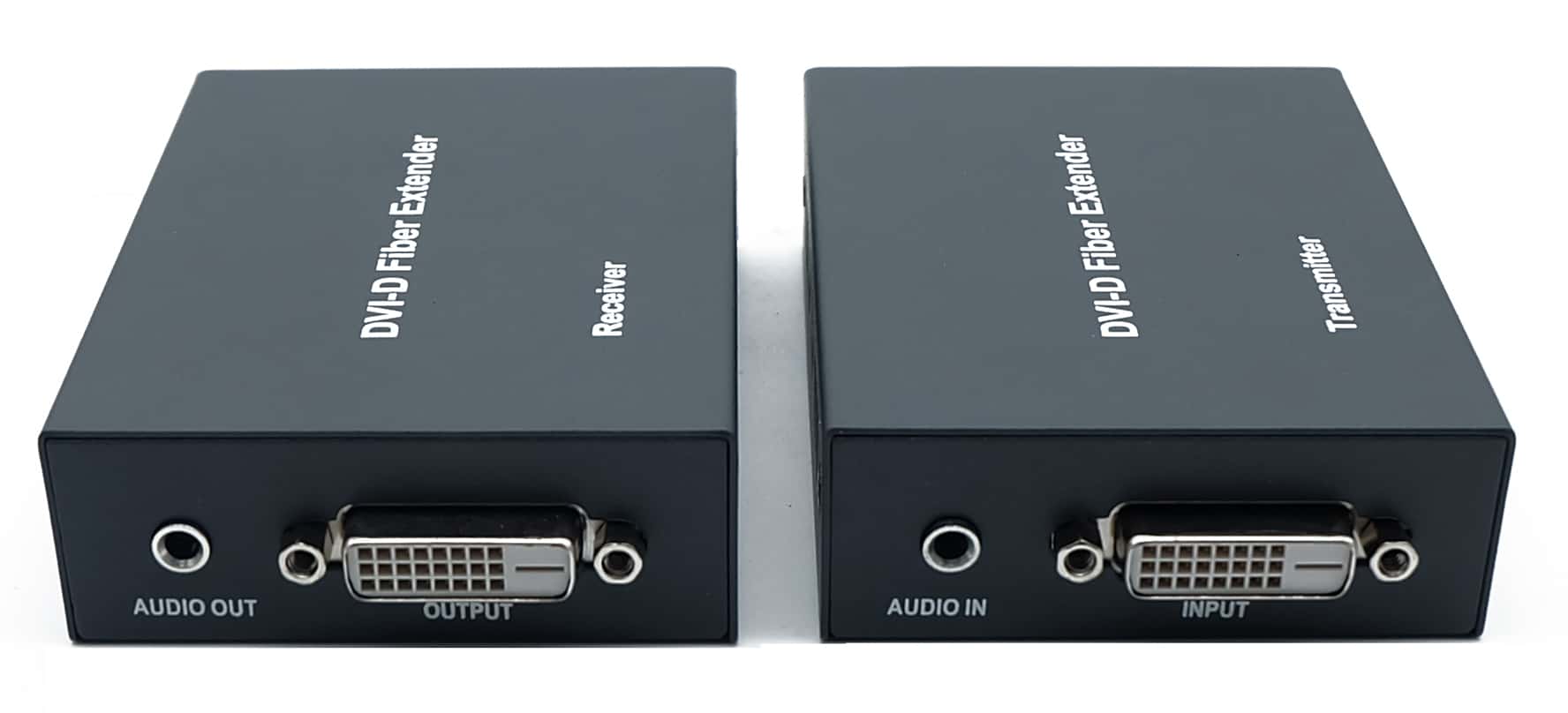

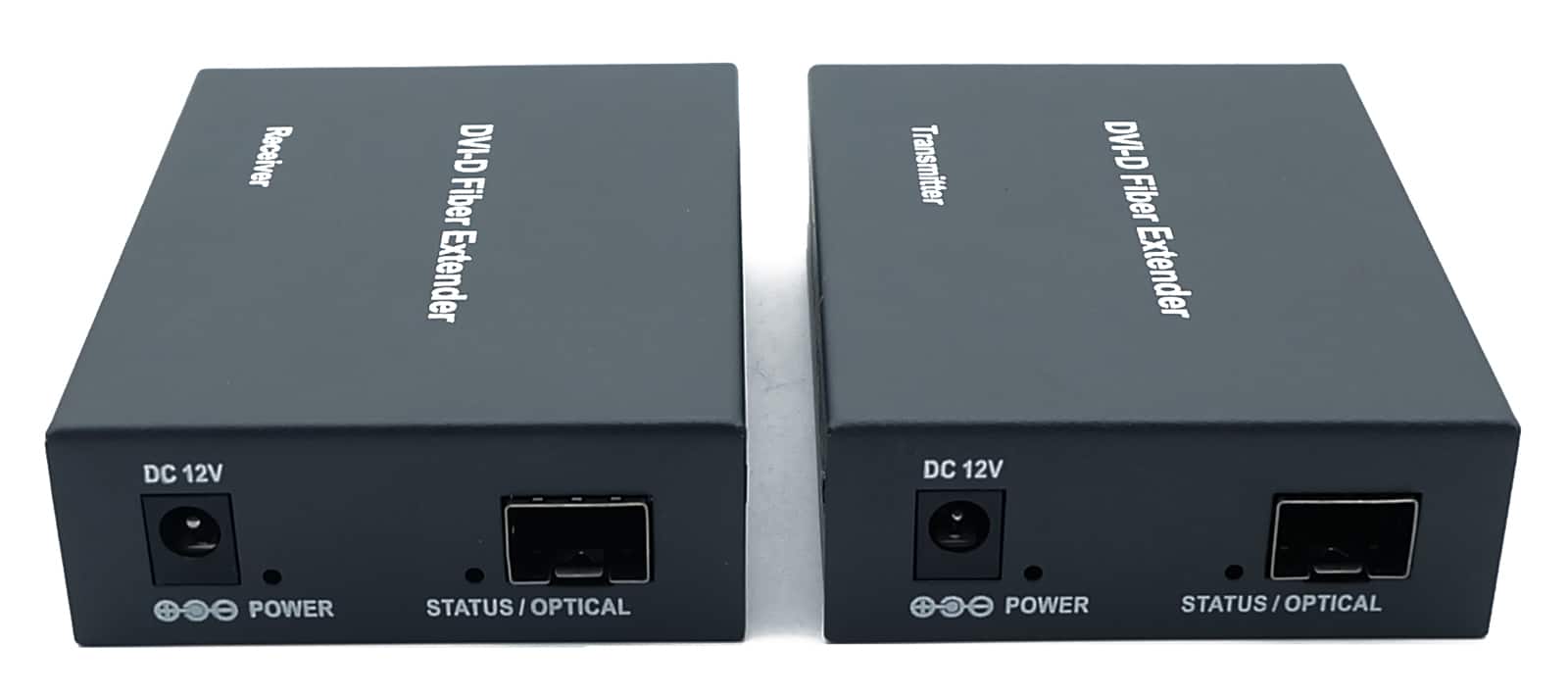

Port Description
|
Port name |
Description |
|
INPUT/OUTPUT |
DVI signal input / output |
|
AUDIO IN/OUT |
Stereo audio input / output |
|
DC5-12V |
Power adapter input |
|
OPTICAL |
SFP optical module access, LC interface (T: send, R: receive) |
|
LED indicator |
Description |
|
PWR |
Video lock signal indicator (On: locked, off: unlocked) |
|
STA |
Power indicator (light: normal power, off: no power input) |

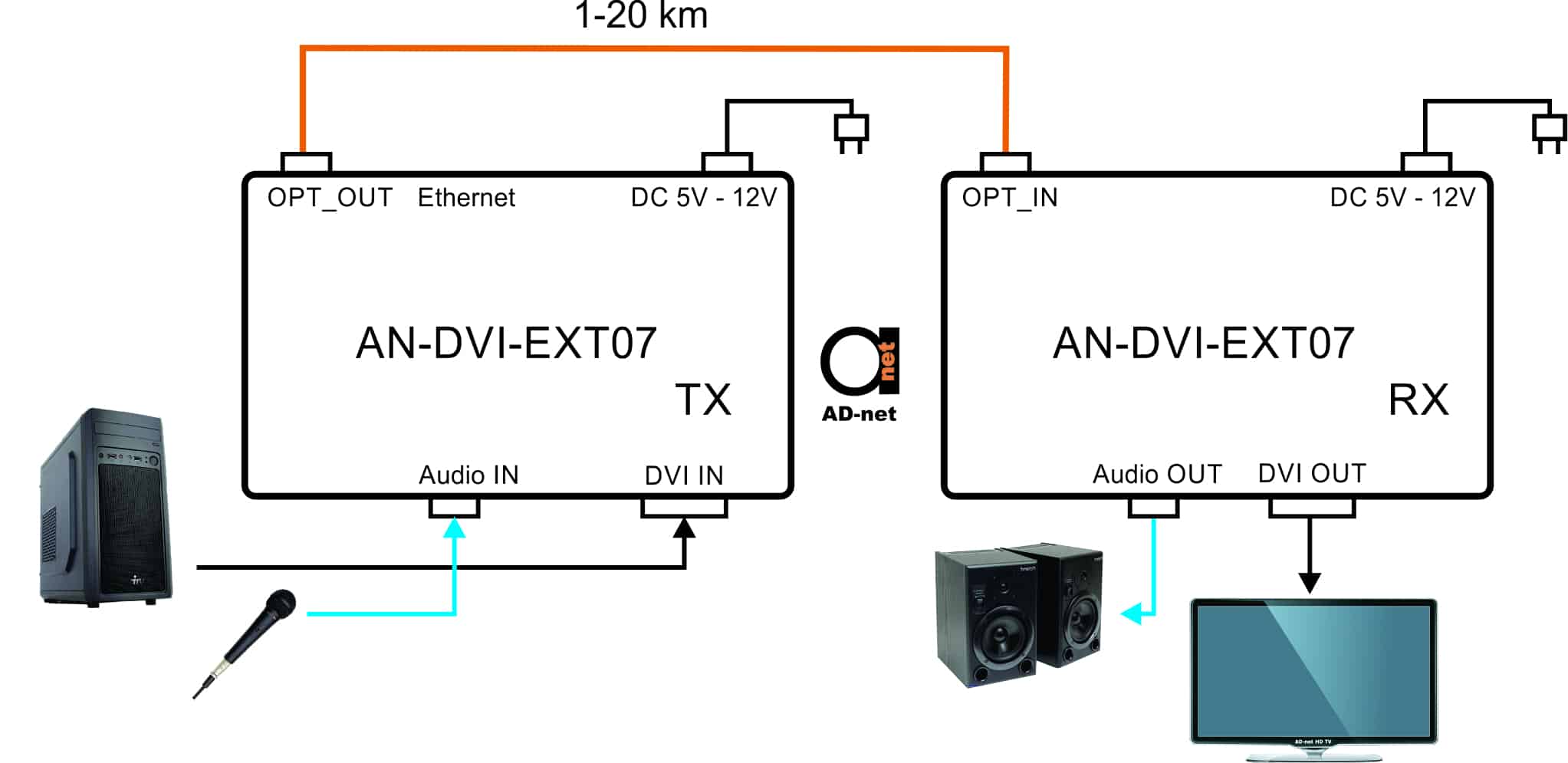

Installation
- The DVI signal source connected to the DVI optical transmitter,
- The stereo audio access DVI Optical transmitter,
- DVI Optical receiver connected to the display device (such as high-definition television, mosaic screen, etc.)
- The DVI optical receiver output audio access audio equipment,
- The LC interface fiber optic cable to connect the optical interface of the sending end and the receiving end,
- The sender and receiver are connected to the power, when the light is normal, the system is operating normally.
| AN-DVI-EXT07 | DVI over fiber extender set with audio port, MM & SM versions, distance depends on fiber transceiver |
Description
The DVI fiber optic extenders through a single fiber long-distance transmission of high-definition video signals, while supporting independent external audio transmission , adapt to a variety of complex applications. The device has excellent image processing and transmission capabilities to make signal transmission more smooth and stable, it is a reliable, high performance and efficient DVI signal extension.
