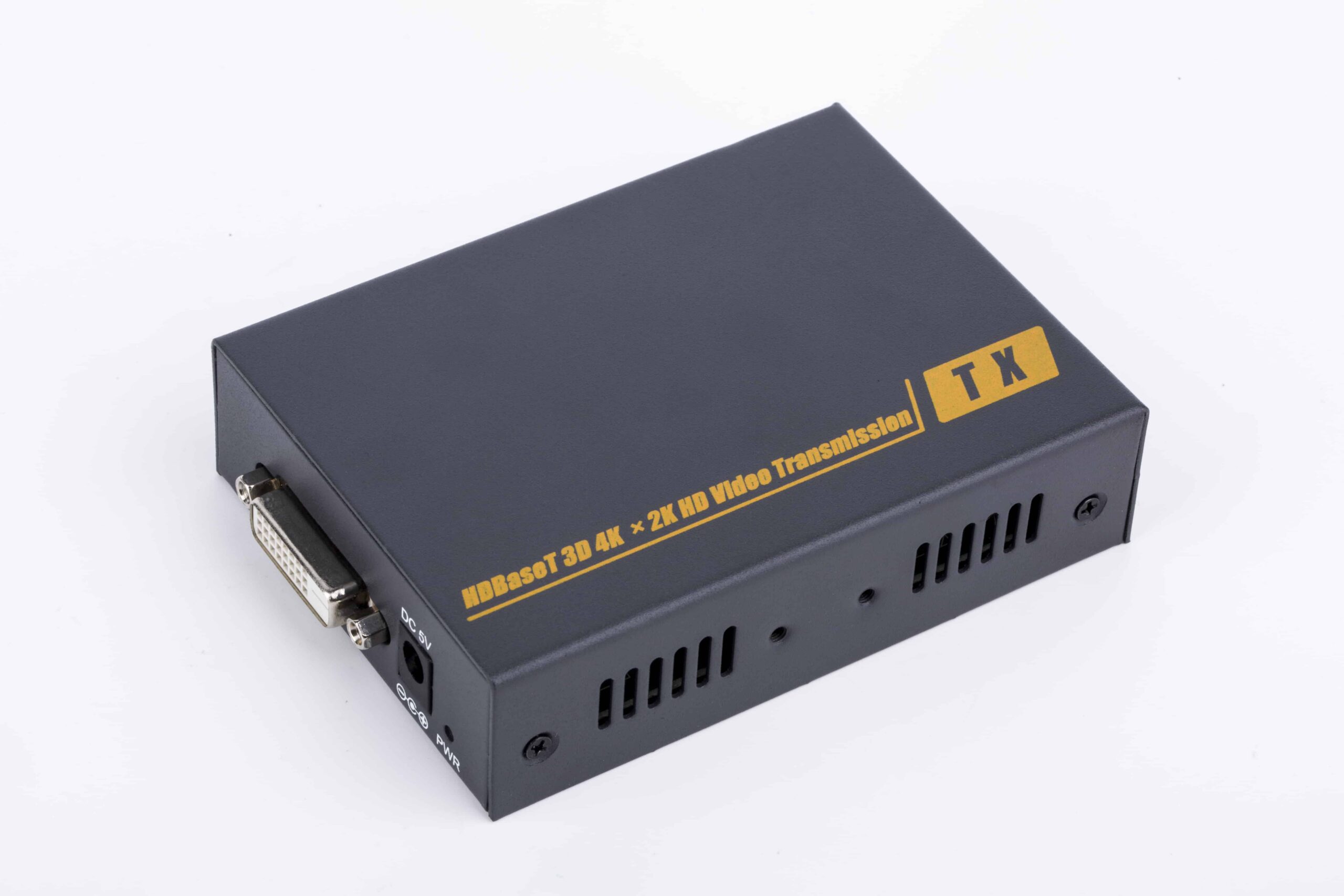

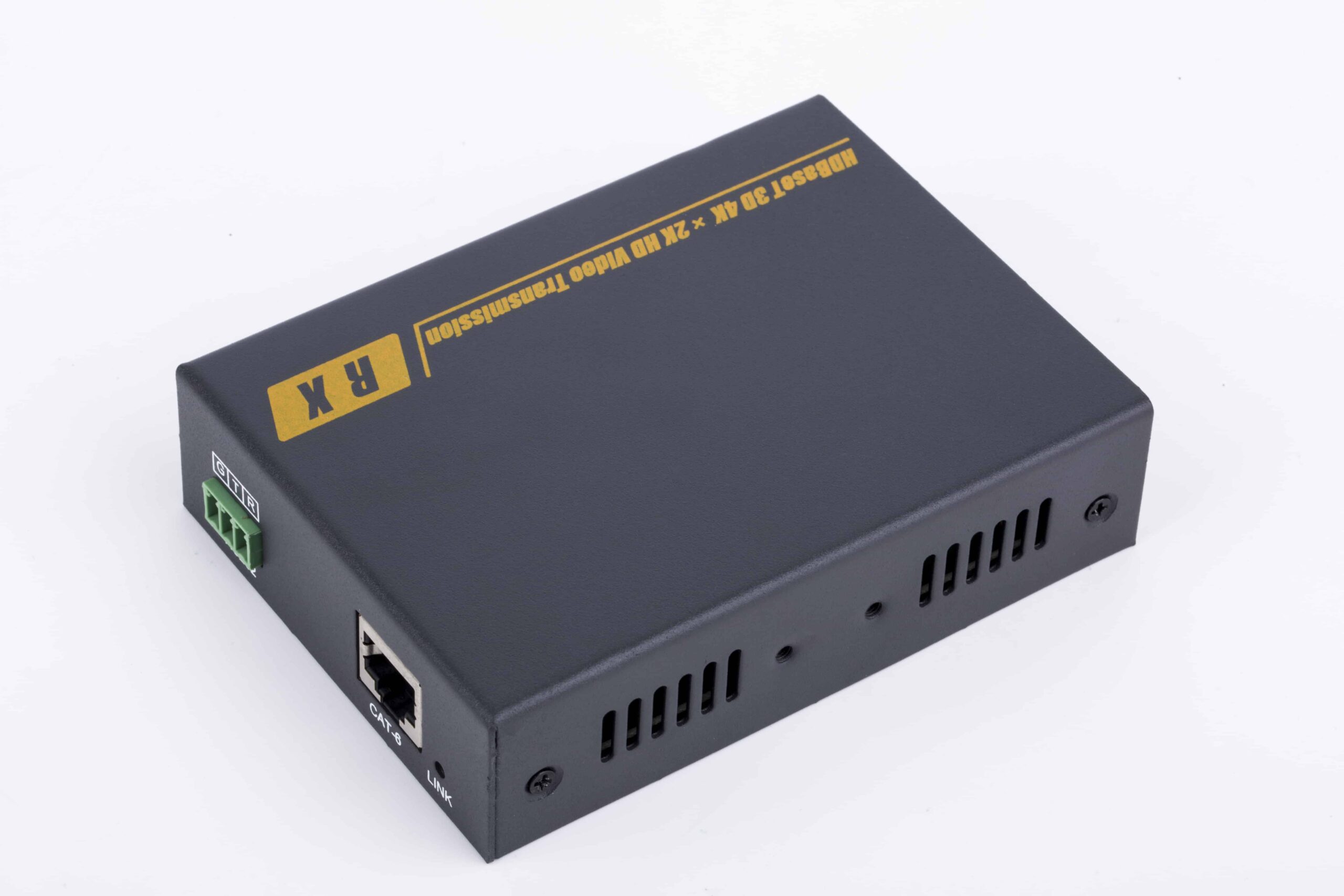

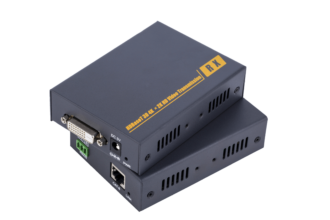

DVI over Cat6 extender with HDBaseT support and RS-232 port

The AN-DVI-UTP-EXT01 extender provides extension of DVI signals long distances over a single CAT6 cable, it supports high resolution up to 4K*2K, RS232 signal transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Transmits DVI video signals up to 100m over a single CAT6 cable;
Support video resolution up to 1920*1080P@60Hz and 4K*2K;
Support HDBaseT technology;
Support RS232 signal bidirectional transmission, baud rate self-adaptive;
Support POC power supply; only power supply to RX;
Compliance with DVI 1.0 and HDCP 1.2 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;

Parameter		Description
Video	Standards	DVI 1.0; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	10.2Gbps
	Resolution	1920X1080P@60Hz、4K*2K
	Connector	DVI-D
	Impedance	100Ω
RS232	Interface	Industrial terminal
	Signal direction	Bidirectional
	Baud rate	Self-adaptive, Max：115200bps
	Data bits	8
HDbaseT	Interface	RJ45
HDbaseT	Transmission distance	1080P: CAT6—100m 4K*2K: CAT6—70m
Other	Power supply	The power adapter: DC 12V/2A
	Power dissipation	MAX 15W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	947125mm
	The warranty	1 year free warranty

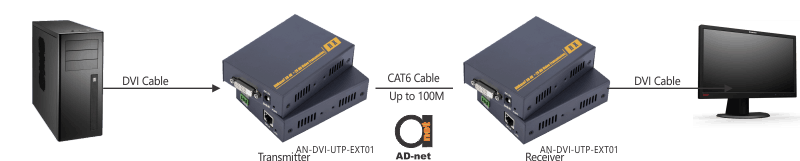

Connect an DVI cable between the DVI input port of transmitter and the DVI output port of the video source,
Connect the DVI output port of receiver to the display device with DVI cable,
Connect the transmitter HDbaseT port to the receiver HDbaseT port using a single CAT6 cable.
Connect the provided DC/12V power supplies to the power socket of the receiver,

It takes less than a minute to install them if you have UTP cables and HDMI/RS-232 ports ready.
