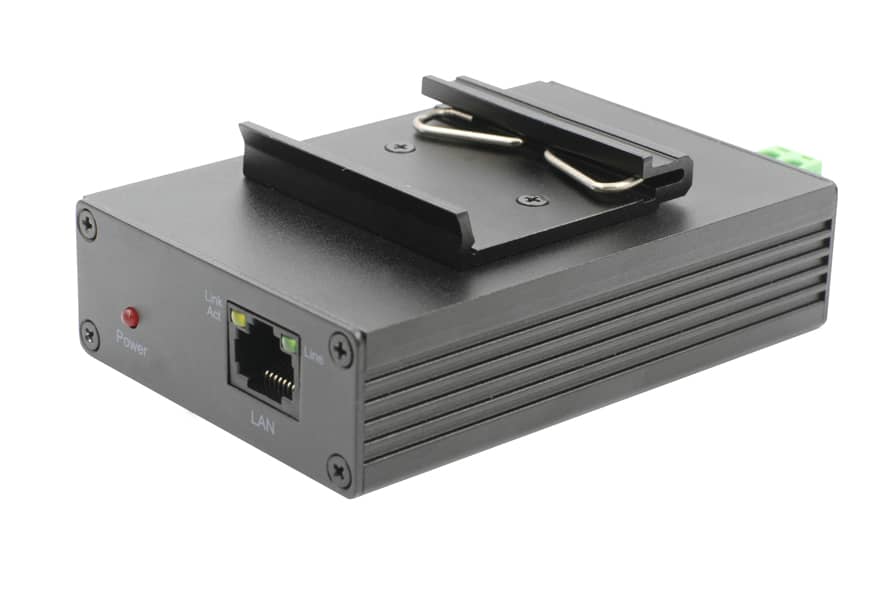

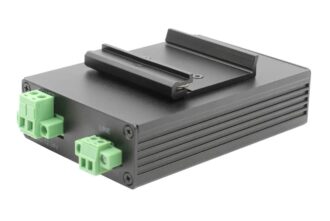

DIN-rail Mounted 2-wire Ethernet Extender up to 1000 m

AN-LAN-EXT-ENH-D is a DIN-Rail Mount Ethernet Extender, it allows 10/100 BaseT Ethernet to be transmitted using any 2-wire cable up to 1000 meters with maximum physical bandwidth up to 200Mbit/s

Transmission distance up to 1,000m
Duplex network, maximum physical bandwidth up to 200Mbps
35mm guide rail type installation, Wide input voltage range(12~24VDC)
Plug and play, transparent transmission, no adjustment and no need to change the upper software
Low power consumption, communication channel dynamic adjustment and high performance error correction coding technology
Any 2-wire cables can be used to transmit high-speed network data signal
Support point to point and point to multi-point connection
Support Qos data package optimization transmission
Support network multicast technology
After offline restore network by itself

Category		Description
Power	Available Voltage Range	12～24VDC±15%
Power	Power Consumption	≤2W / PC
Transmission / Rate	Standard Compliance	IEEE1901, IEEE802.3
	Up down agreement	CSMA/CA
	Physical speed	200Mbps
	Encryption way	128-bit AES Encryption
Reliability	MTBF	＞30000 hours
Product Physical Characteristic	Dimensions (L × W × H)	98mm×66.5mm×25mm
	Material	Aluminum
	Net weight	175g/PC
Operating Environment	Working Temperature	-20℃～60℃
Operating Environment	Storage Humidity	＜95% Non-condensation

Cables Type and Network Data Rate

The graph below shows AN-LAN-EXT-ENH-D transmission distance and network data rate. The data differs from the cables types. When you use this device, please choose the suitable cables in line with your demands.

123123

The above data for TCP throughput, is the measured data in the actual environment. The maximum physical layer data is 200Mbps. For coaxial cable transmission, performance is more stable, but it also affected by the cable and terminal matching methods. The above tests are all finished in the field test.

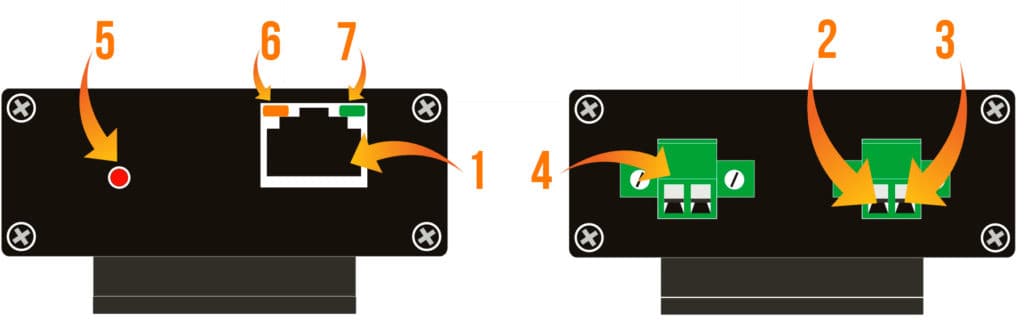

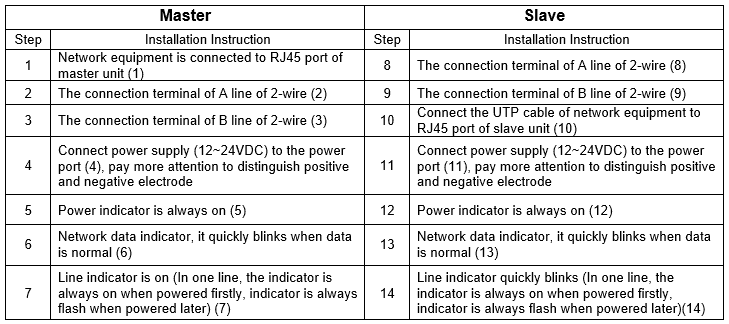

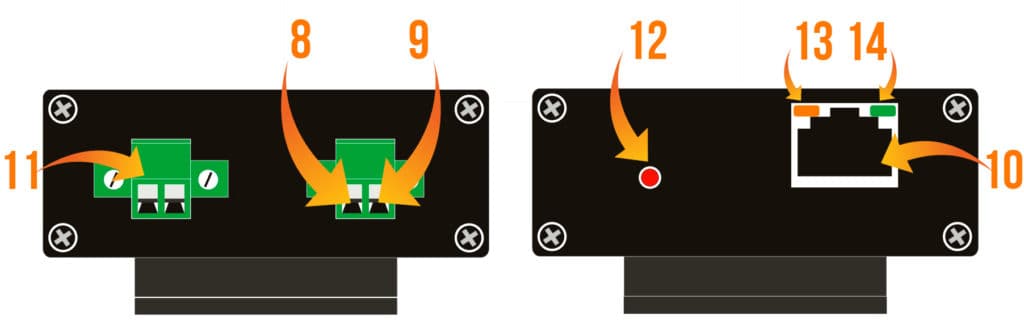

Installation Instructions

capture

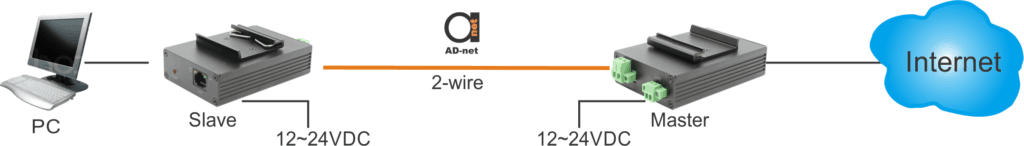

Installation Diagram

scheme1

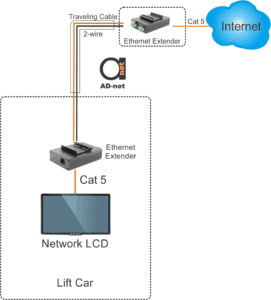

Network LCD Display Installation Diagram

3cheme2

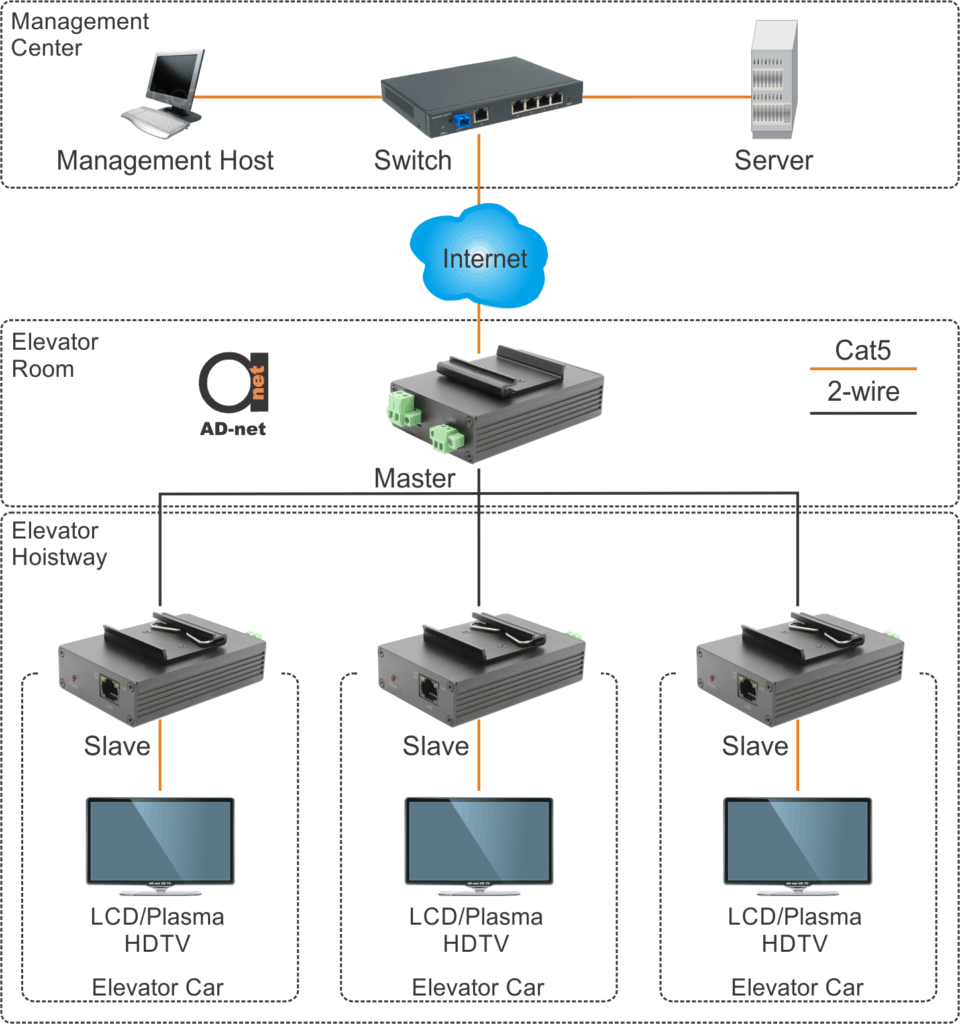

Multiple LCD Screen Display Installation Diagram

scheme2

Description

AN-LAN-EXT-ENH-D is a DIN-Rail Mounting Ethernet Extender, it allows 10/100 BaseT Ethernet to be transmitted using any 2-wire cable. This device contains the Master unit and Slave unit, which supports point to point and point to multi-point network transmission. The Maximum Transmission can reach up to 1,000m, the Maximum physical bandwidth can reach up to 200Mbps.

Now this device has been widely used for Elevator IP camera and Network Multi-media Screen Display network data signal transmission. This Ethernet Extender has the strong anti-interference ability and can effectively restrain elevator frequency conversion motor interferences and other various interferences inside the elevator. Meanwhile, this transmission solution also can save about 30% cost than optical fiber.

Now this device has been widely used for network extension system, network security, network information publishing system, network renovation and expansion systems, railway, urban traffic, mining and telecommunication, etc.
