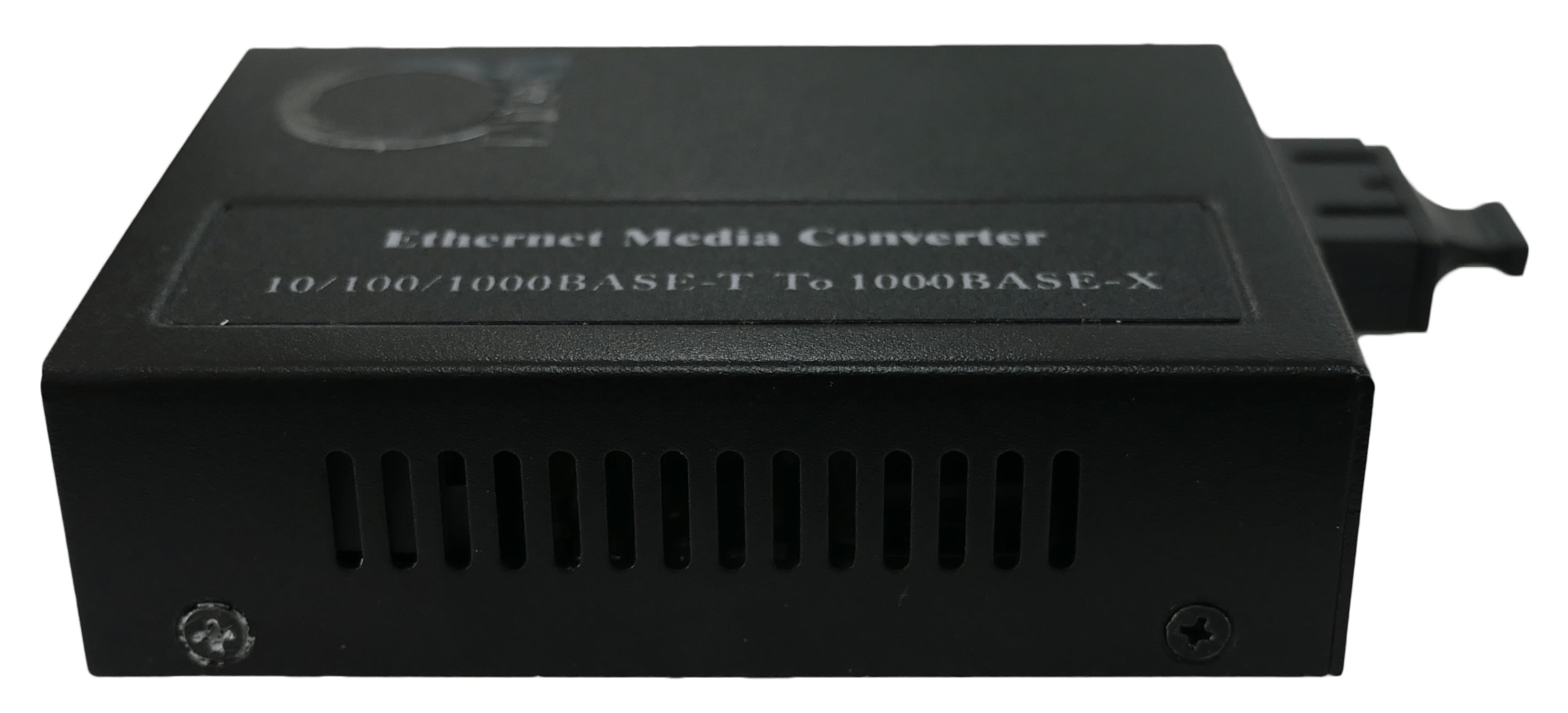

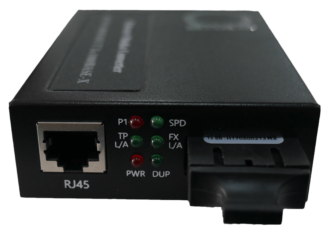

Compact Size Internal Power Supply 10/100/1000Base-T UTP to 1000Base-X fiber media converter

The 10/100/1000Base-T to 1000Base-X ethernet media converter allows two types of network segment to be connected easily. This product supports IEEE802.3 10Base-T /100Base-TX /1000Base-T /1000Base-X protocols. Each converter is combined with one fiber port and two or one RJ45 ports. This product supports various types of power supply including internal 100-240V AC/DC converter and external 5V/6V/12V/24V/48V DC power supply or rechargeable battery set.

10/100/1000Base-T UTP to 1000Base-X fiber media convertion
Choice of SC, FC, LC, BiDi or other connectors for singlemode and multimode optical fiber
Choice of two or one 10Base-T / 100Base-TX / 1000Base-T RJ45 ports
Two RJ45 ports are isolated from each other in default configuration (be suitable for two RI45 ports version)
Supports auto MDI-MDIX function
Supports internal 100-240V AC/DC converter and 5V/6V/12V/24V/48V external DC power supply or rechargeable battery set

Data Rates:

10/100/1000Mbps (10/100/1000Base-T)

1000Mbps (1000Base-X)

Input Power Requirements:

AC 100-240V 50/60Hz

DC 48V (36V-56V)

DC 24V (18V-36V)

DC 12V (9V-18V)

DC 6V (4.5V-9V)

DC 5V (4.75V-5.5V)

Environmental Conditions:

Operating temperature 0℃ to 45℃

Cooling free air convection

Storage temperature -20℃ to +60℃

Operating Humidity 90% max, non-condensing

Mechanical Specifications:

Case Material Iron

Case Color Black

Net Weight 200g approx. / unit

Dimensions 71(W) x 26(H) x 94(L) (mm)

Do not include transceiver length

Connectors:

AC Inlet IEC-320 C6

DC Inlet DC470-2.0

LAN Shielded RJ-45

Fiber see ordering information

In this video we are showing that these converters are not just compact sized to fit smallest enclosures and space restrictions you might encounter, but also are fully inter-hookable to each other and standard!

AN-UM-AS-SMC-IN-XX	10/100/1000m media converter with one SFP slot ,internal power,without SFP module
AN-UMGSM-AS-IN-XX-YY	Gigabit Ethernet 10/100/1000Mbps Media Converter SC (Single Mode), internal power
AN-UMG-AS-MM-IN-XX	Gigabit Ethernet 10/100/1000Mbps Media Converter 2 Km (1310 nm) SC (Multimode)
AN-UMG130-AS-XX-YY-IN	- XX Choose different type of power supply AC AC 100-240V 50/60Hz DC48 48V (36V-56V) DC24 24V (18V-36V) DC12 12V (9V-18V) DC6 6V (4.5V-9V) DC5 5V (4.75V-5.5V) - YY - choose distance in n km, such as 20, 40, 60, 80, 100, 120 km
AN-UMG150-AS-XX-YY-IN	- XX Choose different type of power supply AC AC 100-240V 50/60Hz DC48 48V (36V-56V) DC24 24V (18V-36V) DC12 12V (9V-18V) DC6 6V (4.5V-9V) DC5 5V (4.75V-5.5V) - YY - choose distance in n km, such as 20, 40, 60, 80, 100, 120 km

Description

Additional information

Gigabit 10/100/1000 Autosensing	Any
Internal Power Supply	Any
