Cascading (Multicast) 2 IN 8 OUT balanced audio over fiber Fiber Optical Transmitter Set

Cascade 2 IN 8 OUT balanced audio over fiber series support 2 channel balanced audio 16-bit digitally encoded broadcast quality balanced audio（left and right channels）over one multi-mode or single-mode optical fiber, and split to 8 channel balanced audio（4 left and 4 right channels） . One transmitter can connect multiple receivers by cascade connection. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST, SC or LC optical connectors is optional.

Optical:

Wavelength	1310nm&1470nm~1610nm
Output Power	-9~ -3dBm / -5~0dBm
Optic fiber	50/125u multimode，62.5/125u multimode，9/125u single mode
Rx sensitivity	-25dBm
Optical connector	FC、ST、SC 、LC(optional)
Distance	0~500M (MM) / 0~20KM (SM)

Balanced Audio:

Number of Channels	2 IN 8 OUT
Input Connector	XLR（female）
Output Connector	XLR（male）
Input / Output Impedance	10K Ohm
Input capacitance LINE inputs	10 pF
Max input/output voltage	1Vp-p
Frequency Response	20 Hz～24kHz @±3dB
Sample Rates From	48kHz
SNR	> 80dB

Electrical & Mechanical

TX:

Input Power Requirements:	DC 5V@2A
Power Adapter:	AC 90V~240V
Power Consumption:	< 5W
Stand-Alone Dimensions:	168mm × 154mm × 45mm

RX:

Power Adapter:	AC 90V~240V
Power Consumption:	< 8W
Installation	19’’ 1U rack-mount chassis
Shipping Weight:	(include Transmitter & Receiver ) 7kg

Environmental:

Operating Temperature:	-20°C ~ +75°C
Storage Temperature:	-40°C ~ +85°C
Relative Humidity:	0% ~ 95% (non-condensing)
MTBF:	>100,000 hours

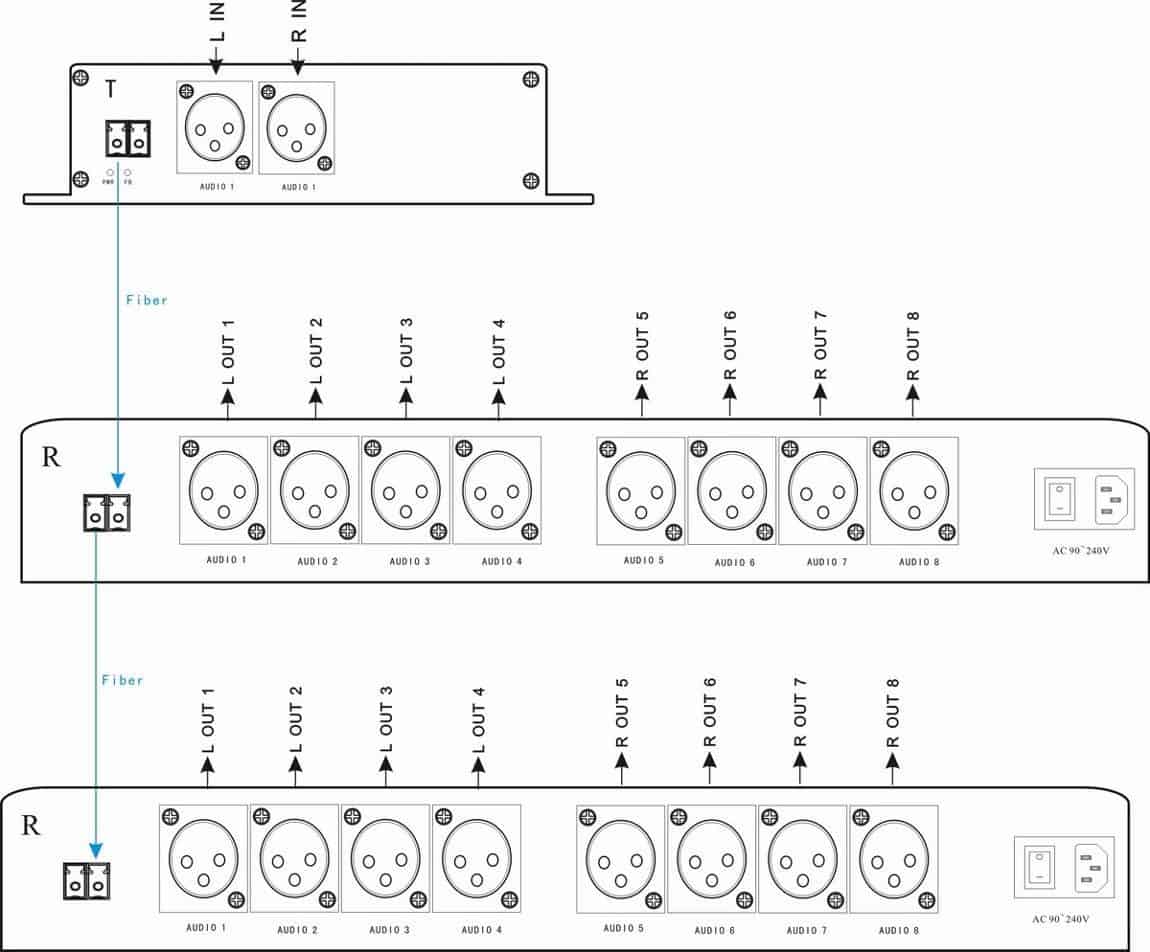

Audio Connection Diagram:

AN-DV-XLR-2IN-8OUT

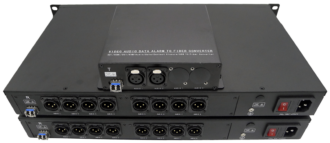

2 IN 8 OUT balanced audio over fiber Fiber Optical Transmitter Set, Single or Multimode mode, various distances available upon request

Description

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.
