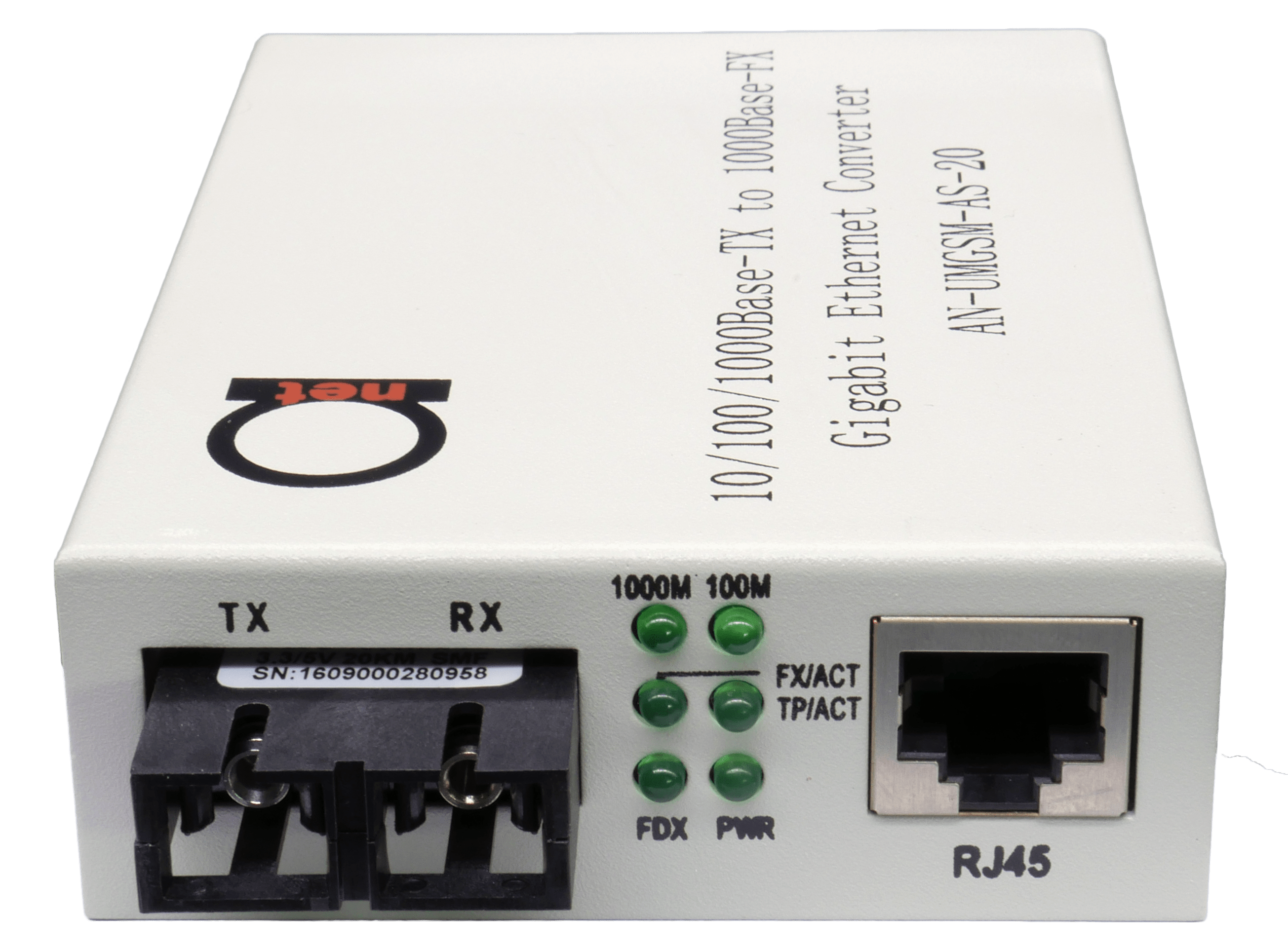

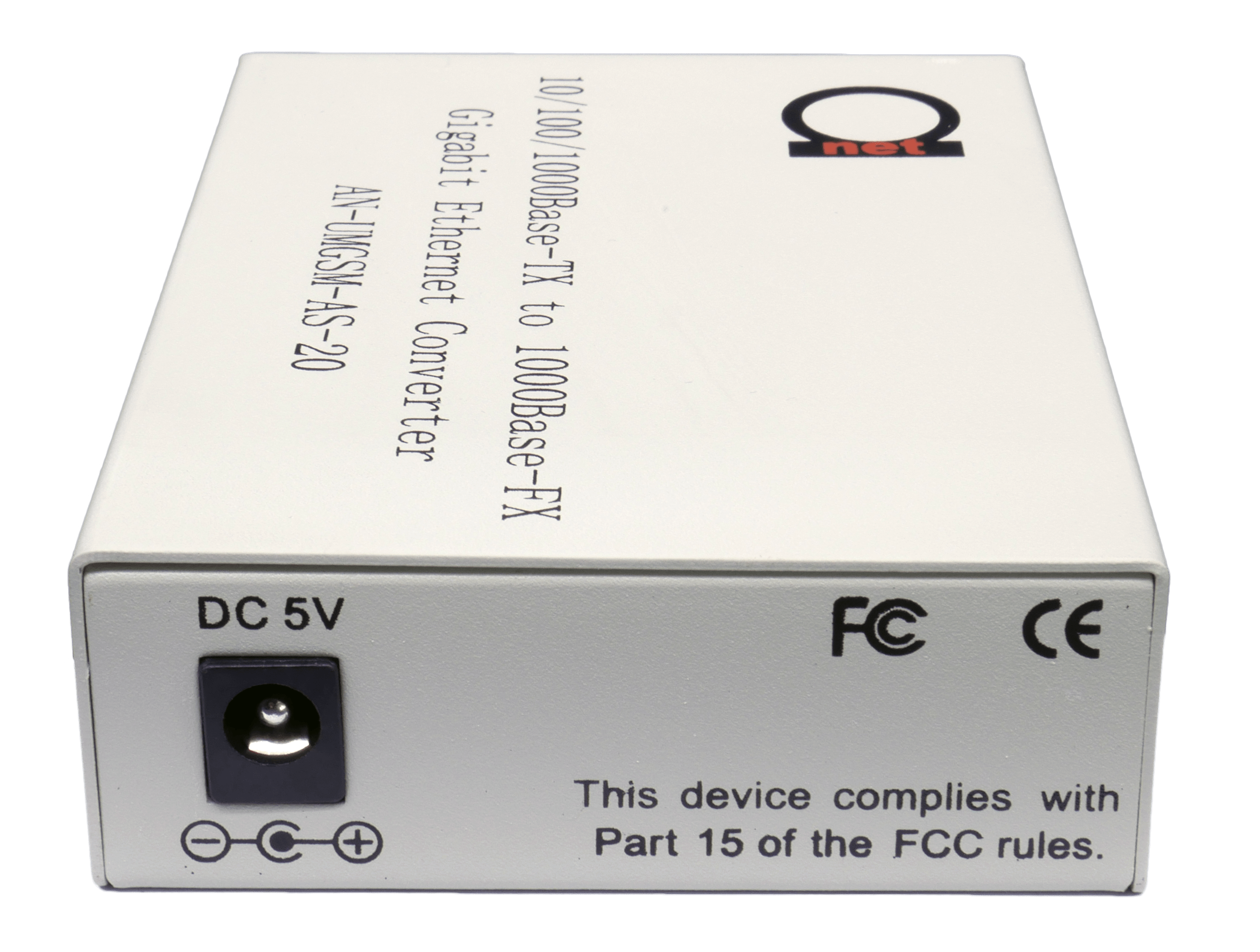

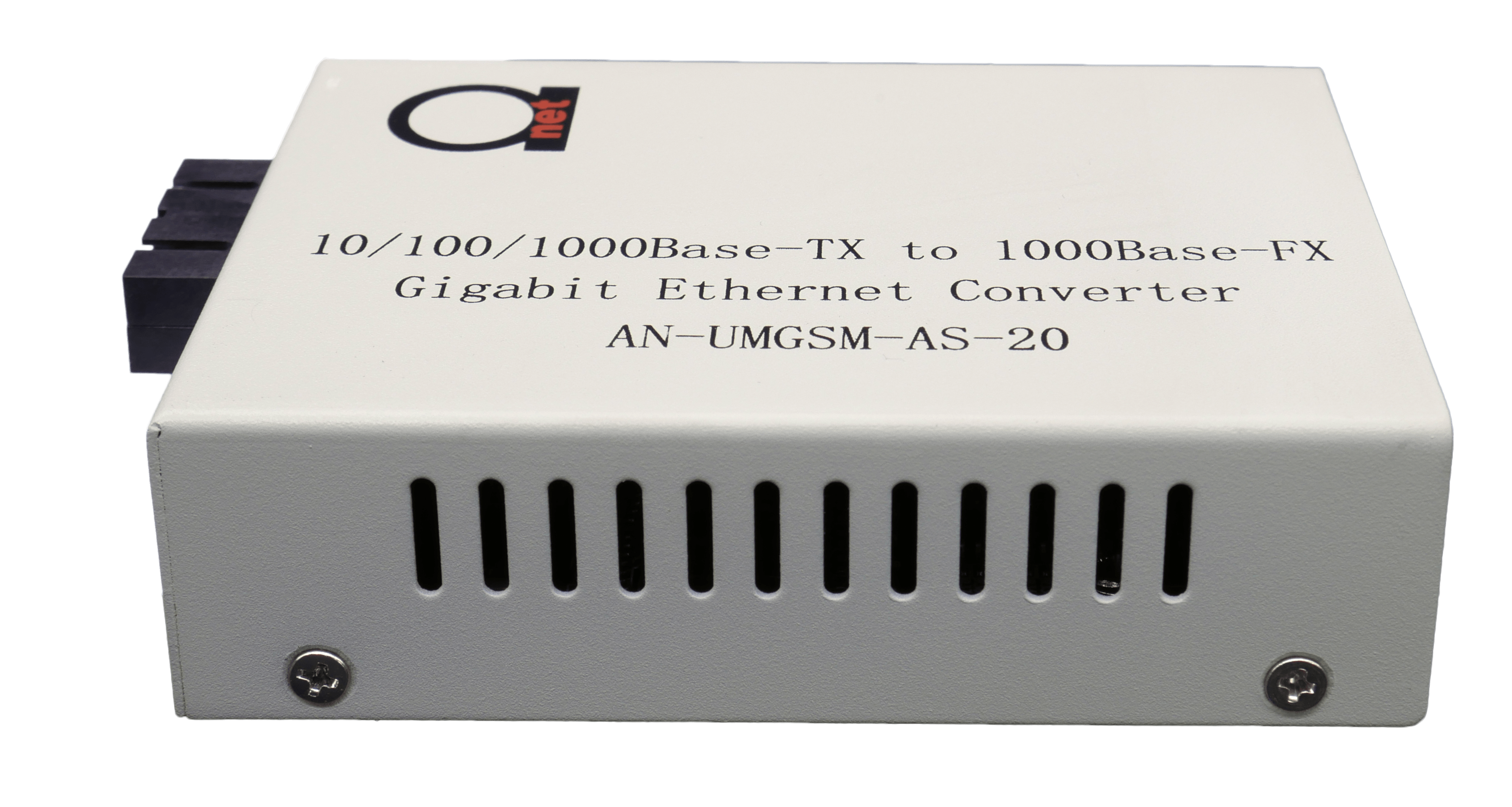

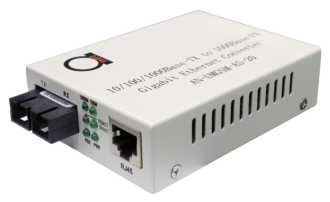

Autosensing 10/100/1000 to Fiber converter
AN-UMGSM-AS series media converters are special edition gigabit ethernet optical media converters, where autosensing feature - 10/100/1000 Mbit/s is necessary
- Compliant with IEEE 1000Base-T and 1000Base-LX
- One 10/100/1000Base-T RJ-45 port autosensing featured!
- One 1000Base-LX/SX Port w/ SC/ST-Type Connector
- Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
- Wall-Mountable, pluggable in universal chassis, or desktop
- Available in SingleFiber WDM versions – 1310/1550 nm wavelenghts used
- DIP switch allows LFP (Link Loss Feature) on/off
- DIP switch allows turn on/off Jumbo Frame support
- Configurable Store/Forward modes
- On/Off setting for Pass through mode
- Smart pass through, Modified cut through modes set by dip switches
- Auto Negotiation MDI / MDI-X
Standarts: IEEE802.3z/ab 1000Base-T 1000Base-SX/LX
LED Indicators: FX LINK, FX FDX, TP LINK, TP FDX, ACT, POWER
Data rate: 2000Mbps full duplex
TP: 1000 FDX with NWAY auto-negotiation
Power supply: 100 to 240VAC 50 to 60Hz
Input power: 2A +5V
Dimensions: 70.5mm(L)X94mm(W)X26.5mm(H)
Environment: Relative humidity; 5% to 90%
Operating temperature: 0 to 60
Storage temperature: -20 to 70
Quick Setup Tutorial Video:
| DIP—Bit Number | Switch Status | Function Descriptions |
| 1 | ON | LFP function enabled |
| OFF | LFP function disabled | |
| 3/2 | OFF/OFF | Store and forward mode |
| OFF/ON | Modified cut through mode | |
| ON/OFF | Smart pass through mode | |
| ON/ON | Pass through mode | |
| 4 | ON | Center MC |
| OFF | Terminal MC |
It’s worth to add, that you are NOT limited here with SC connectors for this model, and ordering options also gives you ST type, like we test in this video below:
Now, what if you want LC type connector? As you can see in next video, that is also possible, however, in this case you will need SFP slot converter with 1.25G fiber transceiver:
| AN-UMG-AS-MM-850 | Gigabit Ethernet 10/100/1000Mbps Media Converter 500m (850 nm) SC (Multimode) |
|
| AN-UMG-AS-MM-1310 | Gigabit Ethernet 10/100/1000Mbps Media Converter 2 Km (1310 nm) SC (Multimode) |
|
| AN-UMGSM-AS-10 | Gigabit Ethernet 10/100/1000Mbps Media Converter 10 km SC (Single Mode) |
|
| AN-UMGSM-AS-20 | Gigabit Ethernet 10/100/1000Mbps Media Converter 20km SC (Single Mode) |
|
| AN-UMGSM-AS-40 | Gigabit Ethernet 10/100/1000Mbps Media Converter 40km SC (Single Mode) |
|
| AN-UMGSM-AS-60 | Gigabit Ethernet 10/100/1000Mbps Media Converter 60km SC (Single Mode) |
|
| AN-UMGSM-AS-80 | Gigabit Ethernet 10/100/1000Mbps Media Converter 80km SC (Single Mode) |
|
| AN-UMG130-AS-10 | Gigabit Ethernet 10/100/1000Mbps Media Converter 10 km SC (Single Mode Single Fiber WDM, Tx = 1310 nm) |
|
| AN-UMG150-AS-10 | Gigabit Ethernet 10/100/1000Mbps Media Converter 10 km SC (Single Mode Single Fiber WDM, Tx = 1550 nm) |
|
| AN-UMG130-AS-20 | Gigabit Ethernet 10/100/1000Mbps Media Converter 20 km SC (Single Mode Single Fiber WDM, Tx = 1310 nm) |
|
| AN-UMG150-AS-20 | Gigabit Ethernet 10/100/1000Mbps Media Converter 20 km SC (Single Mode Single Fiber WDM, Tx = 1550 nm) |
|
| AN-UMG130-AS-40 | Gigabit Ethernet 10/100/1000Mbps Media Converter 40 km SC (Single Mode Single Fiber WDM, Tx = 1310 nm) |
|
| AN-UMG150-AS-40 | Gigabit Ethernet 10/100/1000Mbps Media Converter 40 km SC (Single Mode Single Fiber WDM, Tx = 1550 nm) |
|
| AN-UMG-AS-MM-850 | Gigabit Ethernet 10/100/1000Mbps Media Converter 550 m (850 nm) SC (Multimode) |
|
| ST/FC | ST FC connectors and AC/DC options are available on request |
Description
The AN-UMGSM-AS series comply with IEEE 802.3/ab Gigabit Ethernet standard. It support two types of media for network connection such as 10/100/1000 Base-T to 1000 Base SX/LX and connects these two types of segments to operate smoothly
Converter fits in AD-net media converter chassis as plug in module and can be used in standalone applications as well
AN-UMG series Fiber Media Converter transforms 1000Base-T (Copper Gigabit) media to 1000Base-SX/LX (Fiber Gigabit) media and vice versa. The 1000Base-T port supports full-duplex Gigabit connection at wire speed with RJ45 connector. The fiber Gigabit connection supports shortwave (SX) or longwave (LX) laser optic with multi-mode or single-mode SC type connector.
This converter will give your Copper Gigabit connection the ability to interface with fiber connection over a distance up to 80 km!
10/100/1000 means, AN-UMGSM-AS that media converter that converts the electrical signal of a 10/100/1000 Ethernet signal from copper to fiber. This solution will offer a low-cost integration option for network managers who want to migrate from 10/100 networks to Gigabit Ethernet. Gigabit only switches can now be connected to 10/100 networks without the need to upgrade the 10/100 side, allowing network managers to add new equipment gradually.
Additional information
| Gigabit 10/100/1000 Autosensing | Any |
|---|
