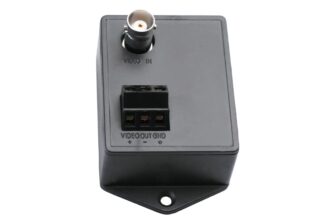

AN-V-PT/R V-series Passive video balun

PAL, NTSC, SECOM All-systems compatible passive video UTP balun

Better interference rejection than coax
UTP is less expensive than dedicated coax or fiber
Color-coded cabling
Unlimited bend radius
Physically smaller than coax
Easiest media to install and reconfigure
UTP is extremely easy to terminate
In many cases, the wire is already installed

Normal Output Level      1Vp-p/ 75Ω
Bandwidth                       Video: DC to 6 MHz.”
Differential Gain             ＜2%
Differential Phase          ＜2°
Signal-noise-ratio          60dB
Anti-interference           Built-in

Insertion Loss
Less than 1.5 dB per pair over the frequency range from DC to 6 MHz

AN-V-PT	Single Channel Passive Transmitter, Screw terminals for UTP cable, Built-in transient protection, Female BNC
AN-V-PR	Single Channel Passive Receiver, Screw terminals for UTP cable, Built-in transient protection, Female BNC

Description

PAL, NTSC, SECOM All-systems compatible;
Up to 225m(750 feet) works in conjunction with Ourten Passive Receivers, and 800m(2624 feet) with AD-net Active Receivers;
Immunity from noise interference, such as RFI and EMI;
No power supply;
Convenient installation.
