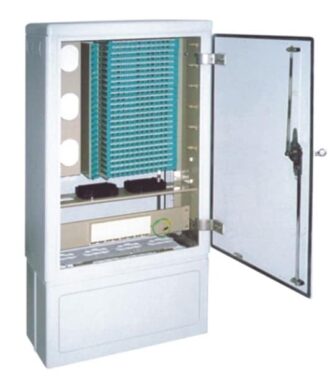

AN-G-ODS-288 fiber optical cross connection cabinet
Designed for the connection between the Optical fiber cable and the main points, and it is a kind of port device. It has the function of direct or indirect connection, coiling, storage, and dispatching on the fiber cable .
- All front access
- Modular design
- Flexible configuration and quick installation
- Suitable for ribbon and no ribbon optic fibers
- Prevents eyes from laser’s hurts and ensuring the fiber bending radius
- Suitable for inserting installation of SC, FC,ST(additional flange) adapters
- The bending radii are ensured to be more than 40mm in any place within cabinet
- A special suspension mechanism is designed to enable ground mounted, wall-mounted or aerial for users requirement
Environmental temperature -25 – +60;
Relative humidity 95%(When the temperature is below 40)
Transportation Temperature: -40 + 60
The dew-proof, the rainproof, the dustproof and thief proof are up to YD/T988-1998 standard.
Main Technical Specifications
Insertion loss1.31,1.55um LD lamp-house. SM≤0.18dB MM≤0.30dB
Return loss1.31,1.55um LD lamp-house. SM PC≥45dB UPC≥50dB APC≥60dB
Insulation resistance between the cabinet and the earthing device≥2×104MΩ500VDC
Voltage-resistance strength between the cabinet and the earthing devicenon-puncture, no arc-over under 3000VDC1min
288 cores fiber optical cross connection cabinet
144 cores fiber optical cross connection cabinet
Cabinets are made of double side wiredrawing stainless steel, with the protection grade reaching IP65.thermosetting fiberglass-reinforced polyester can endure climate changes and adverse environment. All front access.
