  • All aluminum all gold anodized 19 inch 1U frame;
  • Compatible with USB3.0 protocol, support USB camera, printer, U disk, scanner, touch screen and other devices;
  • Eight-channel USB3.0 point-to-point transmission to the remote end;
  • Uses a special technology to ensure that the USB interface of the USB3.0 optical device does not die when the optical fiber is reconnected or restarted after a power failure.
  • Speed 5Gbps, no delay, no downward support for USB2.0/USB 1.1.
  • Multi-mode fiber transmission distance 0-300m, single-mode fiber transmission 0-300M(single-mode fiber
  • The optical fiber is extended to the remote end to provide one USB port with a maximum total current of 2000mA.
  • Transmission features: USB3.0 real-time transmission;
  • Extend one remote USB3.0 port for USB HUB expansion.
  • Low RF interference/electromagnetic interference, suitable for sensitive electromagnetic environment applications;
  • Optical fiber transmission, no drive, compatible with any system, plug and play;
  • Multiple power supply options: AC220V, DC-48V/DC24V, etc.

Fiber
Optical fiber: single fiber double fiber
Optical fiber interface: LC (SFP)
Wavelength: 850nm / 1310nm multimode; 1310nm / 1550nm single mode
Transmission distance without relay: 0-300m
Typical transmit power:
1310 / 1550nm single mode: ≥-9dBm

    Multimode 850nm: -18dBm

    Multimode 1310nm: -25dBm

Acceptance sensitivity range: -28dBm ~-40dBm


0 Interface

Standard: USB3.0
Speed: 5Gbps
USB3.0 Input: One USB3.0 A bus
USB3.0 output: 1 USB3.0 Type A bus
Total current: Maximum 2000mA current


Working environment

Operating temperature:-40℃—+85℃

Storage temperature:  -40℃—+85℃

Working humidity:       0%—95% (No condensation)

MTBF:                                   >100,000 hour

Product number

AN-USB-EXT-3.0-8

Product Function Description

Transmit eight USB 3.0 signals simultaneously over the optical fiber

Business port description

1 optical fiber interface; Eight USB3.0 signals

Power supply

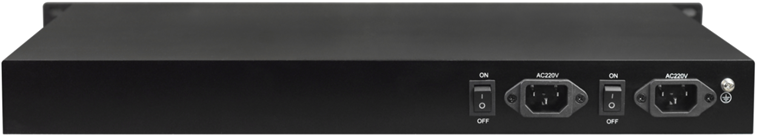

AC220V/DC-48V/DC+24V (Power optional)

Product Size

Length × width × height) 482*300*45mm 1U rack type

weight

2.25Kg /PCS

AN-USB-EXT-3.0-8

8 PORT USB 3.0 To Fiber Optic Extender set, Transmitter + Receiver, Supports USB 3.0, not backwards compatible to USD 2.0 and USB 1.1

Description

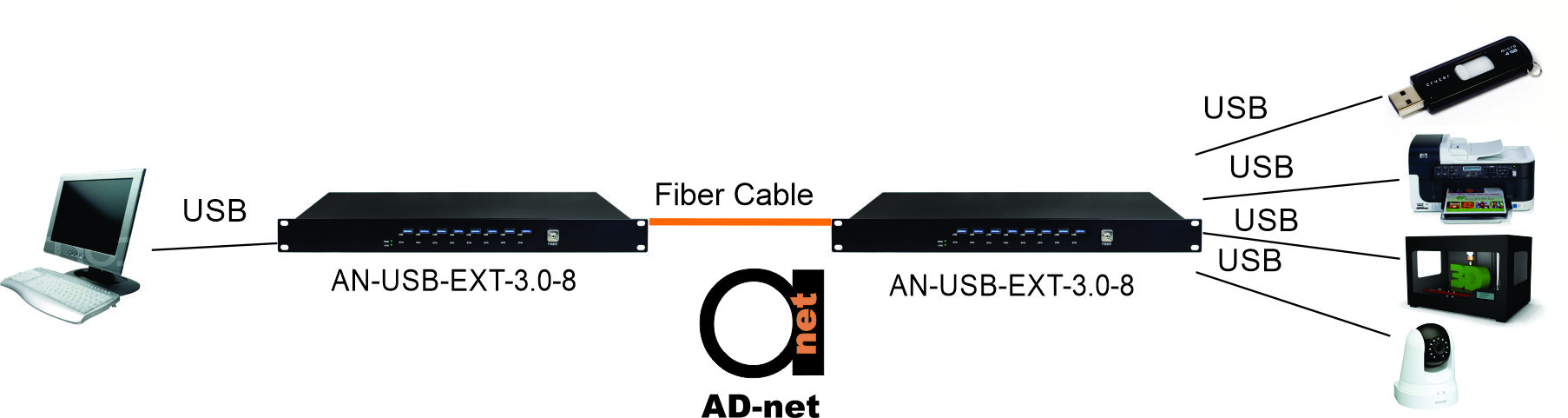

The 8-channel USB3.0 optical terminal consists of a transmitter and a receiver, and extends the main USB interface (USB3.0) to the remote end through a single-mode optical fiber. Maximum transmission distance 300m(single mode fiber). Support 3.0 type high-speed cameras, hard drives, printers, scanners, audio devices, touch screens, game controllers and other devices, do not downward support USB2.0/USB 1.1. Products can be used in video conferencing, multimedia information release, government departments, medical systems, commercial display, multimedia function hall, security monitoring, public utilities and other fields.
