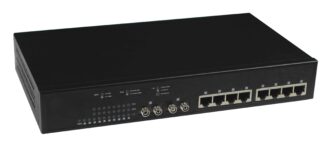

8 port PoE switch
The 8 port PoE Switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. The eight RJ45 network ports and two fiber port can be used for any 10/100M link and all of these ports can supply industry-standard IEEE 802.3af power. It can reduce equipment and installation costs by delivering data and power over existing Ethernet cables.
- IEEE 802.3af power on up to 8 ports
- Supply power to wireless access points and surveillance cameras over Cat-5 cabling
- 8 x 10/100 Mbps Ports
- 2 ports are optical fiber SC interface of 1.25Gbps
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE power up to 130W for all PoE ports
- Supports IEEE 802.3 x flow control for Full -duplex Mode and backpressure for Half-duplex Mode
- 1K entry MAC address table of the PoE Switch POE31004P with auto-learning and auto- aging
- LED indicators for monitoring power
| Technical parameter list | |
| Connector Type |
8x 10/100Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX and 2x 1.25Gbps SC Ports Single-mode optical fiber |
| Network Media | 10Base-T and 100Base-TX (≤150, Catalogue 5 cable), 100Base-FX |
| Bandwidth | 1.6Gbps |
| Address Database Size | 1K |
| MTBF | sixty thousand hours |
| Network Latency | Switch Throughput:1.19Mpps@64Bytes |
| Forwarding Mode | Store-And-Forward Architecture |
| Network Protocols | IEEE 802.3i; IEEE 802.3u; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI |
| LED Display | Power, Ethernet Data, PoE working status |
| Power Supply | External Adpater (Input:AC100-240V 50/60Hz, Output:52V 2.5A) |
| PoE Ports | 1-8 Port support PoE |
| PoE Port Power | 15.4Watts per port |
| PoE Standard | IEEE802.3af |
| PoE Feature | Automatic identification AF/AT |
| Power Consumption | 130W |
| Working Environment |
Working temperature:-20°～ 55°C , Storage temperature: -40°～ 85°C, Working Humidity: 5%～95%, non-condensing |
| Certification | FCC Class A, CE, RoHS |
| Radiation | No |
| Transmission Distance | Ethernet RJ45+POE：100M；Fiber 20KM |
| Power Supply Type | 1/2+、3/6- （End-span）；Optional order 4/5+、7/8- (Mid-span) |
| QoS | Yes |
| NMP | No |
| VLAN | No |
| Product Size | (LxWxH) 195 x 110 x 35mm, 0.6kg |
| Warranty | 3 year |
Description
The 8 port PoE Switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. The eight RJ45 network ports and two fiber port can be used for any 10/100M link and all of these ports can supply industry-standard IEEE 802.3af power. It can reduce equipment and installation costs by delivering data and power over existing Ethernet cables.
