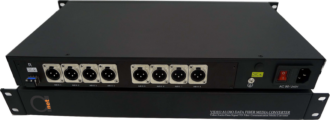

8 channels 3-pin XLR banlanced audio over fiber converter

8 ch balance audio over fiber series support 8 Channel balance audio 16-bit digitally encoded broadcast quality balance audio over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.

Opitcal:

Wavelength	1310nm&1470nm~1610nm
Output Power	-9~ -3dBm / -5~0dBm
Optic fiber	50/125u multimode，62.5/125u multimode，9/125u single mode
Rx sensitivity	-25dBm
Optical connector	FC、ST、SC (optional)
Distance	0~500M (MM) / 0~20KM/40KM/60KM/80KM (SM)

Balance Audio:

Input Impedance	10K Ohm
Input capacitance LINE inputs	10 pF
Output Impedance	10K Ohm
Max input/output voltage	1.0Vp-p
Frequency Response	20 Hz～24kHz @±3dB
Sample Rates From	48kHz
SNR	> 80dB

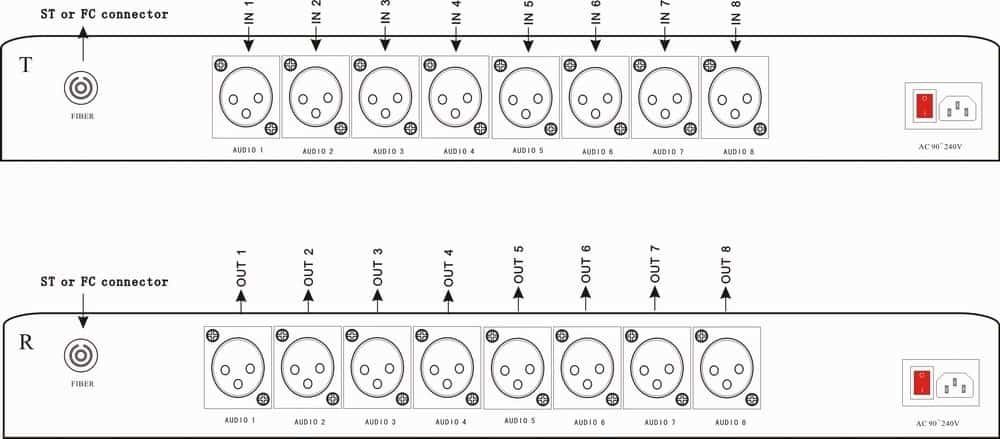

Input Connector	XLR（female）
Output Connector	XLR（male）

Electrical & Mechanical:

Power Adapter:	AC 90V~240V
Power Consumption:	< 8W
Installation	19’’ 1U rack-mount chassis
Shipping Weight:	(include Transmitter & Receiver ) 7kg

Environmental:

Operating Temperature:	-20°C ~ +75°C
Storage Temperature:	-40°C ~ +85°C
Relative Humidity:	0% ~ 95% (non-condensing)
MTBF:	>100,000 hours

AN-DV-XLR-8-SM20	8 XLR Audio Channel Single (Same) Direction over Fiber Optic Converter, Single Mode 20 km
AN-DV-XLR-8-MM500	8 XLR Audio Channel Single (Same) Direction over Fiber Optic Converter, Multi Mode 500 m
More Distance?	Check Customized Versions with Our Sales Now!

Description

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.
