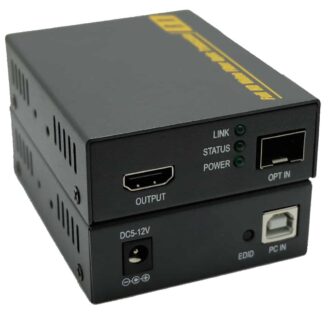

4K HDMI & USB KVM Over Fiber Optic Extender Kit

The HDMI Fiber optic extender provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 4K*2K, And at the same time support USB keyboard mouse long distance transmission function, EDID pass-thru function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Transmits HDMI video OM3 transmission 300 meter multimode dual core optical fiber;
Support keyboard and mouse signal transmission;
Support video resolution up to 3840*2160@30Hz, 1920*1200@60hz, 1920*1080P@60Hz, 3D signal;
Transmits HDMI signals up to 300 meters over OM3 fiber optic cable, also support EDID and HDCP.
Compliance with HDMI I 1.4 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;

Parameter		Description
Video	Standards	HDMI 1.4
	Maximum pixel clock	225MHz
	Maximum data rate	6.75Gbps
	Resolution range	Up to 3840*2160@30Hz
	Connector	Female HDMI type A
	Impedance	100Ω
K/M	Interface	PC: MINI-USB Keyboard And Mouse: USB-A
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Multimode dual core
	Wavelength	Multimode optical fiber 850 nm
	Interface bandwidth	10Gbps
	Transmission distance	Double OM3 fiber: 300M(Support HDCP
Other	Power supply	The power adapter: DC 5V/2A
	Power dissipation	MAX 5W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	937025mm
	The warranty	1 year free warranty

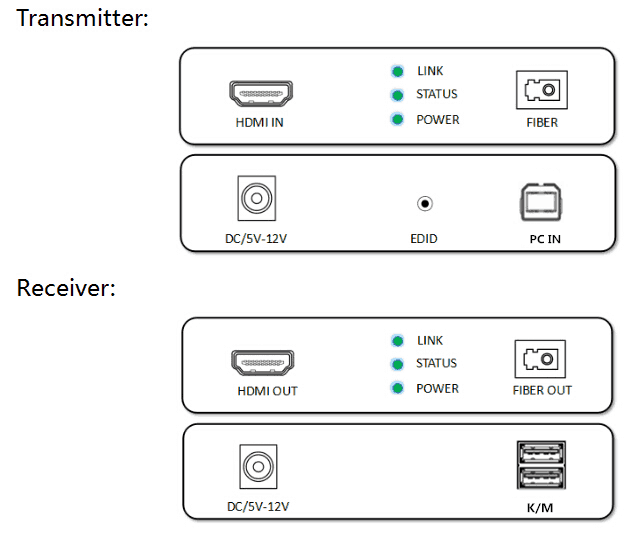

Port name	Description
HDMI IN/OUT	HDMI signal input/output
EDID	EDID Copy button, Press 3 seconds, copy EDID from HDMI IN display device to system .If HDMI IN interface no display connect, restore default EDID.
KM	PC: MINI-USB Keyboard And Mouse: USB-A
DC/5V	Power adapter socket
FIBER	SFP model — LC connector
LED indicator	Description
L	Optical fiber signal connection indicator
S	Video signal connection indicator
P	System power indicator

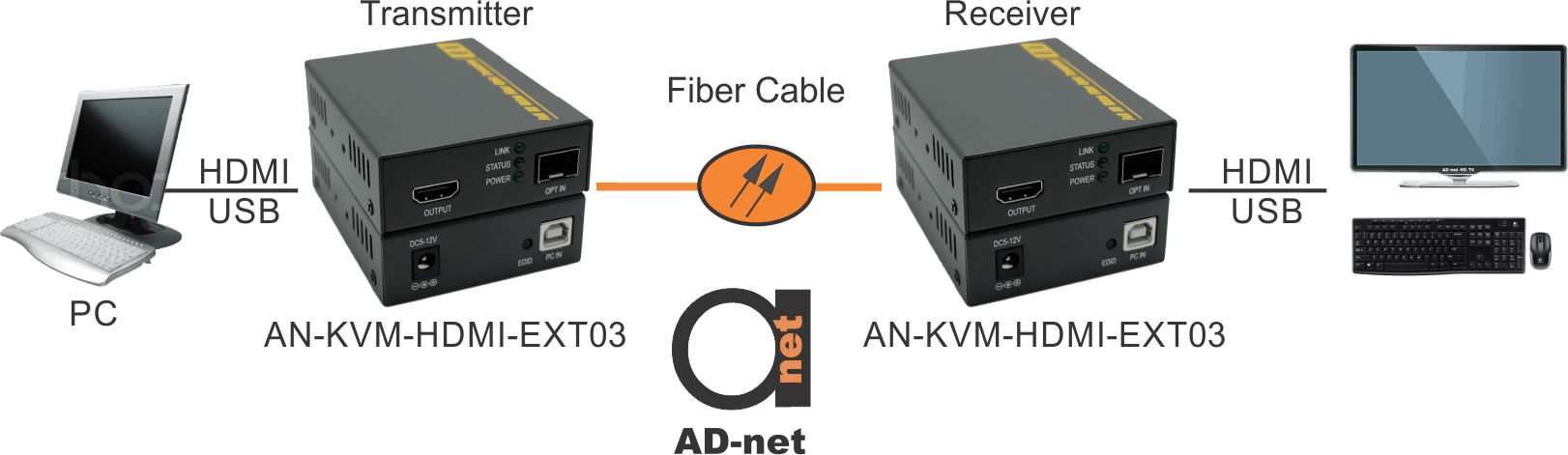

Installation:

Connect the provided DC power supplies to the power socket of the transmitter and the receiver,
Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source,
Connect the HDMI output port of receiver to the display device with HDMI cable,
Connect the transmitter optical port to the receiver optical port using one fiber optic cable.

AN-KVM-HDMI-EXT03

4K HDMI & USB KVM Over Fiber Optic Extender Kit
