4 x 10/100 Fast Ethernet + 2 FXS Phone + 1 Wifi ONU

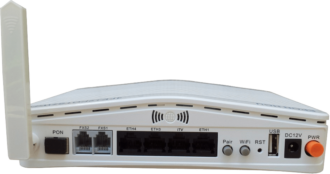

FTTH GEPON ONU AN-E-ONU-FTTH-03 has 1*SC/PC PON port, 4* Fast Ethernet Lan ports, 2* POTS Phone ports and WiFi wireless feature

Special Features

Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology.
Integrated OAM and TR069 remote configuration and maintenance function.
Support rich QinQ VLAN, DHCP Server/Relay and IGMP snooping multicast feature.
Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
Support 802.11n WiFi(2T2R) function.
Support NAT, Firewall function.
Support IPv4 and IPv6 dual stack.
Integrated line testing compliant with GR-909 on POTS.

Technical items	Descriptions
PON interface	1 EPON interface, SC single-mode/single-fiber, symmetric 1.25Gbps
Wavelength	Tx 1310nm, Rx 1490nm
Optical interface	SC/PC
RX sensitivity	< -25dBm @ 1490nm
WLAN	Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R one internal antenna and one external antenna
WLAN throughput	100Mbps @ 40users, 1518bytes, no-encryption
LAN interface	4*10/100Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors
Router throughput	Upstream: 394Mbps @ 1518bytes, Downstream: 395Mbps @ 1522bytes
POTS interface	2 FXS, RJ11 connectors
Indicators	14 indicators
DC power supply	+12V, external AC-DC power adaptor
Button	RST, Power, WiFi, WPS, Pair
Power consumption	≤ 10W
Operating condition	Operating temp: -5 ~ +55℃, Operating humidity: 10~90% (non-condensed)
Storing condition	Storing temp: -30 ~ +60℃, Storing humidity: 10~90% (non-condensed)
Dimension	205mm138mm50mm(lengthwidthheight)
Net weight	0.4Kg

AN-E-ONU-FTTH-03

GEPON ONU, 1*SC/PC PON port, 4* Fast Ethernet Lan ports, 2* POTS Phone ports and WiFi wireless feature

Description

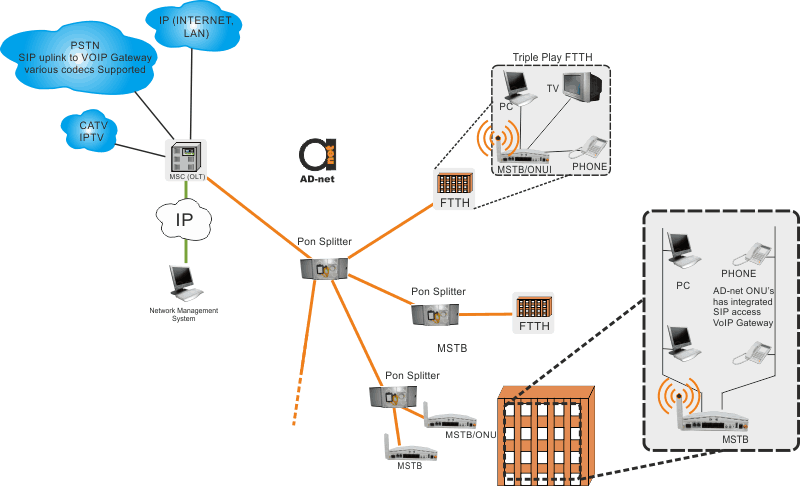

FTTH EPON ONU AN-E-ONU-FTTH-03terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. These boxes are based on the mature Gigabit EPON technology, which have high ratio of performance to price, and the technology of 802.11n WiFi (2T2R), Layer 2/3 and high quality VoIP as well. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment (V2.1 and above version) from China Telecom.

FTTH GEPON ONU AN-E-ONU-FTTH-03 has 1*SC/PC PON port, 4* fast Ethernet lan ports, 2* POTS ports and wireless available.
