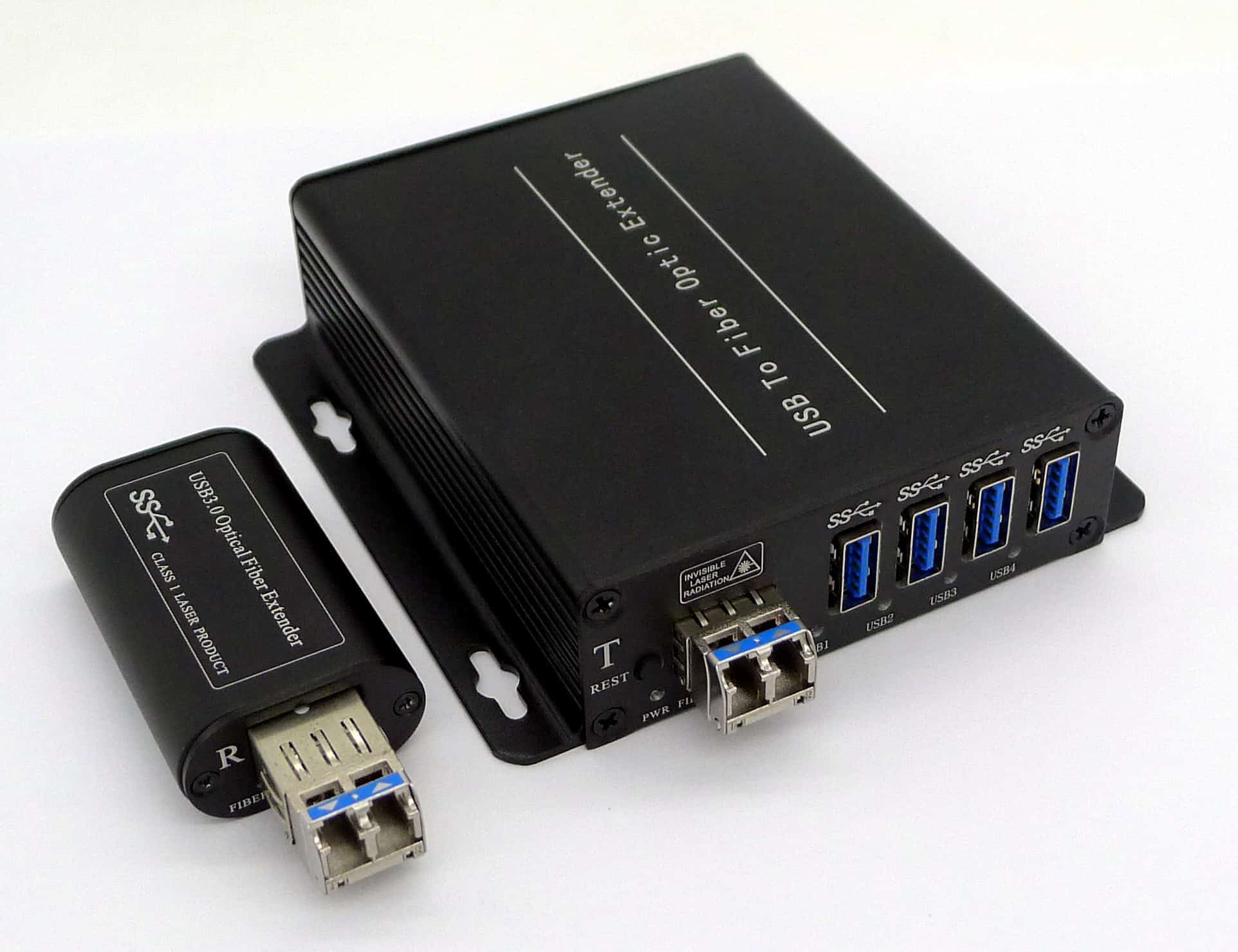

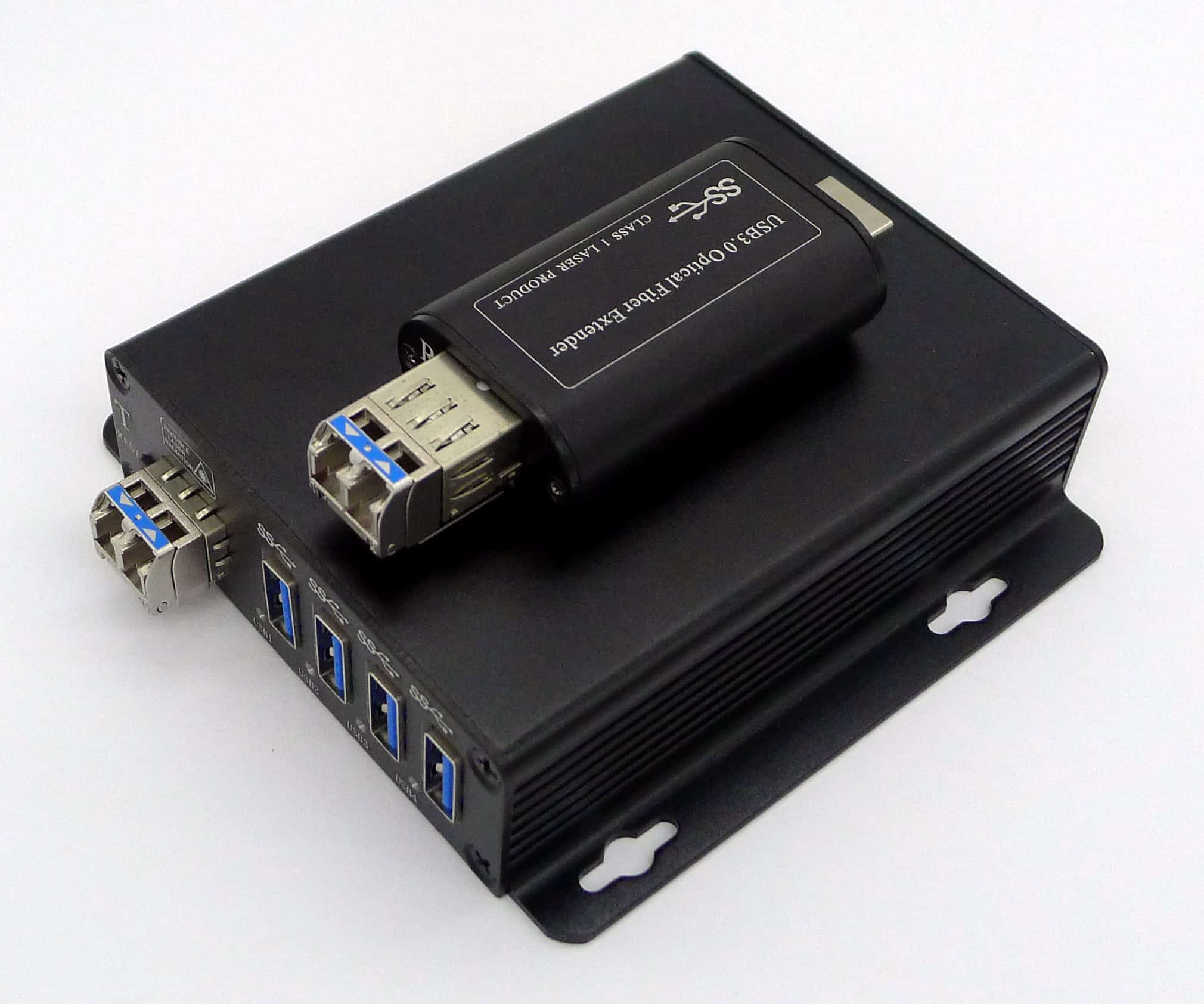

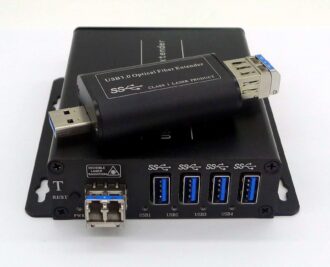

4 port USB 3.0 over Fiber Optical Extender / Hub – Kit

Max extension distance 250m (SM or MM fiber cable).
Duplex/Single LC fiber connecter, pure hardware design, no driver needed, compatible with all operation systems, support plug and play
Support USB3.0 SuperSpeed up to 5Gbps, USB 3.0 Type A Receptacle
Not backwards compatible with USB 2.0 and USB 1.1

Optical	Connector	Duplex/Single LC
Optical	Wave length	1310nm/1270/1330nm
Physical	Size (L× W ×H)	Transmitter: 104mm x104mm x28mm Receiver: 86mm x33mm x18mm
	Case	Aluminum
	Color	Black
	N.W.	0.5Kg (Transmitter + Receiver)
Power	Voltage	12V DC
	sender power consumption	<5W
	receiver power consumption	<5W
Environment	Working temperature	0℃-50℃
	Storage temperature	-40-85℃
	Humidity	0-95% (non-condensing)

AN-USB-EXT-3.0-4

4 PORT USB 3.0 To Fiber Optic Extender set, Transmitter + Receiver, Supports USB 3.0, not backwards compatible to USD 2.0 and USB 1.1

Description

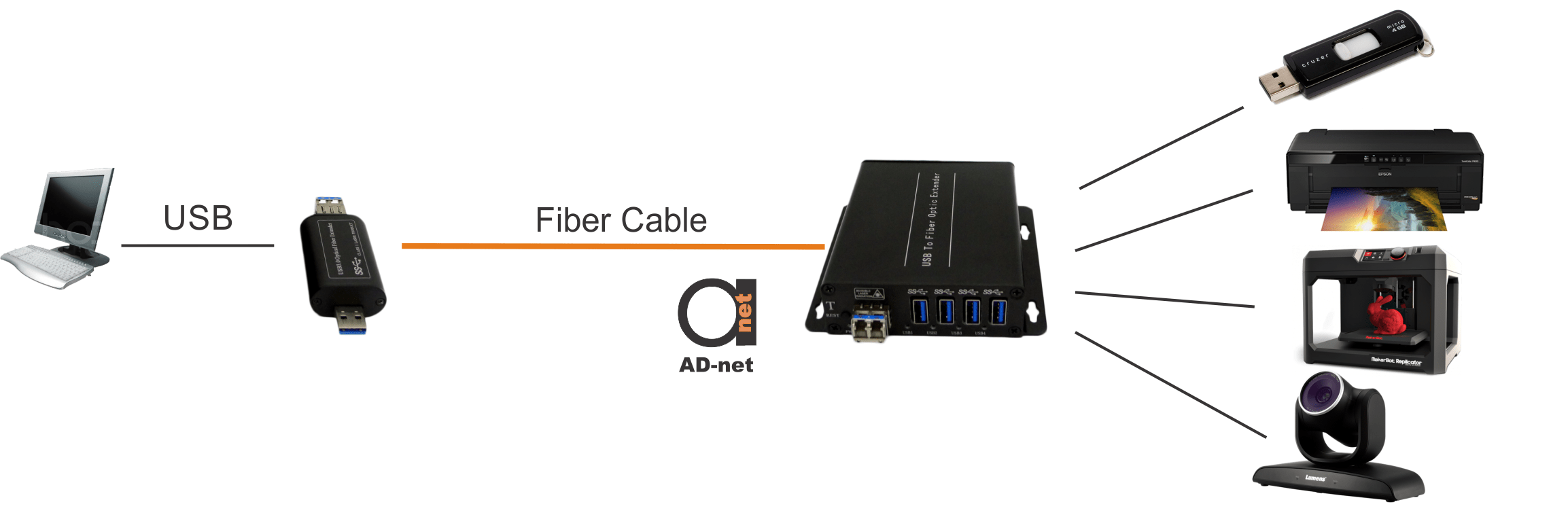

USB 3.0 To Fiber Hub, the device includes a transmitter（client-side） and a receiver（host-side）, which can extend the SuperSpeed USB3.0 to a remote location over 1or 2 core fiber cable, max distance 250m (SM or MM fiber cable), also can split 1 USB3.0 interface to 4 USB3.0 interface.
The device can extend high bandwidth USB 3.0 webcams and storage devices, be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.
